Are your old casement windows drafty, difficult to operate, or simply outdated? Replacing them can improve your home's energy efficiency, comfort, and aesthetic appeal.
In this comprehensive guide, we'll cover everything you need to know about replacement casement windows. You'll learn what casement windows are, the benefits of replacing them, and when it's time for an upgrade.
We'll also provide a step-by-step guide on how to measure, select, and install your new casement windows, along with tips for maintaining them in top condition.
Casement windows are a popular choice for many homeowners. They offer a classic look and excellent ventilation. Let's dive into the details of these versatile windows.

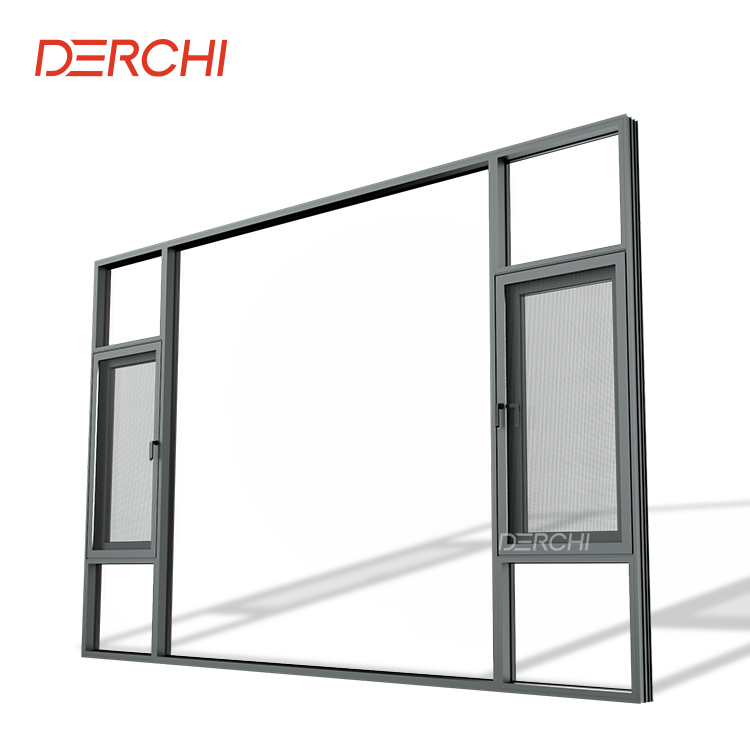

Casement windows are hinged on one side and open outward like a door. They provide a wide opening for maximum airflow. These windows are known for their tight seal when closed, making them energy-efficient.
The frame consists of the head (top), jambs (sides), and sill (bottom). It's the window's main structure.
The sash includes the glass panes and muntins (strips separating panes). It's the part that opens and closes.
● Hinges: Allow the window to swing open
● Handle/Crank: Used to open and close the window
● Locking Mechanism: Secures the window when closed
Casement windows open by turning a handle or crank. This motion extends an arm, pushing the sash outward. They typically open to a 90-degree angle.
1. Single Casement: One sash hinged on either the left or right side
2. Double/French Casement: Two sashes that meet in the middle when closed
3. Push-Out Casement: Opens by pushing the sash instead of using a crank
4. In-Swing Casement: Opens inward rather than outward
5. Top-Hung Casement: Hinged at the top and opens outward from the bottom
Type | Description |
Single Casement | One sash hinged on either the left or right side |
Double/French Casement | Two sashes that meet in the middle when closed |
Push-Out Casement | Opens by pushing the sash instead of using a crank |
In-Swing Casement | Opens inward rather than outward |
Top-Hung Casement | Hinged at the top and opens outward from the bottom |
Before you decide on replacement casement windows, it's essential to weigh their pros and cons. Let's take a closer look at what they offer and where they might fall short.
1. Excellent Ventilation and Airflow
a. Casement windows open fully, allowing maximum airflow
b. They can catch side breezes, directing fresh air into your home
2. Energy Efficiency Due to Tight Seal
a. When closed, casement windows create an airtight seal
b. This seal helps prevent drafts and improves energy efficiency
3. Versatile Design Options
a. Casement windows come in various styles and materials
b. They can complement both traditional and modern homes
4. Unobstructed Views
a. Casement windows offer a clear, uninterrupted view of the outdoors
b. They're an excellent choice for rooms with stunning vistas
5. Enhanced Security
a. Casement windows are difficult to pry open from the outside
b. They often include multi-point locking systems for added security
1. Limited Adjustability
a. Casement windows can only be opened to a certain degree
b. They may not provide as much flexibility as other window types
2. Potential Safety Concern for Homes with Young Children
a. If left open, casement windows can pose a falling risk for young children
b. It's crucial to install safety locks or window guards
3. Require More Space for Opening
a. Casement windows need clear space outside to open fully
b. They may not be suitable for areas with tight clearances or obstructions
Pros | Cons |
Excellent ventilation and airflow | Limited adjustability |
Energy efficiency due to tight seal | Potential safety concern for homes with young children |
Versatile design options | Require more space for opening |
Unobstructed views | |
Enhanced security |
Consider these advantages and disadvantages carefully when choosing replacement casement windows for your home.
Selecting the right replacement casement windows can be overwhelming. There are many factors to consider to ensure you get the best windows for your home.
● Consider the room's ventilation requirements
● Casement windows offer excellent airflow, making them ideal for rooms that need extra ventilation
● Choose windows that suit your local climate
● In colder regions, opt for windows with higher insulation properties
● For warmer areas, prioritize windows with good ventilation and UV protection
● Different window materials have varying maintenance needs
● Vinyl and fiberglass windows are low-maintenance options
● Wood windows require more upkeep, such as regular painting or staining
● Invest in windows with a long lifespan to avoid frequent replacements
● High-quality materials like fiberglass and composite can last for decades
Material | Pros | Cons |
Vinyl | Affordable, low-maintenance | Limited color options |
Wood | Classic look, good insulator | Requires regular maintenance |
Fiberglass | Durable, energy-efficient | Higher cost than vinyl |
Aluminum | Lightweight, strong | Poor insulator, can conduct heat |
Composite | Low-maintenance, rot-resistant | More expensive than other options |
● Low-E glass reduces heat transfer and UV rays
● Double-pane windows provide better insulation than single-pane
● Triple-pane windows offer the highest level of insulation and noise reduction
● Look for windows with high Energy Star ratings
● Consider the U-factor, Solar Heat Gain Coefficient (SHGC), and Air Leakage ratings
● Choose a window style that complements your home's architecture
● Consider the interior and exterior trim options
● Decide on the window's color and finish to match your home's aesthetic
By taking these factors into account, you can select the best replacement casement windows for your home.
Before you begin the process of replacing your casement windows, it's essential to prepare properly. This section will guide you through the necessary steps.
Make sure you have the following tools and materials on hand:
● Tape measure
● Level
● Hammer
● Pry bar
● Screwdriver
● Drill
● Caulking gun
● Insulation
● Shims
● Replacement casement windows
● Wear safety glasses and gloves to protect yourself from debris and sharp edges
● Use caution when handling broken glass
● Ensure your ladder is stable and secure if working at heights
Accurate measurements are crucial for a successful window replacement.
1. Measure the width at the top, middle, and bottom of the window opening
2. Measure the height at the left, center, and right of the opening
3. Measure the depth at several points to ensure a consistent fit
● Precise measurements ensure your new windows fit properly
● Ill-fitting windows can lead to drafts, leaks, and reduced energy efficiency
Material | Pros | Cons |
Vinyl | Affordable, low-maintenance | Limited color options |
Wood | Classic look, good insulator | Requires regular maintenance |
Fiberglass | Durable, energy-efficient | Higher cost than vinyl |
Aluminum | Lightweight, strong | Poor insulator, can conduct heat |
● Look for windows with Low-E glass and multiple panes
● Check for Energy Star certification
● Consider the U-factor and Solar Heat Gain Coefficient (SHGC) ratings
● Choose a style that complements your home's architecture
● Consider the window's color and finish
● Decide on the type of hardware and locking mechanisms
By properly preparing for your casement window replacement, you can ensure a smoother installation process and better results.
Now that you've prepared for your casement window replacement, it's time to dive into the installation process. Follow these steps for a successful window replacement.
1. Removing the Window Trim and Stops
a. Carefully remove the interior trim and window stops
b. Set them aside for later use or disposal
2. Detaching the Sash from the Frame
a. Locate the hinges connecting the sash to the frame
b. Remove the hinge pins or unscrew the hinges to detach the sash
3. Removing the Old Frame
a. Cut through any caulking or sealant around the frame
b. Use a pry bar to carefully remove the old frame from the opening
1. Inspecting for Damage and Making Necessary Repairs
a. Check the window opening for any signs of rot, mold, or damage
b. Make repairs as needed to ensure a solid foundation for the new window
2. Cleaning the Opening
a. Remove any debris, old caulking, or nails from the opening
b. Clean the area thoroughly to create a smooth surface for installation
1. Applying Caulk to the Opening
a. Apply a bead of caulk along the exterior edge of the window opening
b. This helps create a weathertight seal
2. Inserting the New Frame and Ensuring It's Level and Plumb
a. Place the new window frame into the opening
b. Use shims to level and plumb the frame
c. Check for proper alignment using a level
3. Securing the Frame with Nails or Screws
a. Drive nails or screws through the frame into the surrounding studs
b. Ensure the frame is securely fastened
1. Attaching the Sash to the Frame Hinges
a. Align the sash with the frame hinges
b. Reinsert the hinge pins or screw the hinges in place
2. Checking for Proper Operation and Alignment
a. Open and close the window to ensure smooth operation
b. Check for proper alignment and make adjustments as needed
1. Applying Insulation Around the Frame
a. Insert insulation material between the frame and the opening
b. This helps prevent drafts and improves energy efficiency
2. Caulking the Interior and Exterior to Create an Air-Tight Seal
a. Apply a bead of caulk along the interior and exterior edges of the frame
b. Smooth the caulk with a caulking tool for a professional finish
1. Installing the Window Trim and Stops
a. Reattach or replace the interior window trim and stops
b. Nail or screw them in place for a secure fit
2. Painting or Staining the Window (If Necessary)
a. If using wood windows, paint or stain them to match your décor
b. Protect the glass with painter's tape during this process
3. Cleaning the Window and Surrounding Area
a. Remove any labels, dirt, or debris from the new window
b. Clean the glass and surrounding area for a polished look
By following these steps, you can successfully replace your old casement windows with new, energy-efficient ones.
Congratulations on installing your new replacement casement windows! To keep them functioning properly and looking great for years to come, follow these maintenance tips.
● Clean your casement windows regularly to remove dirt, dust, and debris
● Use a mild soap solution and a soft cloth or brush to avoid scratching the surface
● Lubricate the hinges, crank mechanism, and other moving parts annually with a silicone-based lubricant
● This helps prevent rust and ensures smooth operation
● Check your windows periodically for any signs of drafts or air leaks
● Look for cracks, gaps, or worn weatherstripping around the frame and sash
● Use a candle or incense stick to detect air movement around the window
● If you find any leaks, seal them with caulk or replace the weatherstripping
● If you notice any problems with your casement windows, address them promptly
● This can include issues like: Difficulty opening or closing the window
○ Visible damage to the frame, sash, or glass
○ Condensation between the panes of glass
● Addressing these issues early can prevent further damage and extend the lifespan of your windows
● If you're unsure how to fix a problem, consult a professional window repair service
Maintenance Task | Frequency |
Clean windows and frames | Monthly |
Lubricate hardware | Annually |
Inspect for drafts and air leaks | Quarterly |
Check for damage or operational issues | Biannually |
By following these maintenance tips, you can keep your replacement casement windows in top condition and enjoy their benefits for years to come.
While replacing casement windows can be a DIY project, there are situations where it's best to call a professional. Here are some scenarios when you should consider hiring an expert.
● If your window replacement involves complex framing or structural changes, it's best to call a professional
● They have the expertise to handle these situations safely and efficiently
● Custom-sized windows also require precise measurements and installation techniques
● A professional can ensure a proper fit and avoid costly mistakes
● If you've never replaced a window before, it can be intimidating
● Professionals have the knowledge and skills to do the job right the first time
● They can also spot potential issues and provide solutions
● Hiring a professional can save you time, stress, and potential damage to your home
● Replacing casement windows can be time-consuming, especially for beginners
● If you have a tight schedule or limited free time, hiring a professional can be a wise choice
● They have the tools and equipment needed to complete the job efficiently
● Attempting to replace windows without the proper tools can lead to frustration and subpar results
Situation | DIY or Professional? |
Simple replacement, standard sizes | DIY possible |
Complex installation or custom sizes | Professional |
Limited experience with window replacement | Professional |
Time constraints or lack of necessary tools | Professional |
If you find yourself in any of these situations, it's best to call a professional window installer. They can ensure your replacement casement windows are installed correctly and safely.
Replacing your old casement windows is a valuable investment in your home's comfort, energy efficiency, and aesthetic appeal. By following the steps outlined in this guide, you can successfully tackle this project yourself or know when to call in a professional.
Don't let drafty, outdated windows compromise your home's performance. Take action today and experience the numerous benefits of replacement casement windows. From improved ventilation and energy savings to enhanced security and style, new casement windows can transform your living space.
Upgrade your windows and enjoy a more comfortable, efficient home for years to come.
A: Yes, casement windows are known for their energy efficiency due to their tight seal when closed, which helps prevent drafts and improve overall energy performance.
A: Yes, window screens can be installed on casement windows. There are various options available, including retractable screens and traditional screens that can be mounted on the interior.
A: Low-E (low-emissivity) glass is commonly used in casement windows to improve energy efficiency by reducing heat transfer and blocking harmful UV rays.
A: Yes, casement windows are suitable for small rooms, bathrooms, and basements. They offer good ventilation and natural light without compromising privacy or taking up much wall space.
A: Various frame materials work well for casement windows, each with unique benefits. Popular options include vinyl (affordable, low-maintenance), wood (classic, insulating), fiberglass (durable, energy-efficient), and aluminum (lightweight, strong).
