A casement window refers to a side-hinged frame that cranks outward like a door. Homeowners select this casement design to capture maximum airflow and funnel fresh air straight inside. These high-performance windows seal tightly upon closing, which delivers superior energy efficiency for any modern home. Single glass panels offer unobstructed views and improve interior ventilation. Today, Energy Star ratings heavily dictate consumer purchasing choices, representing more than four-fifths of overall window sales volume.
Key Takeaways
Casement windows open outward like doors using a simple hand crank to capture maximum fresh air.
Multi-point locks pull the window tight against seals to stop drafts, rain, and break-ins.
Single glass panels give you clear outdoor views without thick bars blocking your vision.
Outward swinging sashes need clear outside space away from deck railings, trees, and patio furniture.
Understanding the Casement Window: Design and Operation
A casement window opens outward like a side-hinged door to deliver incredible functionality. Modern architecture relies on this casement design to achieve maximum ventilation and aesthetic elegance. Engineering precision turns every casement assembly into a durable home defense system.
Anatomy of a Casement Window
A casement assembly unites several specialized precision parts. Every piece plays a distinct role in keeping your house safe, dry, and comfortable.
Core Component Breakdown Premium aluminum construction protects homes against severe outdoor weather while providing clean lines.
Component Name | Function in Casement Assembly |
|---|---|
Window Frame & Casing | The primary outer box recessed into the structure, supported by casing molding to cover installation gaps. |
Window Sash & Glazing | The operable moving portion (sash) that holds the glass pane (glazing) and swings outward on side hinges. |
Crank Operator & Arm | The manual rotating mechanism and attached extension arm used to push the sash open or pull it shut. |
Hinges & Locking Mechanisms | Hardware attached to the side frame that enables swinging motion and secures the frame when closed. |
Manufacturers craft these architectural units using high-grade aluminum profiles:
Window Frame Profiles: Extruded aluminum shapes the structural perimeter, which includes the head profile, bottom sill, and vertical jambs.
Sash Framework: Sturdy aluminum stiles and rails wrap around double or triple insulated glass units.
Glazing Beads: Specialized aluminum stops hold glass panes firmly inside the sash.
Matching Hardware: Interior stay arms and aluminum handles operate the frame smoothly.
Interior Insect Screen: Fine mesh mounts on the inside frame to block pests while fresh breezes pass through.
DERCHI utilizes high-grade 6063-T5 aluminum frames for all casement products. This alloy provides exceptional structural strength:
Specification / Feature | Dimension / Property | Durability Benefit |
|---|---|---|
Wall Thickness | 0.070” to 0.094” (1.8mm profile) | Guarantees strength for oversized frame dimensions |
Frame / Sill Thickness | 0.125″ (3.175mm) | Enhances overall structural resilience |
Frame Depth Range | 48mm to 109mm | Provides a robust structure suitable for high-rise applications |
Material Comparison | Superior to timber and PVC | Eliminates risks of warping, rotting, termite damage, and discoloration |
Magnesium and silicon form a strong metal base in 6063-T5 aluminum. Specialized heat treatment increases mechanical hardness. These rigid frames resist wind loading and prevent structural deformation over decades.
How the Crank Handle and Hinge System Work
The crank operator powers the outward-swinging sash movement. Homeowners turn the folding handle inside the room. This turning force drives the steel gear mechanism. The mechanical arm pushes the window pane outward along heavy-duty track slides.
Tall or narrow wall openings benefit most from this outward movement. Narrow tall slots in kitchens or bathrooms often limit sliding options. An outward casement sash funnels side breezes directly into narrow rooms.
Heavy-duty stainless steel hinges carry heavy glass weight without sagging. The chart below shows load capacity standards across common hinge sizes:
Class 3 Rating (EN 1191): Ensures structural integrity through 10,000 continuous opening cycles.
Class 4 Rating (EN 1191): Guarantees smooth mechanical performance through 20,000 opening cycles under load.

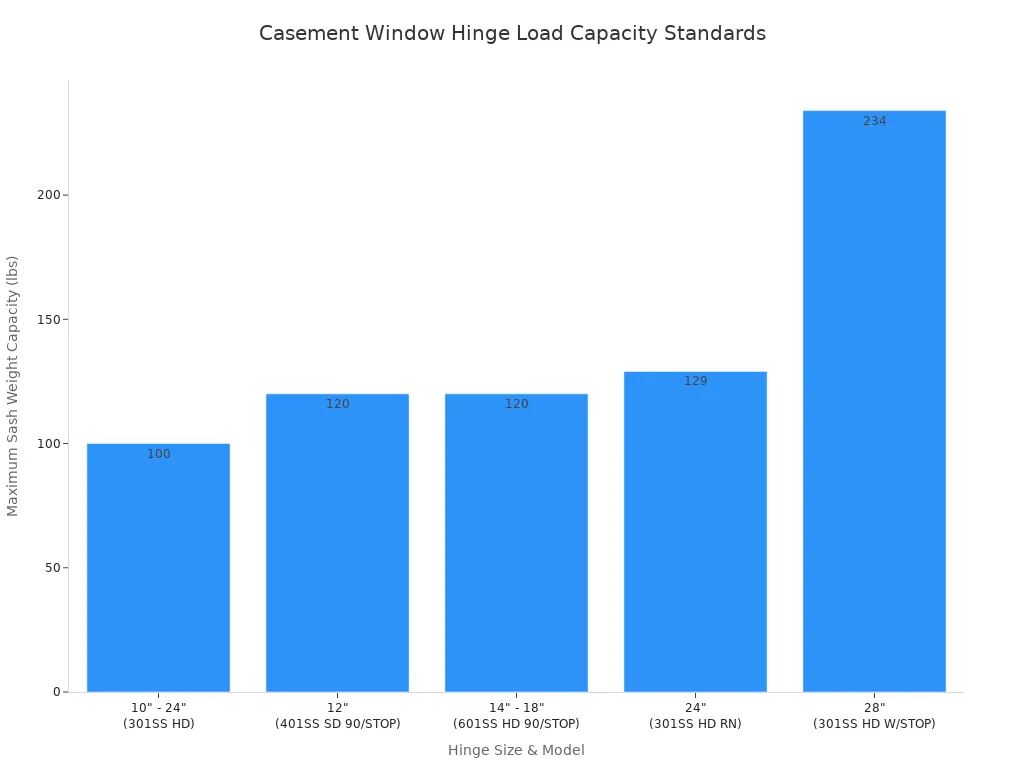

A 28-inch heavy-duty hinge comfortably supports sashes weighing up to 234 pounds. This high capacity allows builders to install oversized glass panels with confidence.
Multi-Point Locking Mechanisms for Enhanced Security
Standard double-hung windows usually feature a single latch hook. Intruders can easily force open single-point locks with basic hand tools. Multi-point locking hardware locks the perimeter across multiple frame points simultaneously.
Security Aspect | Single-Latch Windows | Multi-Point Locking Windows |
|---|---|---|
Locking Locations | Single central point | 3 to 5 points along the perimeter |
Force Resistance | Concentrates pressure at one vulnerable area | Distributes break-in force across multiple points |
Failure Risk | High single point of failure | Low risk due to multiple locking hooks |
Prying Protection | Limited resistance against prying | Superior resistance with top, bottom, and side latches |
DERCHI casement window designs feature patented multi-point locking systems and six-point locking mechanisms. Turning a single lever pulls the entire sash tight against weatherstripping gaskets. This tight compression seals out rainwater while creating greater security against forced entries. Select DERCHI aluminum solutions today to upgrade your modern architectural project with world-class security and durability!
Key Benefits of Installing Casement Windows
Homeowners choose operable glass units based on long-term performance, comfort, and security. Modern casement windows offer clear functional advantages over standard home fixtures. These smart designs combine heavy-duty hardware with sleek architectural profiles to transform living environments.
Superior Ventilation and Air Capture
Proper indoor air circulation keeps interior spaces healthy and comfortable year-round. Traditional double-hung and sliding units open only halfway. In contrast, fully opening casement windows clear the entire opening space for continuous natural cooling.
The Wind Scoop Effect Casement window sashes function similarly to a sail on a boat. When hinged open at an outward angle, the sash catches side breezes moving along the exterior wall and funnels or scoops those air currents directly into the home interior.
This unique mechanical design delivers superior ventilation throughout any residential floor plan. Homeowners direct fresh air into specific rooms simply by adjusting the sash angle.
360-Degree Breeze Capture: Side-hinged sashes scoop parallel wall winds that usually pass right by flat window glass.
Complete Sash Opening: The outward swing unlocks 100% of the wall opening for maximum indoor airflow.
Instant Moisture Removal: Kitchens and bathrooms quickly vent excess steam and humidity through full-frame openings.
Property owners who evaluate the pros and cons of casement windows consistently rate air capture as a top operational advantage. Placing these units across opposing walls creates powerful cross-breezes that eliminate stale indoor odor within minutes.
Maximum Energy Efficiency and Thermal Seals
Heating and cooling costs represent a large portion of annual household expenses. High-performance casement units feature exceptional compression engineering to maximize home energy efficiency. Sliding units rely on flexible brush seals that rub back and forth, wearing out over time. A casement sash presses firmly into the frame when closed.
Turning the crank operator pulls the sash straight against dense rubber weatherstripping. This hook-and-latch compression creates an airtight seal that completely blocks cold air drafts and driving rainwater.
Derchi window and door engineering integrates advanced thermal technology directly into custom aluminum frames:
Seasonal Temperature Regulation: Low-E glass coatings reflect ambient indoor warmth back inside during cold months while keeping solar heat outdoors during hot months.
Gas-Insulated Cavities: Triple-pane units utilize air or inert gas spacers to maximize insulating efficiency over standard double-glazed units.
Lower Utility Bills: Combining these technologies yields significant reductions in household heating and cooling energy consumption.
The table below demonstrates how specialized structural components lower home energy costs:
Component | Thermal Mechanism | Impact on Energy Use |
|---|---|---|
Thermally Broken Aluminum Profile | Uses a non-metallic insulating strip (such as polyamide) to break direct metal-to-metal contact between interior and exterior frames. | Stops frame thermal bridging, preventing indoor heat loss in winter and solar heat gain in summer. |
Low-E Glass Coating | Features a microscopic surface coating that controls radiant thermal transfer. | Traps warm interior air during winter and blocks external solar heat during summer, cutting thermal transfer. |
Triple Glazing System | Integrates three glass panes separated by gas-filled spaces. | Delivers superior thermal resistance compared to double-pane systems, significantly bolstering overall insulation performance. |
These combined features allow Derchi aluminum solutions to maintain stable interior temperatures during severe heat waves or harsh winter freezes.
Unobstructed Views and Natural Sunlight
Large glass areas transform dark rooms into bright, welcoming spaces. Standard double-hung windows place thick check rails directly across your central line of sight. Single-sash casement designs eliminate dividing center bars entirely.
Homeowners enjoy unobstructed views across their yards, gardens, and surrounding landscapes. Large picture-style casement frames maximize daylighting, which reduces the need for artificial indoor lighting during the day.
Expansive Glass Surfaces: Clean aluminum framing supports massive glass sheets without requiring horizontal meeting rails.
Better Visibility: Continuous glass panels establish a direct visual connection between indoor living areas and outdoor landscapes.
Enhanced Daylight Delivery: Natural sunlight floods living areas to create warm, energy-filled atmosphere.
Property owners get excellent ventilation and maximum sunlight exposure from a single architectural investment. Installing high-grade aluminum casement systems creates beautiful living spaces while protecting structural comfort for decades.
Limitations and Practical Considerations
Homeowners must evaluate exterior wall clearance and interior cooling needs before purchasing new building fixtures. Smart buyers review the pros and cons of casement windows before completing their architectural plans. Proper space planning guarantees maximum long-term satisfaction with high-performance windows.
Exterior Swing Clearance and Obstructions
Exterior space dictates operational success for outward-swinging sash systems. A side-hinged casement panel pushes outward toward exterior living areas. Deck railings, low tree branches, or outdoor patio furniture can obstruct this swinging path.
Installation Planning Tip
Homeowners should maintain clear clearance zones near narrow walkways, exterior porches, and busy outdoor patios.
Building planners easily overcome outdoor space obstacles through proper initial layout measurements:
Measure outside clearance before installing casement windows along narrow side pathways.
Keep exterior shrubbery and garden hedges trimmed away from operable frame paths.
Position swinging sashes away from secondary windows near busy household entryways.
Window Air Conditioner Incompatibility
Traditional window air conditioners require flat horizontal tracks for structural support. Standard sliding windows handle heavy box cooling units easily. Outward-swinging casement glass cannot hold heavy window AC units securely. Traditional windows often leak conditioned indoor air around temporary foam fillers. Property owners with central HVAC systems or ductless mini-splits avoid this cooling conflict completely. Homeowners choose operable windows for superior energy conservation, modern aesthetics, and enhanced security. Switching to modern ductless split systems allows homeowners to install high-efficiency casement options without sacrificing indoor temperature control. Superior airtight seals on casement windows significantly lower overall household cooling costs over time.

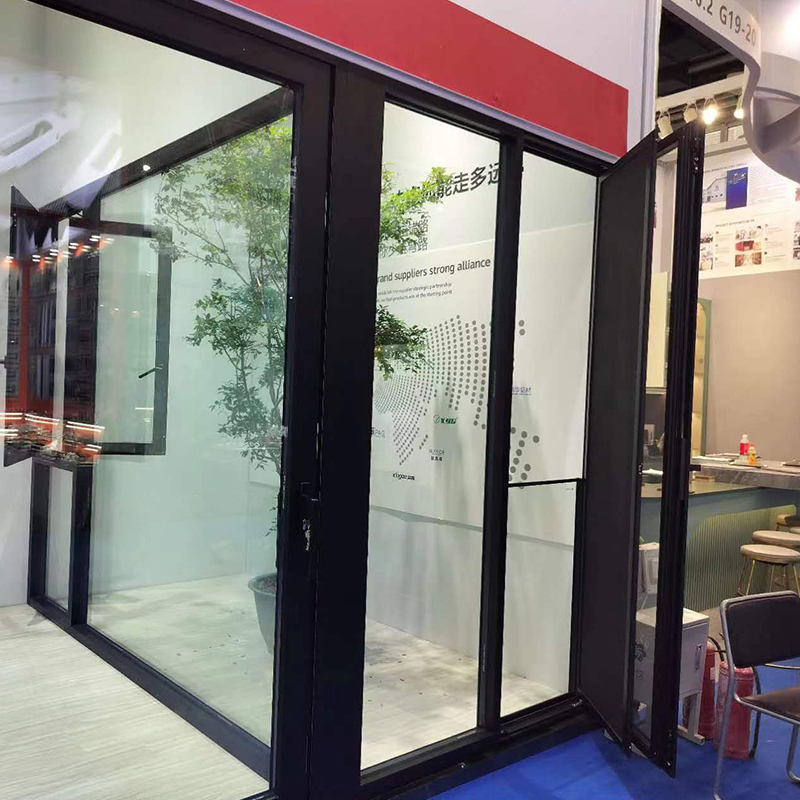

Common Types and Styles of Casement Windows
Homeowners select operable window units to match specific architectural designs. Modern factories engineer versatile framing options for traditional homes and contemporary buildings.
Single vs. Double Casement Configurations
Single units use one operable sash hinged on one side. Meanwhile, French double casement setups feature two sashes that open outward from the center without a central mullion bar. Interior insect screens mount directly on the inside frame. This interior placement protects screens from harsh outdoor weather while keeping bugs outside when sashes swing open.
Configuration / Feature | Single Casement Windows | French Double Casement Windows |
|---|---|---|
Sash Count & Operation | Single sash hinged on one side that swings outward | Two sashes hinged on outer edges opening from center |
Central Structure | Single frame unit | No fixed central mullion; uses an astragal strip |
View & Egress | Standard outward opening for small spaces | Provides unobstructed full-width opening for emergency egress |
Rough Opening Width | 18 to 36 inches | 36 to 60 inches |
Screening Installation | Standard interior insect screen | Split screens or retractable interior screens |
Combination Setups with Fixed Picture Windows
Architects frequently combine operable casement units with fixed picture windows. These mixed assemblies maximize natural light while maintaining complete ventilation control. A large central glass pane offers panoramic outdoor views. Operable side units draw fresh breezes into living spaces.
Derchi Window and Door Custom Architectural Solutions
Derchi window and door provides custom engineering capabilities for luxury residential and commercial projects. Their factory crafts custom aluminum options to meet complex architectural requirements:
Dimension & Frame Modifications: Full tailoring in shape, size, finishes, and low-profile designs.
Specialized Panel Configurations: Seamless window walls, expansive floor-to-ceiling panels, geometric structures, panoramic roof installations, and circular pivot mechanisms.
Performance Glazing Features: Advanced low-E thermal coatings and specialized soundproofing insulation.
Builders choose custom aluminum casement windows for exceptional structural strength. Commercial developers install specialized casement framing to satisfy strict regional building codes. Premier casement windows elevate overall property aesthetics instantly. Architects frequently specify high-performance windows to lower long-term operating costs. Residential buyers prefer energy-efficient windows for maximum indoor thermal control. Ultimately, modern windows improve overall household comfort through precision manufacturing.
Best Home Placement and Style Comparisons
Ideal Rooms for Casement Windows
Homeowners often choose casement units for specific home locations. A crank handle allows easy operation without leaning over deep countertops. Therefore, these fixtures serve as the best kitchen windows above sinks. The wide opening quickly evacuates warm steam and cooking odors. In addition, these products work wonderfully as bedroom windows to capture cool night breezes. Homeowners planning a home renovation prefer these functional designs for high walls and hard-to-reach spots. Every home gains better natural ventilation through smart casement placement.
Casement Windows vs. Double-Hung Windows
Choosing between different windows requires analyzing structural tightness and mechanical seals. The table below illustrates core differences:
Feature | Compression-Sealed Casement Units | |
|---|---|---|
Mechanism Type | Compression seals | Sliding seals |
Seal Engagement | Sash presses firmly against frame seals when locked | Sashes move along vertical tracks |
Structural Fit | Tight seal minimizing air leakage and weather infiltration | Requires track clearance for movement |
Airtightness Impact | High weather resistance and stronger draft barrier | Track clearance constraints reduce total airtightness |
Casement windows pull the sash tightly against weather seals upon closing. Conversely, double-hung sashes move along vertical tracks. Debris frequently gathers in tracks, which degrades overall seal performance over time.
Casement Windows vs. Sliding Windows
Comparing casement windows against horizontal sliding models reveals clear performance advantages. Casement hardware presses the frame tight, whereas sliding units rely on standard weatherstripping.
Metric | Horizontal Sliding Models | Aluminum Casement Models |
|---|---|---|
Air Leakage Rate (CFM) | 0.3 - 0.5 | 0.1 - 0.2 (Lower is superior) |
Water Resistance | Standard track drainage | Superior wind-driven rain seal |
Average Base Price | $200 – $800 | $300 – $1,000+ |
Expected Lifespan | 30+ years | 30+ years |
Although a horizontal sliding design costs less initially, aluminum casement units offer unmatched airtightness. A side-hinged casement frame provides superior water protection during storm season. Homeowners select casement designs to maximize energy savings.
Every modern home renovation benefits from installing a casement window. These high-performance windows press tightly against seals to block drafts, offer clear views, and funnel fresh air inside for superior ventilation. Property owners must evaluate exterior clearance and wall layout before selecting these casement windows. Professional manufacturers like Derchi window and door supply custom aluminum windows that enhance energy efficiency and security. Homeowners and builders should consult their engineering team today to transform any home with durable architectural solutions!
FAQ
How does a casement window operate?
Quick Operation Guide
A casement window opens outward like a side-hinged door using an interior crank handle. Turning the handle pushes the outward casement sash fully open. Property owners easily capture maximum side breezes and direct fresh outdoor air straight inside.
Are casement windows energy efficient?
Feature | Energy Efficiency Impact |
|---|---|
Compression Seal | Blocks drafts completely |
Yes! These high-performance windows offer superior airtight seals. Turning the crank pulls the sash tightly against interior weatherstripping. This firm compression stops air leakage completely, reducing household heating and cooling utility costs year-round.
What are the main pros and cons of casement windows?
Pros: Complete ventilation, tight weather seals, wide views.
Cons: Exterior clearance needs.
The pros and cons of casement windows include unmatched airflow versus exterior swing path requirements. Homeowners install casement windows for clear outdoor views, while keeping outdoor pathways clear from obstructions.
Why choose aluminum casement designs over other windows?
Standard sliding windows fail to deliver full openings. Custom aluminum frames make superior windows for high-rise homes. These operable windows handle heavy wind loads easily. Homeowners prefer aluminum windows because they boost home security.
