Have you ever wondered how those sleek, energy-efficient uPVC windows are manufactured? The answer lies in a fascinating process called profile extrusion. As construction technologies evolve, unplasticized polyvinyl chloride (uPVC) has emerged as a revolutionary material for windows and doors worldwide. Its popularity continues to surge across residential and commercial buildings. The sophisticated manufacturing process behind these profiles involves state-of-the-art facilities and precise engineering techniques.
Understanding uPVC window profile extrusion matters because it directly impacts the quality of your windows. Poor extrusion processes lead to inconsistent dimensions, reduced durability, and premature failures. Properly extruded profiles, however, can last over 30 years even in extreme weather conditions. They offer superior insulation, soundproofing, and protection against the elements.
In this comprehensive guide, you'll learn everything about uPVC window profile extrusion from raw materials to finished products. We'll explore the manufacturing process, different profile types, technical specifications, and real-world applications. Whether you're a homeowner planning renovations or a construction professional, this article will help you make informed decisions about uPVC window profiles.
When you look at a uPVC window, you're seeing the result of advanced engineering and materials science. The creation of these profiles involves sophisticated processes that combine heat, pressure, and precision. Let's explore how these window profiles come to life.
Extrusion stands as one of the most versatile manufacturing technologies available today. The process transforms raw uPVC into precisely shaped window profiles through several key steps:
1. Heating Phase: Raw uPVC compounds are heated to temperatures between 200-275°C. This transforms them into a malleable state.
2. Die Formation: The heated material passes through specially designed dies. These metal forms create the exact cross-sectional shape needed.
3. Pulling Process: As the profile emerges from the die, it's carefully pulled at controlled speeds. This tension helps maintain dimensional accuracy.
4. Water Bath Cooling: The hot profiles enter a cooling water bath. This rapidly solidifies the shape and locks in the structural properties.
5. Final Setting: The cooled profiles continue to set completely. Their final dimensions become permanent during this stage.
What makes this process special? It allows manufacturers to create complex hollow chambers inside window frames. These chambers provide excellent insulation properties that simple manufacturing methods can't achieve.
Today's uPVC window profile factories combine human expertise with cutting-edge technology. A modern facility like VEKA's Hyderabad plant showcases the essential elements:
- Blending Stations: Specialized equipment precisely mixes raw materials. They create the perfect chemical composition for each profile type.
- Extrusion Lines: Multiple production lines featuring precision dies and temperature controls. They run simultaneously to produce various profile types.
- Automated Monitoring Systems: They ensure dimensional accuracy throughout the process. These systems can detect microscopic variations.
- Quality Control Stations: Testing equipment verifies structural integrity, color consistency, and dimensional precision.
- Skilled Technicians: Trained workers monitor each stage of production. Their expertise ensures consistent quality.
The combination of automation and human skill creates remarkable consistency. Every meter of profile maintains identical properties. This precision makes installation and performance reliable across all products.
The foundation of any great window profile lies in its chemical makeup. uPVC polymers offer unique advantages thanks to their special composition:
What Is uPVC?
Unplasticized Polyvinyl Chloride (uPVC) is a rigid, non-flexible form of PVC
It contains no plasticizers that would make it soft or flexible
It's one of the stiffest polymers at normal temperatures
Chemical Composition:
Primarily composed of polyvinyl chloride polymer chains
Contains additives like stabilizers to prevent UV degradation
Includes lubricants for smoother extrusion
Contains titanium-based components for strength and UV resistance
Modern formulations are lead-free for environmental safety
Natural Connections:
Interestingly, while uPVC is synthetic, its polymers share similarities with natural substances. They're structurally related to nucleic acids and proteins—the building blocks of human biology. This makes uPVC particularly suitable for extrusion, as it can be precisely manipulated at specific temperatures.
The resulting properties make uPVC window profiles exceptionally practical. They resist weather damage, prevent heat transfer, block sound effectively, and maintain these properties for decades. Their resistance to temperatures from -50°C to 70°C makes them suitable for virtually any climate on Earth.
The quality of any uPVC window profile begins long before extrusion. It starts with carefully selected raw materials. Premium ingredients combine to create durable, efficient window systems. Let's explore what goes into these specialized compounds.
Creating superior uPVC profiles requires precise material selection. The base compound includes several critical components:
- PVC Resin: The primary polymer providing structural integrity
- Calcium Carbonate: Adds strength while reducing overall material costs
- Aluminum Powder: Enhances durability and heat resistance properties
- Stabilizers: Prevent degradation during processing and extended use
- Lubricants: Enable smooth flow through extrusion machinery
- UV Protectors: Shield against solar radiation damage
- Pigments: Provide consistent coloration throughout the profile
Premium manufacturers source these ingredients globally. They select each component based on rigorous quality standards. This careful selection directly impacts the final product's performance.
Modern uPVC window profiles prioritize both performance and safety. Industry leaders have completely eliminated lead from their formulations. This change represents significant progress in environmental responsibility.
Titanium has emerged as a crucial component in today's profiles. High titanium levels deliver multiple benefits:
Titanium Benefit | Effect on Window Profile |
UV Resistance | Prevents yellowing and brittleness |
White Balance | Maintains consistent appearance |
Structural Integrity | Enhances overall strength |
Weather Resistance | Improves long-term durability |
Quality control begins at procurement. Top manufacturers test incoming raw materials before production. They verify titanium content meets exact specifications. This testing ensures consistent performance across all manufactured profiles.
The blending phase demands precision and expertise. Trained technicians carefully combine raw materials in specialized mixing equipment. Each profile type requires its own specific formulation.
The blending process follows several critical steps:
1. Ingredient Measurement: Precise quantities weighed using calibrated equipment
2. Sequential Addition: Components added in specific order for optimal bonding
3. Controlled Mixing: Blended under monitored conditions for consistent results
4. Homogenization: Complete integration of all components into uniform compound
5. Quality Testing: Sample testing before proceeding to extrusion
Automation plays an increasing role in modern facilities. Computer-controlled systems ensure exceptional consistency. They manage both timing and proportions with microscopic precision.
Temperature management proves crucial during material preparation. The compound must reach specific thermal states for proper processing. This careful control begins before extrusion.
Raw materials undergo preheating to prepare them for processing. The temperature gradually increases toward extrusion parameters. This preheating phase:
- Removes any moisture from the compounds
- Begins activating chemical bonding between components
- Prepares the mixture for proper flow characteristics
- Reduces energy requirements during main extrusion
During actual extrusion, temperatures typically range between 200-275°C. This precise range allows proper flow without material degradation. Careful monitoring prevents overheating or incomplete melting. Both conditions would compromise the final product's integrity.
Modern facilities employ thermal imaging systems throughout preparation. They constantly monitor temperature profiles across the entire mix. Any deviations trigger immediate adjustments. This vigilance ensures consistent material properties in every batch.
The journey from raw materials to finished window profiles involves several precise steps. Each stage requires careful control and monitoring. Let's explore how manufacturers transform uPVC compounds into the profiles we see in windows worldwide.
The heart of profile manufacturing happens during extrusion. This critical phase shapes molten uPVC into useful forms.
Extrusion begins when prepared compounds enter specialized equipment. They heat to precise temperatures between 200-275°C. This transforms raw materials into a malleable state for processing.
Custom-designed metal dies create the profile shapes. These precision tools determine:
- Wall thickness throughout the profile
- Chamber configurations inside hollow sections
- External dimensions and features
- Connection points for accessories
Temperature control remains absolutely critical. Too cool, and the material won't flow properly. Too hot, and it degrades. Modern facilities use computer-controlled heating zones. They maintain optimal temperature across the entire extrusion line.
After passing through the die, the soft profiles require careful handling. Automated pullers grip and draw the material at controlled speeds. This pulling action:
- Maintains consistent dimensions
- Prevents material sagging or deformation
- Controls cooling rate and resulting properties
- Ensures smooth surface finish
The speed must match material flow perfectly. Any mismatch creates thickness variations or structural weaknesses. Experienced operators monitor this delicate balance constantly.
Long before extrusion begins, extensive design work sets the foundation. This early phase determines production success. Smart design decisions lead to:
Design Consideration | Benefit to Production |
Optimized wall thickness | Material savings without compromising strength |
Streamlined profile shapes | Faster production speeds |
Strategic reinforcement points | Enhanced structural integrity |
Simplified manufacturing requirements | Lower production costs |
The best manufacturers invest heavily in this design stage. They understand how subtle changes affect both cost and quality. This attention to detail produces reliable, economical profiles.
After extrusion, profiles need careful processing to become finished products.
Hot profiles immediately enter specialized cooling tanks. These water baths rapidly lower temperature while maintaining shape. The cooling process:
1. Initial Shock Cooling: Stabilizes outer surfaces
2. Controlled Temperature Reduction: Prevents internal stress
3. Complete Solidification: Locks in final dimensions
The water temperature follows precise gradients. It cools profiles gradually to prevent warping or internal stress. Sophisticated sensors monitor both water and profile temperatures. They ensure consistent cooling across all production runs.
Once cooled and solidified, continuous profiles need cutting to standard lengths. Automated cutting stations use:
- Laser measuring systems for exact dimensions
- High-speed saws for clean, precise cuts
- Automated handling systems to prevent damage
- Quality verification stations to check cut accuracy
Most manufacturers cut profiles to standard 18-foot lengths. Some specialized applications may require custom dimensions. The cutting systems adjust easily to any specification needed.
Before leaving the production line, profiles undergo multiple quality checks:
- Dimensional Verification: Laser measurements confirm exact specifications
- Visual Inspection: Surface checks for any imperfections
- Structural Testing: Sample testing for strength and integrity
- Color Consistency: Verification of color match across batches
Approved profiles receive protective film coverings. This film shields surfaces during transport and installation. It prevents scratches and contamination.
Final packaging groups profiles by type and size. Robust bundling systems protect edges and corners. Clear labeling identifies specifications for each bundle. Proper packaging ensures profiles arrive at construction sites in perfect condition.
The uPVC window industry offers numerous profile types. Each serves specific installation needs and performance requirements. Understanding these options helps you select the perfect profile for your project.
Two major installation methods dominate the uPVC window market. Your building type and project goals determine which works best.
Retrofit Profiles (MW-011)
Retrofit profiles install into existing window frames. They feature:
- Wider frames (typically 2¾" to 3")
- Special fin designs for covering old frame edges
- No need to remove existing frame structures
- Simpler installation process for renovations
- Weight around 11.22 lb per piece at 18' length
These profiles work perfectly for replacement projects. They minimize disruption to surrounding walls and finishes. Homeowners prefer them for quick upgrades without major construction.
Nail-On Profiles (MW-010)
Nail-On profiles attach directly to structural framing. Key characteristics include:
- Standard width (typically 3¼")
- Mounting fins for secure attachment
- Designed for new construction
- Direct attachment to wall studs
- Weight approximately 10.49 lb per piece at 18' length
Builders choose these profiles for new homes and additions. They provide superior structural integration. The mounting fins create weather-tight seals against water intrusion.
Some manufacturers offer Large Fin Retrofit models (MW-9002R). These specialized profiles feature extra-wide fins. They cover larger areas around existing openings.
Window functionality depends on specialized frame components. These parts create moving sections and secure closures.
Sash Frames (MW-012)
Sash frames hold glass panels for opening sections. They typically feature:
- Lightweight design (about 4.6 lb per 18' piece)
- Hollow chambers for insulation
- Grooves for weatherstripping
- Reinforcement channels for hardware
- Compatible with multiple glass thicknesses
These frames create the movable portions of windows. They balance strength with weight efficiency. Manufacturers pack them 10 pieces per bundle for efficient shipping.
Interlock Profiles
Two critical interlock profile types ensure weather-tight window operation:
Profile Type | Function | Weight (18' length) | Pieces per Bundle |
Sash Interlock (MW-015) | Secures meeting edges of sliding sashes | 5.19 lb | 10 |
Frame Interlock (MW-014) | Creates secure closure against fixed frame | 6.23 lb | 10 |
Interlock profiles feature complex shapes. They create overlapping connections between moving parts. This overlap blocks air and water penetration. It also enhances security against forced entry.
Premium uPVC window systems incorporate metal reinforcement. This hybrid approach combines plastic's insulation benefits with metal's strength.
Benefits of Steel Reinforcement:
- Dramatically increased structural strength
- Enhanced security against forced entry
- Improved fire resistance properties
- Reduced profile expansion in heat
- Support for larger window dimensions
- Extended operational lifespan
Manufacturers design special channels inside profiles. These channels accept precisely-sized galvanized steel inserts. The combination creates windows suitable for:
- High-rise buildings with extreme wind loads
- Security-sensitive applications
- Extra-large opening dimensions
- Areas with extreme temperature fluctuations
These reinforced systems maintain excellent thermal performance. The steel remains isolated from exterior surfaces. This prevents thermal bridging while adding strength.
Beyond basic frame components, manufacturers extrude numerous specialized profiles. These components create complete window systems for various applications.
Sliding Window Components:
- Window Track (MW-016): Guides sliding sash movement
- Channel Cover (MW-017): Conceals hardware channels
- Mullion (MW-018): Joins multiple window units together
Casement Window Specialties:
- Hinged side supports
- Operator mounting reinforcements
- Multi-point locking receivers
Additional Specialized Profiles:
- Glazing Bead (MD-009): Secures glass into frames
- Water drainage channels
- Screen mounting systems
- Extension profiles for varying wall thicknesses
The extrusion process allows custom profile creation. Manufacturers develop specialized shapes for unique applications. These custom profiles address specific architectural requirements or performance needs.
Properly extruded uPVC window profiles offer numerous advantages over traditional materials. These benefits explain their growing popularity worldwide. Let's explore what makes these profiles so appealing for modern construction.
uPVC window profiles excel in harsh environmental conditions. They resist multiple threats:
- Moisture Resistance: They never rot, warp, or swell when exposed to rain
- Salt Air Durability: Perfect for coastal installations
- UV Stability: Special additives prevent yellowing and degradation
- Oxidation Protection: No rusting or corrosion concerns
- Fungal Resistance: Immune to mold and mildew growth
The high titanium content in quality profiles provides exceptional UV protection. This ingredient prevents the yellowing that plagued early plastic windows. Modern profiles maintain their bright white appearance for decades.
Extreme weather events pose little threat to properly extruded profiles. They withstand driving rain, hail, and snow without damage. Their color stability means no painting or refinishing required. This maintenance-free performance saves both time and money.
Energy conservation stands as a primary benefit of uPVC window profiles. Their design incorporates multiple efficiency features:
Feature | Energy Benefit |
Multiple internal chambers | Creates dead air spaces for insulation |
Thermal breaks | Prevents heat/cold transfer through frame |
Tight sealing surfaces | Eliminates air leakage |
Compatible with double/triple glazing | Maximizes overall window efficiency |
These properties dramatically reduce heating and cooling costs. Buildings with uPVC windows typically use 10-30% less energy. The exact savings depend on previous window quality and climate conditions.
Modern profiles also meet increasingly strict building energy codes. Their superior insulation properties satisfy requirements worldwide. This compliance future-proofs buildings against tightening regulations.
Peace and quiet rank high among uPVC window benefits. The profiles significantly reduce noise transmission through several mechanisms:
Sound Reduction Properties:
- Dense material composition absorbs sound waves
- Multi-chamber design interrupts sound pathways
- Airtight seals block noise penetration
- Compatible with acoustic glass options
These combined features achieve impressive sound reduction ratings. A quality uPVC window typically reduces external noise by 35-40 decibels. This reduction transforms busy street noise into a barely audible background hum.
The sound insulation proves particularly valuable in:
- Urban environments with traffic noise
- Airport flight path areas
- Industrial zones
- Entertainment districts
- Schools and hospitals
Safety concerns receive thorough attention in uPVC profile design. These materials offer multiple protective properties:
Fire Safety Characteristics:
- Self-extinguishing composition
- Low flame spread rating
- Minimal smoke production
- No burning droplets during fire exposure
- Maintains structural integrity longer than alternatives
The electrical safety also impresses. uPVC profiles don't conduct electricity. This property prevents dangerous current transfer through window frames. It provides an added safety layer during electrical storms or wiring problems.
Reinforced profiles enhance these safety features further. The galvanized steel inserts improve structural fire resistance. They maintain window integrity longer during fire events. This extended performance can provide crucial escape time.
Perhaps most impressive: the extraordinary lifespan of quality uPVC profiles. They regularly exceed 30 years of service. Many installations show minimal degradation after decades of use.
This longevity stems from careful material engineering. Premium profiles withstand temperature extremes from -50°C to 70°C. They perform flawlessly in:
- Arctic building applications
- Desert environments
- Tropical conditions
- Areas with extreme temperature swings
The thermal resistance prevents warping or dimensional changes. Windows operate smoothly regardless of temperature. Seals maintain their effectiveness throughout seasonal changes.
Considering total lifecycle costs, uPVC profiles offer exceptional value. Their initial cost typically proves lower than wood alternatives. The minimal maintenance requirements eliminate ongoing expenses. This combination results in significant long-term savings.
Understanding the technical aspects of uPVC window profiles helps you make informed decisions. Manufacturers maintain strict specifications for every profile they produce. These standards ensure consistent performance across all installations.
uPVC profiles come in standardized dimensions for reliable construction planning. Most manufacturers produce profiles in standard lengths:
- Window profiles: Typically 18 feet long
- Door profiles: Usually 16 to 18 feet long
- Accessory profiles: Often 12 feet long
Profile weights vary based on their function and design. Here's a comparison of common profile weights:
Profile Type | Weight per Piece | Standard Length | Pieces per Bundle |
Retrofit Frame (MW-011) | 11.22 lb | 18' | 4 |
Nail-On Frame (MW-010) | 10.49 lb | 18' | 4 |
Large Fin Retrofit (MW-9002R) | 13.89 lb | 18' | 4 |
Sash Frame (MW-012) | 4.60 lb | 18' | 10 |
Patio Door Frame (MD-001) | 21.12 lb | 16'6" | 2 |
Window Track (MW-016) | 1.08 lb | 12' | 40 |
Wall thickness specifications remain crucial for structural integrity. Quality profiles maintain consistent thickness throughout their design. This consistency prevents weak points and ensures long-term performance.
Frame width varies based on application needs:
- Standard window frames: 2¾" to 3¼" width
- Patio door frames: Typically wider at 4" to 5½"
- Specialized profiles: Custom widths for specific applications
Profile tolerances stay extremely tight in professional manufacturing. Dimensions typically vary less than ±0.5mm from specifications. This precision ensures proper fitting with hardware and glass components.
While white remains the most popular choice, modern manufacturing offers expanded color options. The extrusion process allows for:
Color Application Methods:
- Mass coloration (color throughout the material)
- Laminated finishes (wood grain and solid colors)
- Co-extruded colored layers
- Post-production coating systems
White profiles benefit from high titanium content. This ingredient provides:
- Exceptional UV resistance
- Prevention of yellowing
- Long-term color stability
- Clean, bright appearance
Color consistency represents a major quality indicator. Premium manufacturers employ rigorous color matching systems. They test each production batch against standard color references. This testing ensures your windows match perfectly even when ordered years apart.
Specialized lamination techniques create realistic wood grain appearances. These finishes combine uPVC performance with traditional aesthetic appeal. They require no maintenance while delivering the warmth of wood visuals.
The strength of uPVC profiles directly impacts their performance and lifespan. Manufacturers test multiple strength characteristics:
Key Strength Measurements:
- Tensile strength (resistance to pulling forces)
- Compressive strength (resistance to crushing)
- Impact resistance (response to sudden blows)
- Flexural strength (resistance to bending)
Reinforced profiles demonstrate dramatically improved strength metrics. The addition of galvanized steel inserts can increase load-bearing capacity by 300-400%. This reinforcement allows for larger window dimensions without compromising performance.
Temperature resistance specifications impress even engineering professionals. Quality profiles maintain structural integrity from -50°C to 70°C. This extraordinary range exceeds requirements for virtually any building location worldwide.
Weathering tests simulate decades of exposure. Manufacturers use accelerated testing methods including:
- UV exposure chambers
- Salt spray environments
- Humidity cycling
- Temperature shock testing
These tests verify the 30+ year performance claims. They demonstrate the exceptional durability of properly extruded profiles. The results translate directly to maintenance-free operation throughout the product's extended lifespan.
The versatility of uPVC window profiles makes them suitable for countless applications. Their unique properties solve problems across diverse settings. Let's explore where these profiles excel and why they're chosen so frequently.
uPVC window profiles have transformed both home and commercial construction. They deliver targeted solutions for each sector.
Residential Applications:
- Single-family homes
- Multi-unit apartments
- Farmhouses and rural dwellings
- High-rise residential towers
- Renovation projects
Homeowners appreciate uPVC profiles for their energy efficiency and low maintenance. They deliver excellent value while enhancing comfort. Installation options like retrofit frames make them perfect for updating older homes without major construction.
Commercial Applications:
- Office buildings
- Hotels and hospitality
- Educational facilities
- Healthcare buildings
- Retail spaces
Commercial projects benefit from the durability and performance consistency of uPVC. The profiles withstand heavy use in public buildings. Their sound insulation properties create productive work environments. The fire-resistant qualities address safety requirements for commercial spaces.
Window manufacturers offer complete systems for every building style. Options include:
Building Type | Recommended Profile System |
Modern homes | Slim-line contemporary profiles |
Traditional houses | Wood-grain finish profiles |
High-rise buildings | Reinforced profiles with wind resistance |
Commercial spaces | Heavy-duty commercial-grade systems |
Historic renovations | Period-appropriate retrofit designs |
uPVC profiles prove remarkably adaptable across global climate zones. Their performance remains consistent in extreme conditions.
Cold Climate Benefits:
- Exceptional insulation prevents heat loss
- Maintains flexibility even in sub-zero temperatures
- Resists frost damage and thermal cracking
- Creates comfortable indoor environments despite harsh conditions
Hot Climate Advantages:
- Reflects heat radiation
- Prevents solar gain through frames
- Maintains dimensional stability in high temperatures
- Resists UV degradation and color fading
Coastal Environment Performance:
- Complete resistance to salt corrosion
- Withstands driving rain and high winds
- Unaffected by sandy, abrasive conditions
- Maintains seals despite humidity fluctuations
The extreme temperature performance range (-50°C to 70°C) exceeds requirements for virtually any inhabited location. This adaptability explains the global adoption of uPVC window technologies. They function perfectly from desert environments to arctic installations.
Standard profiles meet most needs, but manufacturers also create custom solutions. The extrusion process allows for specialized designs addressing unique requirements.
Custom Capabilities Include:
- Oversized profiles for large architectural openings
- Reinforced designs for hurricane-prone regions
- Sound-dampening systems for entertainment venues
- Ultra-insulated profiles for passive house construction
- Heritage-matched designs for historic preservation
The design phase determines success for custom applications. Engineers analyze specific needs before creating profile solutions. This careful planning ensures optimal performance despite unusual requirements.
Architectural projects often demand unique window features. Custom extrusions enable designers to realize their creative visions. The profiles can incorporate:
- Custom colors matching design schemes
- Special shapes for distinctive aesthetics
- Unique operating mechanisms
- Integrated attachment systems
- Specialized glazing accommodation
The versatility of uPVC extrusion technology extends far beyond windows and doors. The same manufacturing principles create solutions across multiple industries.
Automotive Industry Applications:
- Interior trim components
- Wiring channels
- Ventilation systems
- Protective edge guards
- Non-structural body elements
Healthcare Applications:
- Hygienic wall systems
- Equipment housing components
- Laboratory fixtures
- Medical furniture elements
- Clean room partitioning
Additional Industrial Uses:
- Aerospace interior components
- Marine applications
- Electrical equipment housing
- Industrial machine guards
- Garden and landscape products
The lawn and garden sector widely adopts uPVC extrusions. Their weather resistance makes them perfect for outdoor applications. The profiles withstand soil contact and irrigation exposure without degradation.
The pulp and paper industry also utilizes similar extrusion technologies. The chemical resistance of uPVC proves valuable in these challenging environments. The profiles withstand the corrosive conditions while maintaining structural integrity.
uPVC window profiles rarely work alone. They form part of complete systems requiring additional components. Understanding these complementary elements helps ensure optimal window performance. Let's explore the critical accessories that complete the system.
Every functional window needs specialized hardware components. These elements transform static profiles into operating systems.
Essential Hardware Components:
- Handles and locking mechanisms
- Hinges for casement windows
- Sliding tracks and rollers
- Tilt-and-turn mechanisms
- Window stays and limiters
Quality hardware dramatically impacts window performance. Premium manufacturers carefully select compatible components. They engineer specific attachment points within the profiles. These reinforced areas support hardware without compromising profile strength.
Hardware selection depends on window style and operation type:
Window Type | Key Hardware Components |
Sliding Windows | Rollers, tracks, locks, handles |
Casement Windows | Hinges, stays, multi-point locks |
Tilt-Turn Windows | Specialized corner drives, handles |
Fixed Windows | Minimal hardware, installation brackets |
Awning Windows | Friction hinges, operators, locks |
Security considerations influence hardware choices. Modern systems incorporate multi-point locking mechanisms. These devices secure windows at multiple locations along the frame. They dramatically increase resistance to forced entry.
The hardware materials matter too. Stainless steel components resist corrosion in coastal environments. Reinforced nylon parts provide smooth operation without lubrication. Specialized coatings protect against wear and environmental damage.
The sealing system creates weather-tight barriers between profiles and glass. These components prevent air and water infiltration.
Critical Sealing Components:
- EPDM rubber gaskets
- Flexible weatherstripping
- Silicone sealants
- Butyl tapes
- Expanding foam insulators
Modern window systems use dual sealing approaches. Primary gaskets create the main weather barrier. Secondary seals provide backup protection. This redundant design ensures long-term performance even as materials age.
Glass installation demands precise compatibility. The glazing bead profiles (like MD-009) secure glass panels into frames. They create consistent pressure on sealing components. The design accommodates various glass thicknesses:
- Single pane: 4-6mm thickness
- Double glazing: 14-28mm thickness
- Triple glazing: 28-40mm thickness
- Specialized acoustic glass: Variable thicknesses
The choice of glass directly impacts overall window performance. Low-E coatings enhance energy efficiency. Laminated glass improves security and sound insulation. Tempered glass increases safety in critical locations. All these options require compatible profile designs.
Sealant chemistry matters tremendously. Materials must remain compatible with uPVC chemistry. Incompatible sealants can cause profile degradation or staining. Manufacturers test extensively to ensure long-term material compatibility.
Window profiles integrate seamlessly with related building systems. This compatibility ensures complete building envelope performance.
Door System Integration:
The same extrusion technology creates matching door profiles. Common door profile types include:

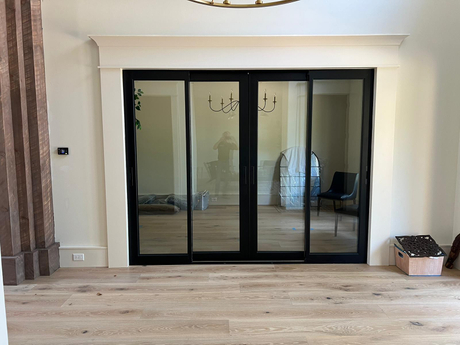

- Sliding patio doors (MD series profiles)
- French-style doors (MD-002A profiles)
- Entry door frames

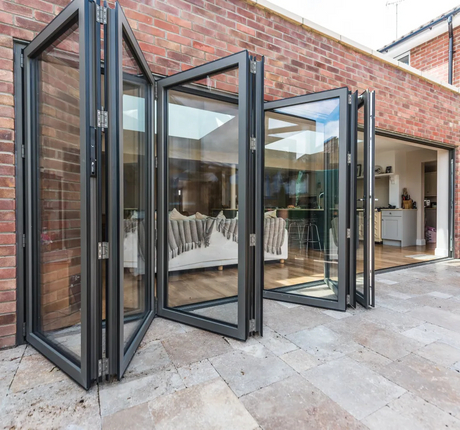

- Bi-fold door systems
- Lift-and-slide door assemblies
PET Aluminum Composite Doors pair effectively with uPVC window systems. These hybrid doors offer:
- Enhanced durability through reinforced construction
- High-gloss finishes with superior color reproduction
- Easy maintenance with minimal cleaning requirements
- Visual depth creating luxurious 3D appearance
- Excellent heat and chemical resistance
Window profiles also interface with numerous building components:
- Wall framing systems
- Interior finishes
- Exterior cladding materials
- Insulation systems
- Weatherproofing membranes
Special extension profiles adjust for varying wall thicknesses. They create smooth transitions between windows and surrounding materials. Deeper walls require wider extension profiles. These adaptors maintain weather sealing regardless of wall depth.
Mullion profiles (like MW-018 and MD-004) join multiple window units together. They create continuous window walls or combination units. Structural mullions support weight across longer spans. They transfer loads to the building structure while maintaining thermal breaks.
Quality control stands as the backbone of successful uPVC profile manufacturing. Every step undergoes careful scrutiny. The difference between average and exceptional profiles often comes down to testing rigor. Let's examine how manufacturers ensure consistent excellence.
The uPVC window industry maintains strict quality benchmarks. These standards ensure profiles perform as expected across all applications.
Key Testing Parameters:
- Material composition verification
- Dimensional accuracy measurements
- UV resistance evaluation
- Impact resistance testing
- Color consistency checks
- Structural load testing
- Weathering simulation
Testing begins with raw materials and continues throughout production. Each stage requires specific quality checks. Modern facilities employ dedicated quality control teams. They operate independently from production personnel to ensure objective assessment.
The testing regimen follows a logical progression:
Production Stage | Testing Procedures |
Raw Materials | Chemical composition analysis, purity verification |
Blending Phase | Mixture consistency, additive distribution |
Extrusion | Surface quality, dimensional accuracy, void detection |
Cooling | Structural integrity, deformation assessment |
Cutting | Edge quality, length precision |
Finishing | Visual inspection, protective film adhesion |
Packaging | Bundle integrity, labeling accuracy |
Impact testing simulates real-world conditions. Test samples face standardized blows to measure resistance. This testing ensures profiles withstand normal use scenarios without damage.
Weather resistance testing uses accelerated aging chambers. These specialized environments simulate years of exposure in weeks. Profiles undergo extreme UV radiation, temperature cycling, and moisture exposure. Only products maintaining performance after this aggressive testing reach the market.
Industry certifications verify profile quality for consumers and builders. These credentials require rigorous third-party verification.
Common uPVC Profile Certifications:
- ISO 9001 Quality Management Systems
- ISO 14001 Environmental Management
- CE Marking (European Conformity)
- AAMA Certification (American Architectural Manufacturers Association)
- Regional building code compliance certifications
- Energy efficiency ratings
Certification processes involve comprehensive facility audits. Independent inspectors examine:
- Manufacturing procedures
- Quality control systems
- Testing protocols
- Documentation practices
- Material sourcing
- Environmental compliance
Leading manufacturers proudly display their certifications. They undergo regular re-certification to maintain standards. This ongoing verification ensures consistent quality over time. Customers can trust certified products to meet all claimed specifications.
Environmental compliance grows increasingly important. Modern facilities minimize waste and energy consumption. They often recycle production scrap into new profiles. These practices reduce environmental impact while conserving resources.
Precise dimensions represent perhaps the most critical quality aspect. Even minor variations can affect installation and performance. Modern manufacturing employs multiple strategies to ensure accuracy.
Dimensional Control Techniques:
- Laser measurement systems
- Computer-controlled extrusion dies
- Automated adjustment of pulling speeds
- Continuous in-line monitoring
- Statistical process control methods
- Regular calibration of all measuring equipment
Automation plays a crucial role in dimensional consistency. Computer-controlled systems adjust production parameters in real-time. They respond to even microscopic variations. This immediate correction prevents drift from specified dimensions.
Quality manufacturers maintain extremely tight tolerances:
- Wall thickness: ±0.2mm
- External dimensions: ±0.5mm
- Straightness: Maximum 1mm deviation per meter
- Corner angles: ±1 degree
The extrusion process demands careful balance. Temperature, pressure, and pulling speed all affect dimensions. Expert technicians monitor these variables constantly. They make minute adjustments to maintain precise specifications.
Cooling control significantly impacts final dimensions. Uneven cooling causes warping or twisting. Advanced cooling tanks maintain consistent temperature gradients. They cool profiles uniformly from all sides. This careful process locks in exact dimensions permanently.
Statistical process control identifies trends before they become problems. Production teams track measurements over time. They analyze patterns to predict potential issues. This proactive approach prevents defects rather than simply detecting them.
The environmental impact of building materials matters more than ever before. Modern uPVC window profile production addresses these concerns through innovative approaches. Manufacturers have transformed processes to enhance sustainability.
Today's uPVC profile production differs dramatically from earlier generations. Major improvements focus on reducing environmental footprints throughout manufacturing.
Key Sustainability Improvements:
- Lead-free formulations for all modern profiles
- Reduced energy consumption during extrusion
- Lower water usage in cooling processes
- Minimal volatile organic compound (VOC) emissions
- Extended product lifecycles reducing replacement frequency
The elimination of lead represents perhaps the most significant advancement. Early uPVC formulations often contained lead stabilizers. Modern profiles use calcium-zinc or tin-based alternatives. These safer compounds maintain performance while eliminating toxic components.
Energy efficiency plays a crucial role in sustainable manufacturing. Advanced extrusion equipment requires less electricity per ton of product. Computer-controlled systems optimize heating zones. They reduce wasteful temperature fluctuations during production runs.
Water conservation efforts also impress environmental experts. Closed-loop cooling systems recirculate water rather than consuming fresh supplies. Filtration technology cleans process water for reuse. These systems dramatically reduce water consumption per unit produced.
The remarkable lifespan of uPVC profiles contributes significantly to sustainability. Products lasting 30+ years require far fewer resources than shorter-lived alternatives. The reduced replacement frequency minimizes manufacturing impact across decades of building use.
uPVC offers excellent recycling potential. The material maintains most properties through multiple processing cycles.
The uPVC Recycling Process:
1. Collection of old profiles and production scrap
2. Cleaning and contaminant removal
3. Grinding into uniform particles
4. Blending with virgin material in controlled ratios
5. Reprocessing into new profiles
Many manufacturers incorporate internal recycling programs. They process production scrap immediately back into new profiles. This closed-loop approach diverts material from landfills while reducing raw material demands.
Post-consumer recycling continues expanding across the industry. Several options exist for old window profiles:
Recycling Method | Description | Common Applications |
Direct reprocessing | Grinding and reuse in new profiles | Non-visible internal layers of new profiles |
Downcycling | Conversion to less demanding products | Pipes, conduits, non-structural items |
Chemical recycling | Breaking down to base components | Creation of new virgin-quality polymer |
The recycling potential creates impressive environmental benefits. Every ton of recycled uPVC saves approximately:
- 2,000 kg of CO₂ emissions
- 1,800 kWh of energy
- 1,400 kg of raw materials
These savings continue increasing as recycling technology advances. The industry moves steadily toward closed-loop material cycles. Manufacturers increasingly design profiles specifically for eventual recycling.
uPVC production generates minimal waste thanks to creative byproduct applications. Even fine powder residue finds valuable uses.
Common Byproduct Applications:
- Disinfectant manufacturing
- Laundry detergent production
- Textile industry inputs
- Cleaning product components
- Industrial process aids
The white powder byproduct offers particularly useful properties. It serves as an ingredient in commercial cleaning products. Companies creating disinfectants prize this material for specific chemical characteristics. The growing disinfectant market drives increased demand for these byproducts.
The textile industry also utilizes certain uPVC manufacturing byproducts. These materials help create stain-resistant fabrics. They improve durability while reducing maintenance requirements. This application transforms what might be waste into valuable contributions.
Water treatment represents another significant application area. Byproducts help address concerns about industrial wastewater. They assist in cleaning discharge streams from manufacturing facilities. This role creates an elegant circular relationship—byproducts helping to protect water resources.
Public health needs drive additional byproduct demand. The materials help create cleaners for public facilities. They contribute to products for sanitizing walkways and shared spaces. This application has grown dramatically with increased infectious disease awareness.
Selecting appropriate uPVC window profiles significantly impacts your project's success. Not all profiles perform equally well for every application. Understanding your specific needs helps ensure satisfaction with the final installation.
Several critical factors should guide your profile selection process. Consider these elements before making your final decision.
Climate Considerations:
Your local weather conditions dramatically affect profile requirements. Different regions demand specific features:
Climate Type | Recommended Profile Features |
Hot, sunny regions | High UV resistance, heat reflection properties |
Cold, harsh winters | Maximum thermal insulation, multi-chamber designs |
Coastal areas | Salt-resistant formulations, corrosion-proof hardware |
High rainfall regions | Enhanced water barriers, drainage systems |
Variable climates | Extreme temperature range tolerance (-50 to 70°C) |
Building Usage Factors:
The building's purpose influences optimal profile selection. Consider how different spaces need specialized solutions:
- Residential homes: Balance of efficiency, aesthetics, and budget
- Commercial spaces: Durability under heavy use, security features
- Schools: Impact resistance, safety features, sound control
- Hospitals: Hygiene considerations, ease of cleaning
- Hotels: Sound insulation, operational reliability
Budget Realities:
Different profile grades offer varying performance at different price points. Premium profiles typically deliver:
- Extended lifespan (30+ years vs 15-20 years)
- Better energy performance
- Enhanced sound insulation
- Superior weather resistance
- Lower lifetime maintenance costs
The initial investment often pays dividends through reduced operating costs. Energy savings alone can recover premium costs within 3-7 years. Factor these long-term benefits into your budget decisions.
Quality differences between uPVC profiles may not appear obvious. Several indicators help identify superior products.
Material Composition Markers:
- Lead-free formulation (environmental and health consideration)
- High titanium content (improves UV resistance and prevents yellowing)
- Multi-chamber internal design (enhances insulation properties)
- Wall thickness consistency (indicates manufacturing precision)
- Smooth, glossy finish (shows proper extrusion temperature control)
Physical Inspection Tips:
You can physically examine profiles for quality indicators:
1. Check corner welds for precision joining
2. Look for consistent color throughout cut ends
3. Examine wall thickness uniformity
4. Test rigidity by applying moderate pressure
5. Inspect surface texture for smoothness
Certification Verification:
Quality manufacturers maintain multiple certifications. Ask potential suppliers about:
- ISO 9001 quality management certification
- Regional building code compliance
- Energy efficiency ratings
- Environmental standards compliance
- Specific performance test results
Request actual test reports rather than marketing claims. Reputable companies readily provide documentation of product performance. They welcome detailed questions about manufacturing processes and quality control.
Most projects succeed using standard profile options. Some situations demand customized solutions. Understanding both paths helps you make informed decisions.
When Standard Profiles Excel:
- Typical residential window replacements
- New construction following standard dimensions
- Budget-conscious projects
- Tight timeline installations
- Projects needing immediate availability
Standard profiles offer significant advantages. They cost less due to mass production efficiencies. They typically ship immediately from local distributors. Installation teams have extensive experience with standard dimensions.
When Custom Solutions Make Sense:
- Unusual opening dimensions
- Historic building renovations
- Specialized performance requirements
- Architectural design statements
- Extreme environmental conditions
Custom profiles require longer lead times. Manufacturers need to create specific dies and testing protocols. The design phase requires careful engineering to ensure performance. These factors increase both production time and costs.
Value Comparison Considerations:
Ask these questions when deciding between standard and custom options:
- Will standard profiles require modifications during installation?
- Do performance requirements exceed standard specifications?
- Are aesthetic considerations critical to project success?
- Does the timeline allow for custom production?
- Will standard profiles compromise long-term performance?
Many manufacturers offer virtual factory tours before ordering. These tours demonstrate production capabilities and quality control measures. They help you evaluate potential suppliers before committing to purchases.
A: uPVC window profile extrusion is a specialized process where raw PVC compound with additives is heated to 200-275°C, formed through precision dies, pulled to maintain shape, and cooled in water baths. This creates hollow chambers for insulation while maintaining exact dimensions. Unlike other methods, extrusion allows complex internal structures that enhance thermal performance.
A: Quality extruded uPVC window profiles last over 30 years, even in extreme conditions. They withstand temperatures from -50°C to 70°C without degradation. Their UV-resistant formulations prevent yellowing, while their moisture resistance eliminates rot or corrosion issues that plague other materials.
A: Modern uPVC profile extrusion is environmentally responsible with lead-free formulations. The byproducts find use in disinfectants, detergents, and textiles. The profiles are highly recyclable, with both post-production waste and old windows being processed into new products. Their long lifespan reduces replacement frequency and resource consumption.
A: Profile cost varies based on material composition, chamber design complexity, reinforcement, and certification standards. Quality indicators include consistent wall thickness, smooth glossy finish, high titanium content, precise corner welds, and proper certifications. Premium profiles offer better energy efficiency, sound insulation, and significantly longer lifespans, justifying their higher initial cost.
The uPVC window profile extrusion market continues growing at an impressive pace worldwide. This expansion stems from increased awareness about energy efficiency and sustainability. Builders and homeowners recognize the exceptional value these products deliver. The decreased prices and improved accessibility have opened new markets globally. We're seeing adoption across diverse climates and building types.
The advantages of extruded uPVC window profiles speak for themselves. They offer unmatched durability, withstanding extreme temperatures from -50°C to 70°C. Their energy efficiency creates significant cost savings for decades. Sound insulation properties create quieter, more comfortable indoor environments. Weather resistance eliminates maintenance concerns across the 30+ year lifespan. Fire safety features provide peace of mind for families and businesses.
For consumers selecting uPVC window profiles, focus on quality indicators rather than just price. Look for multiple internal chambers and consistent wall thickness. Check for proper certifications and warranty coverage. Consider your specific climate and usage needs before making selections. Take the time to research manufacturers and their quality control processes.
Building professionals should partner with reputable profile suppliers. Request technical specifications and testing documentation for all products. Consider the entire window system, including hardware and sealing components. Explain the long-term value proposition to clients beyond initial costs. Remember that properly selected uPVC profiles deliver decades of trouble-free performance. They represent an investment in building quality that rewards owners for generations.
