DERCHI S63 Top Hung Awning Windows

DERCHI S63 top-hung awning windows support ventilation and privacy. Install these aluminum awning windows high on the wall, or combine with matching doors and fixed glass for daylight and airflow. The unit uses one sash hinged at the top; it opens outward from the bottom. Standard awning window hardware includes a crank or handle. Request configuration details, test reports, and custom awning windows—see awning windows for sale.

Get Custom Aluminum Awning Windows Quote

Home Products Aluminium Windows Casement Window S63 Top Hung Awning Casement Aluminum Window

ALL

Aluminum Doors

Aluminum Windows

Sunroom

S63 Top Hung Awning Casement Aluminum Window

S63 Top Hung Awning Casement Aluminum Window

Consider the practical ventilation control of DERCHI S63 Top Hung Awning Casement Aluminum Window. Available with a crank or handle, these awning windows use a top-hung sash that opens outward for airflow while supporting privacy. For specifications and compliance, request product data, drawings, and test reports. Custom awning windows, awning window hardware, and awning windows for sale are available.

100% waterproof and Anti-theft

CE / NFRC / CSA Standard Certification

US/ AU IGCC Standard Glass Certification

100% thermal insulation/windproof/ soundproof

库存： 0

Inquire

Description

Videos

Customizable Styles

Hardware Accessories

Advantages

Certificate

Product Overview: S63 Top Hung Awning Casement Aluminum Window

DERCHI S63 aluminum awning windows use a top-hung sash for outward opening. A 63 mm frame with 1.5 mm profile thickness pairs with a thermal break strip and weather strips. Choose double or triple glazing; U-Factor 0.32 and SHGC 0.25 support temperature control.

Sealed joints and tight gaskets help limit drafts (air tightness 1.8 m³/(m·h)) and resist driving rain (water tightness 650 Pa). Reinforced frames handle wind loads up to 4.5K Pa. Laminated or insulated glass can reduce outside sound by 35 dB.

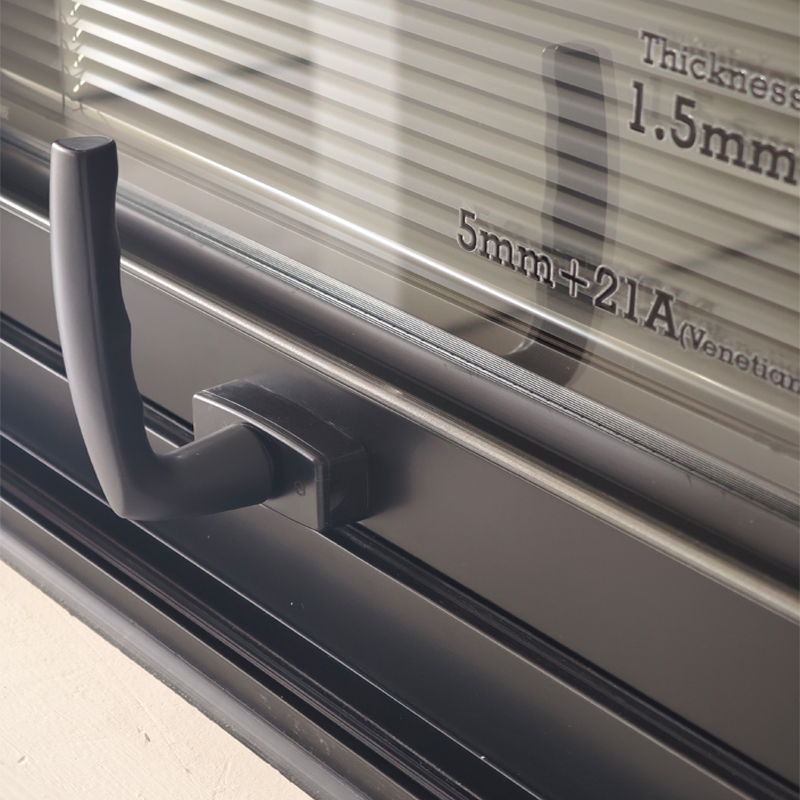

Powder-coated aluminum resists corrosion and needs simple cleaning. Awning window hardware options include SIEGENIA handles and casement friction hinges, plus multi-point locks and reinforced hinges. Sizes cover sash widths 350–700 mm and heights 400–1600 mm, with curved shapes available.

Request Specifications

Key Features of DERCHI S63 Aluminum Awning Windows

S63 is designed for temperature control, noise blocking, long service life, rain-safe ventilation, entry resistance, and UV/moisture management. The frame, glass options, seals, and hardware work as one system to support these needs.

Enhanced Thermal Insulation

Multi-chamber aluminum profiles with a thermal break reduce heat transfer. Double or triple glazing and continuous weather stripping limit drafts and help keep indoor temperatures stable.

Noise Reduction

Laminated glass and insulated frames add layers that slow sound. Tight seals reduce gaps at the sash. Optional glass thickness choices can target common outdoor noise sources.

Durability and Low Maintenance

Powder-coated aluminum resists corrosion and surface wear without repainting. Hardware is designed for repeated opening cycles. Cleaning uses soap and water. Parts can be serviced without replacing the frame.

Weather-Resistant Ventilation

Top-hung opening supports airflow during light rain by directing water away from the interior. Multiple opening positions allow airflow control. Screens reduce insect entry. Lock points help hold the sash during wind.

Security Features

Multi-point locks and reinforced hinges reduce forced-entry risk. Concealed hardware limits access from outside. Optional key locks add control. Tempered glass options increase break resistance.

UV and Condensation Control

Low-E glass options reduce UV that can fade interior items. Warm-edge spacers help reduce condensation at glass edges. Drainage paths guide moisture away from the frame to limit water buildup.

Technical Specifications

Explore the comprehensive technical details of the S63 Top Hung Awning Casement Aluminum Window. This table outlines all key parameters,customization options, and dimensional specifications to help you make an informed decision for your project requirements.

Parameter	Details
Profile Thickness	1.5mm
Frame Width	63mm
Opening Method	Standard outward opening glass sash; Optional top-hung and tilt-turn configurations;

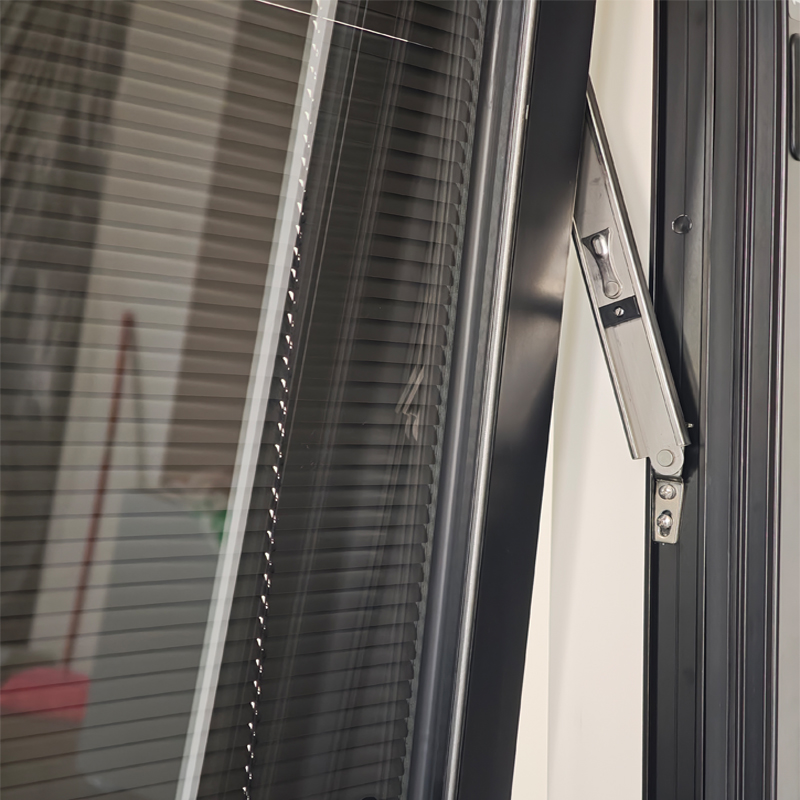

Hardware Configuration	1. SIEGENIA antimicrobial handle without base (black/silver) 2. SIEGENIA casement friction hinges 3. Custom black zinc alloy two-point lock 4. Standard aluminum safety cable (150kg load capacity)
Screen	None
Thermal Break Strip	Standard DERCHI proprietary thermal break strip
Sealing Material	Standard Jiangyin Haida weather strips
Product Process	45° corner sealing on frame and sash; Anti-leakage sealant at mullion connections;
Optional Trim	New 48mm trim package / New 88mm trim package
Glazing Bead	Standard right-angle glazing bead (external)
Size Range Limits	Opening sash: Width 350-700mm / Height 400-1600mm Single fixed glass maximum area: 6m²
Special Process	Curved arc design available / 3D bending process (minimum radius 1600mm)
Remarks	Minimum order calculated as 1m²

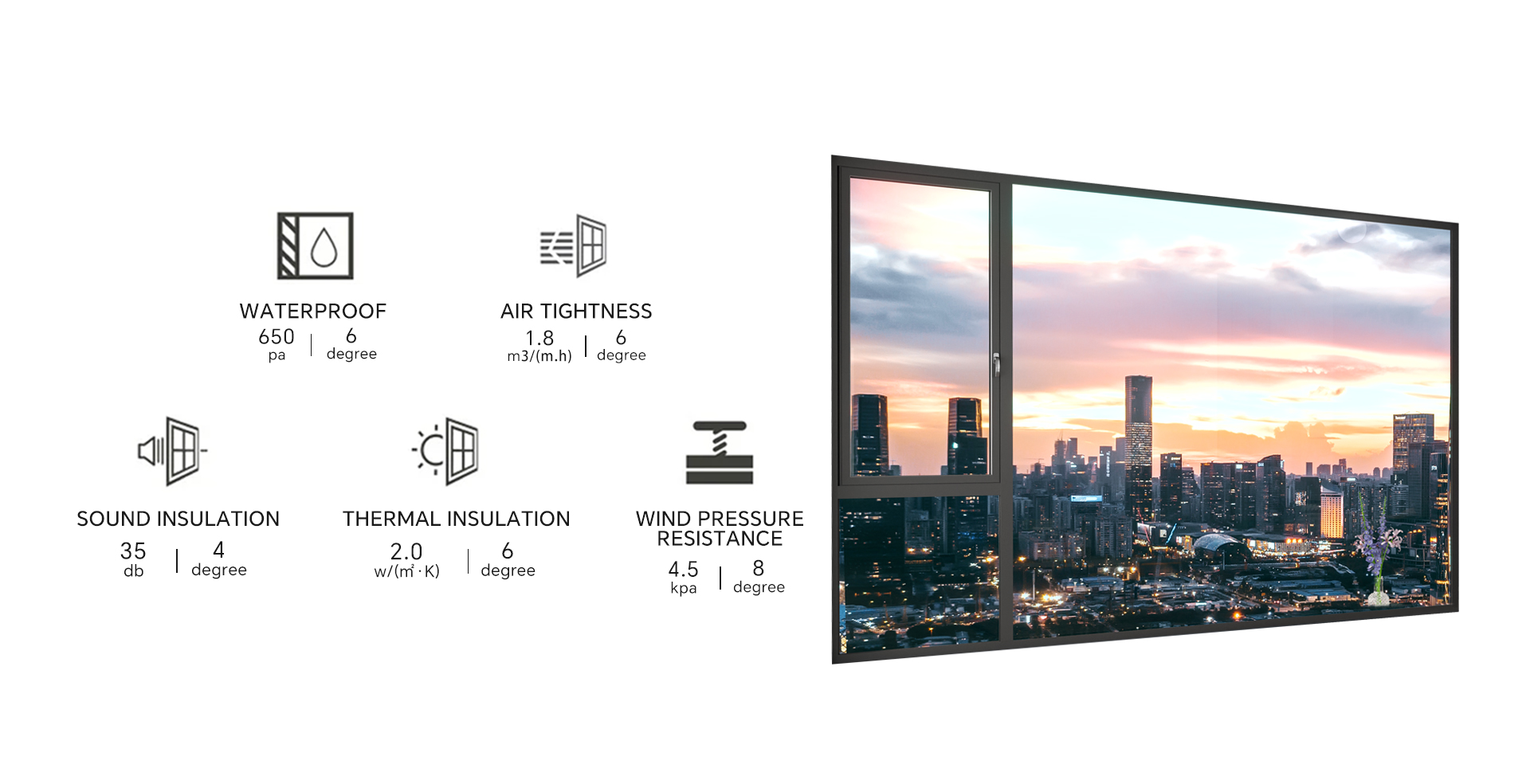

Performance Metrics

Key metrics for thermal transfer, wind load, solar gain, water resistance, air leakage, and sound reduction. Confirm via project submittals and test reports.

U-Factor (U.S./I-P): 0.32

Measures heat transfer through the full window assembly. Lower U-Factor means less heat loss or gain. For proof, provide an NFRC label/report or an accredited test or simulation report using a recognized method.

Wind Pressure Resistance: 4.5K Pa

Indicates resistance to wind load on the frame and sash. Supports structural performance and operation under design wind pressure. Verify with an accredited laboratory report to a recognized wind-load standard (EN, ASTM, or local code).

Solar Heat Gain Coefficient (SHGC): 0.25

Measures the share of solar heat entering through glazing. Lower SHGC can reduce cooling demand. Confirm with NFRC SHGC documentation or an equivalent test or simulation report aligned with the project energy model.

Water Tightness: 650 Pa

Reports the pressure level at which water penetration is resisted in a water test. Helps reduce leakage during wind-driven rain. Verify via a test report to a recognized water penetration method (ASTM E331, EN 1027, or local standard).

Air Tightness: 1.8 m³/(m·h)

States the air leakage rate per test method and specimen size. Lower leakage supports HVAC control and reduces drafts. Confirm with an air infiltration report to ASTM E283, EN 1026/EN 12207, or a local method.

Sound Insulation Performance: 35 dB

Indicates sound reduction in decibels for a tested configuration. A higher dB value means more noise reduction. Confirm with an acoustic lab report (ASTM E90/E413 or EN ISO 10140/717) for the same glass and frame build.

Transform Your Space with S63 Aluminum Awning Windows

Ready to enhance your home with superior ventilation and energy efficiency? Our awning windows for sale combine innovative awning window hardware with durable aluminum construction. Contact our experts today to design custom awning windows that perfectly match your needs and style preferences.

Application Scenarios

The S63 aluminum awning windows work in both commercial and residential buildings. These awning windows open outward from the top, providing ventilation while keeping rain out. Custom awning windows can be made to fit different project needs. Awning windows for sale offer practical solutions for various building types.

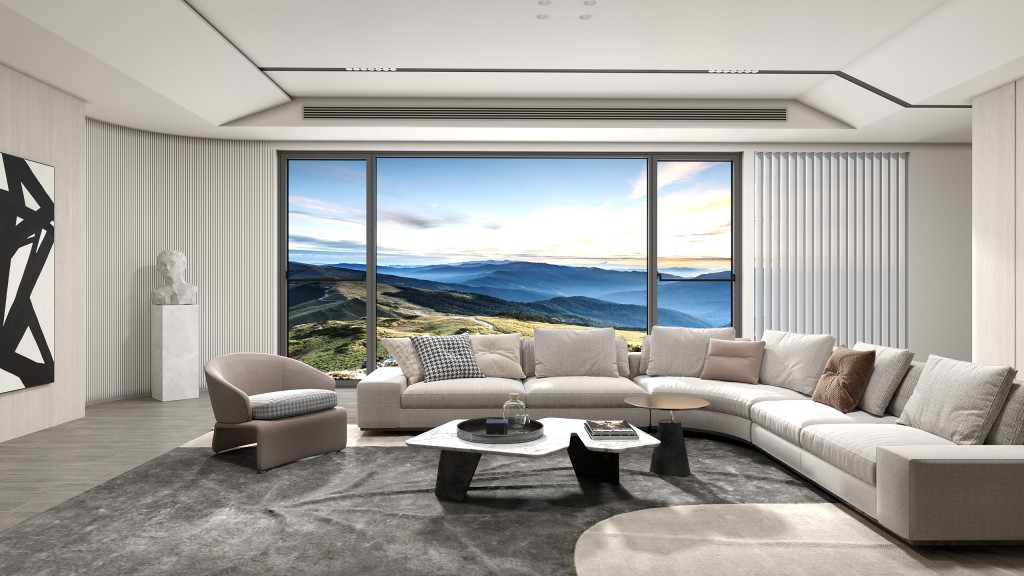

Commercial

Aluminum awning windows suit offices, retail stores, schools, and healthcare facilities. These windows provide natural ventilation in meeting rooms, classrooms, and patient areas. The aluminum frame handles frequent use in busy commercial environments. Custom awning windows meet building codes and design requirements for different commercial projects.

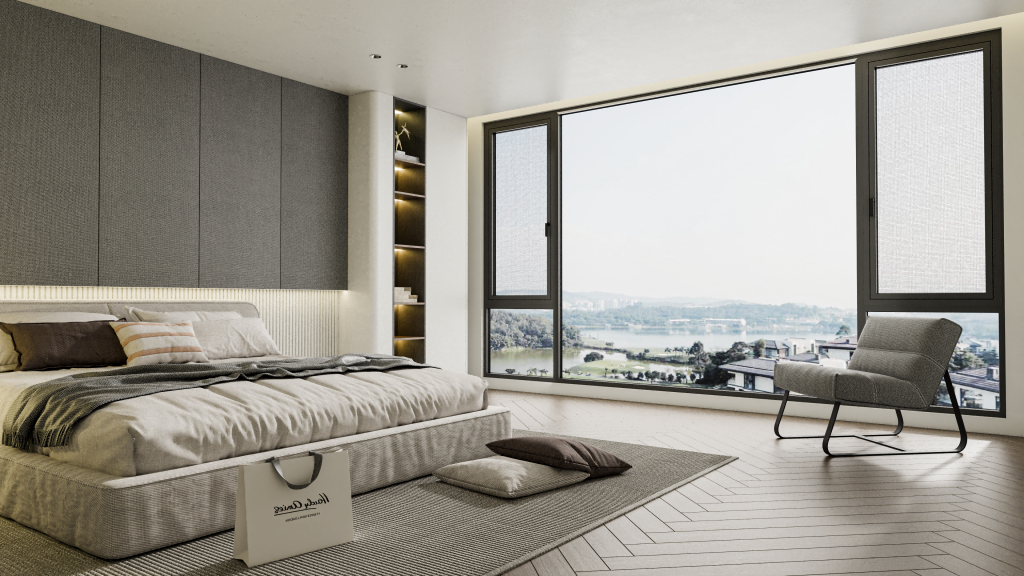

Residential

Awning windows for sale work well in homes and apartments. These windows fit kitchens, bathrooms, bedrooms, and living areas. The aluminum construction resists moisture and weather while providing ventilation control. Custom awning windows can match home designs and meet specific size requirements for residential projects.

Installation Gallery & Projects

Explore successful installations of DERCHI awning windows in residential and commercial properties. See how our custom awning windows enhance various architectural styles across USA, Canada, and Australia.

No content

Other Aluminum Window Types

Casement Window

View Details

Free Quote

Picture Window

View Details

Free Quote

Sliding Window

View Details

Free Quote

Complete Window Solutions

Discover our full range of aluminum window systems. From casement to sliding options, find the perfect complement to your awning windows with matching profiles and finishes.

DERCHI S63 Top Hung Awning Windows

S63 Top Hung Awning Casement Aluminum Window

Superior by Design: Explore Our Custom Aluminum Awning Windows

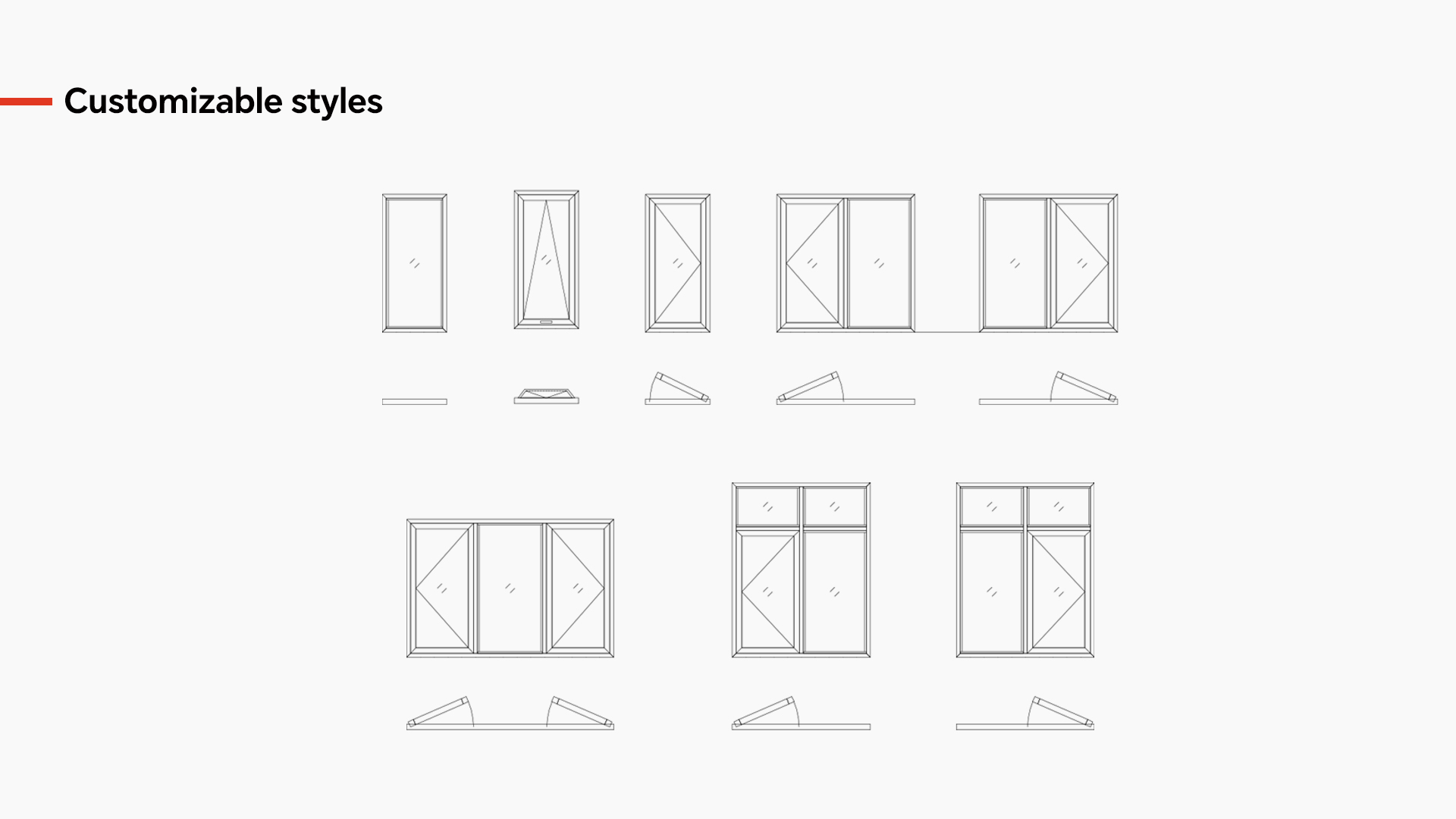

Customizable Styles for S63 Top Hung Awning Casement Aluminum Windows
