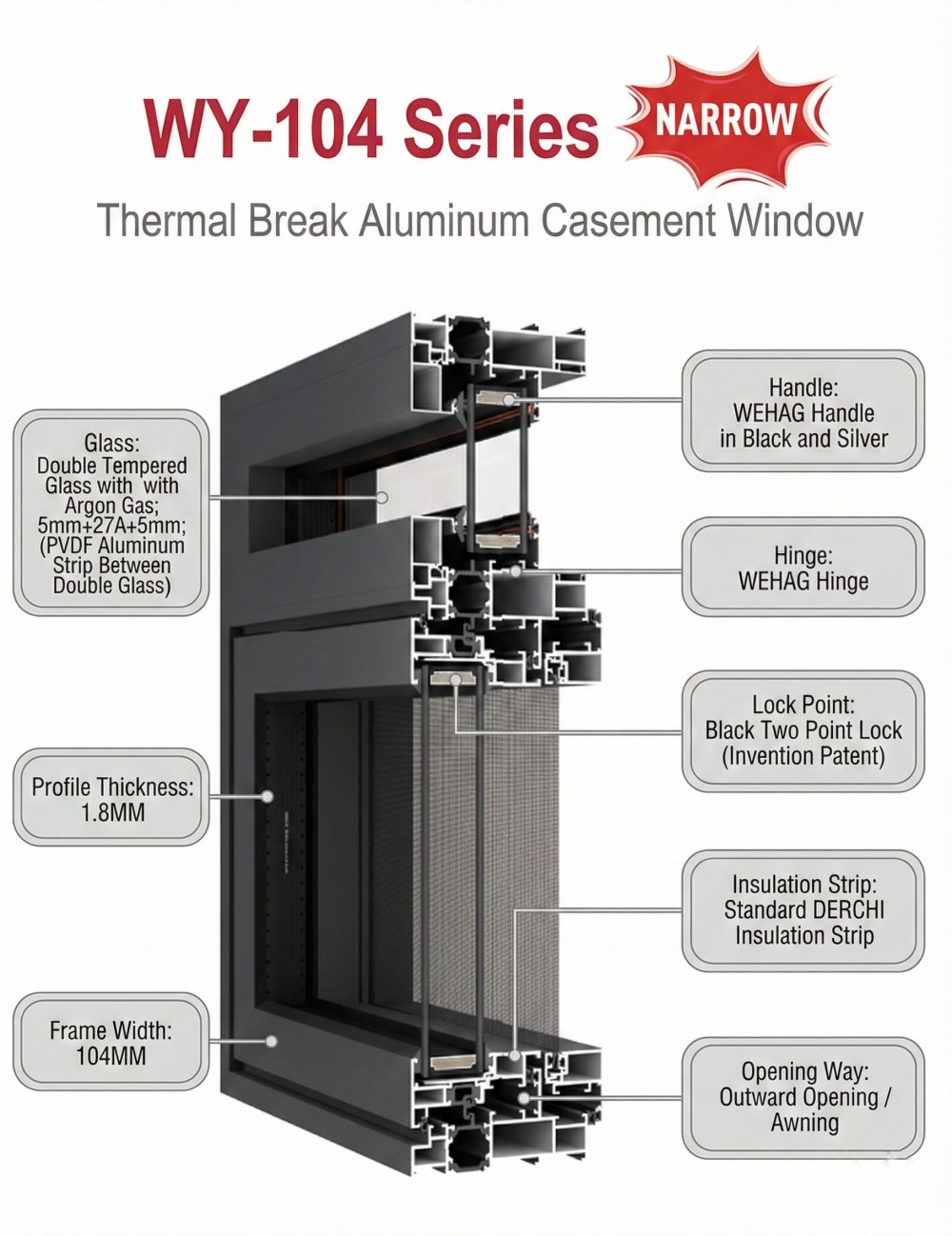

WY-104 Series Narrow Casement Window

Custom Color Options for WY-104 Series

The WY-104 Series offers a diverse palette to match different architectural styles. These options allow for personalization while ensuring long-term surface protection. The selection is divided into high-performance coatings and standard stock colors.

High-Performance PVDF Coatings

For projects requiring superior durability, the PVDF series provides enhanced resistance to weather and corrosion. These coatings are ideal for environments with high salt exposure or intense sunlight. Available options include:

Retro Green: A deep, classic tone for traditional aesthetics.

Mint Gold: A subtle, elegant metallic shade similar to champagne.

Standard Stock Colors

The stock collection includes a variety of finishes ranging from modern solids to natural wood grains. These colors are readily available for faster production.

Modern Solids: Options like Pearl White and Quartz Gray fit minimalist designs. Black Skin offers a matte texture, while Starry Sky Black adds a fine granular effect.

Deep Tones: Deep Sea Blue and Deep Coffee provide bold, professional looks for commercial or contemporary residential buildings.

Wood Grain Finishes: Huanghua Pear and Black Walnut replicate the texture of real wood. These are suitable for classic or warm interior themes.

Choosing the Right Finish

Selection should depend on the local environment and the desired building style. PVDF coatings are best for coastal areas to prevent fading. For modern industrial looks, Quartz Gray or Black Skin are common choices. Use wood grains to create a more traditional or organic atmosphere.

Opening Styles for WY-104 Series

The WY-104 Series features two primary opening mechanisms to suit different ventilation and space requirements. These options allow users to customize how air and light enter a building. Both styles utilize the thermal break aluminum frame for structural integrity.

Awning Opening Style

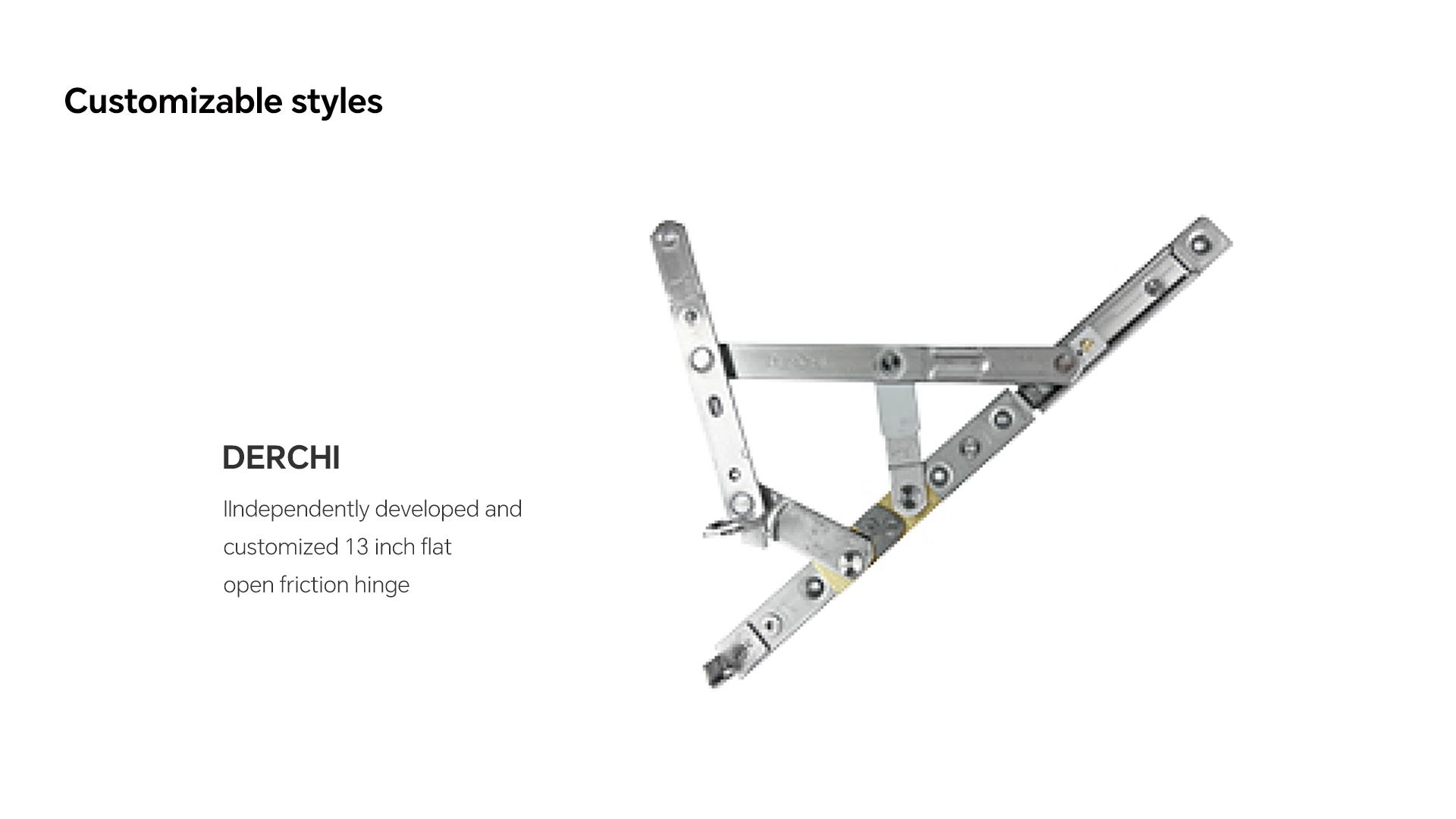

The Awning style uses hinges at the top of the frame. The window opens outward from the bottom. This design creates a protective slope over the opening.

Weather Protection: This configuration allows for ventilation during light rain. The glass acts as a shield to keep water out of the interior.

Safety and Privacy: Opening angles are restricted to enhance security. It is a common choice for bathrooms or high-wall installations where privacy is necessary.

Space Efficiency: Since the window moves outward, it does not interfere with curtains, blinds, or indoor furniture.

Outward Opening Style

The Outward Opening style is a classic casement design. Hinges are located on the side, allowing the sash to swing outward horizontally like a door.

Maximum Airflow: This style can open to a wide angle, often 90 degrees. It directs natural breezes into the room more effectively than other window types.

Clear Views: When open, there are no horizontal bars to obstruct the line of sight. This makes it ideal for rooms facing gardens or landscapes.

Tight Seal: The design uses wind pressure to push the sash against the seals. This improves the insulation and wind resistance of the unit.

Selecting the Opening Mode

Choose the Awning style for continuous ventilation in wet climates or small rooms. Select the Outward Opening style for living areas that require maximum air exchange and unobstructed views.

Glass Configuration Options for WY-104 Series

The WY-104 Series offers extensive glass customization to meet specific performance, safety, and design requirements. These configurations utilize the structural strength of the thermal break aluminum frame.

Energy Efficiency and Standard

The standard Insulated Double Glass creates a barrier against heat transfer. It uses a gas-filled space between panes to prevent condensation. Low-E Glass features a coating that reflects infrared light. This keeps interiors cooler in summer and warmer in winter. For extreme cold or high noise levels, Insulated Triple Glass adds a third pane. This significantly increases thermal insulation and soundproofing capabilities.

Safety and Security

Tempered Glass undergoes high-temperature treatment. It is stronger than standard glass and breaks into blunt granules to prevent injury. Laminated Glass contains a PVB layer between sheets. If broken, fragments stick to this layer rather than falling. This option also dampens traffic noise. For high-security projects, the frame supports heavy Bullet-proof Glass configurations.

Aesthetics and Privacy

Reflective Glass creates a mirror-like appearance during the day. This protects privacy and reduces air conditioning loads by blocking sunlight. Tinted Glass reduces glare from the sun. It allows architects to match the window color with the overall building design.

Customized Style Options for WY-104 Series

The WY-104 Series adapts to diverse architectural needs. It supports specific geometric shapes and complex assembly patterns beyond standard rectangles.

Standard Combinations

Standard Combinations include the basic Single Sash for ventilation. The French Casement style opens two sashes outward without a central fixed post. This configuration maximizes the opening size. Fixed and Casement units combine stationary glass for light with opening sections for airflow. This setup balances function and cost for residential or commercial projects.

Geometric and Irregular Shapes

The system accommodates Geometric Shapes for irregular spaces. Trapezoid or slanted windows fit gable ends and sloped rooflines. These custom angles connect directly with rectangular frames below. This ensures continuous frame lines across the building facade.

Bay Window Systems

The Bay Window configuration utilizes corner posts to project the structure outward. This design adds interior depth to the room. It also offers panoramic visibility extending beyond 180 degrees.

Integrated Screen Features

The design supports Integrated Screens. The diagrams indicate a security mesh layer within the opening sash. This feature prevents insect entry and improves safety while the window remains open for ventilation.
