63 Series Aluminium Top Hung Casement Window with Built-in Shutter

Color Options for the 63 Series Awning Window

PVDF (Fluorocarbon Coating)

PVDF coating supports color retention under sun exposure and helps reduce corrosion risk in coastal or industrial areas. Use this tier when the window faces strong daylight or when the project requires longer coating life on the outside surface.

RETRO GREEN suits heritage facades, stone walls, and balconies with plants. It also works for projects using darker trims and railings.

MINT GOLD fits light interior palettes and metal hardware finishes. It can support a modern exterior when paired with neutral wall colors.

Stock Color Range

Stock colors support faster production and standard purchasing. They also simplify color matching across multiple units of the same building.

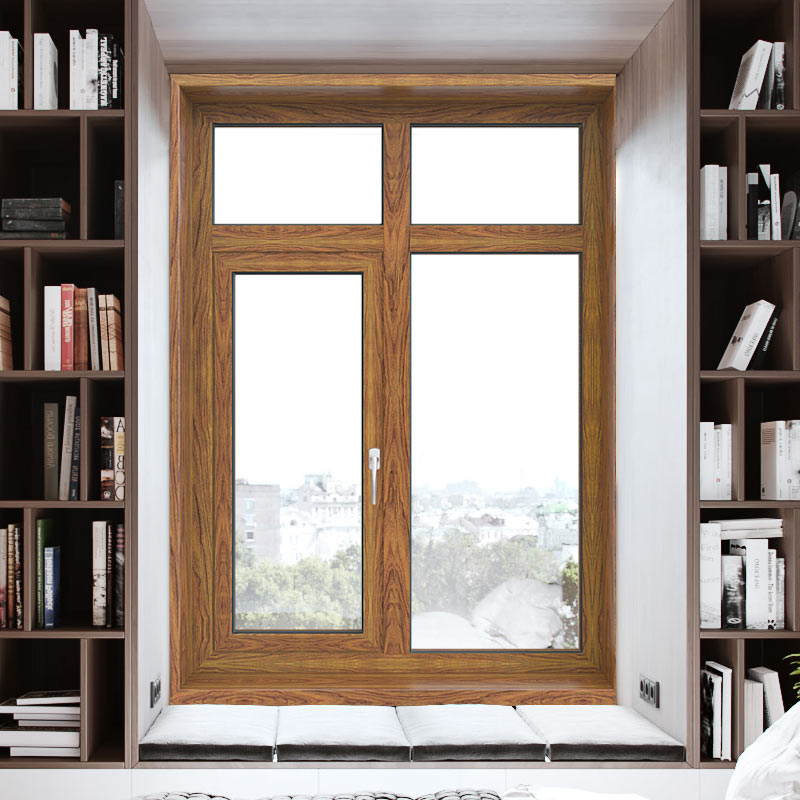

Woodgrain options: HUANGHUA PEAR and BLACK WALNUT support interiors that use wood flooring, cabinets, or warm wall finishes.

Dark neutral options: BLACK SKIN, QUARTZ GRAY, and STARRY SKY BLACK work with common facade rules and suit many building types.

Earth tone options: DEEP COFFEE and CARAMEL COFFEE match warm exterior paint, brick, and stone.

Light and accent options: PEARL WHITE supports bright interiors and small spaces. DEEP SEA BLUE can be used for feature elevations. BLACK CRYSTAL STONE fits projects that want a darker frame with a textured look.

Opening Options for the 63 Series Awning Window

The 63 Series Aluminum Casement Window with built-in shutter supports two opening types to match room use and site limits. This helps buyers specify awning for house windows by ventilation target, rain exposure, and clearance outside the facade.

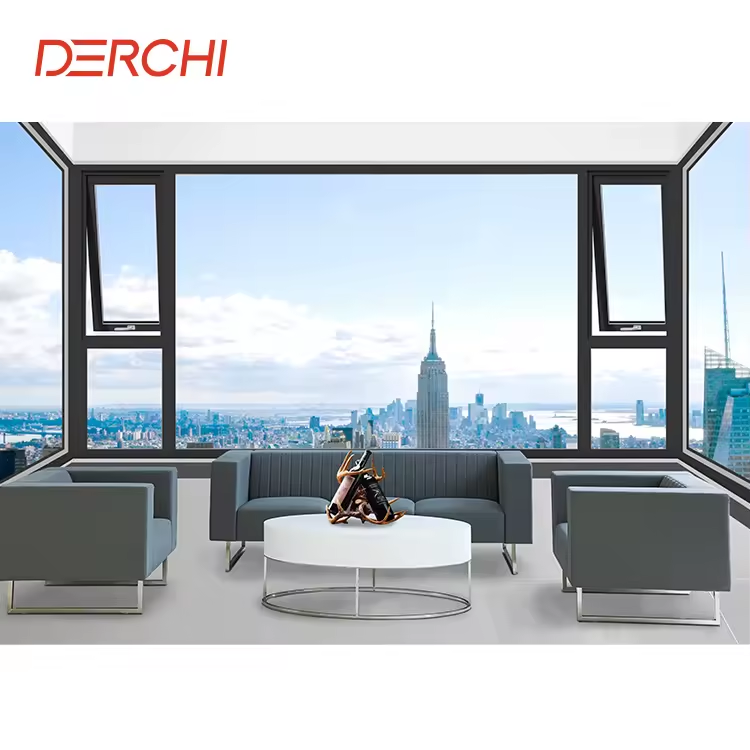

Awning Opening

In awning mode, hinges sit on the top frame edge and the sash opens outward from the bottom. The sash works like a small canopy when opened, so light rain is less likely to enter. Air enters from the lower and side gaps, which supports daily ventilation in compact rooms. The opening angle is limited, which helps reduce fall risk and can add a basic barrier against forced entry.

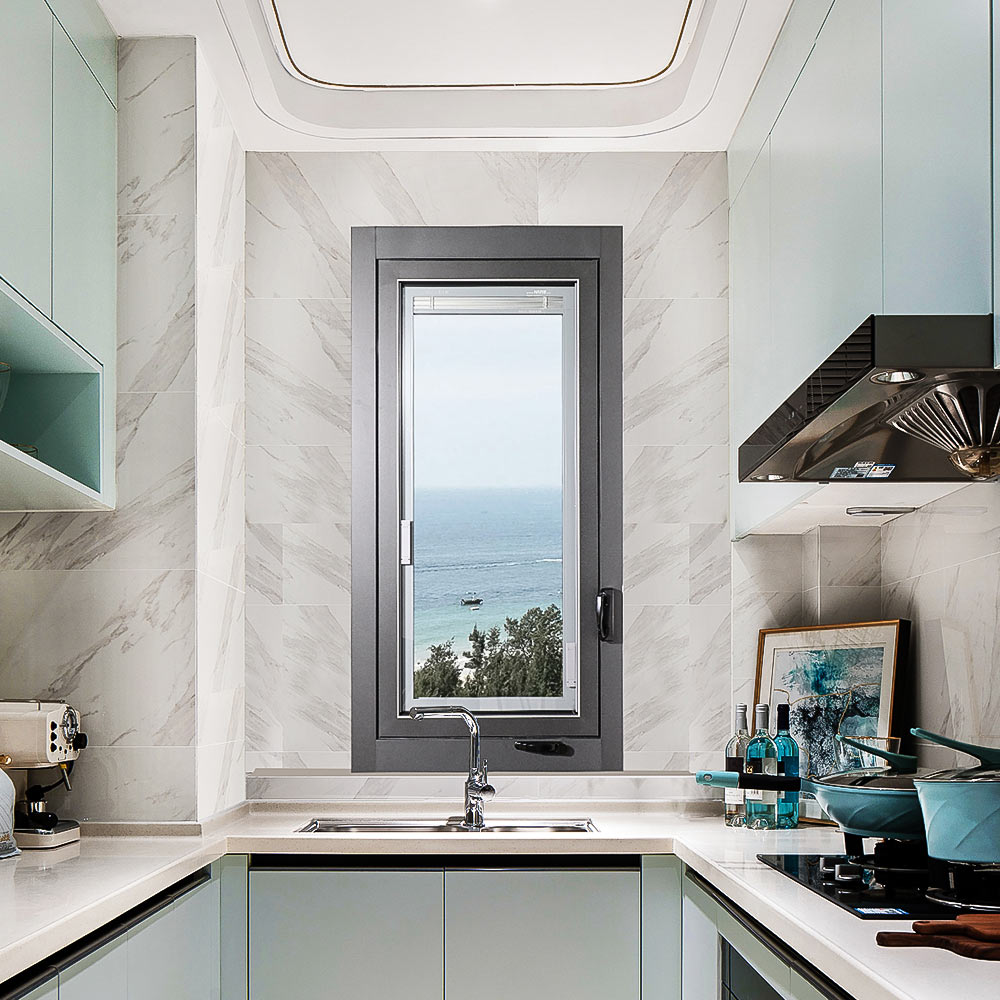

Use this option for bathrooms, kitchens, and small openings that stay in vent mode for long periods. It aligns with demand for awning style windows and top hung aluminium windows in wet zones.

Outward Opening

In outward opening mode, hinges sit on the left or right side and the sash swings outward. This supports a wider opening area and faster air exchange. The sash stays outside, so it does not block curtains or indoor circulation.

Use this option for living rooms and bedrooms where ventilation and daylight are priorities. It matches top hung casement window planning when the facade allows outward swing.

Specification Notes

For high-rise projects, confirm local rules for outward opening sashes and consider adding a safety restrictor. Check outside clearance for railings, screens, and facade elements. Hardware quality affects sealing and operation life for both opening types.

Glass Options for the 63 Series Awning Window

The 63 Series Aluminum Casement Window with built-in shutter offers a full glass menu for awning for house windows projects. Options include Low-E, Tempered, Laminated, Reflective, Tinted, Insulated Double, Insulated Triple, and Bullet-proof glass. Each type supports a different goal such as energy control, safety, privacy, or glare reduction.

What Drives Energy Performance

Energy results depend on the full glass system, not one label. Start with an insulated unit (double or triple). Add a Low-E coating to reduce heat transfer. Use argon or krypton gas fill to improve insulation. Specify a warm-edge spacer bar to limit edge heat loss. Good sealing and installation keep these benefits in place.

Safety and Use-Case Choices

Tempered glass helps reduce break risk and is common for larger panels.

Laminated glass helps hold glass together after impact and can reduce noise.

Reflective glass and tinted glass lower solar heat gain but also reduce daylight.

Bullet-proof glass is for security needs and should be paired with insulated design when energy control matters.

Selection Guidance by Room and Climate

For most homes, choose Insulated Double + Low-E + gas fill as a baseline. Use Insulated Triple in cold zones or where condensation control is required. For sun-facing rooms, select low solar gain Low-E or add tint based on daylight needs. This approach fits awning style windows, top hung casement window, aluminium top hung window, and top hung aluminium windows planning.

Custom Style Configurations for the 63 Series

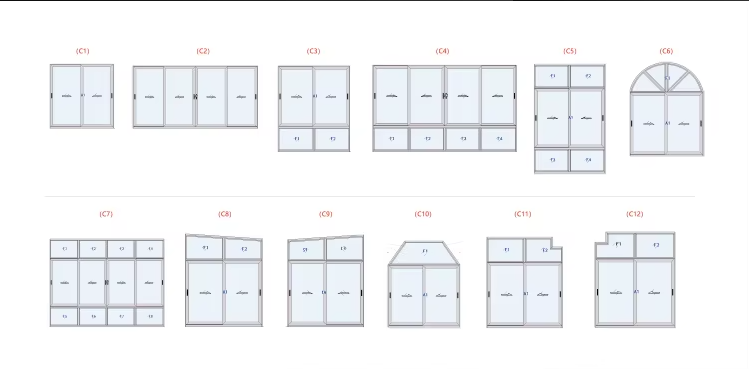

The 63 Series Aluminum Casement Window with built-in shutter supports multiple custom layout drawings, labeled C1 to C12. These layouts combine sliding sashes and fixed glass panels to match different wall openings. Fixed panels are marked as F in the drawings. This gives more planning flexibility for awning for house windows projects, even when the window set includes sliding and fixed sections.

Standard Sliding Layouts

C1 uses a two-panel sliding layout for common rooms such as bedrooms and kitchens.

C2 uses a four-panel sliding layout for wide openings. This format is often used for balconies and living areas where users want more open area and wider views.

Sliding + Bottom Fixed Panels

C3 places a two-panel sliding window on top with fixed glass below. The lower fixed part can act as a safety barrier while keeping daylight.

C4 follows the same logic with a four-panel sliding section on top and a wider fixed section below, suited for larger facade openings.

Multi-Section Combination Designs

C5 uses a top fixed row, a middle sliding row, and a bottom fixed row. This layout fits tall openings and supports staged daylight and ventilation.

C7 expands the concept into a full wall set with fixed glass at the top and bottom, and sliding panels in the middle.

Geometric and Special Shapes

C6 adds an arch-top fixed panel above the sliding section.

C8 to C12 include trapezoid, cut-corner, and stepped shapes for sloped roofs, staircases, and structural obstructions. These formats help align awning style windows, top hung casement window, aluminium top hung window, and top hung aluminium windows planning with real site conditions.
