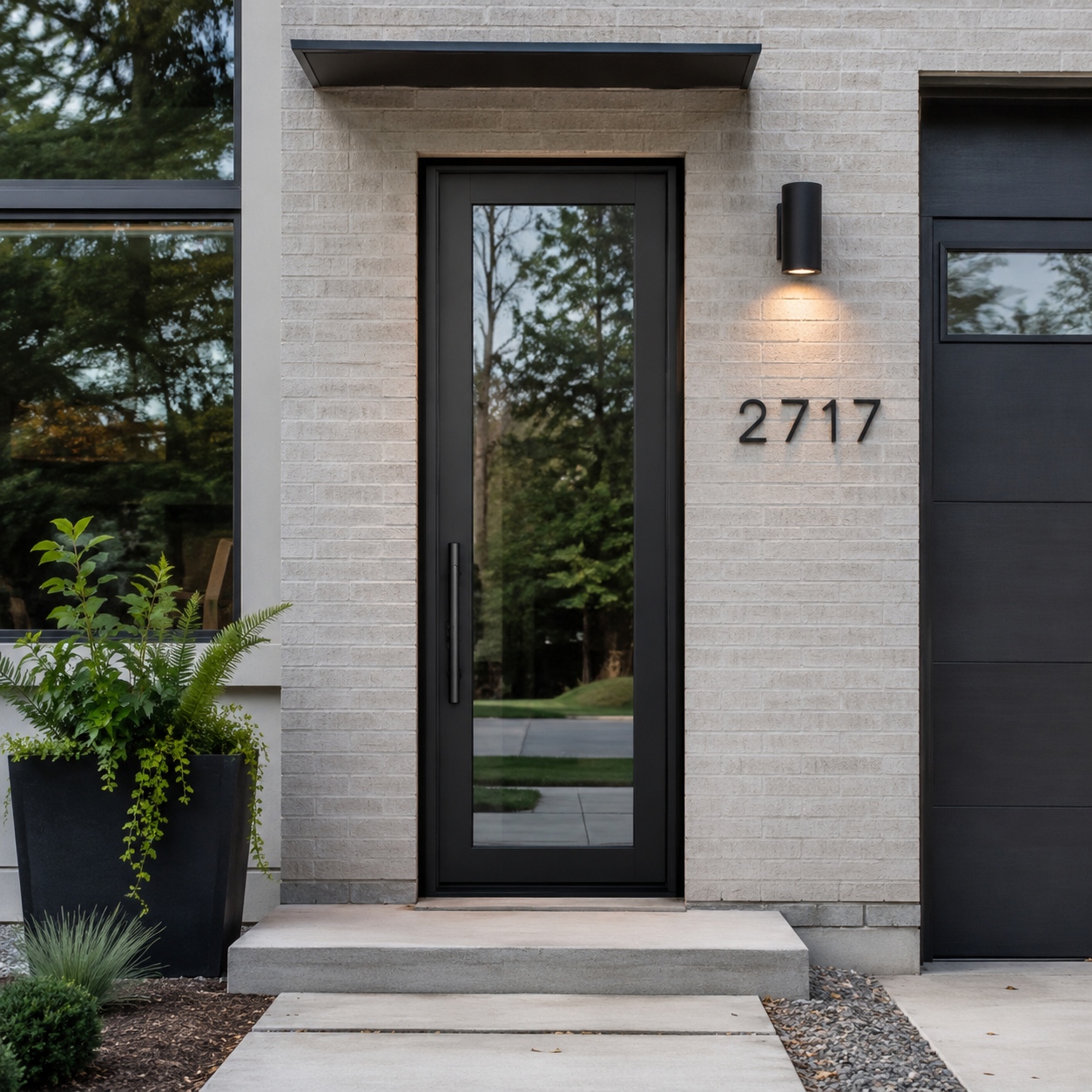

The 30 x 80 exterior door is a custom‑manufactured aluminum entry system built for B2B projects. It combines a thermally broken profile, heavy‑duty locking, and broad configuration choices to meet demanding commercial and residential specs.
- Made to order in 30" x 80" (762 x 2032 mm) with adaptable rough opening allowances for straightforward installation.
- Multi‑point locks and reinforced frames raise security at primary and secondary entrances.
- Certification packs (NFRC, CE, AS2047, etc.) can be supplied with the project‑specific door configuration.
Product Details
For buyers specifying this door size, DERCHI’s system starts with a polyamide thermal break that separates the inner and outer aluminum profiles, limiting conductive heat loss. Front panels use two sheets of aviation‑grade aluminum, each 4 mm thick, with a 12 mm oriented strand board back panel and a polyurethane foam core. The lower section is reinforced with 304 stainless steel and a 1.8 mm magnesium alloy steel sheet, creating a rigid assembly resistant to warping and forced entry.
Compression is handled by multi‑layer EPDM gaskets; together with the thermally‑broken sill, they control air and water ingress. Every door is fabricated to order, so hardware choices—hidden hinges with anti‑pry technology, smart locks, closers—can be selected without compromise. Architects and contractors gain a durable front‑entrance solution that supports site‑specific egress arrangements and matches the building’s finish palette.
Product Features
Thermal isolation: Polyamide bars interrupt direct metal‑to‑metal contact, slowing heat flow and helping projects approach energy‑code targets without oversized frames.
Weather‑tight sealing: Three EPDM gaskets form a compression barrier against wind, dust, and rain, keeping interior finishes dry across seasons.
Load‑bearing hinge: The 304 stainless steel hinge has been endurance‑tested to 100,000 cycles and holds over 150 kg, so it stays smooth even in lobbies and corridors.
Impact‑resistant shell: Aviation aluminum panels and the magnesium‑alloy‑reinforced lower gear raise surface strength for busy building entryways.
Configurable locking: Combine multi‑point locks, super C‑class cylinders, or fingerprint‑based access to match site security plans.
Finish and glass freedom: Wood‑grain foil, RAL powdercoat, decorative or low‑E glass—all specifiable to align with architectural intent.
Customizable Styles
Size adaptability: While nominal dimensions are 30 x 80 inches, the custom door can be fine‑tuned to match as‑built openings or blueprint dimensions.
Surface finish: Realistic wood textures, textured powder coatings, and any RAL color maintain consistent branding or design language across a project.
Glazing: Clear, frosted, tinted, or low‑E double‑glazed units can be installed; thermal performance varies with the glass specification.
Swing direction: Inswing or outswing, left‑ or right‑handed, set to suit circulation plans and local egress requirements.
Sill and threshold: Thermally broken sills and adjustable thresholds are available to improve weather resistance and meet accessibility needs.
Hardware Accessories
304 stainless steel handle: Resists corrosion in coastal or high‑humidity environments and stays clean with minimal upkeep.
Zinc alloy handle: Offers diverse profiles and finishes to complement the door panel’s look without sacrificing durability.
Smart lock: Fingerprint, password, and IC card access eliminate physical keys and allow usage tracking—useful for hotels, offices, and managed apartments.
Super C‑class lock cylinder: Anti‑pick and anti‑drill construction raises the security level for projects with strict safety demands.
Door closer: Adjustable closing speed prevents slamming; when tuned correctly, it can assist in meeting accessibility guidelines.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | Polyamide thermal break, EPDM seals, polyurethane core lower heat transfer; U‑factor and SHGC depend on glass selection. | Request project‑specific U‑factor and SHGC data from DERCHI according to your climate zone and glazing. |
Wind Pressure Resistance | Engineering depends on frame size, anchorage, and site conditions; tested values available per configuration. | Confirm wind load ratings with the supplier for the intended building height and local codes. |
Water Tightness | Multi‑layer EPDM gaskets and sloped sill manage water drainage; test ratings available upon request. | Ask for water penetration test results if the door will face driving rain exposure. |
Air Tightness | Compression seals limit air leakage; performance is influenced by installation quality and frame tolerances. | Request air infiltration data for the chosen configuration to assess HVAC load impact. |
Sound Insulation | Insulated core and heavy panels reduce noise transfer; dB rating is not standard and varies with glass. | Request acoustic test reports if sound control is critical for the project. |
Product Specifications
Product Name | 30 x 80 Exterior Door (Thermal Break Aluminum Entry Door) |
Product Type | Custom‑manufactured thermal break aluminum hinge entry door |
Exterior Panels | 4 mm + 4 mm aviation aluminum sheets with optional carvings |
Back Panel | 12 mm oriented strand board |
Core Insulation | Polyurethane foam board |
Lower Gear | 304 stainless steel + 1.8 mm magnesium alloy steel sheet |
Sealing | EPDM rubber sealing strips |
Standard Hinge | 304 stainless steel, tested 100,000 cycles, >150 kg capacity |
Nominal Size | 30" x 80" (762 mm x 2032 mm) |
Recommended Rough Opening | 32" x 82.5" (813 mm x 2095 mm) |
Opening Customization | Inswing/outswing, left‑hand/right‑hand |
Available Hardware | Stainless steel or zinc alloy handles, smart locks, C‑class cylinders, closers, hidden hinges |
Glass Options | To be confirmed according to project specifications; low‑E, frosted, decorative available |
Certification Documentation | NFRC, CE, AS2047, CSA, ENERGY STAR can be provided per configuration and project needs |
Notes | All dimensions and configurations are subject to project‑based confirmation. Shop drawings supplied upon order. |
Advantages
Fabricated to exact opening dimensions, reducing on‑site alterations and ensuring a tight weather seal.
Aluminum and stainless steel construction resists rust and distortion, outlasting conventional steel entry doors.
The thermal break design together with insulating foam core cuts energy transfer, helping meet building envelope performance goals.
Multiple lock and hardware families let you scale security from basic keyed entry to biometric access control.
DERCHI’s 25+ years of B2B experience includes OEM customization, global shipping (FOB/CIF/DDP), and project take‑off support.
Application Scenarios
Apartment: The durable aluminum door handles tenant turnover and corridor traffic, while smart lock options enable keyless management for property managers.
Home Office: A configurable 30 x 80 entry can separate a workspace from the main house; pair sound‑reducing glass with a secure lock for privacy.
Hotel: Quiet‑close hardware and custom finishes let hospitality doors blend with brand standards and raise guest comfort without adding maintenance complexity.
Office Building: Heavy‑duty hinges and multi‑point locks support high daily cycles at entrances; fire‑rated assemblies may be engineered upon request.
Outdoor Exposure: In fully exposed locations, EPDM seals and aluminum’s corrosion resistance keep the door stable. Buyers should verify water tightness and wind load ratings for their site.
Residential Development: As a project‑based entry door, this model supports bulk orders with consistent quality, staged deliveries, and color‑matched facades across multi‑unit developments.
Side/Back Entrance: When used as a secondary door, the insulated aluminum design helps prevent condensation. Measure the rough opening carefully and share exposure details before ordering.
Villa: High‑end wood grain finishes, decorative glass, and the hidden hinge option allow architects to craft a distinctive entrance that fits luxury exteriors.
FAQ
What is a 30 x 80 exterior door by DERCHI?
It’s a custom thermal break aluminum entry door built to nominal 30"x80" dimensions. The design uses aviation aluminum panels, polyurethane insulation, and multi‑point locking for secure, energy‑efficient installations.
Where can a 30 x 80 exterior door be used?
Apartment buildings, villas, hotels, offices, and secondary residential entrances. It fits openings where a 30‑inch width is specified and can function as a side or back door as well.
Can the 30 x 80 exterior door be customized?
Yes—size, color, glass type, swing direction, and hardware are all configurable. DERCHI offers OEM customization for bulk orders.
What information is needed for a quote?
Provide the exact door size, quantity, glass and hardware preferences, project location, required certifications, and any site‑specific conditions for an accurate project‑based quotation.
Can this door be used for B2B projects?
Absolutely. The door is built for B2B procurement, with no retail fixed pricing. DERCHI also offers dealer programs, take‑off services, and support for global projects.
Are technical documents available?
Specification sheets, test reports, and shop drawings are provided once the order is confirmed. Request the documents you need for tenders or building permits from DERCHI.
What should buyers confirm before ordering?
Verify site measurements, local egress codes (a 30‑inch door may not meet all primary egress requirements), wind load, and any project‑specific finish or hardware standards.
How should I confirm certification, packaging, or shipping details?
Certifications like CE or NFRC are configurable; ask for documentation that matches your exact configuration. DERCHI ships FOB, CIF, or DDP with palletized packaging—confirm terms directly.
