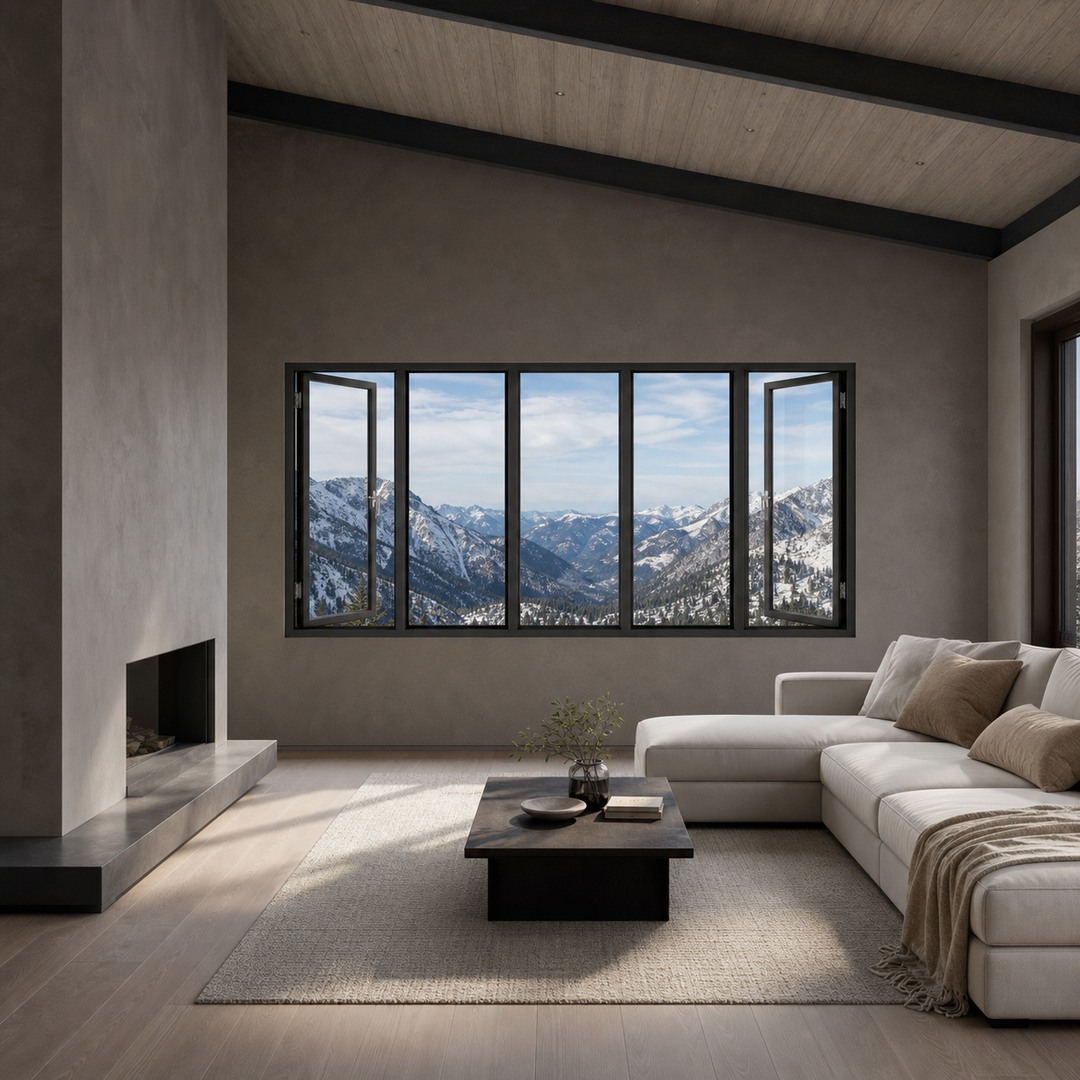

A 36 x 36 casement window from DERCHI is a custom thermal-break aluminum product built around the E5N Langyue system, designed for inward opening or tilt-and-turn operation. It is tailored for residential and light commercial projects requiring controllable ventilation and interior maintenance access.
- Custom built to 36 x 36 in (914 x 914 mm), not a stock standard window
- E5N system with 85 mm frame, 2.0 mm wall thickness, and 35 mm insulation strip
- Standard 5+27A+5 argon double tempered glass with PVDF spacer
- German WEHAG/Winkhaus concealed tilt-and-turn hardware
Product Details
The E5N Langyue system construction features an 85 mm frame width, 2.0 mm aluminum wall thickness, and a 35 mm PA66 insulation strip. The frame-sash is flush with clean proportions, supporting single-sash inward opening or double narrow-sash configurations. Corner joints are glue-injected followed by silicone application, and the system uses internal and external pressure rubber strips with a triple seal and concealed drainage.
Standard glass is 5+27A+5 double tempered insulating glass with argon gas and a black PVDF hollow aluminum spacer bearing the DERCHI logo. Buyers can configure 48/88 edge wrapping. The inward opening system allows interior cleaning access, making it practical for high-rise applications. As a custom 36 x 36 casement window, exact dimensions and tolerances beyond the nominal 914 x 914 mm should be confirmed with project drawings.
Product Features
- Thermal-Break Performance: The 35 mm wide PA66 insulation strip helps reduce heat transfer, supporting energy efficiency in residential and light commercial projects.
- Triple Seal System: Internal and external pressure rubber strips with triple seal construction help manage air and water tightness for weather resistance.
- Concealed Tilt-and-Turn Hardware: German WEHAG/Winkhaus accessories allow 90-degree inward opening and tilt mode for controllable ventilation.
- Interior Maintenance Access: The inward opening system enables cleaning from inside, which is practical for high-rise buildings and upper-floor installations.
- Sound Insulation Capability: The 5+27A+5 argon glass configuration may support sound insulation around 35 dB; buyers should confirm exact values for their selected configuration.
- Child Safety Ventilation: Tilt-and-turn mode allows secure, restricted airflow, which is useful for bathrooms and high-rise child safety scenarios.
Customizable Styles
- Glass: Options include argon gas, Low-E, laminated, frosted, tinted, ultra-clear, and louvered glass with PVDF/fluorocarbon spacers.
- Colors and Finishes: Powder coating, fluorocarbon, wood grain, and metallic flash silver finishes in colors like Sand Gray, Dark Coffee, White, and Indigo Gray.
- Structures: Single sash, double sash (each ~18 in/457 mm), three-lite (each ~12 in/305 mm), fixed+opening, and multi-pane combinations.
- Opening Styles: Inward opening, double internal opening, tilt and turn, available with or without flyscreen.
- Project Customization: Custom sizes and colors are supported; grilles, grids, and blinds should be confirmed with the supplier before ordering.
Hardware Accessories
- Handle: German WEHAG/Winkhaus baseless handle; specific model numbers should be confirmed with the supplier.
- Tilt-and-Turn Accessories: Concealed hardware enabling 90-degree inward opening and tilt mode; optional 180-degree accessories available.
- Flyscreen Handle: The flyscreen version can be equipped with a keyed handle for added security.
- Optional Handles: Fingerprint and password handles are available for upgraded access control requirements.
- Sealing Hardware: Triple seal with internal and external pressure rubber strips; optional sound insulation cotton can be added.
Basic Parameters
| Performance Item | Available Information | Buyer Notes |
|---|---|---|
| Thermal Insulation | 1.8 W level | Full unit (W/m²·K) and testing standard need confirmation before ordering. |
| Wind Pressure Resistance | Approximately 5 kPa | Confirm exact level and testing standard for project requirements. |
| Water Tightness | 550-700 Pa | Varies by flyscreen/non-flyscreen configuration; confirm exact value for selected setup. |
| Air Tightness | 1.2 | Confirm applicable standard and level classification for your market. |
| Sound Insulation | 35 dB | Confirm testing standard and glass configuration used for this result. |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 36 x 36 Casement Window |
| Product Type | Thermal-break aluminum casement window, inward opening / tilt-and-turn |
| Material | Thermal-break aluminum (E5N Langyue system) |
| Glass Type | 5+27A+5 double tempered insulating glass with argon gas |
| Glass Thickness | 5mm + 27A spacer + 5mm |
| Frame Option | 85 mm frame width, 2.0 mm wall thickness, 35 mm insulation strip |
| Hardware | German WEHAG/Winkhaus baseless handle, concealed tilt-and-turn |
| Opening Style | Inward opening, tilt-and-turn, 90-degree opening angle |
| Size Range | Nominal 914 x 914 mm; opening sash range: width 508-1000 mm, height 560-2000 mm (export page) |
| Application | Bedrooms, bathrooms, stairwells, studies, small facades |
| Customization | Custom sizes, colors, glass types, and structures available |
| Notes | Reference MOQ ~2 sqm, delivery ~25-35 days (platform data); confirm with supplier for E5N |
Advantages
- Custom Manufacturing: DERCHI brand custom production with the E5N Langyue system, tailored to project-specific sizes and configurations.
- German Hardware Partnership: WEHAG/Winkhaus concealed tilt-and-turn hardware supports reliable inward opening and tilt operation.
- Thermal-Break Construction: The 35 mm extra-wide PA66 insulation strip helps reduce heat transfer for energy efficiency.
- Weather Resistance Design: Triple seal and concealed drainage help manage air and water exposure in various conditions.
- Export Packaging: Four-layer protection with anti-scratch film, pearl cotton, waterproof film, and wooden frame for shipping safety.
Application Scenarios
- Apartment: The 36 x 36 casement window fits apartment bedrooms and living areas where controllable ventilation and interior cleaning access are needed. Tilt-and-turn mode supports secure airflow.
- Home Office: For home offices with small facade walls, the square 914 x 914 mm proportion provides natural light. Frosted or tinted glass can be configured for privacy.
- Hotel: Hotels can use the inward opening system for guest room ventilation and maintenance. The keyed flyscreen handle option adds a layer of access control.
- Office Building: In office buildings, the window can be configured in fixed+opening combinations for stairwells and auxiliary spaces requiring compact opening dimensions.
- Outdoor: For covered outdoor or transitional spaces, buyers should confirm water tightness, wind pressure resistance, and surface finish for the specific environmental conditions.
- Residential Building: The E5N system suits residential bathrooms and high-rise units where interior maintenance access and child safety ventilation via tilt-and-turn mode are priorities.
- Exterior: When used on exterior facades, buyers should verify wind pressure ratings, surface treatment durability, and installation conditions with the supplier.
- Villa: Villas can benefit from the extensive color card and finish options, including wood grain and fluorocarbon, to match architectural style while maintaining thermal-break performance.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
Is the 36 x 36 casement window a stock standard product?
No, this is a custom thermal-break aluminum window built around the 36 x 36 in (914 x 914 mm) size. It is produced to project specifications, not held as a stock standard window.
What information is needed for a quote?
Buyers should provide quantity, project drawings, destination, and configuration details including glass type, color, structure, hardware, and screen preferences. Opening direction and installation conditions should also be confirmed.
What is the MOQ and delivery time?
Platform data shows a reference MOQ of approximately 2 square meters and delivery of 25-35 days. These are reference figures; confirm exact MOQ and lead time for the E5N configuration with the supplier.
What certifications are available for the E5N series?
CE, NFRC, and CSA certifications are verified for the S9 series. For the E5N 36 x 36 casement window, buyers should confirm which certification documents apply to the selected configuration and target market.
Are grilles, grids, or blinds available?
These options are not listed in the current E5N product data. Buyers should confirm with the supplier whether grilles, divided-lite patterns, or integrated shading options are available for this configuration.
What warranty terms apply to this product?
Exact warranty terms and conditions for the E5N 36 x 36 casement window are not specified in the available data. Buyers should request and confirm warranty details before placing an order.
Can this window be used for 36 x 36 casement window wholesale or B2B projects?
Yes, as a 36 x 36 casement window supplier and manufacturer, DERCHI supports custom sizes, colors, and structures for wholesale and B2B projects. Confirm specific project requirements and packaging needs with the supplier.
