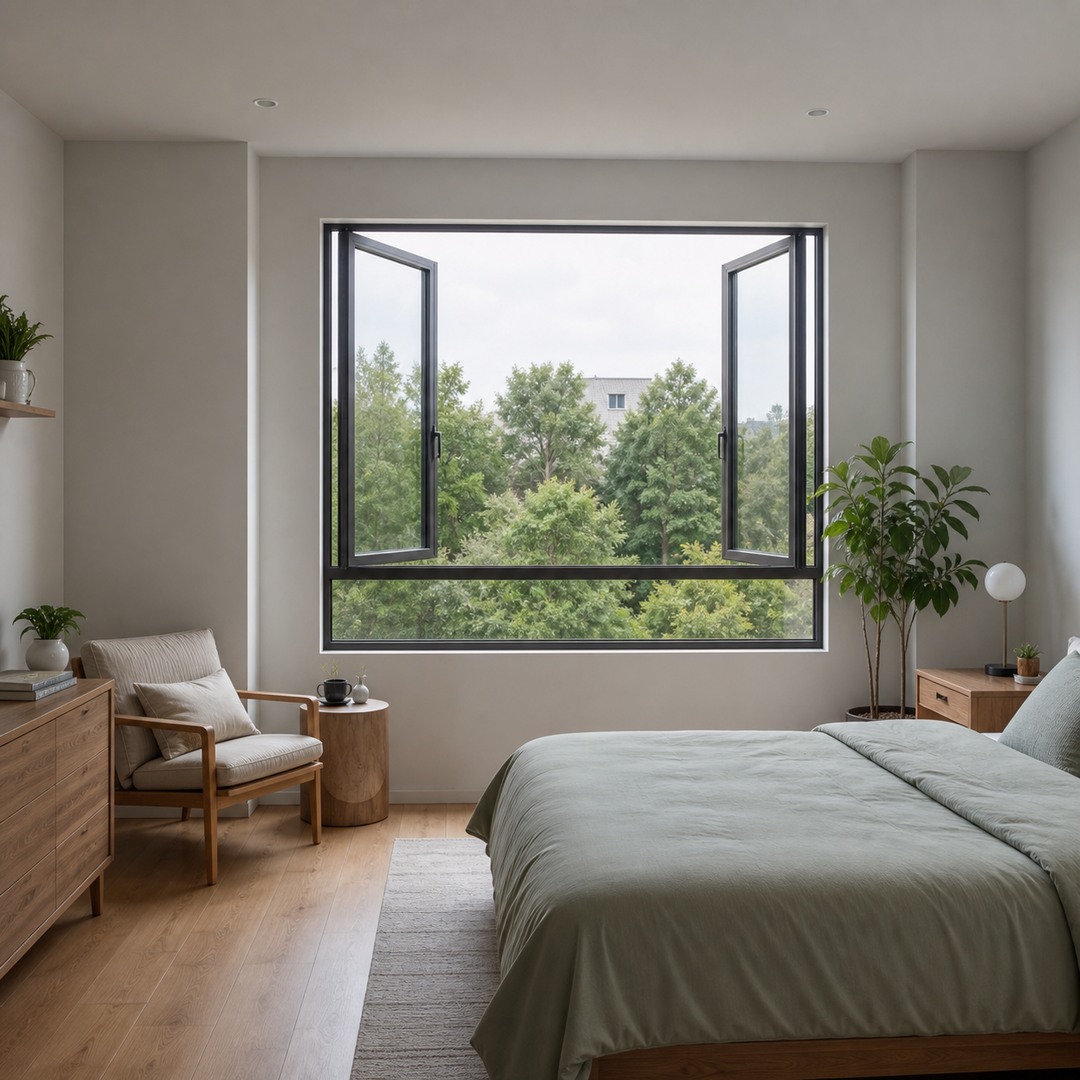

The 36 x 42 casement window is a custom-made thermal-break aluminum unit from DERCHI, built on the E5N Langyue system for inward-opening and tilt-and-turn operation. It is engineered for residential and light commercial projects requiring controllable ventilation and interior-side maintenance.
- Custom thermal-break aluminum frame with 35mm PA66 insulation strip
- Standard 5+27A+5 argon double tempered insulating glass with PVDF spacer
- German WEHAG concealed tilt-and-turn hardware with 90-degree inward opening
- Made-to-order sizing and color configuration for project specifications
Product Details
Structurally, the E5N system features an 85mm frame width, 2.0mm aluminum wall thickness, and a 35mm PA66 insulation strip. Corner joints use glue injection followed by silicone application, combined with a triple seal and concealed drainage to manage weather exposure. The internal and external pressure strip process accommodates 48/88 edge wrapping, while the 90-degree inward opening angle facilitates high-rise interior cleaning.
Standard glazing is 5+27A+5 double tempered insulating glass with argon gas and a black PVDF hollow aluminum spacer carrying the DERCHI logo. The opening sash engineering range is 508-1000mm in width; height ranges differ between the manual (600-2000mm) and the export website (560-2000mm), so buyers should confirm the applicable dimension for their specific configuration. This custom 36 x 42 casement window is built to order, not held as a stock standard product.
Product Features
- Thermal Insulation: The 35mm extra-wide PA66 insulation strip contributes to a 1.8W thermal level. Buyers should request certified U-value test reports to confirm exact ratings.
- Sound Insulation: Rated at 35dB with standard double tempered glass. Confirm specific glass configuration requirements to achieve this acoustic performance.
- Weather Resistance: Triple seal and concealed drainage manage water tightness at 550-700Pa. Confirm which value applies to configurations with or without a flyscreen.
- Controllable Ventilation: Tilt-and-turn operation allows secure micro-ventilation and a full 90-degree inward opening, supporting child-safety and airflow management.
- Interior Maintenance: Inward-opening design enables safe cleaning from inside the room, a practical benefit for high-rise residential or commercial 36 x 42 casement window applications.
- Structural Stability: Glue-injected corner joining followed by silicone application reinforces frame rigidity, while the 2.0mm wall thickness supports wind pressure resistance of approximately 5kPa.
Customizable Styles
- Glass: Options include argon, Low-E, laminated, frosted, tinted, ultra-clear, and blind glass. Confirm maximum glass thickness capacity for the E5N system.
- Frame: Thermal-break aluminum with PA66 strip, 85mm frame width, and 2.0mm wall thickness. Internal/external pressure strip process supports 48/88 edge wrapping.
- Size: Custom dimensions are supported with a common platform MOQ of 2 square meters. For 36x42, double sash yields ~18in each; three-lite yields ~12in each.
- Color: Over 20 colors including Sand Gray, Black Walnut, Starry Black, Indigo Gray, and Pearl White. Finishes include powder coating, fluorocarbon, and wood grain.
- Opening: Structures include single sash, double internal opening, fixed+opening, top transom, and multi-lite combinations. Screen options include with or without flyscreen.
Hardware Accessories
- Handle: German WEHAG/Winkhaus baseless handle. Optional upgrades include fingerprint, password, or keyed handles for the screen sash.
- Hinge: Germany WEHAG hidden tilt-and-turn hinge with concealed accessories, supporting a 90-degree inward opening angle.
- Lock: Concealed tilt-and-turn locking accessories. Optional 180-degree tilt-and-turn accessories are available for wider operation.
- Sealing Hardware: Triple seal system with internal and external pressure strips. Optional sound and thermal insulation cotton can be added.
- Screen Hardware: Flyscreen sash can be equipped with a keyed handle. Confirm available mesh types and child-safety features for the project.
Basic Parameters
| Performance Item | Available Information | Buyer Notes |
|---|---|---|
| Thermal Insulation | 1.8W level | Request certified U-value test reports and confirm if Low-E glass is required. |
| Wind Pressure Resistance | Approximately 5kPa | Value is approximate; confirm exact rating and applicable test standard. |
| Water Tightness | 550-700Pa | Confirm which value applies to the specific configuration with or without screen. |
| Air Tightness | 1.2 | Confirm the test grade and classification standard used for this rating. |
| Sound Insulation | 35dB | Confirm the glass configuration required to achieve this acoustic level. |
Product Specifications
| Specification | Detail |
|---|---|
| Product Name | 36 x 42 Casement Window (914 x 1067mm) |
| Product Type | Thermal-break aluminum, inward-opening / tilt-and-turn, custom-made |
| Frame Width | 85mm (E5N series) |
| Wall Thickness | 2.0mm |
| Insulation Strip | 35mm PA66 |
| Glass Type | 5+27A+5 double tempered insulating glass with argon |
| Spacer | Black PVDF / fluorocarbon hollow aluminum spacer with DERCHI logo |
| Opening Sash Range | Width 508-1000mm; Height 560-2000mm or 600-2000mm (confirm with supplier) |
| Hardware | WEHAG/Winkhaus baseless handle, concealed tilt-and-turn hinge |
| Color Options | Sand Gray, Starry Black, White, Indigo Gray, Pearl White, and others |
| Surface Finish | Powder coating, fluorocarbon, wood grain, metallic flash silver |
| Alternative Series | S9 (outward, 109mm frame) and R8Y (coastal safety, 118mm frame) available |
| Packaging | Four-layer protection: anti-scratch film, pearl cotton, waterproof film, wooden rack |
| Shipping | Door-to-door or shipping to port available |
| Lead Time | Approximately 25-35 days (platform data; confirm for E5N specifically) |
| Notes | Pricing is inquiry-based; reference ranges from other series do not apply definitively. |
Advantages
- Thermal Engineering: The 35mm extra-wide insulation strip and PA66 strip work with triple sealing to support thermal and weather performance for residential projects.
- Hardware Partnership: Integration of German WEHAG/Winkhaus concealed tilt-and-turn hardware provides smooth operation and a clean aesthetic for interior spaces.
- Customization Depth: Extensive glass, color, hardware, and structural combinations allow tailored specifications for multi-unit residential or commercial builds.
- Export Packaging: Four-layer protection including anti-scratch film, pearl cotton, waterproof outer film, and wooden rack helps ensure safe international transit.
- Multi-Series Ecosystem: As a 36 x 42 casement window supplier, DERCHI offers E5N for inward opening, S9 for outward facades, and R8Y for coastal safety scenarios.
Application Scenarios
- Apartment: Tilt-and-turn operation provides secure micro-ventilation for living spaces, while the inward-opening design allows safe cleaning without exterior access.
- Home Office: The 35dB sound insulation rating helps reduce external traffic noise, creating a quieter indoor working environment when configured with appropriate glass.
- Hotel: Customizable color finishes and blind glass options offer privacy and design flexibility for guest rooms, matching interior decor requirements.
- Office Building: The thermal-break aluminum frame with 1.8W insulation level supports energy efficiency goals for light commercial facades and fixed-plus-opening combinations.
- Outdoor: For sheltered exterior-facing openings, buyers should verify water tightness and wind pressure ratings to ensure the configuration meets local weather conditions.
- Residential Building: Suitable for narrow-width-high openings and bedrooms, the triple seal and concealed drainage manage rain exposure while allowing controllable airflow.
- Exterior: When installed in exterior walls, confirm surface finish durability and installation conditions; the PVDF spacer and fluorocarbon coating support weather resistance.
- Villa: Premium wood grain and metallic flash silver finishes align with architectural styling, while the multi-point lock hardware enhances security for private residences.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
Is the 36 x 42 casement window a stock standard product?
No, this is a custom-made thermal-break aluminum window. Dimensions, glass, colors, and hardware are configured to order based on project drawings and buyer specifications.
What information is needed for a quote?
Provide quantity, opening dimensions, drawings, destination, glass configuration, color finish, and hardware preferences. This allows the 36 x 42 casement window manufacturer to calculate accurate pricing.
What certifications does the E5N series carry?
CE, NFRC, CSA, and IGCC certifications are stated for the S9 series. Do not assume E5N carries the same documents. Request specific compliance reports for your target market before ordering.
What is the delivery time and MOQ?
Platform data shows approximately 25-35 days delivery and a common MOQ of 2 square meters. Confirm E5N-specific production capacity and lead time during your inquiry.
What glass options are available?
Standard glass is 5+27A+5 argon double tempered. Options include Low-E, laminated, frosted, tinted, ultra-clear, and blind glass. Confirm maximum glass thickness capacity with the supplier.
What is the opening sash height range?
The manual states 600-2000mm, while the export website shows 560-2000mm. Buyers should confirm which height range applies to their specific E5N configuration before finalizing drawings.
What warranty terms apply?
Exact warranty terms for the E5N series are not yet documented. Request a formal warranty document from the supplier during the quotation process to verify coverage.
