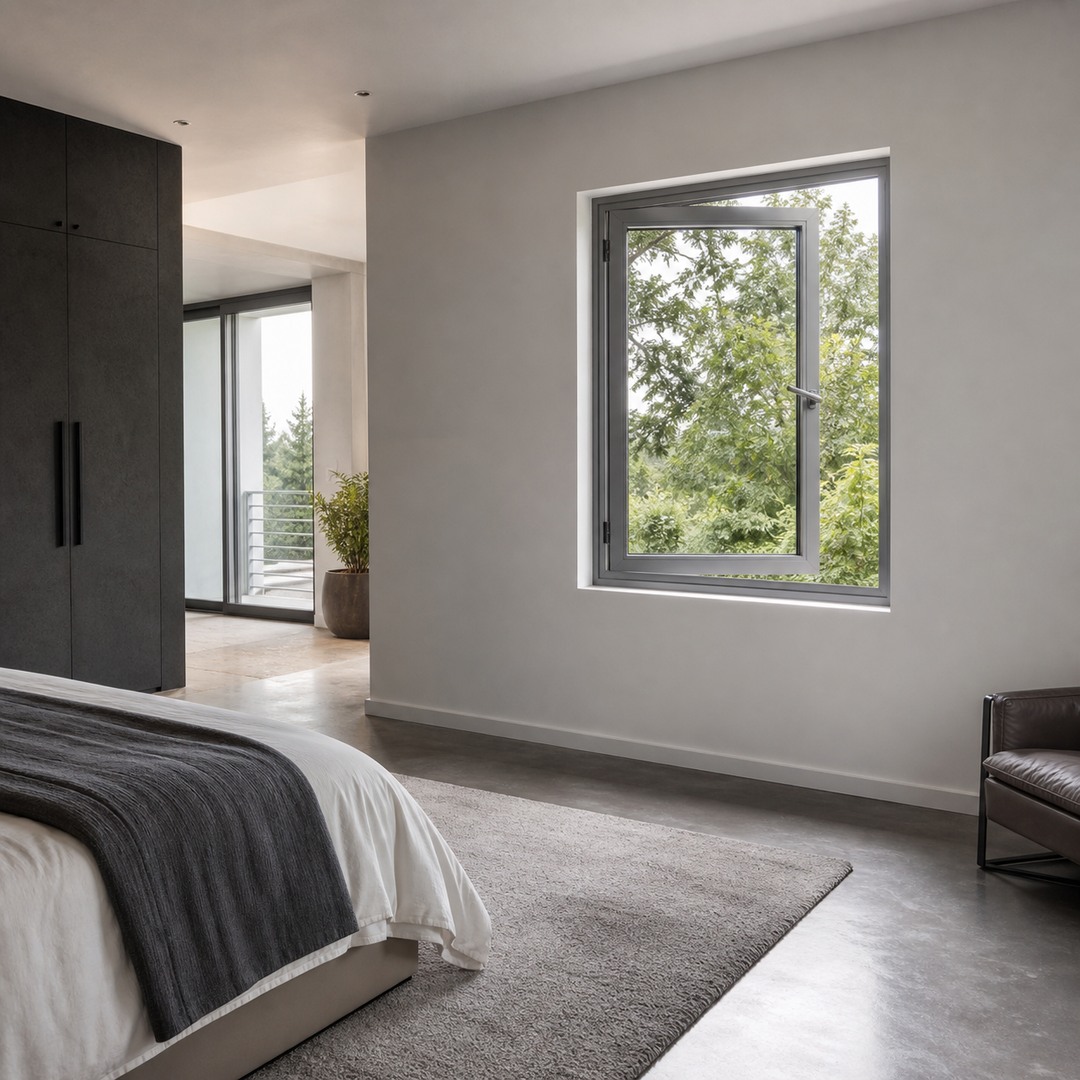

The 48 x 42 casement window is a made-to-size thermal-break aluminum system built for residential and commercial projects. DERCHI engineers this opening around 48 x 42 in (1219 x 1067 mm) dimensions, offering configurable sash divisions, glass types, and series selections rather than a stock standard product.
- Primary recommendation: S9 Starlight System with 109mm frame and 44mm extra-wide insulation strip
- Alternative series: E0 Glory for budget/batch projects, S6 Star Sea for lightweight mid-range applications
- Configurable structure: double-sash, three-lite, fixed+opening, and multi-sash combinations
- Outward opening design: glass sash opens outward, screen sash opens inward to save interior space
Product Details
This custom 48 x 42 casement window covers approximately 1.30 square meters. The primary recommended double-sash structure divides the opening into two 24.0 in (610 mm) lites, falling within the 400-750 mm outward casement sash width range. A three-lite configuration yields roughly 16.0 in (406 mm) per lite. The S9 Starlight System carries a 109 mm frame width, 1.8 mm wall thickness, and a 44/24/15 mm multi-thermal-strip arrangement.
Structural differentiation comes from a 1.8 mm multi-cavity aluminum profile, a three-seal structure, and a micro-elastic glass block that reduces corner stress. The frame and sash sit on the same horizontal line for a flush appearance. As a 48 x 42 casement window manufacturer, DERCHI also offers the E0 Glory (100 mm frame, 35/30/12 mm strips) and S6 Star Sea (82 mm frame, 35/14.8/30 mm strips) series, giving buyers three tiers of frame width and thermal strip configuration to match specific project budgets.
Product Features
- Thermal-Break Engineering: The multi-cavity aluminum profile and 44mm extra-wide insulation strip (S9) help reduce U-value and support energy-efficient building requirements.
- Opening Configuration: Glass sashes open outward while screen sashes open inward, preserving interior floor space and allowing unobstructed ventilation control.
- Security Hardware Suite: Includes a child-safe handle, anti-pull oblique transmission box, two-point lock, and anti-pry strike plate to resist forced entry attempts.
- Weather Sealing: A three-seal structure paired with EPDM water-swelling weatherstrip contributes to the verified 700Pa water tightness and Level 8 air tightness ratings.
- Acoustic Insulation: Rated at 35dB sound insulation (Level 4), though buyers should confirm the test glass configuration matches their selected glazing.
- Stress Reduction: The micro-elastic glass block technology minimizes glass corner stress, which is particularly useful for large or multi-lite combination window walls.
Customizable Styles
- Glass Options: Standard 5+27A+5 hollow tempered glass; custom choices include argon gas, Low-E, laminated, frosted, tinted, ultra-clear, and built-in blind glazing.
- Color and Finish: Available in Sand Gray, Dark Coffee, Black Crystal, White, Black Walnut, Fluorocarbon Flash Silver, and more; finishes include powder coating, fluorocarbon, and wood grain.
- Frame and Series: Choose S9 (109mm high-end), E0 (100mm budget), or S6 (82mm lightweight) thermal-break aluminum profiles based on project performance and cost requirements.
- Size and Structure: Configure as single sash, double sash, fixed+opening, three-segment, asymmetric, or multi-lite window wall combinations to fit specific openings.
- Opening Style: Supports outward opening, top-hung, and outward-opening top-hung configurations; optional 48-mesh screen, stainless steel mesh, or guardrail available.
Hardware Accessories
- Handle: DERCHI custom child-safe handle standard on S9; S6 uses a WEHAG baseless handle; optional fingerprint/password/key handle available.
- Hinge: 13-inch casement friction hinge controls outward opening speed and hold angle, preventing wind-slam damage to the sash.
- Lock System: Two-point lock with roller-sleeve lock point and anti-pull oblique transmission box secures the sash at multiple contact points.
- Strike Plate: Anti-pry strike plate reinforces the locking mechanism against physical intrusion attempts.
- Sealing Hardware: EPDM water-swelling weatherstrip expands when exposed to moisture, actively improving the seal during rain; buyers needing specific hardware brands should confirm availability.
Basic Parameters
| Performance Item | Available Information | Buyer Notes |
|---|---|---|
| Thermal Insulation | 2.0W Level 6 | Confirm U-value for specific glass configuration like Low-E or argon. |
| Wind Pressure Resistance | 5kPa Level 9 | Confirm applicable test standard and regional building code compliance. |
| Water Tightness | 700Pa Level 6 | Confirm applicable test standard and report number for destination. |
| Air Tightness | 1.2 Level 8 | Confirm applicable test standard and report number for destination. |
| Sound Insulation | 35dB Level 4 | Confirm test glass configuration matches buyer's selected glass type. |
Product Specifications
| Specification | S9 Starlight System | E0 Glory Series | S6 Star Sea System |
|---|---|---|---|
| Product Dimensions | 48 x 42 in (1219 x 1067 mm), ~1.30 sqm total area | ||
| Double-Sash Width | ~24.0 in / 610 mm per sash | ||
| Three-Lite Width | ~16.0 in / 406 mm per lite | ||
| Frame Width | 109 mm | 100 mm | 82 mm |
| Wall Thickness | 1.8 mm | 1.8 mm | 1.8 mm |
| Thermal Strip Config | 44/24/15 mm | 35/30/12 mm | 35/14.8/30 mm |
| Standard Glass | 5+27A+5 fluorocarbon hollow aluminum spacer glass | ||
| Screen Type | Standard inward screen | Standard inward screen | Invisible folding screen |
| Handle | DERCHI custom | DERCHI custom | WEHAG baseless |
| Opening Style | Outward, top-hung, outward-opening top-hung | ||
| Series Positioning | High-end | Value/Budget | Lightweight mid-range |
| Certifications Referenced | CE/NFRC/CSA, US/AU IGCC — verify current validity for specific configuration | ||
Advantages
- Multi-Cavity Thermal Profile: The 1.8mm multi-cavity aluminum frame with a 44mm extra-wide insulation strip (S9) actively reduces heat transfer and supports energy-efficient building targets.
- Three-Tier Series Strategy: As a 48 x 42 casement window supplier, DERCHI provides S9, E0, and S6 series, allowing buyers to match frame width, thermal strips, and cost to specific project tiers.
- Security-Focused Hardware: Child-safe handles, two-point locks, and anti-pry strike plates give project buyers a comprehensive physical security package without sourcing third-party hardware.
- Project Packaging: Four-layer protection (anti-scratch film, pearl cotton, waterproof film, enclosed wooden frame) plus pallet fixation and airbag isolation supports long-distance shipping.
- Made-to-Size Flexibility: Buyers can configure glass type, color, structure, and opening style, ensuring the window fits specific architectural drawings rather than forcing standard sizes.
Application Scenarios
- Apartment: The 48 x 42 dimension fits standard apartment bedroom and living room openings, providing outward ventilation without occupying interior floor space or interfering with curtains.
- Home Office: The 35dB sound insulation rating helps reduce street noise, creating a quieter workspace; buyers should confirm the acoustic performance with their selected glass configuration.
- Hotel: Hotels require consistent hardware and finish across hundreds of rooms; the E0 Glory series offers batch production value, while the S9 provides a high-end guestroom aesthetic.
- Office Building: A commercial 48 x 42 casement window can be configured with fixed and opening combinations for high-rise facades; confirm wind pressure compliance with local building codes.
- Outdoor: For openings exposed to driving rain, the EPDM water-swelling weatherstrip and 700Pa water tightness provide defense; buyers must verify weather resistance and installation conditions.
- Residential Building: Batch residential developments benefit from the E0 series for budget-sensitive thermal-break double glazing, keeping costs controlled while meeting basic energy standards.
- Exterior: When installed on exterior elevations, the fluorocarbon finish resists UV fading; confirm surface treatment, wind pressure ratings, and regional code compliance before ordering.
- Villa: The S9 Starlight System suits villa projects requiring premium aesthetics, large multi-sash combinations, and advanced thermal performance for expansive architectural glazing.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
What is this product and is it a stock standard window?
This is a DERCHI made-to-size thermal-break aluminum casement window built around 48 x 42 in dimensions. It is explicitly a custom system window, not a stock standard product, meaning glass, color, structure, and hardware are configured to project specifications.
What information is needed to get an accurate quote?
Buyers should provide size, glass type, color/finish, hardware choice, series selection (S9/E0/S6), quantity, destination port or door-to-door address, and project drawings. This allows the 48 x 42 casement window supplier to calculate exact pricing and shipping.
What is the MOQ and delivery time for 48 x 42 casement window wholesale orders?
Platform data references a common MOQ of 2 square meters and delivery around 25-35 days. These are platform references only; buyers must confirm current MOQ policy and lead time with the supplier based on specific order quantities.
How do I choose between the S9, E0, and S6 series?
Select S9 for high-end projects needing a 109mm frame and 44mm insulation strips, E0 for budget-sensitive batch engineering with a 100mm frame, or S6 for lightweight mid-range applications with an 82mm frame and invisible folding screen.
Are CE, NFRC, or CSA certifications available for my market?
The official website references CE, NFRC, CSA, and US/AU IGCC glass certifications. However, buyers must verify current certificate validity and confirm applicability to their specific product configuration and destination market before ordering.
Can I get specific U-value, SHGC ratings, and test reports for my glass configuration?
Standard performance data is available, but exact U-value and SHGC depend on selected glass (Low-E, argon, laminated). Buyers should request applicable test report numbers, dates, and energy performance documents for their specific glazing choice.
Are grilles, grids, or divided-lite patterns available, and what about installation documents?
Grilles, grids, and divided-lite patterns are not in verified product data; confirm availability with the supplier. For installation, request guides, jamb details, and mounting condition documents directly, as these are not standard included items.
