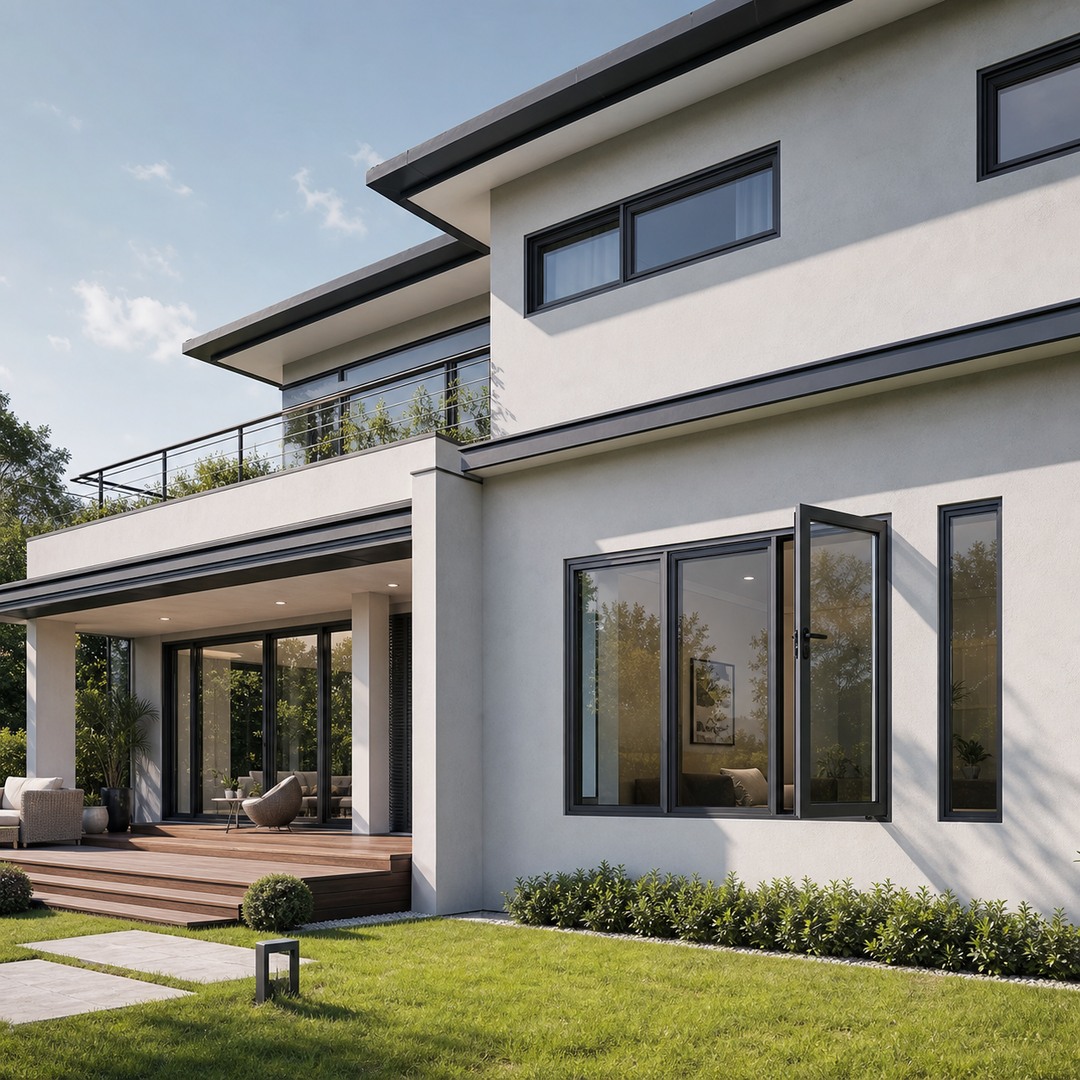

These 72 inch casement windows are made-to-size thermal-break aluminum systems from DERCHI, built for project buyers needing specific width configurations. The S9 Starlight System serves as the primary recommendation, with R8Y and E6N alternatives available for coastal or internal-opening demands.
- Width-segment custom manufacturing (72 inches / approx. 1829mm)
- Multi-series selection (S9, R8Y, E6N) for different project environments
- Thermal-break aluminum with 44mm extra-wide insulation strip
- Configurable glass, structure, and hardware options
Product Details
The S9 Starlight System anchors this offering with a 109mm frame width, 1.8mm wall thickness, and a 44/24/15mm multi-insulation strip configuration. Standard glass is 5+27A+5 fluorocarbon insulating aluminum spacer glass. It supports outward opening, top-hung, and outward-opening top-hung configurations, with the glass sash opening outward and the screen sash opening inward. Structural technology includes a multi-cavity aluminum profile, a three-seal structure, and a micro-elastic glass block that reduces corner stress.
For projects requiring different performance priorities, the R8Y series offers a 118mm frame with anti-fall rope and equal-pressure drainage for coastal environments, while the E6N series features a 103mm frame with internal tilt-and-turn operation for residential applications. Because this is a width-segment product, the 72-inch opening is typically split into double-sash, three-sash, or fixed center with side opening configurations to manage glass weight and ventilation needs.
Product Features
- Thermal Break Technology: The 44mm extra-wide insulation strip and multi-cavity aluminum profile work together to reduce U-value, supporting energy efficiency in climate-controlled environments.
- Three-Seal Weatherproofing: EPDM water-swelling weatherstrip combined with a three-seal structure helps manage water and air infiltration during heavy rain and strong wind conditions.
- Stress-Relief Glass Block: A micro-elastic glass block reduces stress at glass corners, which is particularly relevant for large fixed panes or multi-sash combinations at this width.
- Safety Hardware Suite: Includes a child-safe handle, anti-pull diagonal transmission box, two-point lock, roller-sleeve lock point, and anti-pry lock seat for secured operation.
- Multi-Series Adaptability: Buyers can select S9 for general outward opening, R8Y for coastal safety features, or E6N for internal tilt-and-turn ventilation based on project requirements.
- Manual-Verified Performance: S9 manual lists 35dB sound insulation, 700Pa water tightness, and 5kPa wind pressure resistance; buyers should confirm test report applicability for their configuration.
Customizable Styles
- Glass Options: Standard 5+27A+5 fluorocarbon insulating aluminum spacer glass; optional Low-E, argon gas, laminated, frosted, tinted, ultra-clear, and blinds glass.
- Frame and Structure: Choose from single-sash, double-sash, fixed+opening, side opening+center fixed, three-segment, upper transom, or multi-pane curtain wall combinations.
- Size and Dimensions: Width is set at 72 inches (1829mm); height is custom-made to project drawings. Sash ranges and single fixed glass max (6 sqm) apply.
- Color and Finish: Options include Sand Gray, Dark Coffee, Black Crystal, Starry Black, White, Black Walnut, Pear Wood, Fluorocarbon Flash Silver, Indigo Gray, and Mint Gold.
- Opening Configuration: S9 and R8Y support outward, top-hung, and outward-opening top-hung; E6N supports internal tilt-and-turn and internal casement opening.
Hardware Accessories
- Handles: S9 uses a DERCHI custom child-safe handle; R8Y features a WEHAG baseless handle; E6N includes a WEHAG glass sash handle and screen password handle.
- Hinges: S9 incorporates a 13-inch casement friction hinge and custom load-bearing hinge; R8Y uses a 12-inch friction hinge for outward operation.
- Locking Systems: S9 features a two-point lock, roller-sleeve lock point, and anti-pry lock seat; R8Y uses a custom black zinc alloy four-face six-point lock.
- Safety Accessories: Optional 48-mesh high-transparency screen, steel wire mesh, guardrail, blinds, and fingerprint/password/key handle are available for S9 configurations.
- Protective Hardware: R8Y includes an anti-fall rope and protective corner for coastal or high-rise safety; S9 features an anti-pull diagonal transmission box.
Basic Parameters
| Performance Item | Available Information | Buyer Notes |
|---|---|---|
| Thermal Insulation | 2.0W Class 6 (S9/R8Y manual); 7 levels (E6N) | Exact U-value depends on glass; request specific energy documents. |
| Wind Pressure Resistance | 5kPa Class 9 (S9/R8Y manual) | Confirm test report applicability for 72-inch width configuration. |
| Water Tightness | 700Pa Class 6 (S9/R8Y manual) | Verify performance for coastal or high-rainfall project sites. |
| Air Tightness | 1.2 Class 8 (S9/R8Y manual) | Confirm test report matches the selected series and sash type. |
| Sound Insulation | 35dB Class 4 (S9/R8Y manual) | Verify glass configuration matches the tested acoustic setup. |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | DERCHI 72 Inch Casement Windows |
| Product Type | Thermal-break aluminum casement window (width-segment custom) |
| Width | 72 inches (approximately 1829mm) |
| Height | Custom made-to-size (provide project drawings) |
| S9 Frame Width / Wall Thickness | 109mm / 1.8mm |
| S9 Insulation Strip | 44/24/15mm multi-insulation configuration |
| R8Y Frame Width / Wall Thickness | 118mm / 1.8mm |
| E6N Frame Width / Wall Thickness | 103mm / 2.0mm |
| Standard Glass | 5+27A+5 fluorocarbon insulating aluminum spacer glass |
| S9 Casement Sash Range | Width 400-750mm, Height 400-1500mm |
| S9 Top-Hung Sash Range | Width 510-750mm, Height 700-1500mm |
| Single Fixed Glass Max | 6 square meters |
| Reference MOQ | 2 square meters (confirm for specific orders) |
| Reference Delivery | Approximately 25-35 days (may vary based on order specifics) |
| Packaging | Four-layer protection: anti-scratch film, pearl cotton, waterproof film, wooden rack |
Advantages
- Multi-Series Selection: Buyers can match the 72-inch width to specific project environments using S9, R8Y for coastal safety, or E6N for internal opening.
- Custom Structural Combinations: The system supports splits from double-sash to multi-pane curtain wall, accommodating large openings and asymmetric layouts.
- Verified Manual Performance: S9 and R8Y manuals list Class 6-9 ratings for water, air, sound, thermal, and wind resistance parameters.
- Extensive Finish Options: Over twelve color choices including powder coating, fluorocarbon, wood grain, and metallic flash silver finishes are available.
- Protective Packaging: Four-layer strong protection packaging with wooden rack and seawater-proof film supports overseas shipping and port delivery.
Application Scenarios
- Apartment: S9 double-sash or fixed+opening combinations provide ventilation and natural light for living rooms, balancing outward swing clearance with interior space planning.
- Home Office: E6N internal tilt-and-turn operation offers secure ventilation without interfering with exterior walkways or balconies in compact residential workspaces.
- Hotel: S9 configurations with laminated or acoustic glass help manage street noise, while custom color finishes match interior design palettes for guest room fenestration.
- Office Building: Commercial 72 inch casement windows can be specified in multi-pane curtain wall combinations to meet consistent facade aesthetics and building code requirements.
- Outdoor: R8Y series with anti-fall rope and equal-pressure drainage is built for exposed conditions; buyers must confirm wind pressure and water tightness ratings for their specific site.
- Residential Building: Made-to-size manufacturing allows the 72-inch width segment to be adapted for bedroom ventilation windows or bathroom small windows within the same system.
- Exterior: For facade applications, confirm surface finish durability against UV exposure and verify installation mounting conditions with the supplier before ordering.
- Villa: Pitched, trapezoidal, or hexagonal bay window combinations using the S9 system allow architectural customization for high-end residential fenestration designs.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
What is this product?
It is a 72-inch (1829mm) width-segment custom thermal-break aluminum casement window from DERCHI. The primary recommendation is the S9 Starlight System, with R8Y and E6N available for coastal or internal-opening needs.
Can the height be customized?
Yes, this is a width-segment product, meaning the 72-inch width is fixed but the height is custom made-to-size. Buyers should provide project drawings and opening dimensions for accurate manufacturing.
What information is needed for a quote?
Buyers should provide quantity, destination port or address, project drawings, and configuration details including series, glass type, color, hardware, structure, and packaging requirements for an accurate quotation.
What is the reference price and MOQ?
Platform pages show a common MOQ of 2 square meters and reference prices of 79-109 USD/sqm. These are reference ranges only; actual pricing and MOQ require configuration confirmation.
Are certifications available?
The official website mentions CE, NFRC, CSA, and IGCC certifications. Buyers must verify which specific documents apply to the selected series and 72-inch configuration before ordering.
How is the 72-inch opening split?
Large openings are typically split into double-sash, three-sash, fixed center with side opening, or upper/lower fixed transom configurations to manage glass weight and ventilation. Confirm the optimal split for your project.
What should buyers confirm before ordering?
Buyers should confirm test report applicability for the 72-inch width, exact U-values for the chosen glass, warranty terms, bulk lead time, and installation documentation with the supplier before finalizing the order.
