Sliding Tilt and Turn Windows
Aluminium tilt and turn windows are transforming modern homes with unparalleled versatility. DERCHI's energy-efficient tilt and turn windows combine innovative design with superior performance. For homeowners seeking custom tilt and turn windows that maximize natural light and ventilation, our solutions deliver exceptional value and lasting quality.

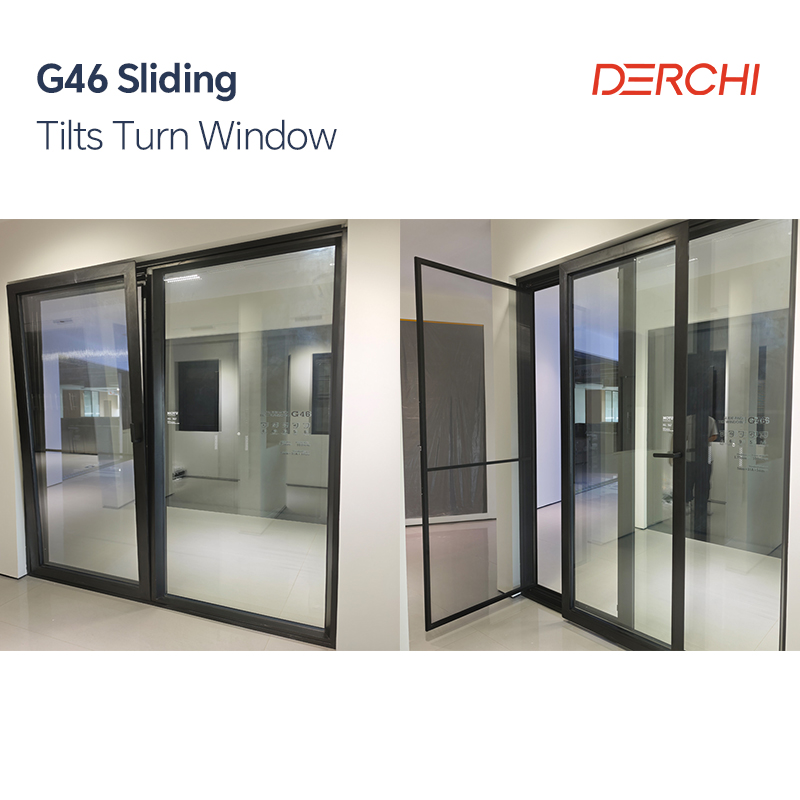

The G46 Sliding Tilt and Turn Windows by DERCHI are innovative, energy-efficient and sophisticated aluminium tilt and turn windows, perfect for modern architectural designs. These large tilt and turn windows feature dual functionality: they slide smoothly along tracks and tilt inward for ventilation, with tilt and turn double glazed windows ensuring superior insulation. For homeowners seeking Custom Tilt and Turn Windows, the G46 offers an exceptional solution with optional roller blinds for tilt and turn windows and tilt and turn windows with screens.
100% waterproof and Anti-theft
Slide And Tilt & Turn Two Opening Way
CE /NFRC / CSA Standard Certification
US/ AU IGCC Standard Glass Certification
100% thermal insulation/windproof/ soundproof

Description
Videos
Customizable Styles
Hardware Accessories
Advantages
Certificate

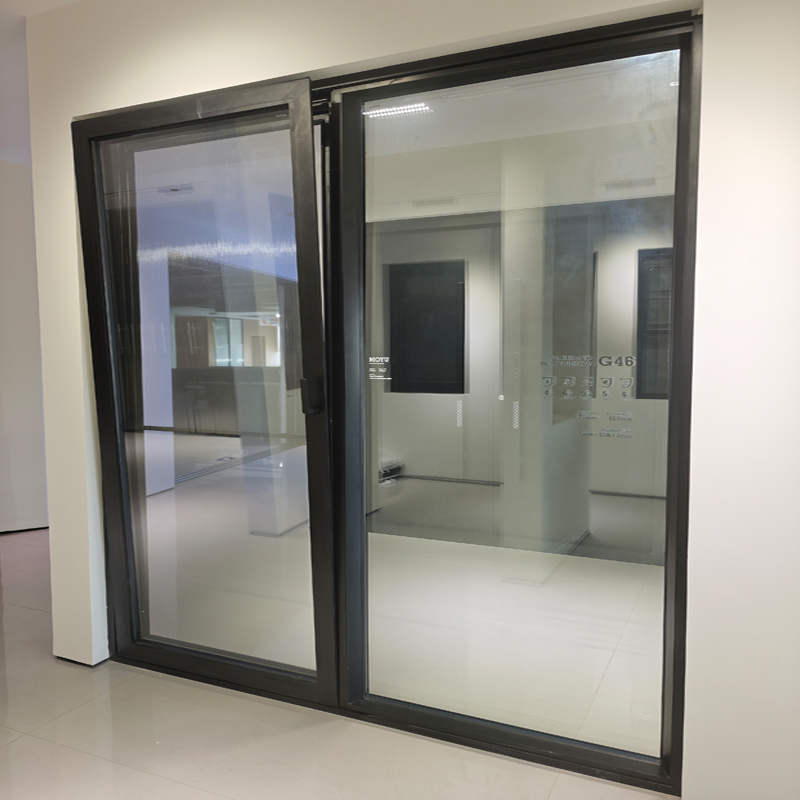

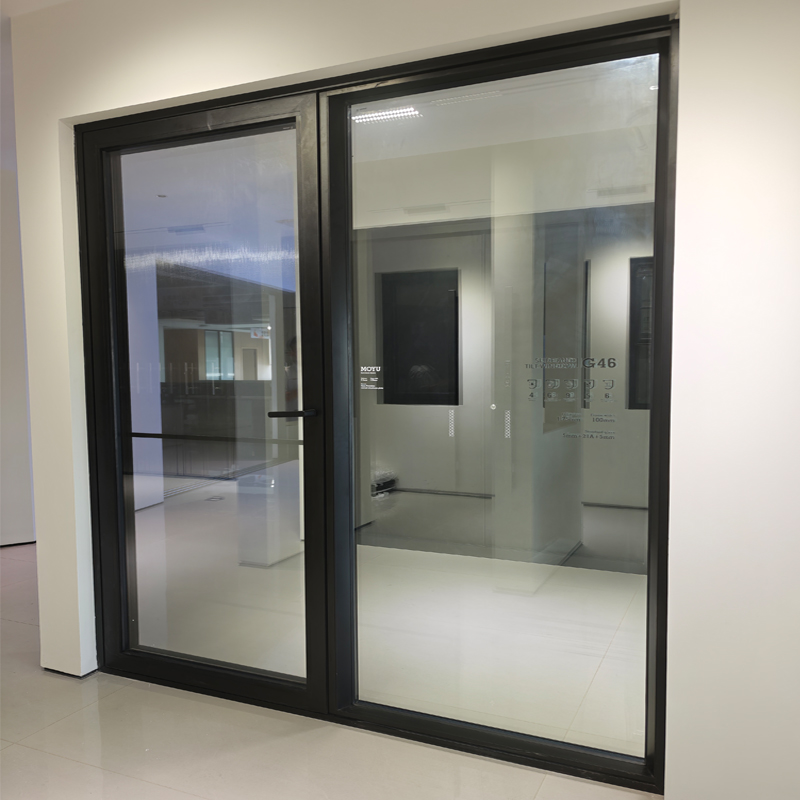

G46 Multi-Function Tilt & Slide Window: One Window, Three Opening Modes
Experience the innovative design and superior functionality of the G46 Tilt & Slide Window with our video demonstration. This video will show you:
> Smooth Sliding: Effortlessly slide the window open horizontally for seamless operation and everyday ventilation.
> Secure Tilting: Tilt the window inward from the top to maintain constant air circulation while enhancing security and preventing rain from entering.

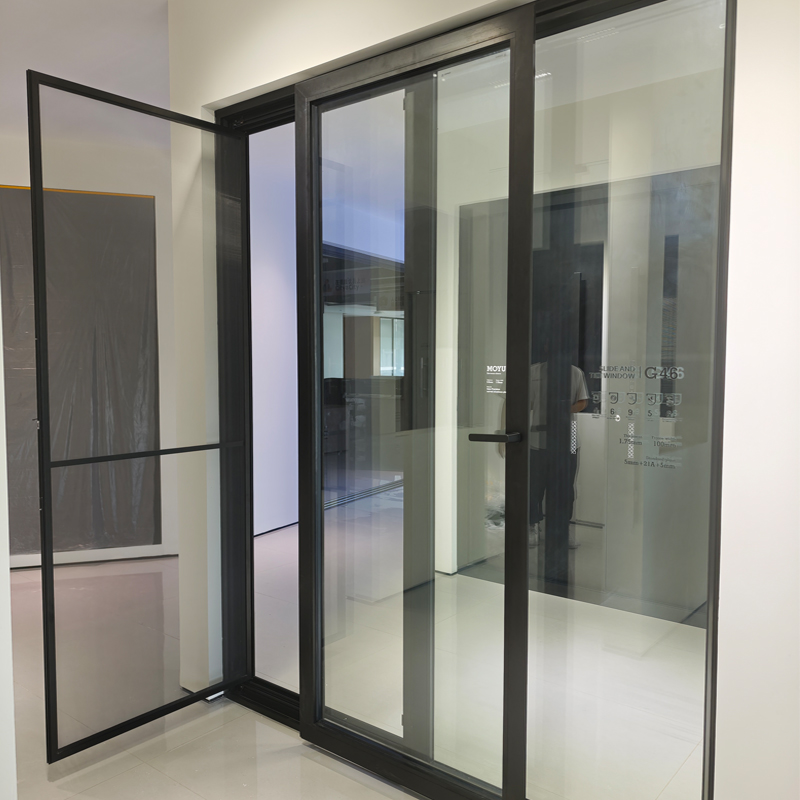

> Full Inward Swing: Open the window fully inward like a door for maximum airflow and easy cleaning of both the interior and exterior glass.
Beyond its versatility, the G46 features robust profiles and premium glass, ensuring excellent sound insulation, thermal efficiency, and long-lasting durability. Watch the video to discover how the G46 can bring a new level of comfort and convenience to your space.

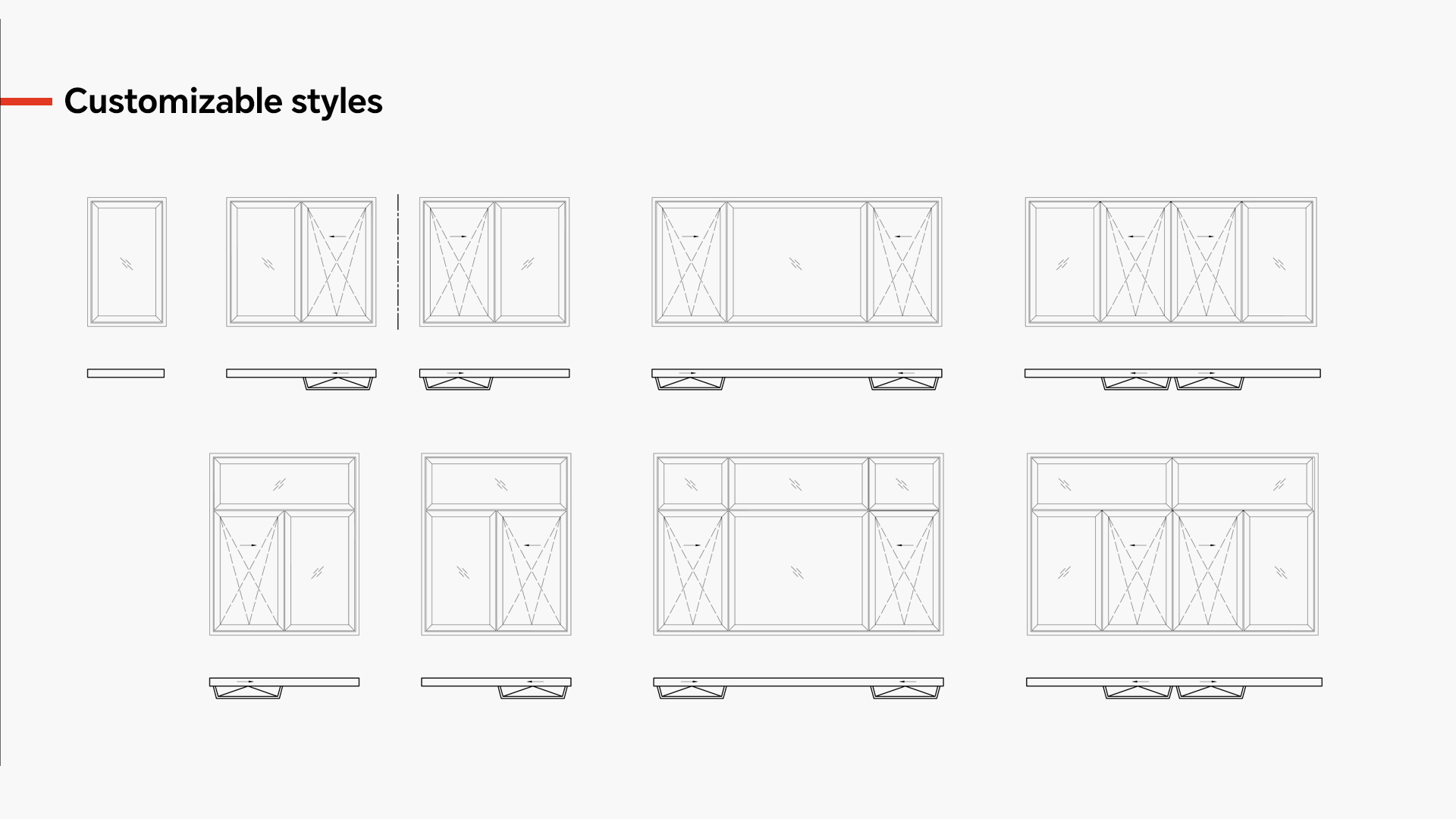

Custom Style Configurations for G46 Sliding Tilt and Turn Windows
DERCHI's G46 Sliding Tilt and Turn Windows offer 9 customizable style configurations. Choose from single to four-panel designs with various combinations of fixed and operable sections. Each configuration supports energy-efficient double glazing and can accommodate roller blinds and screens.
Top Row Styles (5 Options)
1. Single Fixed Panel
One fixed glass panel provides maximum light transmission without opening mechanisms. This style suits view-only applications where ventilation is not required.
2. Single Tilt and Turn Panel
Features X-pattern decorative lines with dual function operation. The panel opens inward for full ventilation or tilts from the top for secure airflow. Single-handle operation makes it user-friendly.
3. Two-Panel Combination
The left panel operates as tilt and turn with X-pattern decoration while the right remains fixed. This asymmetric design combines ventilation functionality with a fixed viewing area.
4. Three-Panel Combination
Left and right panels feature tilt and turn operation with X-pattern decoration while the center panel stays fixed. This configuration provides balanced ventilation from both sides and works well for large tilt and turn windows.
5. Four-Panel Combination
Outer panels remain fixed while center panels operate as tilt and turn with X-pattern decoration. This maximum width configuration offers central ventilation design for expansive openings.
Bottom Row Styles (4 Options)
1. Two-Section Vertical Split
The upper section contains fixed glass while the lower section features a tilt and turn panel with X-pattern decoration. This traditional European design provides easy cleaning access.
2. Two-Section Vertical Split (Reverse)
Similar to the first vertical split with fixed glass above and tilt and turn panel below. Alternative handle positioning creates different aesthetic appeal while maintaining functionality.
3. Three-Section Vertical Split
Upper portion has three fixed glass sections while lower portion features left and right tilt and turn panels with center fixed. This wide opening configuration suits aluminium tilt and turn windows applications.
4. Four-Section Vertical Split
Four fixed glass sections occupy the upper portion while the lower has outer fixed panels and center tilt and turn sections. This maximum panel configuration works ideal for custom tilt and turn windows projects.
Each style includes simplified diagrams showing opening mechanisms. X-pattern marks indicate operable tilt and turn sections. All configurations support screens and roller blinds installation.

What are G46 Sliding Tilt and Turn Windows?
The DERCHI G46 Sliding Tilt and Turn Windows are an innovative window system that combines sliding functionality with tilt and turn operations. These energy-efficient aluminium windows provide maximum flexibility for ventilation, space-saving, and easy maintenance.
> Sliding Function: The window slides horizontally on smooth tracks, saving interior space while allowing partial opening. The four-track system enables multiple panels to slide past each other, creating large openings up to 1700mm wide.
> Tilt and Turn Function: Each panel can tilt inward from the top for secure ventilation or turn fully inward like a door. This dual operation makes cleaning easy and provides emergency exit options when needed.
Key Features of G46 Sliding Tilt and Turn Windows
The G46 combines sliding functionality with tilt-turn technology, offering multiple opening options in one window system. These aluminium tilt and turn windows deliver performance through precision engineering and quality components.
Versatile Ventilation
The window slides horizontally for full opening and tilts inward from the top for secure ventilation. This dual operation provides flexible airflow control while maintaining security. Perfect for custom tilt and turn windows in any room.
Easy Cleaning
The inward tilting mechanism allows you to clean the exterior glass from inside your home. No ladders or special equipment needed. This design makes maintenance safe and convenient for large tilt and turn windows.
Enhanced Security
Multi-point locking systems secure the entire window perimeter. The tilt position provides ventilation while preventing intrusion. Hidden hardware and reinforced aluminium frames offer protection against forced entry.
Energy Efficiency
Thermal break technology and tilt and turn double glazed windows reduce heat transfer. EPDM sealing strips prevent air leakage. These energy-efficient tilt and turn windows help lower heating and cooling costs year-round.
Space-Saving
Sliding operation requires no interior swing space, making it ideal for balconies and tight areas. The window opens without interfering with curtains, furniture, or roller blinds for tilt and turn windows.
Aesthetics
Slim aluminium profiles maximize glass area and natural light. Clean lines complement modern architecture. Available in multiple finishes, these tilt and turn windows with screens enhance any building's appearance.
Transform Your Living Space Today
Ready to experience the perfect combination of style, security, and energy efficiency? Our Sliding Tilt and Turn Windows are custom-made to your exact specifications. Contact our design experts today for a free consultation and discover how DERCHI windows can enhance your home or project.
Performance Specifications
The G46 Sliding Tilt and Turn Window delivers energy efficiency and structural performance. These aluminium tilt and turn windows provide thermal protection, weather resistance, and acoustic control. Custom tilt and turn windows technology enables large tilt and turn windows applications while meeting international certification standards.
U-Factor (U.S./I-P): 0.25
Triple-pane insulated glass unit with Low-E coating reduces heat transfer. Warm-edge spacers minimize thermal bridging. NFRC certified for energy-efficient tilt and turn windows. System qualifies for energy rebate programs in most regions.
Wind Pressure Resistance: 3.0 KPa
Frame withstands hurricane-force winds. Reinforced corners prevent deformation under pressure. Meets CSA and CE standards for high-wind zones. Multi-point locking system maintains seal during storms.
Solar Heat Gain Coefficient (SHGC): 0.30
Balanced solar control for year-round comfort. Blocks 70% of solar heat in summer. Allows passive heating in winter. Works with roller blinds for tilt and turn windows for additional control.
Water Tightness: 750 Pa
Exceeds EN 12208 Class 9A rating. Multiple drainage channels prevent water infiltration. Pressure-equalized design manages heavy rainfall. Sealed corners eliminate leak points.
Air Tightness: 0.3 m³/(m·h)
CE Class 4 certification for minimal air leakage. Continuous weatherstripping on all four sides. Compression seals activate when window closes. Reduces energy loss and drafts.
Sound Insulation Performance: 45 dB
STC rating blocks traffic and urban noise. Laminated glass option for enhanced acoustic control. Tilt and turn double glazed windows configuration maximizes sound reduction. Creates quiet interior environments.

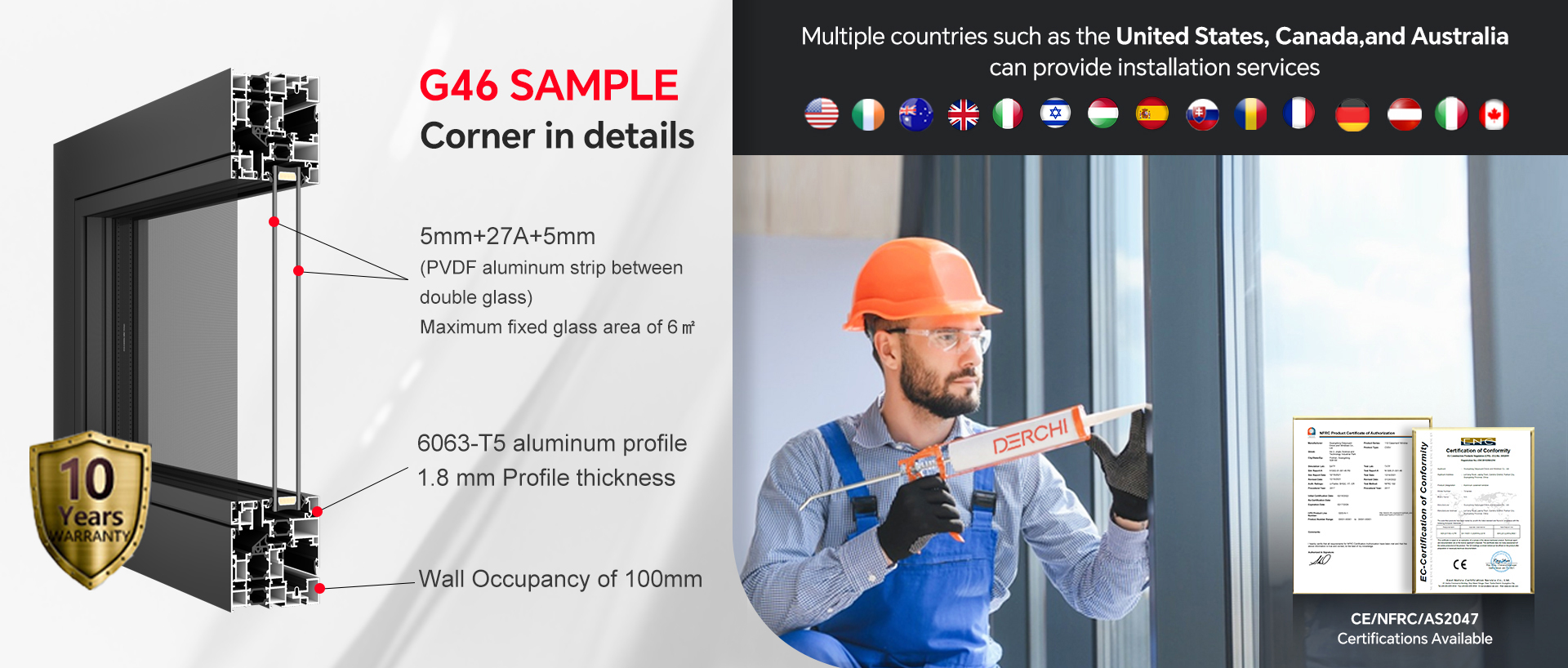

Technical Specifications
Explore the comprehensive technical details of the G46 Sliding Tilt & Turn Aluminum Window. This table outlines all key parameters,customization options, and dimensional specifications to help you make an informed decision for your project requirements.
Parameter | Details |
Profile Thickness | 1.8mm |
Frame Width | 46mm |
Opening Method | Sliding and tilt & turn one panel and fixed one panel |

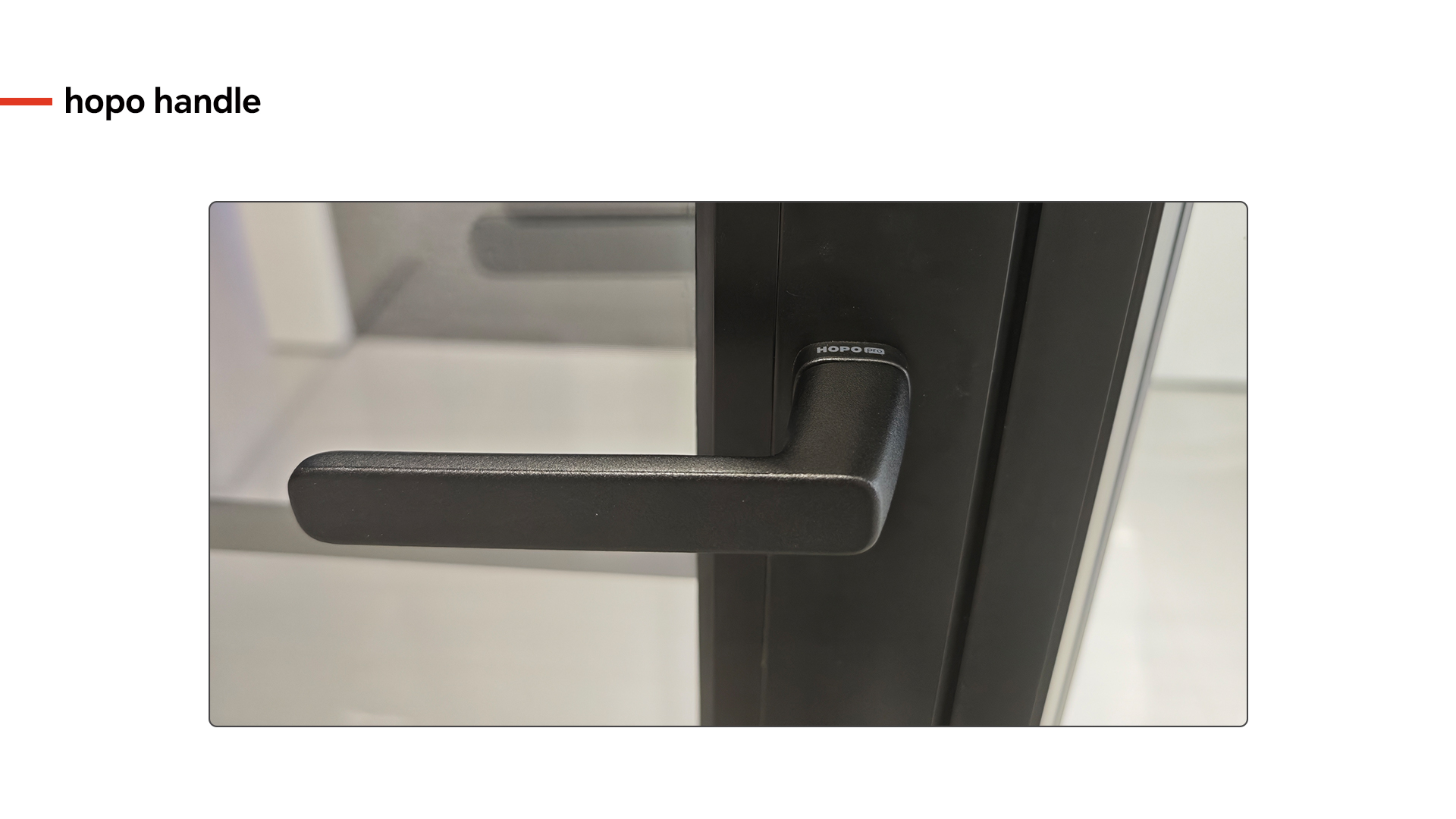

Hardware Configuration | 1. Hopo handle black color 2. Meishilong customized sliding tilt window lock point lock seat |
Size Range Limits | Opening sash: Width 510-1100mm / Height 1000-2200mm Single fixed glass maximum area: 6m² |
Special Process | Curved arc design available / 3D bending process (minimum radius 1600mm) |
Remarks | Minimum order calculated as 1m² |
Application Scenarios
DERCHI's G46 Sliding Tilt and Turn Windows combine sliding and tilt functions. These energy-efficient aluminium windows feature thermal break technology and double glazing. Available as custom tilt and turn windows with optional roller blinds and screens for enhanced functionality.

Commercial
Commercial buildings benefit from large tilt and turn windows providing natural ventilation and energy savings. The sliding function maximizes usable floor space in offices, hotels, and retail environments. Aluminium tilt and turn windows withstand heavy daily use while maintaining smooth operation. Double glazed windows reduce noise transmission in busy urban locations. Custom sizes accommodate architectural requirements from storefronts to high-rise installations.

Residential
Residential properties utilize sliding tilt and turn windows for versatile ventilation control and space efficiency. The tilt function provides secure night ventilation while maintaining home safety. Energy-efficient tilt and turn windows reduce heating and cooling costs throughout the year. Roller blinds for tilt and turn windows offer privacy and light management. Tilt and turn windows with screens keep insects out while allowing fresh air circulation.

Why Choose DERCHI G46 Sliding Tilt and Turn Windows
DERCHI's G46 Sliding Tilt and Turn Windows combine German engineering precision with proven performance standards. Our Energy-efficient Tilt and Turn Windows deliver superior weather resistance, sound insulation, and thermal performance through certified quality construction. With global installation services and comprehensive warranties, we provide complete solutions for residential and commercial projects.
Advanced Glass Construction
Double tempered glass with argon gas filling reduces heat transfer by creating an insulating barrier. The 5mm+27A+5mm configuration blocks noise up to 35dB effectively. PVDF-treated aluminum spacers prevent discoloration and moisture buildup, extending product life. Maximum 6㎡ single fixed glass panels enable panoramic views without compromising structural integrity.
Superior Aluminum Profile System
6063-T5 aluminum alloy ensures structural strength and durability for decades of reliable operation. The 1.8mm profile thickness exceeds industry standards for stability and wind resistance. 100mm installation depth provides robust wall integration and thermal break performance. Custom Tilt and Turn Windows fit any project specification through flexible manufacturing processes.

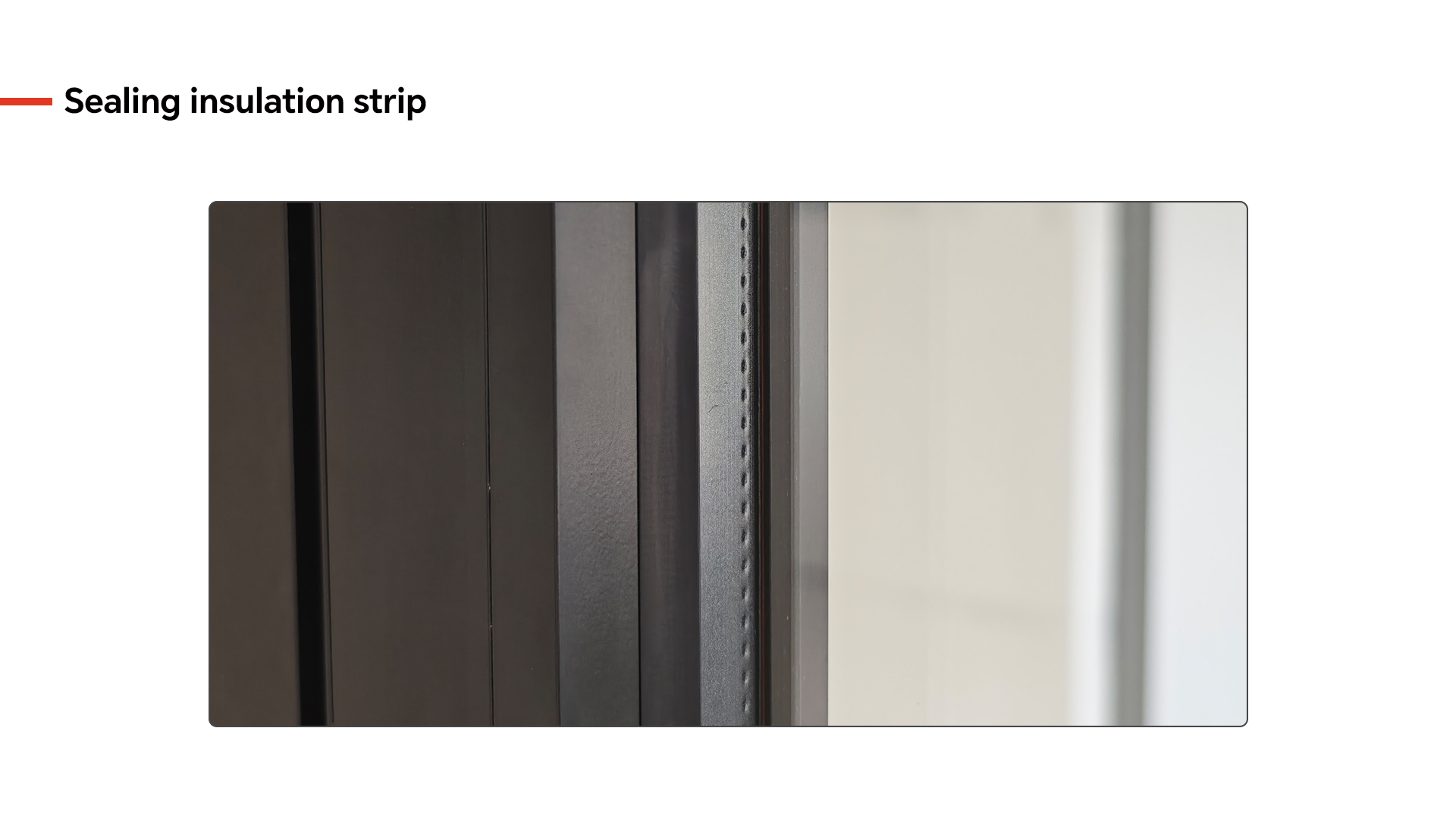

Advanced Sealing Technology
EPDM rubber strips create three-layer weatherproof barriers that protect against water and air infiltration. The integrated drainage system prevents water accumulation through engineered channels. Air tightness rating of 1.8m³/(m·h) minimizes drafts and energy loss. Thermal insulation value reaches 2.5W/(m²·K) for year-round comfort and efficiency.
International Certifications
CE certification meets European Union safety standards for quality and performance. NFRC rating confirms North American performance requirements for energy efficiency. AS2047 compliance ensures Australian market acceptance and building code adherence. All certifications verify quality for large tilt and turn windows in global markets.
Global Installation Network
Professional installation teams serve USA, Canada, and Australia with local expertise. European coverage includes UK, Germany, France, Italy, and Spain through certified partners. Service extends to Israel, Hungary, Slovakia, and Romania for comprehensive market reach. Standardized installation protocols ensure consistent quality worldwide.
Flexible Opening Options
Slide function provides easy daily ventilation access with smooth operation. Tilt position enables secure nighttime air circulation while maintaining safety. Dual operation suits various weather conditions and user preferences. Tilt and turn windows with screens available for insect protection without sacrificing airflow.
Comprehensive Warranty Protection
10-year manufacturer warranty covers all components including hardware and profiles. Professional technical support throughout product lifetime assists with maintenance needs. Replacement parts readily available through global network minimize downtime. Warranty transfers with property ownership protect investment value.
Customization Options
Nine standard colors plus fluorocarbon finish choices match any architectural style. Roller blinds for tilt and turn windows integrate seamlessly into the frame design. Optional safety features include child locks and opening limiters for family protection. Sizes accommodate both standard and oversized openings up to project requirements.
Performance Specifications
Water resistance tested to 500Pa pressure rating withstands severe weather conditions. Wind load capacity reaches 5KPa for storm protection in coastal and high-rise applications. Sound reduction achieves 35dB for quiet interiors in urban environments. Tilt and turn double glazed windows optimize all performance metrics through systematic engineering.
Certifications & Quality Assurance
Our aluminium tilt and turn windows meet rigorous international standards for safety, performance, and sustainability. View our comprehensive certifications including CE, NFRC, and AS2047 approvals that validate the quality of our tilt and turn double glazed windows. Each certificate represents our commitment to delivering windows that exceed global building requirements.

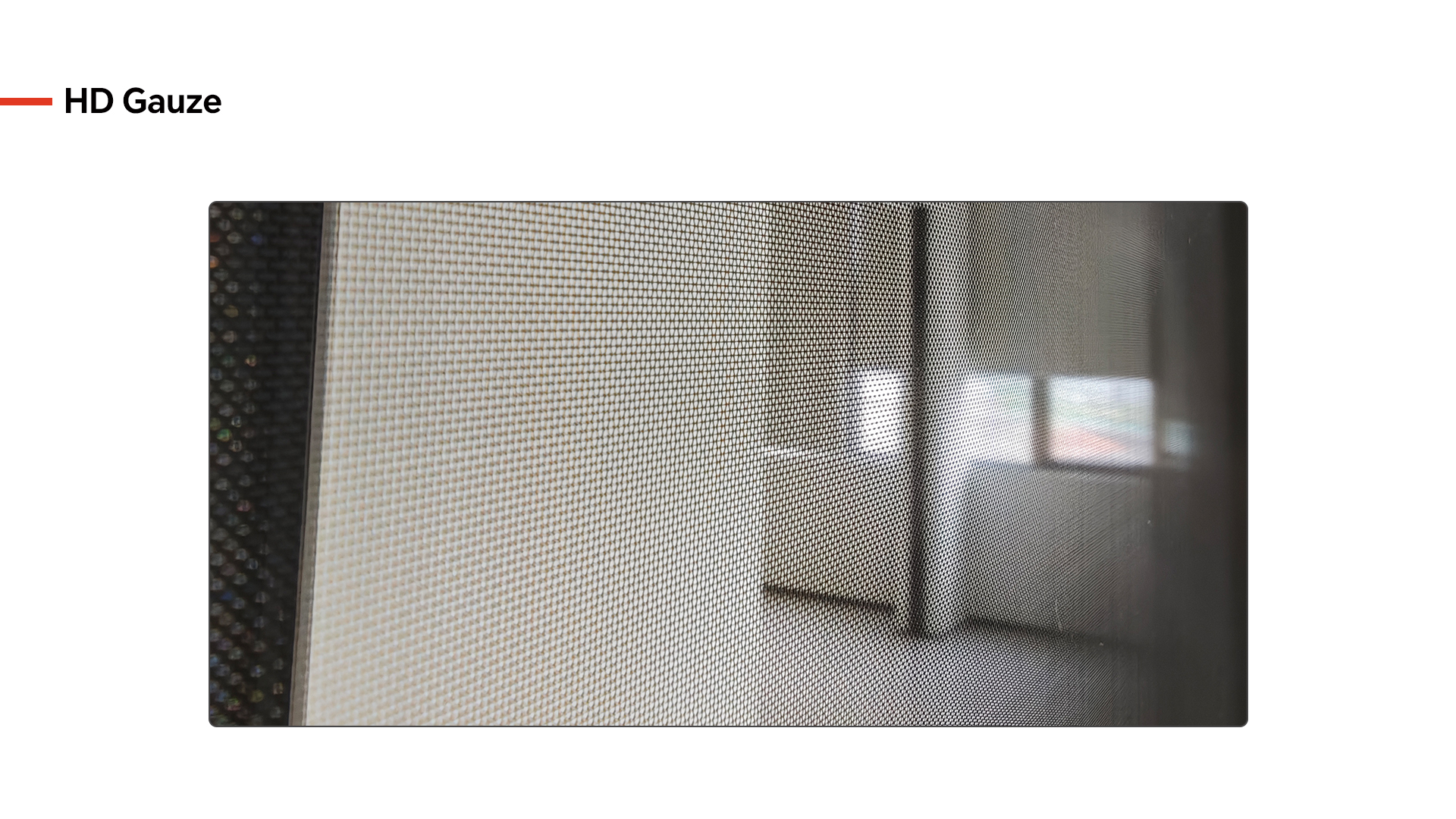

Hardware Options for G46 Sliding Tilt Turn Window
The G46 Sliding Tilt and Turn Windows feature essential hardware components that ensure smooth operation, security, and energy efficiency. These aluminium tilt and turn windows come with three key hardware options: the hono handle for control, HD Gauze for ventilation and protection, and sealing insulation strips for weatherproofing.
