Modern Sliding Glass Door
Frame material: Aluminum
Door type: Sliding glass door system for exterior sliding glass doors and interior sliding glass doors applications
Glazing: Double pane sliding glass door options available; multiple glazing configurations supported
Weather protection: Waterproof sliding glass door design for moisture control and seal performance
Sizing: Custom-made to match the project opening; fixed panel size depends on maximum allowable area
Profile options: Commercial-grade, engineering-grade, or mid-to-high-end residential profiles available
Energy rating: Energy Star qualified
Certifications: NFRC, CE, AS2047, CSA, ISO9001
Warranty: 10-year warranty
Project support: End-to-end project solutions, including graphic design, 3D modeling, and cross-category consolidation
After-sales service: Online support, returns/replacements, onsite inspection, training, installation support, and free spare parts
-
135D Series Aluminum sliding door
-
DERCHI window and door
Description
Videos
Customizable Styles
Hardware Accessories
Advantages
Certificate
DERCHI 135D Series: The Ultimate Modern Sliding Glass Door Solution
Discover why the 135D Series aluminum sliding door is the top choice for modern architecture. This video showcases our large-scale production base and intelligent warehouses where we craft high-quality waterproof sliding glass doors. Whether you are looking for interior sliding glass doors or robust exterior sliding glass doors, our automated production ensures consistent performance and weather resistance. Experience the scale and technology that makes DERCHI a leading manufacturer in the industry.
Custom Configuration Options
Flexible panel layouts, fixed top lights, screen panels, and shaped frames support opening size, ventilation needs, and project design goals.
Color Options

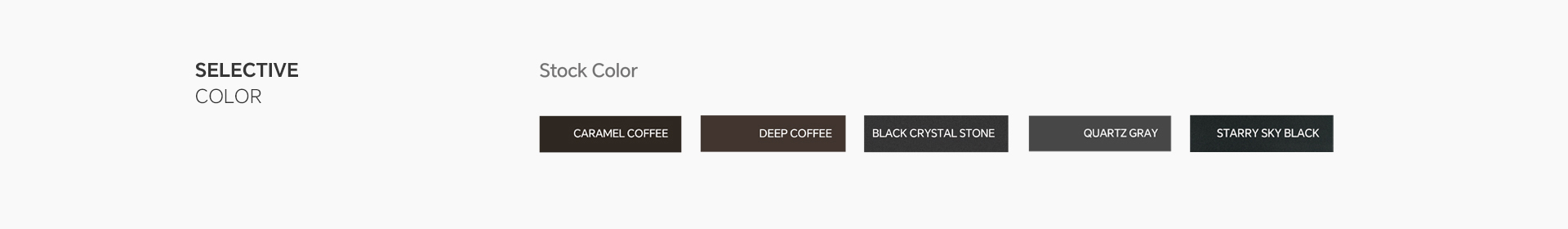

Stock Color Options for Thermal-Break Aluminum Profiles
For the 135D Series modern sliding glass door, DERCHI offers five stock colors for thermal-break aluminum profiles. These finishes use powder coating or fluorocarbon coating to support long-term outdoor use and stable color control. The same options work for a double pane sliding glass door used in both residential and commercial projects.
CARAMEL COFFEE is a warm brown tone. It pairs well with wood floors and light interior palettes for interior sliding glass doors.
DEEP COFFEE is a darker brown. It suits facade-driven designs and works well for exterior sliding glass doors.
BLACK CRYSTAL STONE has a fine-grain surface feel. It helps reduce visible fingerprints and supports high-traffic door areas.
QUARTZ GRAY is a neutral gray. It matches white, gray, and concrete wall finishes with less effort.
STARRY SKY BLACK is a deep black with subtle speckle. It helps define the frame line for large openings.
How to Choose the Right Color
Start with daylight conditions. If the room has limited light, QUARTZ GRAY can keep the space from feeling heavy. If the view is the focus, STARRY SKY BLACK or BLACK CRYSTAL STONE can frame the outdoor scene with clear contrast.
Consider the surface type. Smooth finishes feel clean and simple. Fine-grain finishes hide small marks from daily use. This is useful for a waterproof sliding glass door exposed to hands, dust, and rain.
Practical Matching Notes
For projects with different indoor and outdoor needs, many profiles support two-tone color use. You can align the exterior with the building facade and match the interior with the room style.
Check samples in sun and indoor lighting. Color shifts can happen under different light sources. Pair dark frames with matching hardware finishes to keep the full glass door system consistent.

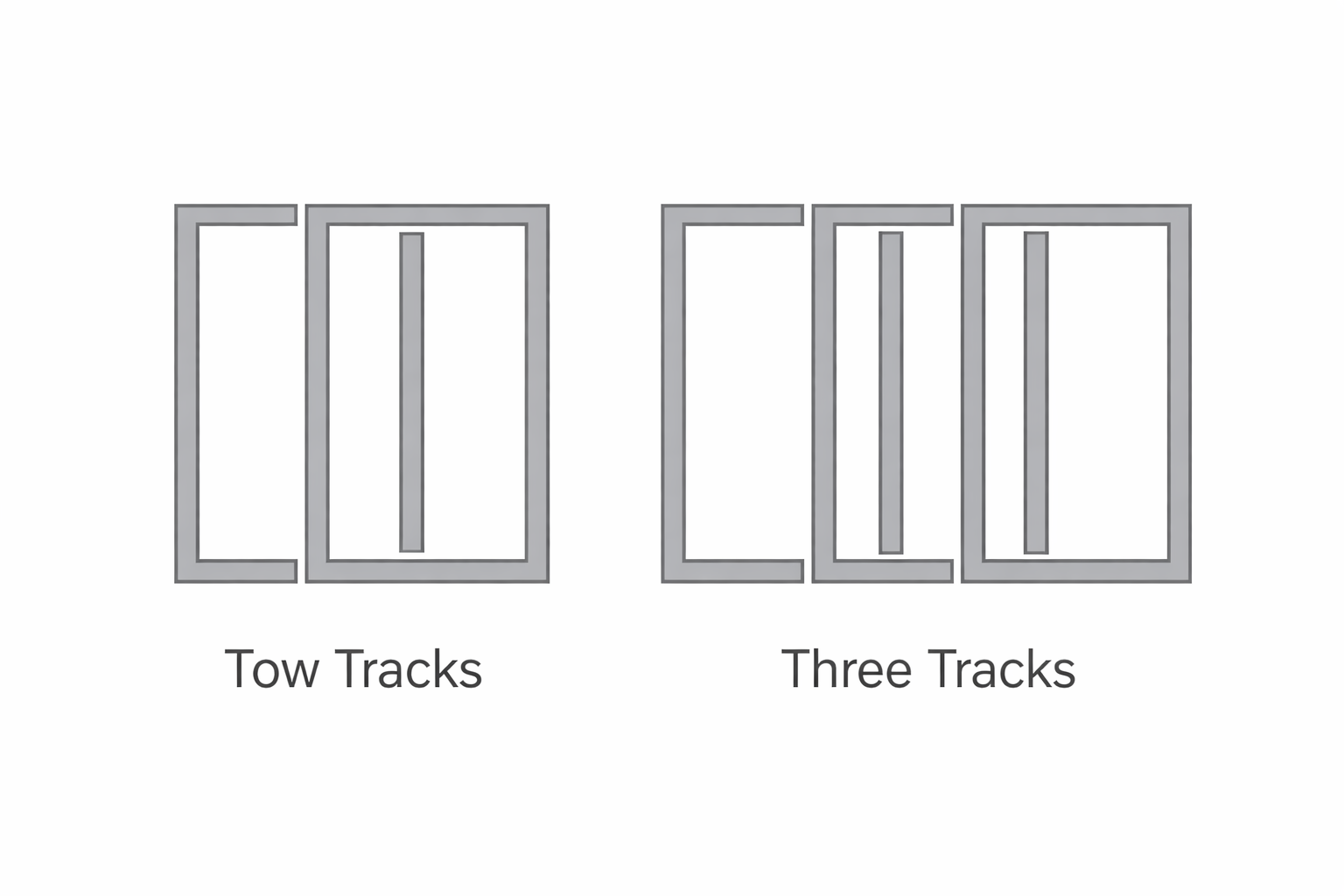

Track and Opening Options
Track and Opening Options for the 135D Series
The 135D Series Aluminum sliding door is built with a 135mm frame width. This format supports large openings and helps improve structural stability. DERCHI provides two track configurations for this modern sliding glass door: Two Tracks and Three Tracks.
Two Tracks (Two Panels Sliding)
Two Tracks is the standard setup with two rails. It delivers a maximum opening of about 50% of the total door width. One panel slides behind the other, so one side stays covered by glass.
This option uses a narrower frame layout. It can support better air and water sealing versus a three-track layout. It also simplifies track cleaning and routine maintenance. This setup works well for interior sliding glass doors, bedrooms, and mid-size balcony openings where sound control matters.
Three Tracks (Three Panels Sliding)
Three Tracks uses three separate rails. Each panel runs on its own track. This allows panels to stack to one side and reaches a maximum opening of about 66% (2/3) of the total width.
This design needs more installation depth, which matches the 135mm frame. It supports wider access, stronger airflow, and larger viewing areas. Three-track systems can also integrate a stainless steel mosquito screen, which helps for ventilation without insects. It is a strong fit for exterior sliding glass doors, large terraces, and villa entrances.
Selection Notes for Double Pane and Waterproof Use
For a double pane sliding glass door, choose based on access and sealing needs. Two Tracks supports tighter closure for a waterproof sliding glass door. Three Tracks supports wider opening and screen integration.
Optional Pack Profiles
Optional Pack Profiles for the 135D Series Frame
For the 135D Series Aluminum sliding door, DERCHI offers Optional Pack Profiles. These are frame cover and extension parts. They support the installation finish of a modern sliding glass door. Key differences are pack depth (47/70/75/80/100/110 mm) and the profile style. New uses straight lines. European uses a curved edge.
What Pack Profiles Do in a Sliding Door System
Pack profiles help hide the installation gap between the door frame and the wall opening. They cover foam, sealant, and fasteners. This creates a clean edge for both interior sliding glass doors and exterior sliding glass doors.
They also help match different wall builds. Some projects include plaster, insulation, stone cladding, or metal panels. Pack profiles extend the frame face so one glass door system can fit more opening conditions.
Support for Water Control and Sealing
Each pack profile includes a sloped outer surface. This guides rainwater away from the frame line. A deeper pack can also provide a longer sealing path. This helps reduce leakage risk for a waterproof sliding glass door.
How to Choose Pack Depth and Style
47 mm (New 47 Pack): for small gaps and precise openings
70 mm / 75 mm (New 70, New 75): for standard projects and stable closing detail
80 mm (European 80 Pack): for curved styling and softer frame lines
100 mm (New 100 Pack): for thick walls or renovation openings
110 mm (European 110 Pack): for large coverage needs and curved facade design
For a double pane sliding glass door, select the pack based on wall thickness, gap size, and the target finish line.
Size Range Options

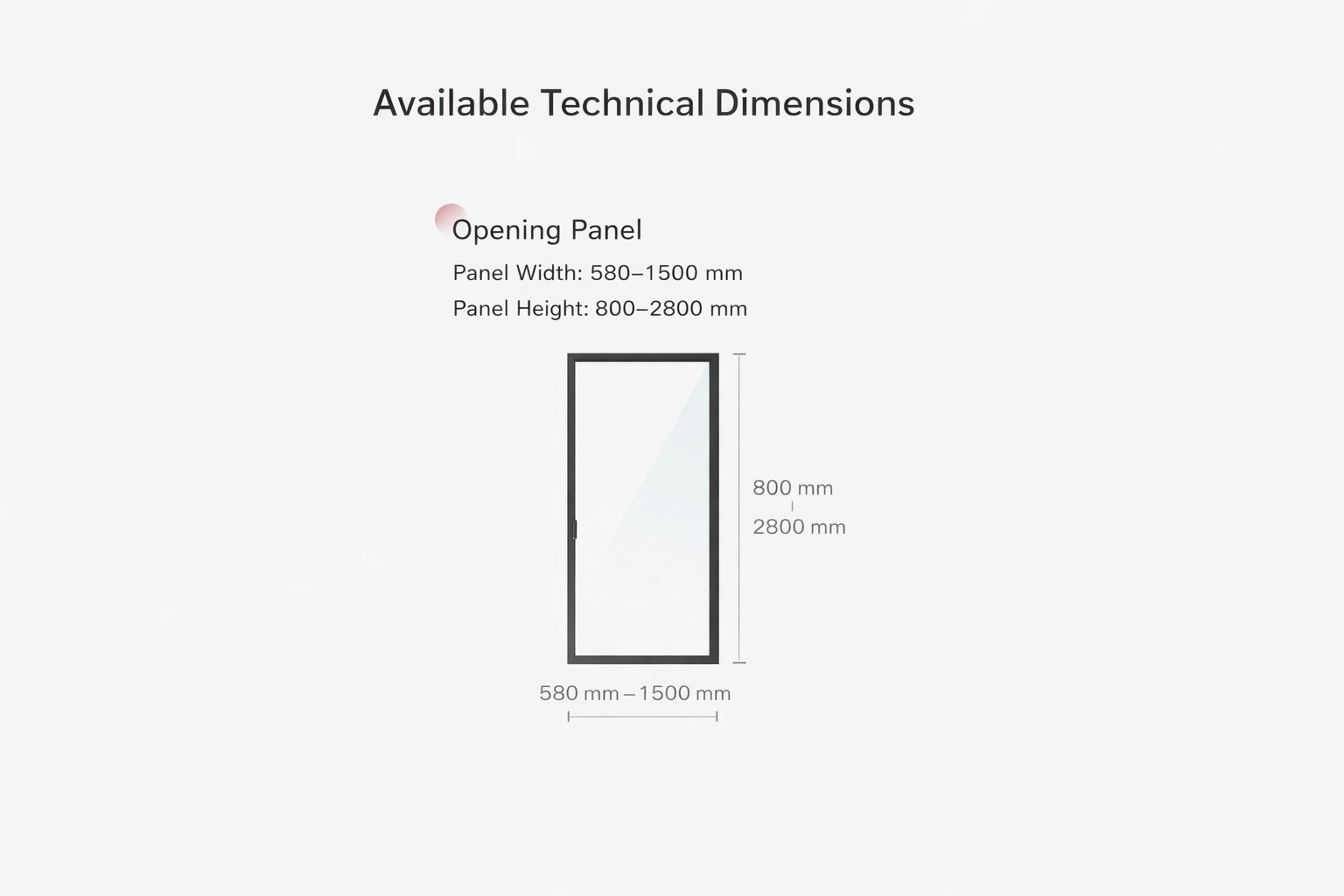

Size Range Options for the 135D Series Sliding Panels
The 135D Series Aluminum sliding door supports a wide panel size range for a modern sliding glass door layout. This makes it suitable for both residential and light commercial openings, including balcony access and room-to-room partitions.
Panel Width: 580–1500 mm
DERCHI sets the panel width range from 580 mm to 1500 mm. This allows flexible planning for single or multi-panel designs. Narrow panels can support tighter spaces and smaller openings. Wider panels can reduce the number of vertical lines and increase clear viewing area.
Panel Height: 800–2800 mm
Panel height ranges from 800 mm to 2800 mm. This supports standard door heights and tall openings. Taller panels work well for large balconies and full-height glass walls. Shorter panels can be used for compact doors or interior separations.
How This Range Supports Common Use Cases
For a double pane sliding glass door, the size range supports better layout control during project planning. It can be used for exterior sliding glass doors where wide access is needed, or for interior sliding glass doors where space planning matters.
This format also supports sealing design and drainage routing in the frame. When combined with correct installation and hardware selection, it helps build a waterproof sliding glass door solution for daily use.
For each project, match panel size to opening width, ceiling height, and handling needs. This keeps the glass door system aligned with building use and traffic flow.
Glass Options
Glass Configuration Options for the 135D Series
The 135D Series Aluminum sliding door supports multiple glass setups for a modern sliding glass door project. DERCHI provides eight common options. These choices help balance five needs: energy control, safety, sound reduction, solar shading, privacy, and security level. They can be used for both interior sliding glass doors and exterior sliding glass doors.
Core Options for Energy and Comfort
Low-E glass reduces heat transfer through coated surfaces. It is often paired with an insulated glass unit (IGU) for better performance. This setup suits climate zones with heating or air-conditioning demand.
Insulated double glazing is the main solution for a double pane sliding glass door. It supports temperature stability and helps control condensation. For higher performance targets, insulated triple glazing can be selected, but panel weight increases and hardware load must be checked.
Safety and Sound Control Choices
Tempered glass is a standard safety requirement for sliding doors. It breaks into small pieces to reduce injury risk.
For stronger protection and better sound control, laminated glass adds an interlayer film. It holds glass together after impact and helps reduce noise from traffic and public areas.
Shading and Privacy Options
Reflective glass reduces solar gain and increases daytime privacy. It is often used on large facade openings but may reduce indoor brightness.
Tinted glass lowers glare and supports privacy while keeping a softer exterior look than reflective glass.
High Security Projects
Bullet-proof glass is for special security environments. It requires thicker profiles, upgraded hardware, and third-party certification. This option is not common for residential glass door use.
Practical Selection for Waterproof Sliding Door Use
For a waterproof sliding glass door, focus on IGU quality, sealing, and correct installation. A common mix is double glazing + Low-E + tempered glass. For noise or safety upgrades, use laminated + IGU.
Style Options
Custom Style Options for the 135D Series Sliding Door
The 135D Series Aluminum sliding door supports multiple layout types for a modern sliding glass door project. DERCHI drawings use symbols to show structure: A1 means a sliding panel, F1–F4 means fixed glass panels (often used as top lights), and grid panels indicate an insect screen. Sloped or arched lines show custom-shaped top frames.
Standard Sliding Layouts
For common openings, the system supports 2-panel and 4-panel sliding layouts. A 2-panel format fits smaller balconies, kitchens, and compact doorways. A 4-panel format suits wider openings and supports better traffic flow for exterior sliding glass doors.
Top Light and Height Extension Designs
DERCHI also offers layouts with fixed top lights above the sliding panels. This adds extra height without increasing panel size. It also increases daylight, which supports living rooms and large balcony doors. These formats work well with a double pane sliding glass door configuration.
Special-Shaped Frames and Uneven Openings
For projects with structural limits, the system can use sloped top frames or arched top lights. A stepped top light option can address beam drops or ceiling changes. Side fixed narrow panels or filler panels can help adjust irregular widths while keeping the main sliding panel size usable.
Screen Panel Options for Ventilation
Some 4-panel and 2-panel layouts can include screen panels. This supports airflow while reducing insects. It is useful for bedrooms and large balconies where daily ventilation is required, including interior sliding glass doors that open to enclosed terraces.
Selection Notes for Waterproof Use
For a waterproof sliding glass door, confirm the layout, track type, and sealing plan during design. DERCHI can match the panel count, fixed sections, and screen needs to the site opening and daily use pattern.

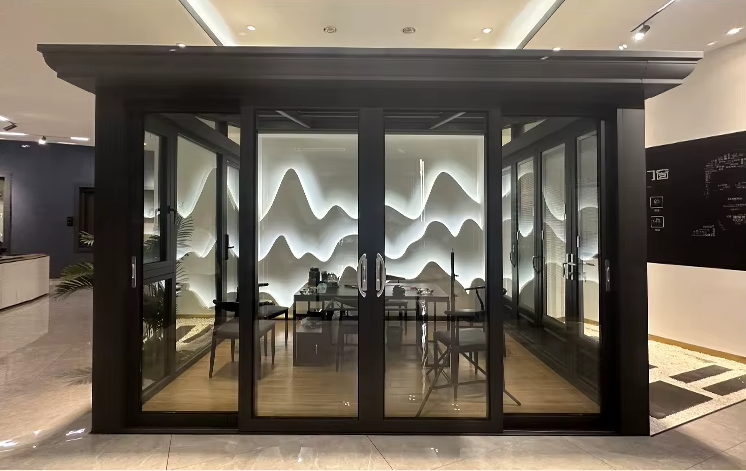

Premium 135D Series Modern Sliding Glass Door
The 135D Series Modern Sliding Glass Door offers robust performance with a solid aluminum frame and double tempered glass, designed to withstand the elements. The 1.8mm thick aluminum provides enhanced strength, making it ideal for large windows or high-rise buildings.
With its double-pane design filled with argon gas, this door excels in heat insulation and noise reduction. The insulating properties make it perfect for maintaining a comfortable indoor temperature year-round, while also minimizing external noise.
DERCHI offers a 10-year warranty on the 135D sliding door, reflecting its commitment to long-term durability and quality. The door is custom-made to meet your specific size, color, and function requirements, ensuring a perfect fit for your home.
Explore the durability and energy efficiency of DERCHI’s Modern Sliding Glass Door today!
Get a Quote
Modern Sliding Glass Door (135D Series): 3 Core Advantage Areas
The 135D Series modern sliding glass door focuses on glass performance, frame structure, and sealing. It is built for double pane sliding glass door needs and works well for exterior sliding glass doors and interior sliding glass doors, with water control and noise reduction.

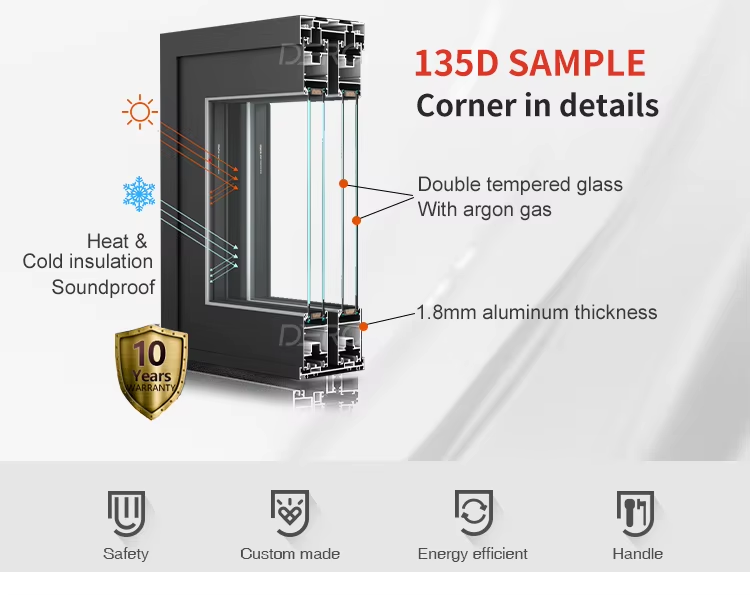

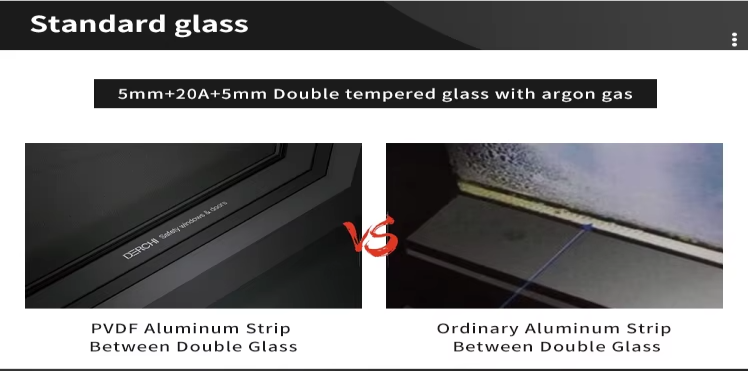

Glass Configuration & Insulation
Uses double pane tempered glass (5mm + 20mm + 5mm) with an argon-filled cavity to reduce heat transfer and outside noise. A one-piece bent PVDF aluminum spacer limits corner gaps, helping reduce air leaks and moisture entry inside the glass unit.

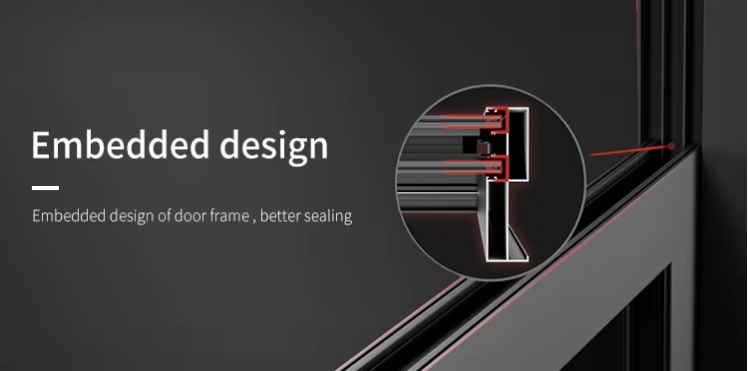

Embedded Frame & Panel Stability
The embedded sash-to-frame structure increases overlap between the moving panel and the main frame. This design reduces panel movement under wind pressure, supports stable sliding, and helps prevent derailment. It also improves alignment when the door closes.

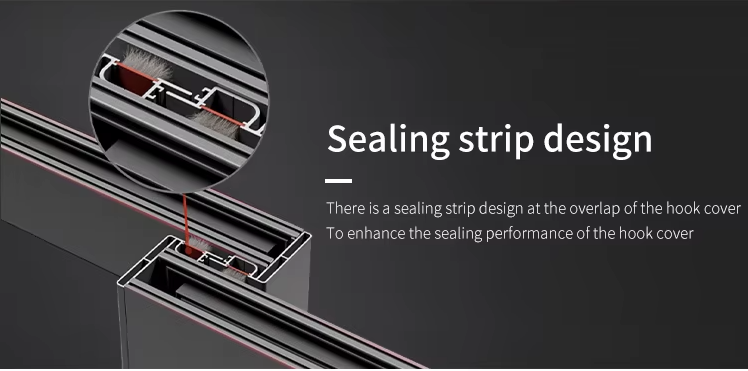

Sealing System & Waterproof Control
Multi-point sealing strengthens weak areas where two panels overlap. A brush sealing strip fills the gap at the hook cover section to block airflow, reduce sound entry, and limit water paths. This supports a waterproof sliding glass door glass door setup for outdoor use.
Request a Quote for the 135D Series Modern Sliding Glass Door
Looking for a modern sliding glass door for your home or project? Share your size, opening type, and install location. Our team will recommend the right double pane sliding glass door option for exterior or interior use and provide a clear quotation.
Performance Highlights
The 135D Series modern sliding glass door uses double pane glass to support waterproofing, air sealing, wind load strength, sound control, and thermal performance through U-Factor and SHGC.
U-Factor: 0.38
A U-Factor of 0.38 indicates controlled heat transfer through the glass door system. It helps reduce indoor heat loss in cooler seasons and supports stable room temperatures. This improves energy planning for modern sliding glass door installations.
Wind Pressure Resistance: 4.5K Pa
The wind pressure resistance reaches 4.5K Pa (4,500 Pa), supporting use in high wind environments. It helps the frame stay stable under load and reduces the risk of misalignment that can affect sliding operation. This is useful for high-rise buildings and coastal applications.
SHGC: 0.22
The SHGC value of 0.22 limits solar heat gain through the glass. It helps reduce cooling demand during warm seasons and supports comfort in rooms with strong sun exposure. This makes it suitable for exterior sliding glass doors in hot climates.
Water Tightness: 350 Pa
This waterproof sliding glass door is rated at 350 Pa for water tightness. It helps limit rain penetration caused by wind pressure and supports stable sealing at the frame and bottom track. It fits exterior sliding glass doors used in regular residential and light commercial projects.
Air Tightness: 3.0 m³/(m·h)
With an air tightness rating of 3.0 m³/(m·h), the door helps reduce airflow through gaps when closed. It supports draft control, lowers dust entry, and helps maintain indoor comfort. This performance suits both exterior sliding glass doors and interior sliding glass doors.
Sound Insulation Performance: 32 dB
The 32 dB sound insulation rating helps reduce everyday outdoor noise entering the room. It supports quieter living and working areas by lowering sound transfer through the opening. The double pane sliding glass door structure contributes to this level of noise control.
Modern Sliding Glass Door Specifications
Full parameter overview for DERCHI 135D Series, covering structure, glass setup, hardware, track options, and delivery details for modern sliding glass door projects.
| Parameter | Details |
| Brand | DERCHI |
| Series / Model | 135D Series Aluminum Sliding Door |
| Design Style | Modern |
| Application | Villa; indoor and outdoor use |
| Opening Type | Sliding |
| Track Options | Two-track or three-track |
| Frame Width (Two-track) | 135mm |
| Frame Width (Three-track) | 205mm |
| Main Frame Thickness | 1.8mm |
| Sash Profile Thickness | 1.6mm |
| Surface Treatment | PVDF coating |
| Glass Type | Double pane tempered insulated glass |
| Gas Filling | Argon gas |
| Standard Glass Configuration | 5mm + 27A + 5mm |
| Optional Glass Configuration | 5mm + 20A + 5mm |
| Spacer Type | PVDF aluminum spacer |
| Handle Brand | HOPO / HOPPE |
| Handle Material | Aluminum alloy |
| Lock Type | Single hook lock point |
| Lock Material | 304 stainless steel |
| Packaging | Wooden frame |
| Packaging Options | New 47 / 70 / 75 / 100 packs |
| Shipping Port | Guangzhou |
| Lead Time (1–50㎡) | 25 days |
| Lead Time (>50㎡) | To be negotiated |
| Monthly Supply Capacity | 20,000㎡ |
Modern Sliding Glass Door Applications
The 135D Series modern sliding glass door supports interior and exterior projects. It fits apartments, offices, hotels, and villas, using double pane glass and waterproof sealing for daily use.

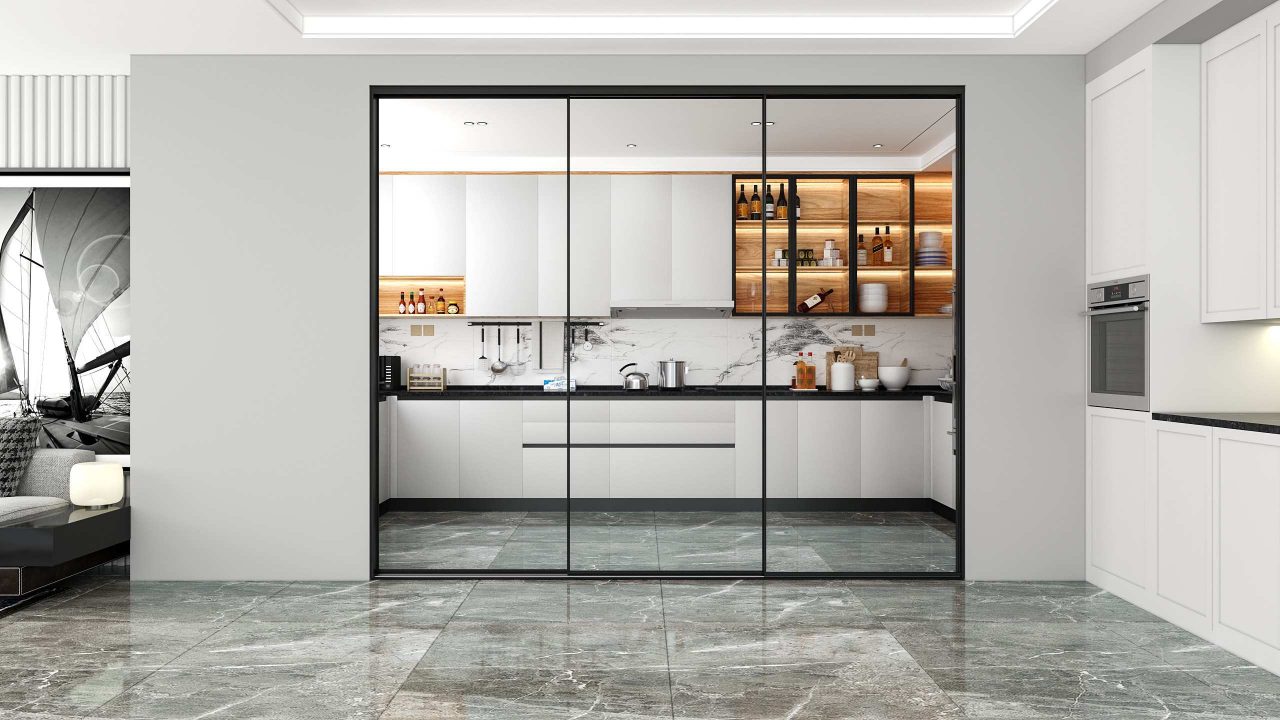

Apartment
Use this glass door for balconies, kitchens, and living rooms. The sliding design saves floor space. A double pane sliding glass door can help reduce outdoor noise and limit heat loss. It also supports ventilation when paired with screens.

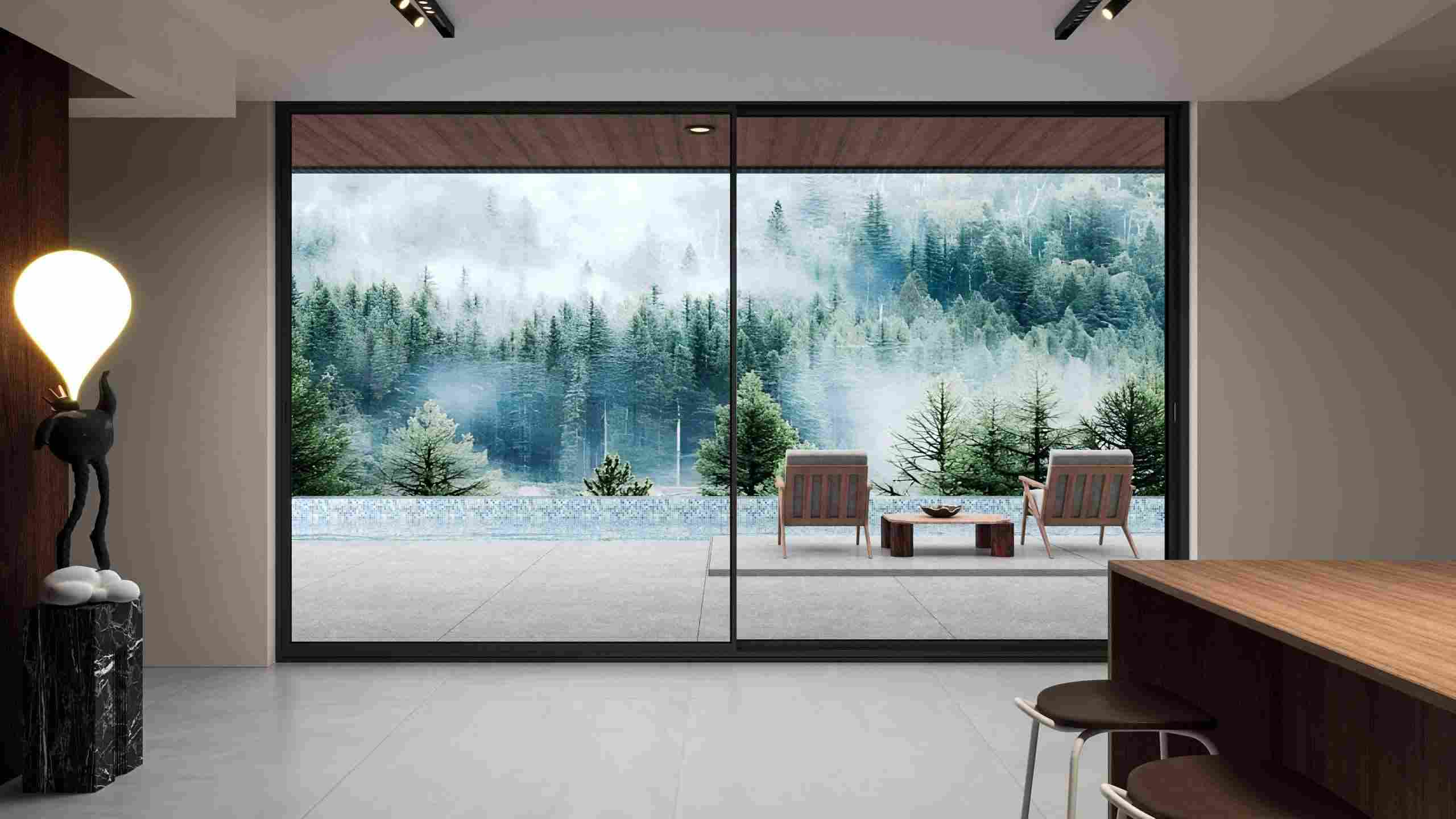

Home Office
Install interior sliding glass doors to separate work zones from living areas. The door keeps light flow while adding privacy. Double pane glass helps control sound during calls. Sliding access makes it easy to open or close the room as needed.

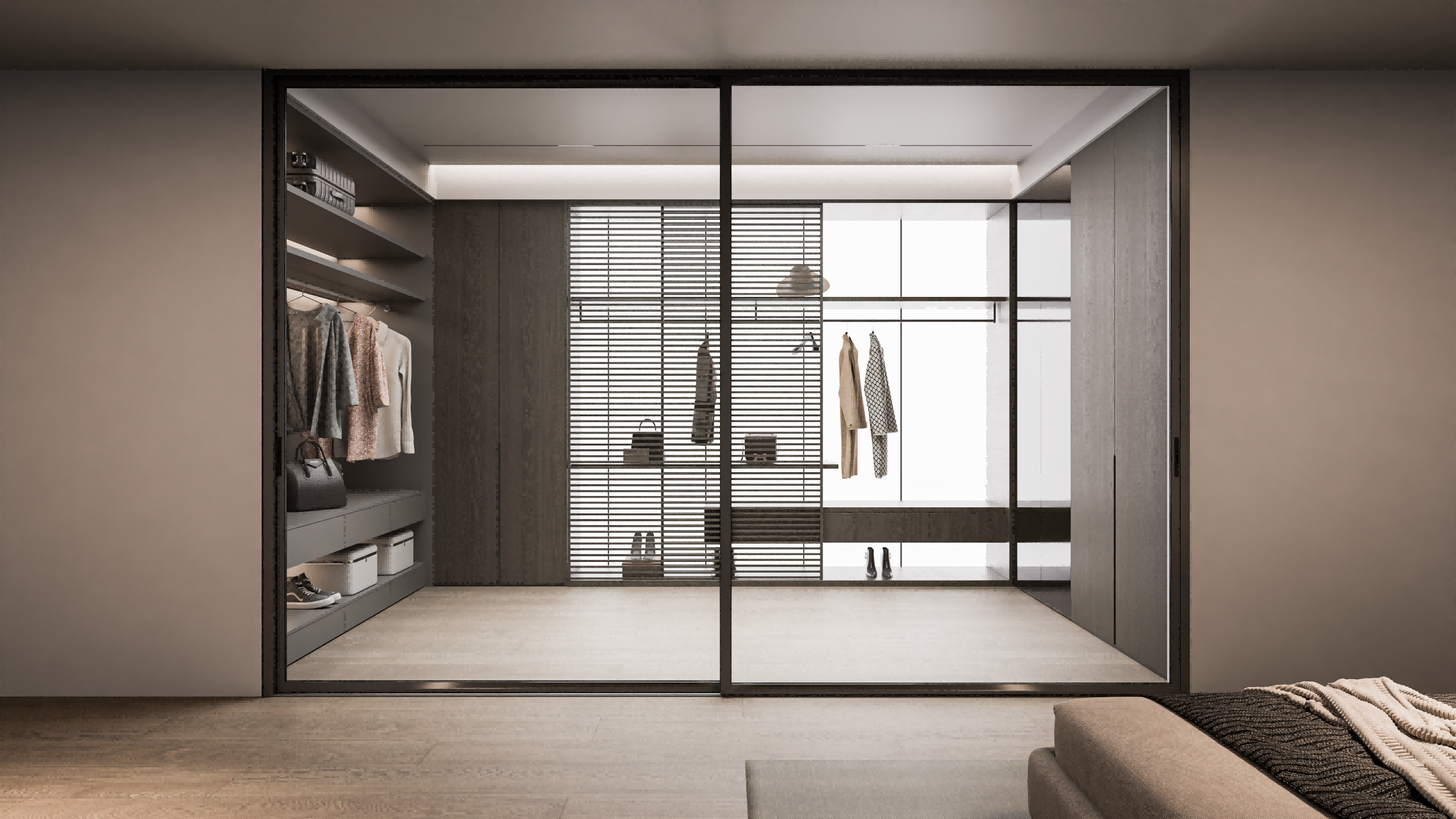

Hotel
Apply the door in guest rooms for balcony access or room dividers. It supports smooth guest movement and simple cleaning routines. The waterproof frame design helps in coastal or rainy regions. Double pane glass supports comfort across seasons.

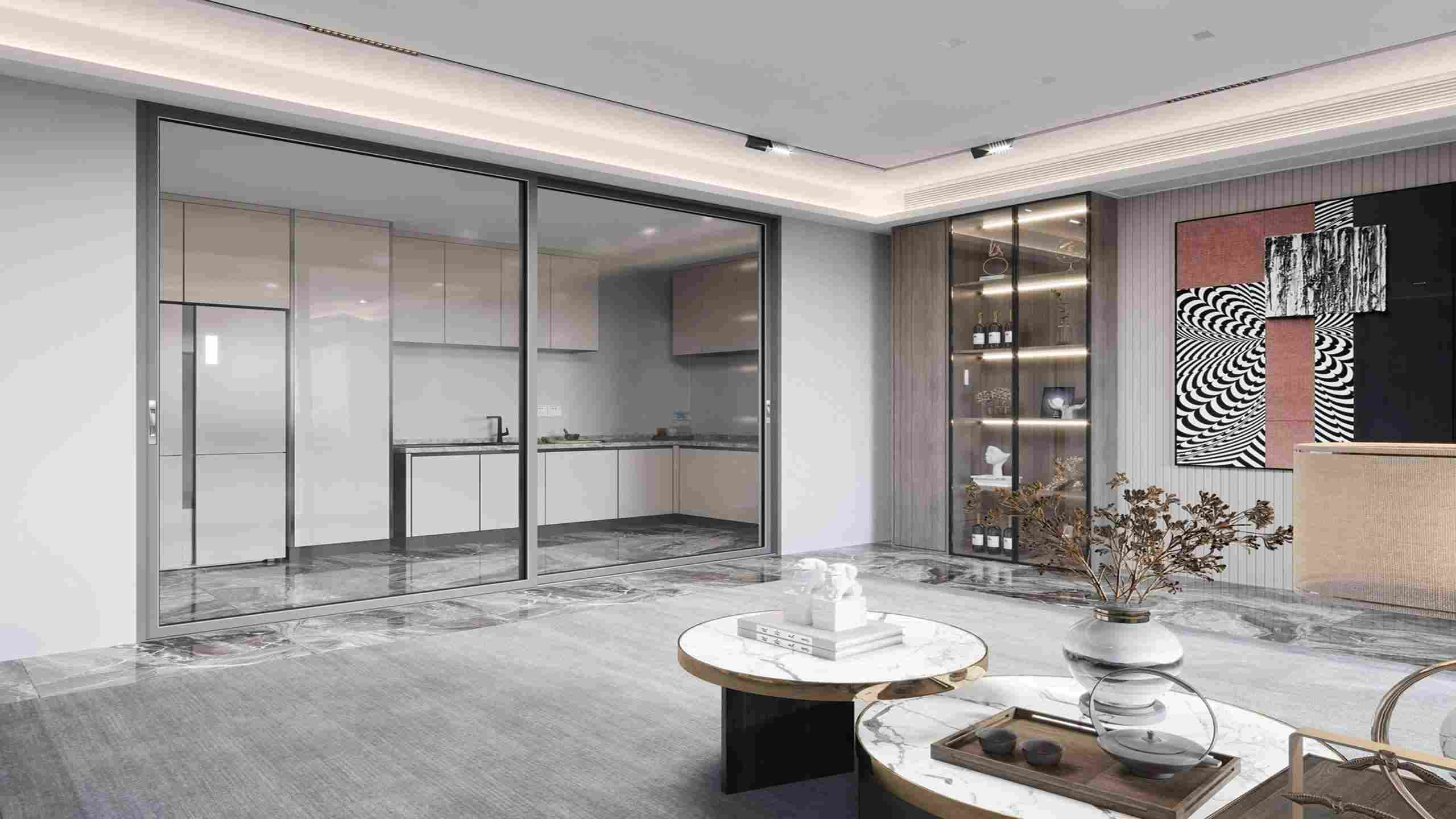

Office Building
Use interior sliding glass doors for meeting rooms, executive offices, and shared work areas. Sliding panels reduce door swing clearance in busy corridors. Double pane glass can help limit noise between rooms while keeping visibility for teams.

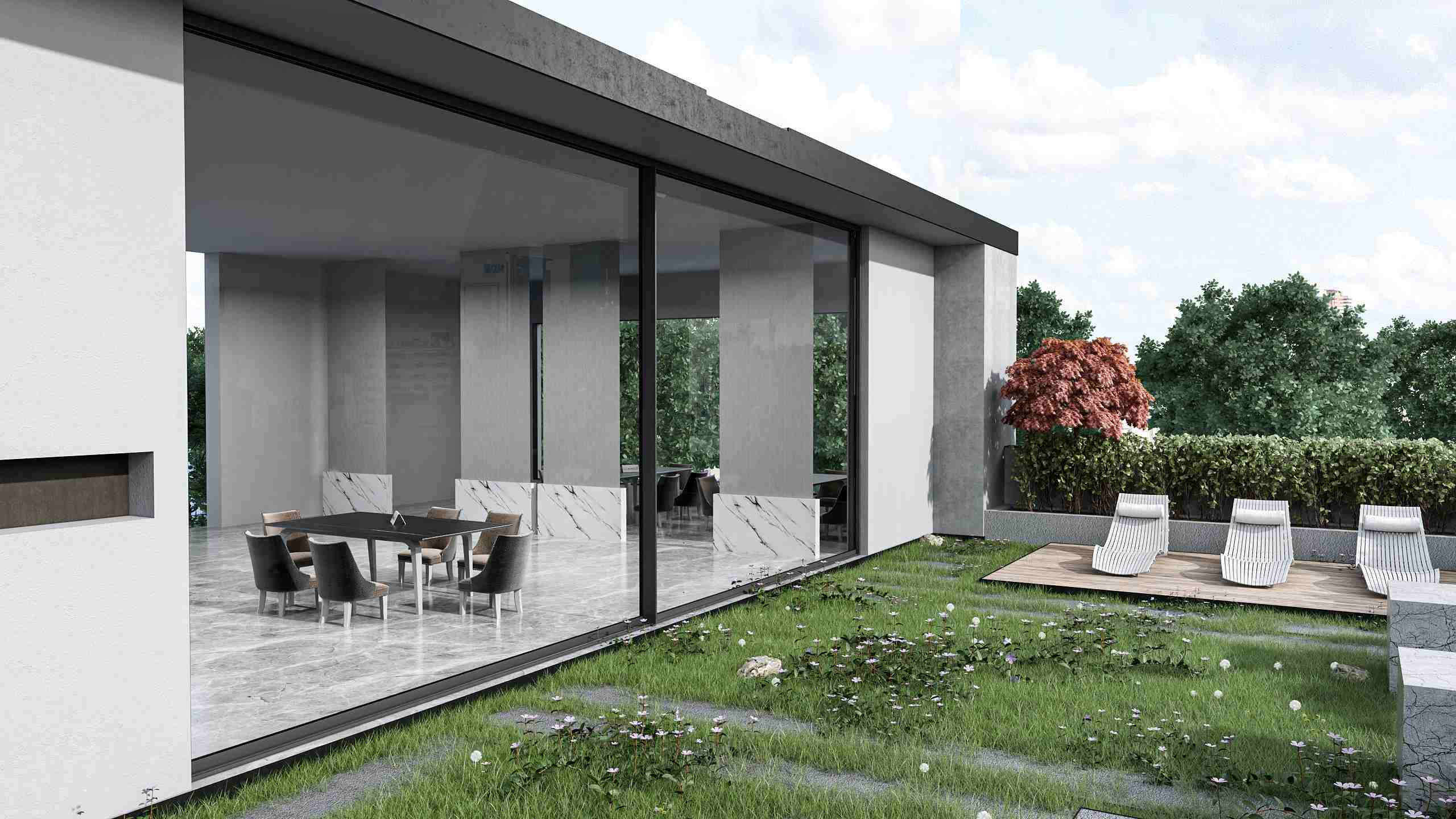

Outdoor
Install the door for patios, pool areas, sunrooms, and terrace entries. A waterproof sliding glass door helps manage wind-driven rain and splashes. The sliding format supports fast access between indoor zones and outdoor seating areas.

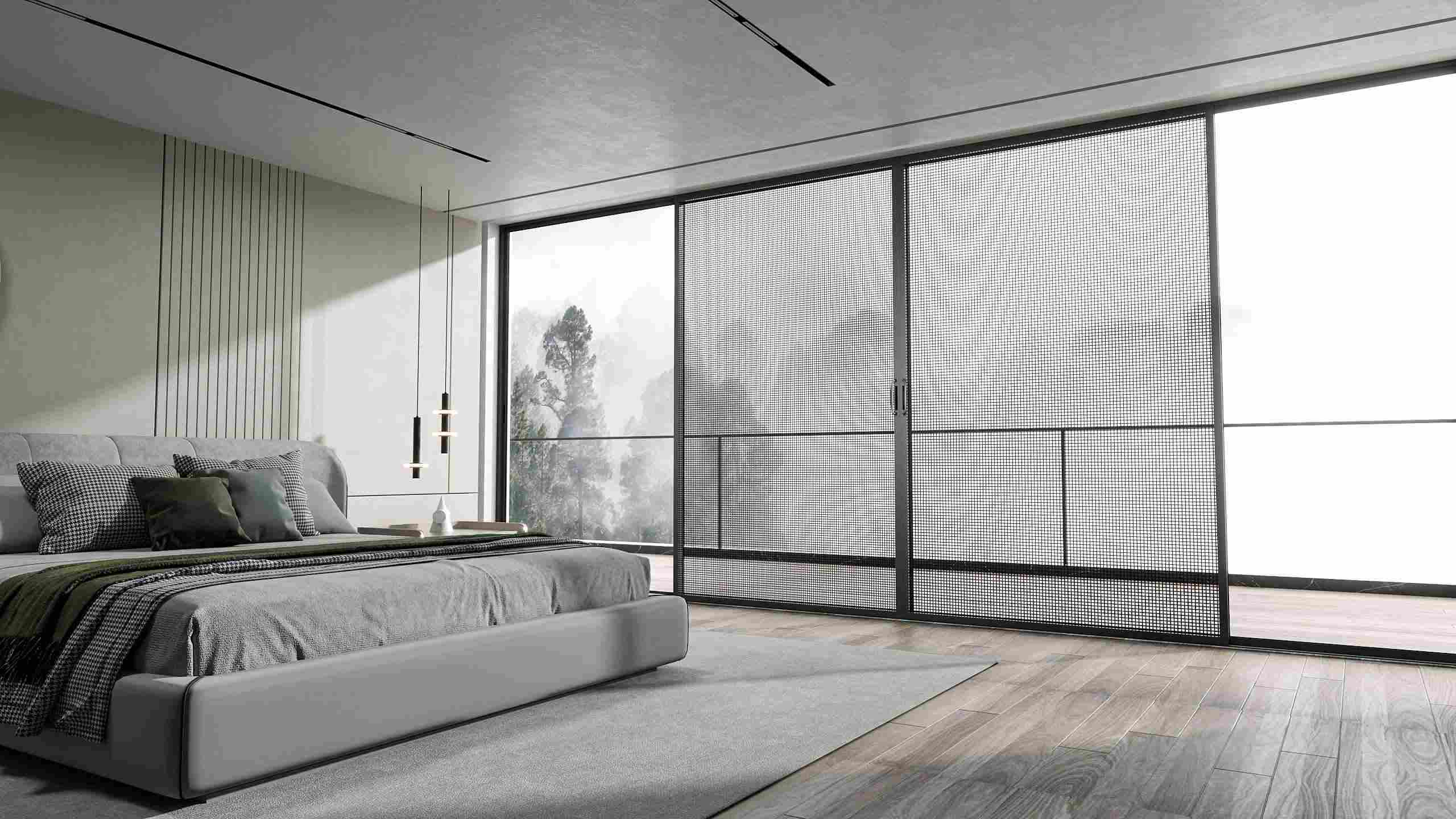

Residential building
Fit the door in shared lounges, gym entrances, rooftop access points, and courtyard connections. The aluminum frame supports frequent use in high-traffic areas. Double pane glass can help maintain indoor temperature control in common spaces.

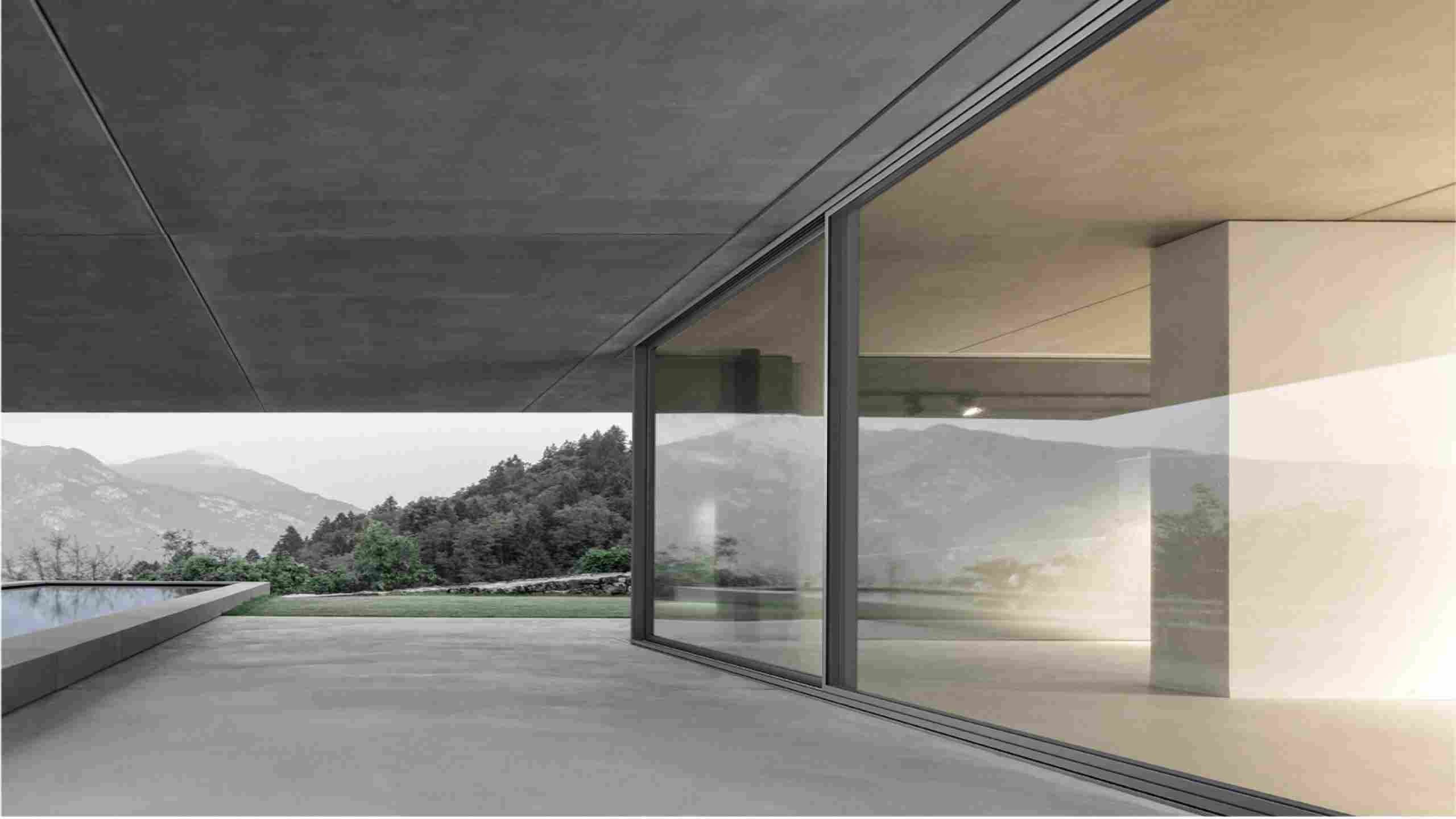

Exterior
Choose exterior sliding glass doors for gardens, decks, and street-facing openings. Waterproof sealing helps protect interiors during storms. Double pane units can support better energy control compared with single glass setups.

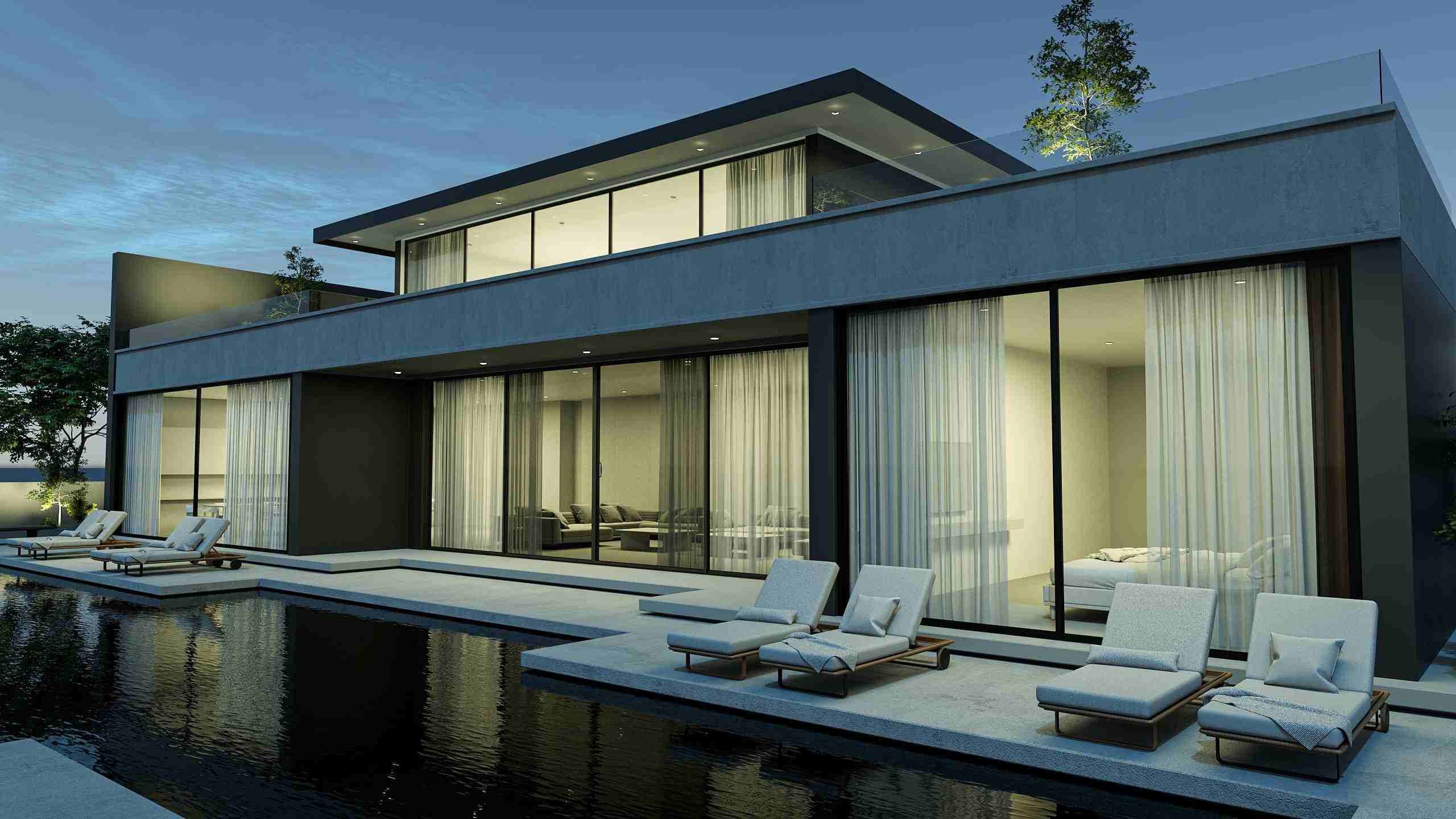

Villa
Use large panels to connect living rooms to gardens, patios, or courtyards. The sliding system supports wide openings for daily movement. Double pane glass helps manage noise and temperature changes. The door keeps views open while defining indoor space.
Why Choose DERCHI for Your 135D Series Modern Sliding Glass Door
Choose DERCHI for your 135D Series modern sliding glass door. Our scale, certifications, patents, inspection, and global service support double pane, waterproof interior and exterior sliding glass doors.
15+ years building aluminum windows and doors, focused on double pane sliding glass door systems for homes and projects.
70,000+ ㎡ factory and 4,000 ㎡ showroom; 600+ staff support design, production, packing, and on-site visits.
600,000+ ㎡ annual output and 200,000+ completed orders, covering exterior sliding glass doors and interior sliding glass doors.
Authorized by NFRC, CE, AS2047, CSA, and ISO9001, ensuring compliance for energy, safety, and quality requirements.
100+ national patents in invention, appearance, and design, strengthening sealing, hardware fit, and frame structure for a waterproof sliding glass door.
50+ awards from industry groups reflect consistent product quality and factory management.
20+ R&D experts develop 135D Series upgrades, including smoother rollers, tighter frames, and flexible glass door configurations.
700+ distributors serve customers in 100+ countries, offering local support, spare parts, and warranty handling.
We work with trusted raw material and hardware brands worldwide to keep aluminum profiles, glass, and fittings consistent.
100% full inspection before shipment checks dimensions, finish, double pane glass, drainage, and sliding performance.
One-stop customer service from ordering to shipment, including drawings, production updates, packing lists, export documents, and logistics tracking.
Certifications & Compliance
Show DERCHI approvals for the 135D Series modern sliding glass door, including NFRC, CE, AS2047, CSA, and ISO9001, for easier project review and specification.
Hardware Options
Built for modern sliding glass door projects, these hardware options support double pane sliding glass door setups for exterior sliding glass doors and interior sliding glass doors, improving control, sealing, and waterproof sliding glass door performance.

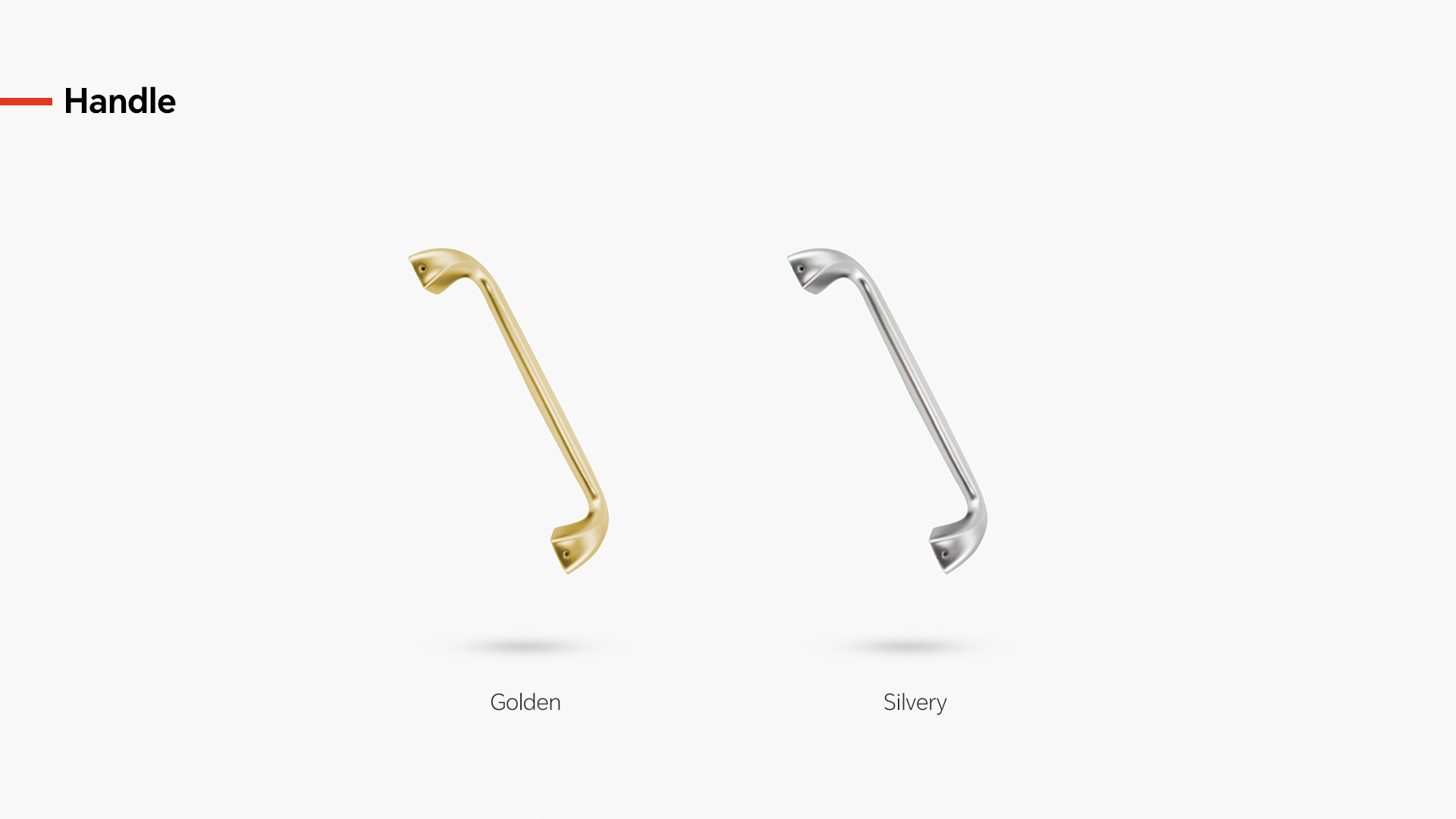

Handle (Pull Handle / Sliding Door Handle)
Bar-style outside pull handle in gold or silver. Provides a clear push/pull point for daily use. Supports a consistent color plan across projects with finish options such as champagne gold, silver, and gunmetal.

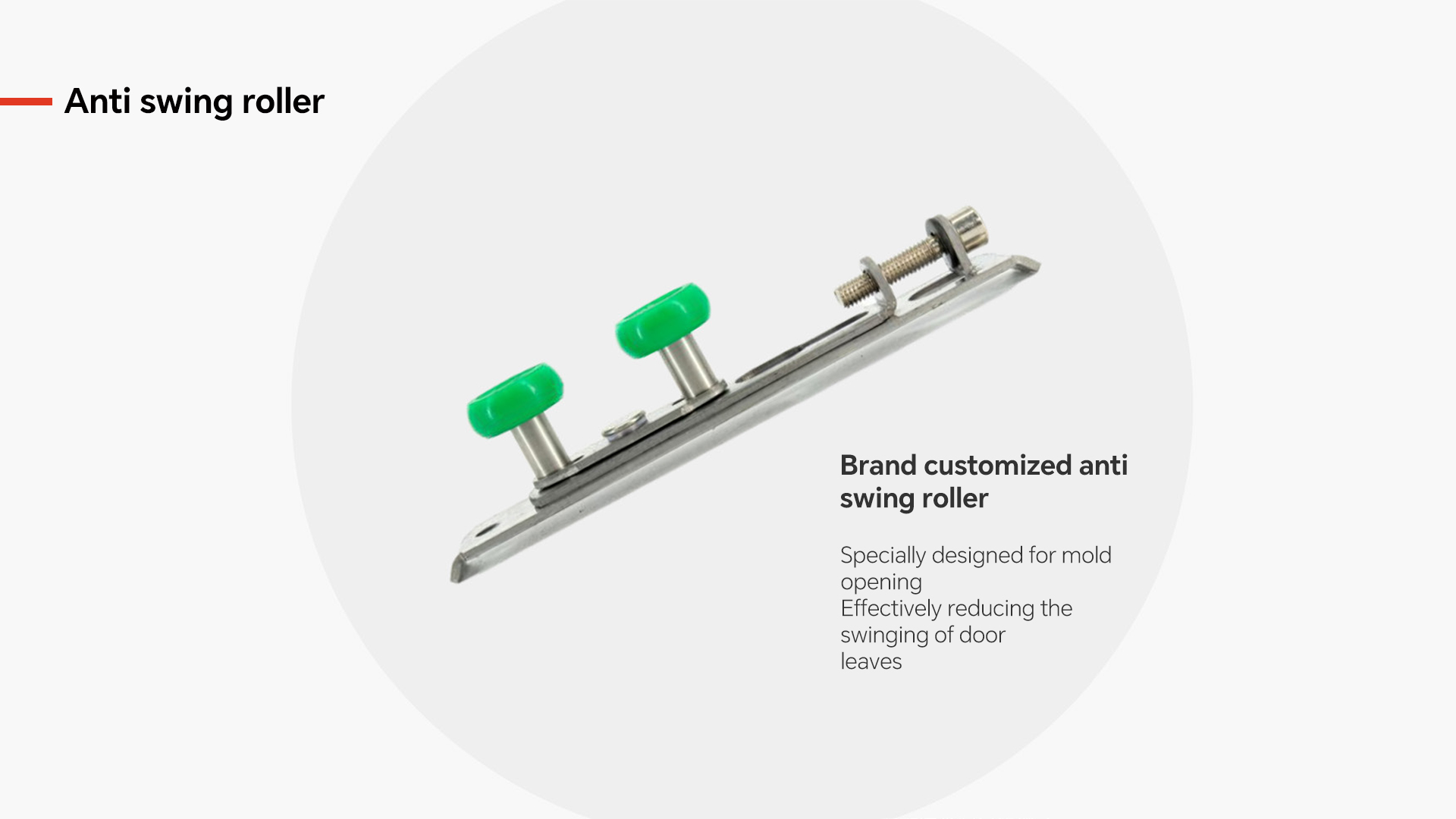

Anti Swing Roller (Anti-Sway Guide Roller)
Guide unit with a base, two rollers, and an adjustment screw. Limits door leaf side movement during sliding. Helps reduce rubbing and noise. Keeps the panel aligned to protect rollers and the track over long-term operation.

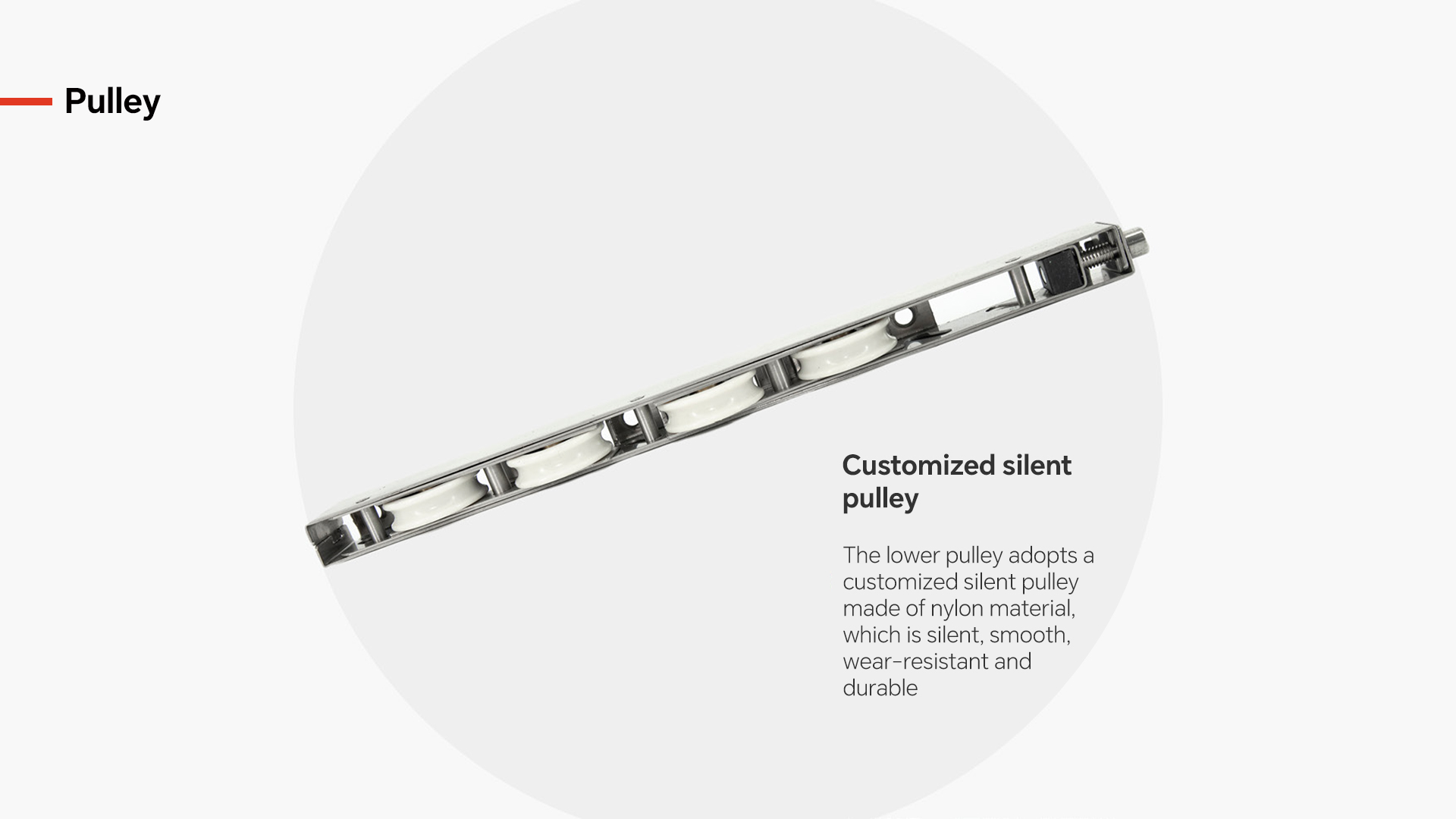

Pulley (Silent Bottom Roller Assembly)
Long bottom roller set with nylon wheels and an adjustment end. Carries the main door weight for smooth sliding, including large glass panels. Nylon rollers reduce rolling noise. Height adjustment helps prevent scraping, misalignment, and poor closure.

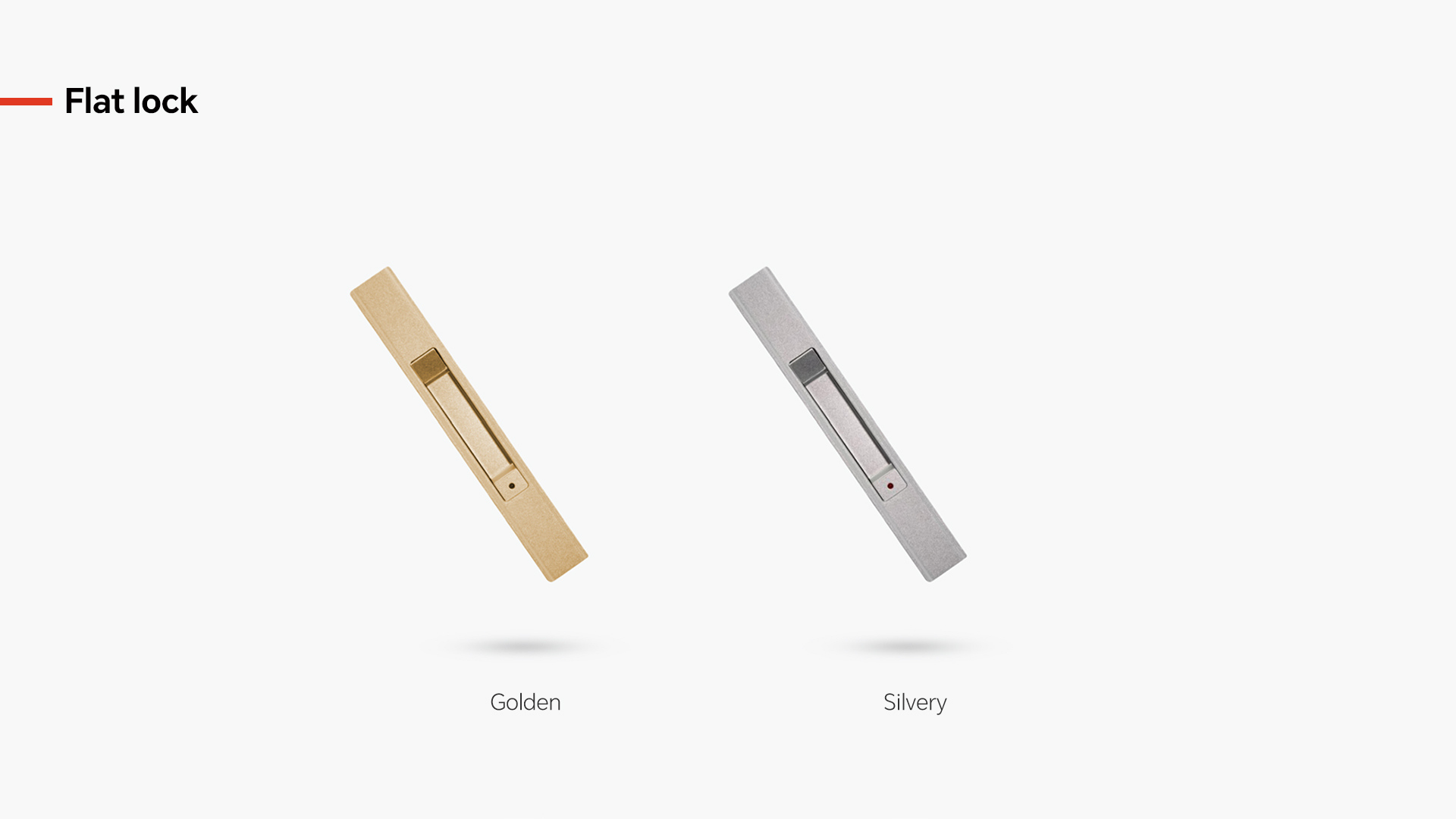

Flat Lock (Flush Sliding Door Lock)
Recessed flat lock body with gold or silver finish options. Controls locking and unlocking without protruding parts. Supports closer panel contact, which helps sealing. Suitable for modern frame layouts that require a clean and low-profile lock area.

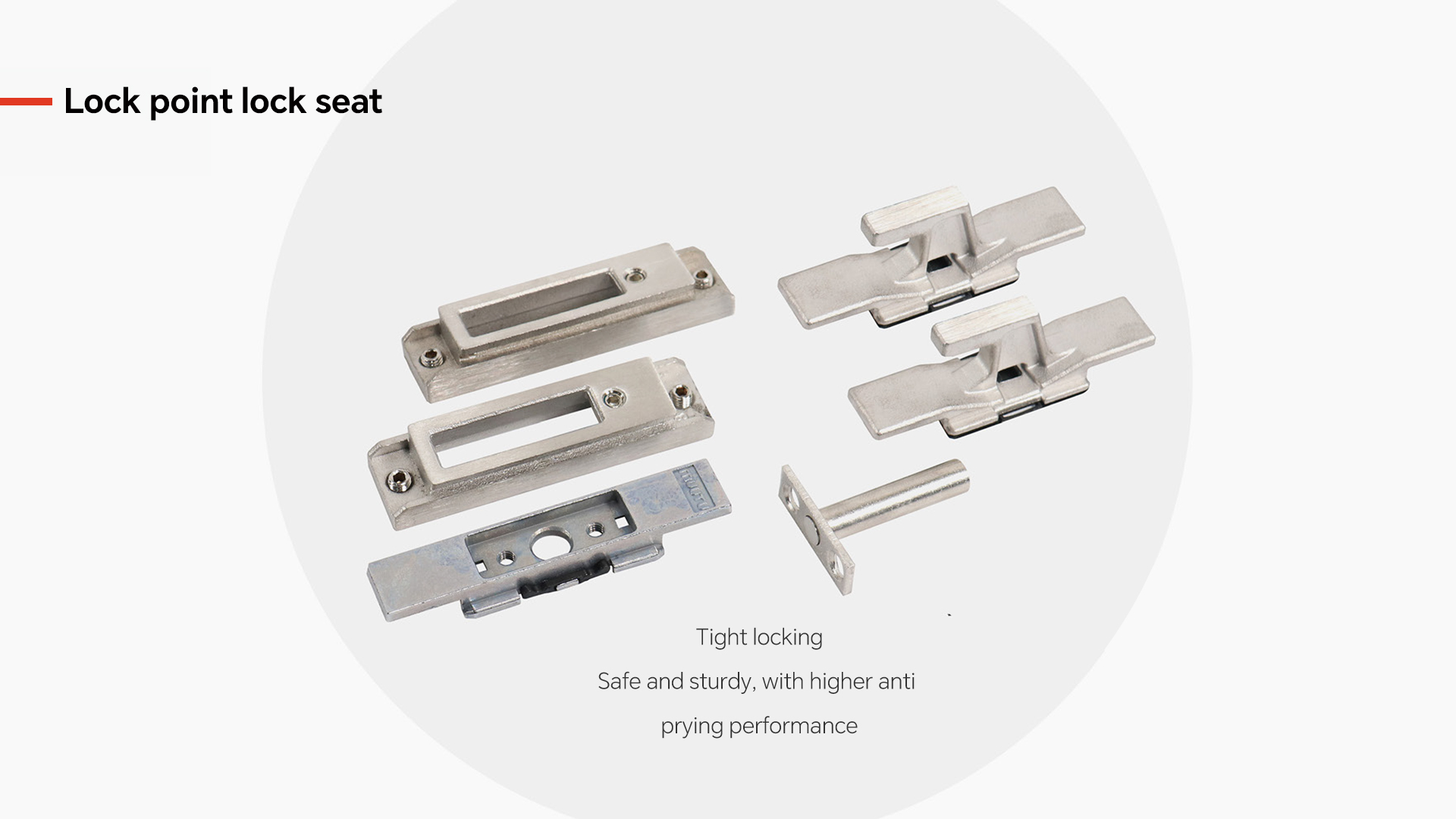

Lock Point Lock Seat (Strike Plate / Keeper Set)
Lock seat and keeper parts that receive the lock point load. Enables tight locking and supports higher anti-prying performance. Helps hold the panel in place after locking. Added contact pressure can improve sealing for sound, air, and water control.
Project Cases
Explore completed double pane sliding glass door projects, including exterior sliding glass doors and interior sliding glass doors, with photos and key details for faster decision-making.
Frequently Asked Questions
What is the difference between two-track and three-track sliding doors?
Two-track systems provide tighter sealing and easier maintenance, while three-track systems allow wider openings and optional screen integration.
Is the 135D Series suitable for exterior waterproof applications?
Yes. The design reinforces sealing at panel overlap and track drainage areas to reduce wind-driven rain penetration.
What glass configurations are available?
Double glazing is standard. Low-E, laminated, tinted, reflective, and triple glazing are optional based on energy, safety, and noise requirements.
Can the door be customized in size and color?
Yes. The 135D Series supports custom panel sizing and multiple stock color finishes for thermal-break aluminum profiles.
What certifications does DERCHI provide?
NFRC, CE, AS2047, CSA, ISO9001, and Energy Star qualification options depending on project requirements.
Explore DERCHI Aluminum Door Categories
Browse our full aluminum door range beyond the modern sliding glass door, including Bifold Door, Garage Door, Sliding Door, Swing Door, and Front Entry Door for residential and commercial use.
Related Products for Sliding Door Systems
Find matching options for your modern sliding glass door setup, including waterproof sliding glass door solutions, glass configurations, hardware choices, and frame styles for different spaces.
