Homeowners need accurate standard garage door sizes for seamless vehicle clearance and modern property style. The standard single garage door size measures 8 or 9 feet wide by 7 feet high. Meanwhile, the standard double garage door size measures 16 feet wide by 7 feet high.
The door industry always lists measurements using width-by-height order:
Single-Car Doors: 8 ft. × 7 ft. or 9 ft. × 7 ft.
Double-Car Doors: 16 ft. × 7 ft.
Precise rough opening measurements guarantee a perfect fit for every residential garage project.
Key Takeaways
Standard single garage doors measure 8 or 9 feet wide by 7 feet high.
Standard double garage doors measure 16 feet wide by 7 feet high for two vehicles.
Accurate measurements of headroom, sideroom, and backroom guarantee proper door installation and smooth track operation.
DERCHI offers custom aluminum garage doors for oversized vehicles, unique home designs, and long-lasting durability.
Overview of Standard Garage Door Sizes
Homeowners select standard garage door sizes to secure vehicles and upgrade property appeal. Selecting off-the-shelf options saves time and money during initial construction or door replacement. Clear knowledge of standard dimensions helps buyers choose correct frames without expensive custom alterations.
Standard Single Garage Door Size Options
A single-car door provides simple access for individual vehicles, SUVs, and compact sedans. The standard single garage door size baseline measures 8 feet wide by 7 feet high. Manufacturers offer several standard garage door sizes to accommodate various vehicle clearances and structural designs.
Pro Tip: Always verify headroom and sideroom spacing before choosing final garage door measurements.
The following chart outlines common garage door dimensions for single-car setups:
Garage Type | Common Widths | Common Heights | Standard Dimensions (W x H) |
|---|---|---|---|
Single-Car | 8 ft, 9 ft, 10 ft | 7 ft, 8 ft | 8×7, 9×7, 10×7, 8×8, 9×8, 10×8 |
Standard width choices span 8 feet, 9 feet, or 10 feet. Standard height options span 7 feet or 8 feet. Single-car structures frequently feature 8x7 ft, 9x7 ft, and 9x8 ft options. Drivers with wider trucks choose 9x7 ft or 9x8 ft openings for safer side mirror clearance.
Installation of an 8x7 foot frame requires specific structural clearances:
Headroom Range: Requires 12 to 18 inches above the door frame for torsion springs and automatic openers.
Sideroom Range: Requires 3.5 to 4 inches on each side for tracks and mounting brackets.
Backroom Range: Requires depth equal to door height plus 18 to 24 inches for open panel storage.
Proper single garage doors deliver excellent weather protection and reliable everyday operation.
Standard Double Garage Door Size Options
Selecting a durable double garage door streamlines everyday vehicle access for multi-car households. The most common standard double garage door size baseline measures 16 feet wide by 7 feet high. Property owners frequently select a standard double garage door size configuration measuring 16 feet wide by 8 feet high for taller pickup trucks.
Double-car door widths range from 12 to 18 feet wide, offering great flexibility for custom home builds:
12 to 14 Feet Wide: Accommodates two compact cars or golf carts.
16 Feet Wide: Serves as the modern standard for two-car residential garages.
17 to 18 Feet Wide: Provides maximum drive-through space for full-sized trucks and large SUVs.
Standard double garage doors require sturdy tracks and powerful motor openers. Homeowners with standard 24x24 foot garages evaluate entry layouts carefully during construction.
Note: A 24x24 foot garage allows flexible entry choices. Homeowners can install one 16-foot double door or two separate 9-foot single doors.
One large double door simplifies parking movements through one wide entry point. Conversely, two individual single doors isolate vehicle access and keep cold drafts outside. Both options use standard double garage door size standards or single-car standards effectively.

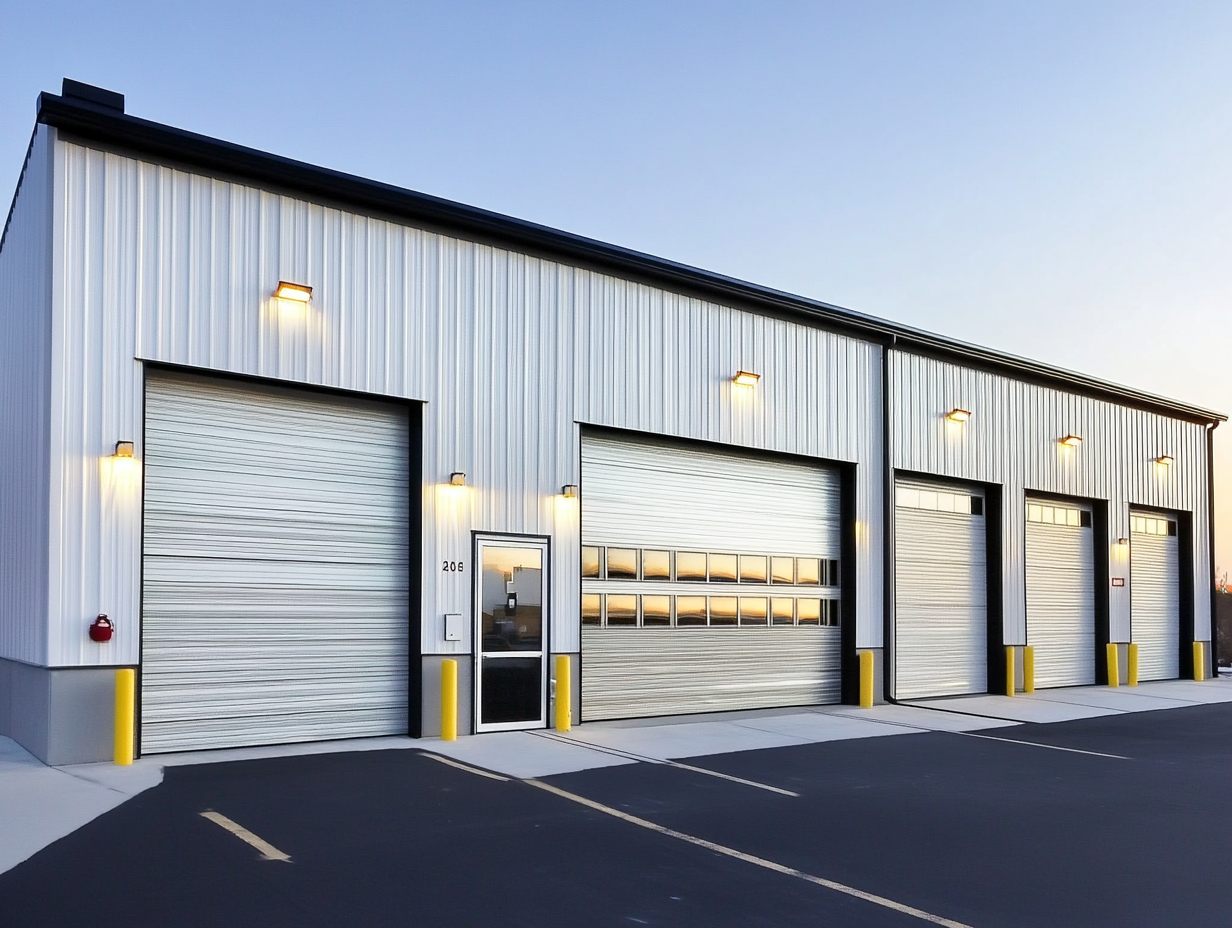

Oversized and RV Garage Door Dimensions
Large motorhomes, commercial vans, and boat trailers require common garage door heights and widths that exceed standard residential builds. Tall vehicle AC units and roof racks require expanded overhead clearance. Custom framing preserves rooflines and protects recreational investments.
The table below highlights minimum space demands for motorhome storage:
RV Type | Minimum Height Requirement | Suggested Garage Door Dimensions |
|---|---|---|
Class A Motorhome | 14 feet | 12' W x 14' H (up to 16' x 14') |
Class C Motorhome | 10 feet | 10' W x 10' H (up to 12' x 14') |
Class A motorhomes need at least 14 feet of clearance height. Class C motorhomes need 10 feet of clearance height. A common width for RV garages spans 12 feet, preventing side mirror scratches. Precise overhead planning protects valuable motorhomes from roof impact and severe weather elements.
Finding the Average Garage Door Size for Vehicles
Modern vehicle designs continuously expand, making strategic structural planning crucial for property owners. Selecting the average garage door size ensures smooth daily parking while preventing costly accidental vehicle scratches.
Garage Door Height for Sedans and Compact Cars
Compact sedans and sports cars easily fit into traditional residential structures. A standard garage door height of 7 feet offers ample headroom for these smaller vehicles. Homeowners driving standard passenger cars enjoy smooth entry and exit without modifying standard frame boundaries.
The ideal size for single-car passenger parking remains 8 or 9 feet wide by 7 feet tall. This setup delivers cost-effective construction, excellent structural protection, and efficient daily convenience for everyday commuter cars.
Dimensions for SUVs, Trucks, and Roof Racks
Modern full-size trucks, large SUVs, and vehicles with rooftop cargo carriers demand expanded entry clearance. A standard garage door height of 8 feet provides essential safety clearance for full-size pickup trucks with towing mirrors. Vehicles featuring lifted suspensions or roof racks require 9 to 10 feet of vertical opening space to avoid roof impacts.
Important Insight: Evolving automotive trends demand larger structural openings. Upgrading frame dimensions prevents vehicle damage and boosts long-term property resale value.
The following comparison table details essential frame dimensions based on modern vehicle trends:
Garage Feature | Standard Dimension | Recommended Dimension for Larger Vehicles |
|---|---|---|
Door Height | 7 feet | 8 feet |
Door Width | 8 or 9 feet | 10 feet |
Bay Width | Less than 12 feet | At least 12 feet |
Bay Depth | 22 feet | 24 to 28 feet |
Interior Ceiling Height | 8 feet | 10 to 12 feet |
Smart drivers evaluate their current vehicles and future purchasing plans before choosing structural layouts. Choosing a spacious average garage door size guarantees total peace of mind for expanding households.
How to Measure for a Standard Garage Door Size
Accurate garage door measurements guarantee a seamless installation process for any property owner. Precise step-by-step evaluation prevents structural delays and structural misalignments.
Measuring the Rough Opening Width and Height
Installers evaluate the finished rough opening before ordering hardware. First, technicians measure the horizontal distance across the opening from side jam to side jam. This measurement determines the actual standard garage door size needed for full coverage.
Next, installers calculate the vertical distance from the solid floor to the top header. Structural settlement can create uneven surfaces. Therefore, technicians measure heights at several points across the entryway.
️ Pro Tip: Always check the concrete floor level carefully. Leveling discrepancies can disrupt proper door sealing and bottom edge alignment.
Calculating Headroom, Sideroom, and Backroom
Proper installation requires adequate clearance beyond the basic rough opening frame. Installers verify side room space to mount vertical tracks securely. Standard vertical tracks need 3.5 to 4 inches on each side.
Backroom depth calculation ensures sufficient interior space for raised door panels. Contractors calculate backroom depth by adding 18 inches to the selected standard garage door height.
Headroom space above the header supports horizontal tracks and upper torsion springs. Automatic openers require additional overhead space for smooth motor track operation.
The table below outlines essential headroom space guidelines for different hardware configurations:
Operation Type / Hardware Requirement | Required Clearance |
|---|---|
Standard Torsion Spring (Manual) | 12 inches |
Automatic Door Opener | 15 inches |
Low Headroom Dual-Track System | 4 ¾ to 12 inches |
Adequate headroom calculation guarantees optimal track movement and eliminates mechanical binding during continuous daily use.
Standard vs. Custom Garage Doors with Derchi Window and Door
Selecting off-the-shelf options simplifies the initial construction process. Property owners achieve maximum cost savings and swift installation schedules by choosing basic entryways.
When Standard Dimensions Fit Your Home
Standard garage door sizes work perfectly for traditional home builds and simple replacements. Ready-made single garage doors fit uniform framing setups without structural modifications. Local suppliers stock these off-the-shelf panels for immediate delivery. Homeowners cut overall labor costs and avoid long lead times. standard garage door sizes provide basic convenience for straightforward architectural layouts.
Custom Aluminum Solutions from Derchi Window and Door
Unique architectural designs often demand custom-engineered door solutions. Derchi Window and Door leads the industry with over 25 years of manufacturing expertise. DERCHI creates premium aluminum garage doors for luxury homes in major cities like New York and Los Angeles.
DERCHI offers extensive custom features to match modern residential aesthetics:
Design & Structure: Tailored dimensions, customizable panel configurations, overhead structural designs, and insulated aluminum framing.
Aesthetics & Features: Personalized color selections, as well as bespoke hardware and window integration options.
Control Mechanisms: Multiple operation modes, including manual, electric, fully automated, and sensor-activated systems.
High-grade aluminum delivers superior structural advantages over traditional materials:
Advantage Category | Structural & Material Feature | Operational & Durability Benefit |
|---|---|---|
Frame Integrity | Welded corner joints & thick frame sections | Eliminates door sagging/separation and enhances impact resistance |
Deformation Resistance | Low modulus of elasticity | Capable of absorbing energy without permanent structural bending |
Climate Resilience | Natural rust resistance & powder-coated finishes | Resists moisture corrosion, coastal salt air, and UV fading |
Lighter aluminum frames reduce mechanical strain on torsion springs and automatic openers. DERCHI custom aluminum doors ensure long-term performance, high energy efficiency, and unmatched architectural beauty.
Standard garage door sizes range from 8x7 feet for single bays to 16x7 feet for double bays. RV storage structures require expanded clearance up to 14 feet tall.
Key Takeaway: Homeowners must measure rough opening dimensions and clearance spaces carefully before placing orders. Structural factors like headroom space and framing alignment directly impact final door operation.
For non-standard dimensions or luxury home designs, builders need custom solutions. Homeowners can consult industry experts or explore modern aluminum door collections from DERCHI to elevate property style and performance.
FAQ
What is the most common standard single garage door size?
The most common standard single garage door size measures 8 feet wide by 7 feet high. Many homeowners also choose 9x7 feet doors. This larger width provides extra clearance for wider side mirrors on modern SUVs and pickup trucks.
Can homeowners replace two single garage doors with one double door?
Yes, homeowners can convert two single doors into one 16-foot double door. This project requires structural modifications. A professional contractor must remove the center support column and install a wider header beam to support the ceiling safely.
What standard garage door size works best for lifted trucks?
An 8-foot high garage door works best for lifted trucks and full-sized SUVs. Standard 7-foot doors often snag roof racks or tall vehicle cabs. Selecting an 8x8 foot or 16x8 foot door ensures total vehicle protection and smooth daily parking.
Pro Tip: Always check aftermarket vehicle additions like roof boxes or lift kits before finalizing door height orders!
How does someone measure headroom for a new garage door?
Homeowners must measure the vertical distance from the top door header to the lowest ceiling point. Standard torsion springs require 12 inches of headroom. Automatic garage door openers need at least 15 inches of overhead clearance for proper track installation.
