The 18 x 36 casement window is a 457 x 914 mm aluminum opening unit featuring hand-crank operation. Matched to the DERCHI WY-72, WY-86, and WY-100 cranked-out window family, it suits compact residential and commercial openings.
- 6063-T5 aluminum frame with 72, 86, or 100 mm depth options
- Double tempered glass with EPDM rubber strip sealing
- Made-to-size production supporting project customization
Product Details
The structure centers on a 6063-T5 aluminum profile with a 1.4 mm wall thickness per catalog reference. Buyers select from 72, 86, or 100 mm frame depths, paired with EPDM rubber strip sealing and double tempered glass configurations—5+27A+5 mm for WY-72/WY-100 and 5+15A+5 mm for WY-86.
Unlike standard push-out units, this cranked-out window uses a hand crank for controlled ventilation. The 457 x 914 mm nominal size fits compact openings in kitchens, bathrooms, and stairwells, while multiple glass and frame options allow thermal and acoustic tuning per project.
Product Features
Hand-Crank Operation: Allows precise airflow control and suits hard-to-reach placements above counters or in stairwells without direct sash access.
Aluminum Frame Options: 6063-T5 profile available in 72, 86, and 100 mm depths to match structural and performance requirements.
Tempered Glass: Double tempered units provide impact safety and durability for residential and commercial occupancy settings.
EPDM Sealing: Rubber strip weatherstripping contributes to air and water resistance at the sash interface.
Screen and Safety Options: 304 mesh, diamond mesh, and safety fence accessories available subject to series compatibility.
Made-to-Size Production: Custom dimensions and configurations supported from a 2 m2 indicative minimum for project orders.
Customizable Styles
Glass Configuration: Double tempered 5+27A+5 or 5+15A+5 mm base units, with argon, Low-E, laminated, or triple upgrades available.
Frame Depth: Select 72, 86, or 100 mm profile depth based on structural and thermal performance targets.
Size Customization: Made-to-size within W450-800 mm x H600-1500 mm panel range; 457 x 914 mm nominal.
Color and Finish: 12 standard colors including Pearl White and Quartz Gray; PVDF and wood grain finishes available with upcharge.
Layout Style: Single casement, awning, fixed+operable composite, double sash, or irregular combinations per project drawings.
Hardware Accessories
Hand Crank: American hand crank for WY-72; Australian hanging hand crank for WY-86 and WY-100 series.
Lock Seat: Multi-point switch lock seat for WY-72; single-point switch lock seat for WY-86 and WY-100.
Limiter: Simple limiter or safety limiter available as optional upgrade for controlled opening angles.
Screen: Anti-theft, 304 high-definition mesh, diamond mesh, or 48-mesh transparent options subject to series.
Safety Fence: Fixed or opening safety fence available as optional accessory for enhanced protection.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | U-Factor 0.39, SHGC 0.25 | Confirm which glass configuration applies; argon and Low-E upgrades available. |
Wind Pressure Resistance | 5 KPa | Confirm this meets local wind load code for project location and height. |
Water Tightness | 350 Pa | Confirm suitability for project rain exposure zone and installation conditions. |
Air Tightness | 4.5 m3/(m·h) | Confirm air-tightness class rating applicable to target market standards. |
Sound Insulation | 30 dB | Confirm acoustic performance meets project needs; glass upgrades available. |
Product Specifications
Specification | Details |
|---|---|
Nominal Size | 18 x 36 in (457 x 914 mm) |
Approximate Area | 0.42 m2 |
Frame Material | 6063-T5 aluminum profile |
Frame Depth Options | 72 mm / 86 mm / 100 mm |
Profile Thickness | 1.4 mm (catalog reference; verify per series) |
Sealing | EPDM rubber strip |
Glass Configuration | WY-72/WY-100: 5+27A+5 mm; WY-86: 5+15A+5 mm double tempered |
Opening Method | Flat opening / hanging up, hand-crank |
Opening Panel Range | W450-800 mm x H600-1500 mm |
Color Options | 12 standard colors + PVDF/custom/wood grain |
Customization | Made-to-size per project drawings |
Notes | Confirm final series, glass, and hardware per project |
Advantages
Configurable Performance: Multiple frame depth and glass configurations allow tuning for thermal and acoustic project requirements.
Compact Operation: Hand-crank mechanism suits tight wall spaces and hard-to-reach openings in residential or commercial units.
Project Flexibility: Made-to-size production from 2 m2 supports small-batch orders and large project supply.
Export Packaging: Wooden frame, pallets, PE films, and air bags protect units during sea freight handling.
Upgrade Options: Limiters, safety fence, argon fill, warm-edge spacer, and PVDF finishes available for specification.
Application Scenarios

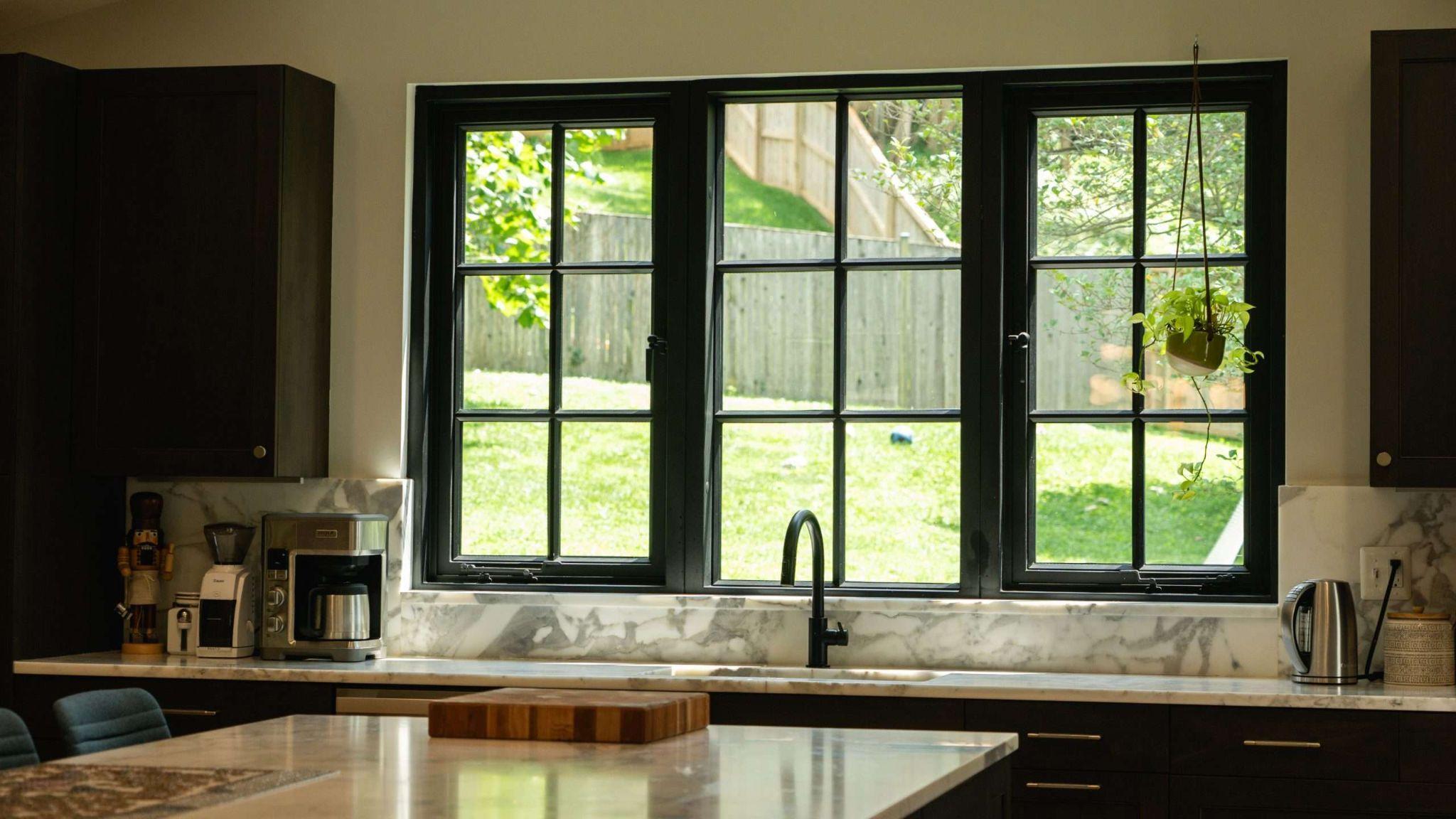

Apartment: The 18 x 36 casement window fits apartment kitchens and bathrooms where controlled ventilation and compact dimensions are needed.
Home Office: Hand-crank operation provides quiet airflow adjustment for home office spaces with limited available wall area.
Hotel: Standardized nominal size and multiple finish options suit hotel guestroom window renovation and new-build projects.
Office Building: Aluminum frame and double tempered glass meet commercial facade requirements for office perimeter ventilation.
Outdoor: Cranked-out design with EPDM sealing handles outdoor-facing enclosures; confirm weather resistance for local exposure.
Residential Building: Made-to-size production and 12 color options support standardization across various residential unit types.
Exterior: 5 KPa wind pressure and 350 Pa water resistance suit exterior facades; confirm installation conditions and local code.
Villa: Wood grain and PVDF finishes support villa aesthetic requirements with custom layout options for unique architectural styles.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
What information is needed to get a quote for the 18 x 36 casement window?
Provide project drawings, quantity, frame depth preference, glass package, color, opening direction, and screen type. DERCHI confirms final price after drawing review.
What is the minimum order quantity?
Indicative reference is 2 m2 for color and size customization. Buyers should confirm current MOQ per order with DERCHI before proceeding.
What is the lead time?
Indicative range is 25-35 days. Confirm lead time per order based on quantity, configuration, and production schedule.
Can I customize the opening direction?
Yes, left or right crank side is selectable. Confirm operation side and screen type per project requirement.
Which frame depth should I choose?
72, 86, and 100 mm options serve different structural needs. DERCHI recommends based on project location, local wind load code, and thermal targets.
Are certifications available?
DERCHI cites NFRC, CE, AS2047, CSA, and ISO9001 on official pages. Confirm applicability to this specific product and target market.
How is the window packaged for export?
Wooden-frame packaging with protective tape, pallet fixing, plastic belts, PE films, and air bags between pallets for sea freight safety.
