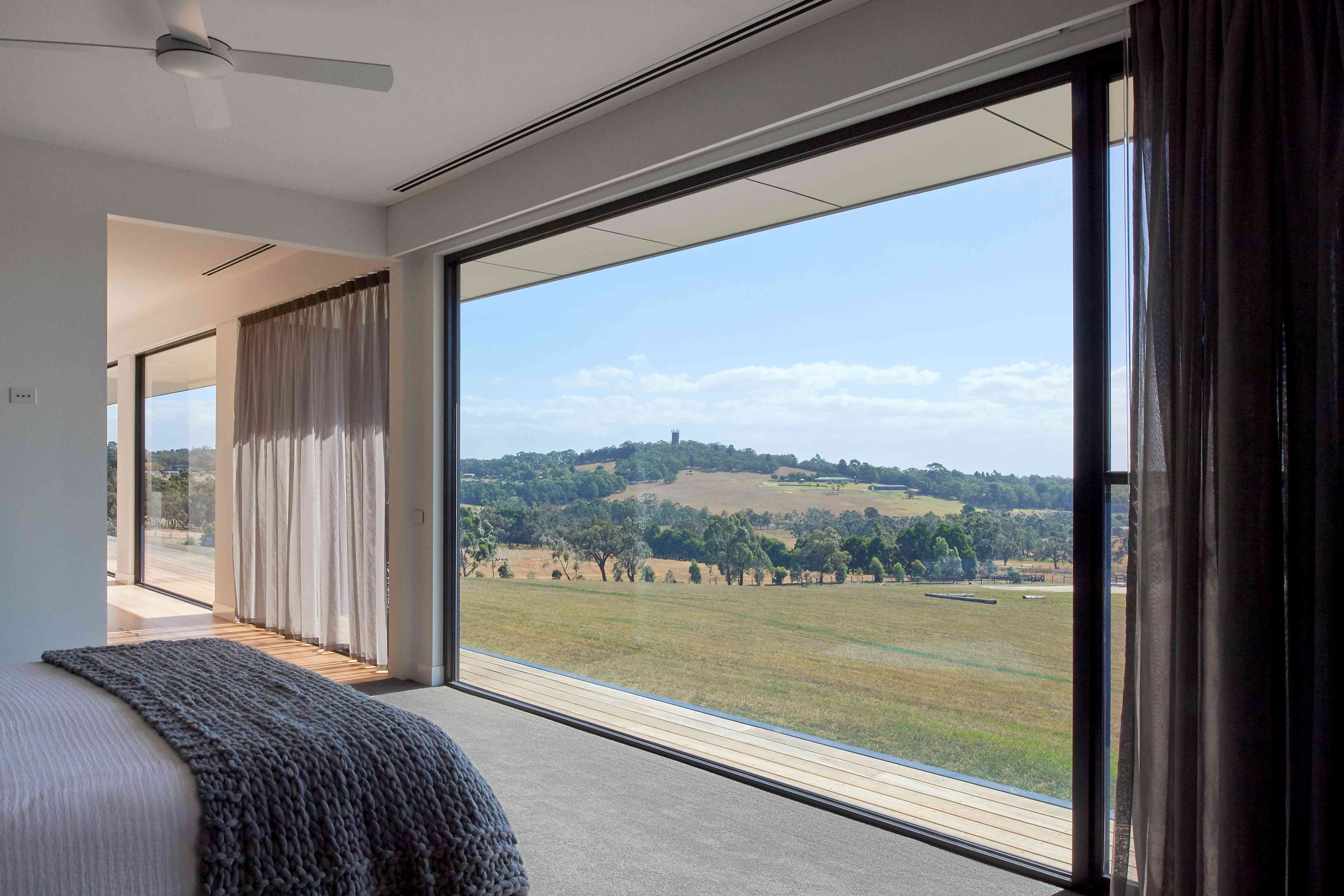

3 casement windows from DERCHI's thermal-break 6063-T5 aluminum family deliver per-window customization for B2B project procurement. Each unit can carry independent dimensions, opening modes, glass configurations, and color finishes — suited for contractors and developers managing multi-room or multi-unit builds.
- Thermal-break 6063-T5 aluminum frame with PA66/DERCHI insulation strip
- 5+27A+5 mm double tempered insulated glass with argon fill
- WEHAG handle and hinge with two-point or six-point locking by series
- Outward casement, awning, cranked-out, or tilt-turn opening modes available
Product Details
The 3 casement windows draw from DERCHI's 109/118/127 mm frame depth family, using thermal-break 6063-T5 aluminum extrusions paired with PA66/DERCHI insulation strips. Unlike non-thermal-break profiles, the polyamide barrier interrupts conductive heat flow between interior and exterior aluminum faces, reducing thermal transfer across the frame assembly. Standard glazing is 5+27A+5 mm double tempered insulated glass with argon gas and a PVDF aluminum spacer, supported by EPDM sealing.
These aluminum casement windows adapt to bedrooms, living rooms, kitchens, bathrooms, balconies, and stairwells across residential and commercial projects. Opening modes include outward casement, awning, cranked-out, and inward/tilt-turn — each confirmed after drawing review. Style combinations range from single sash to three-segment, side-opening with center fixed, and irregular or bay-style configurations, giving project teams flexibility to match ventilation, spatial, and aesthetic requirements per window.
Product Features
Thermal-Break Frame: 6063-T5 aluminum extrusions with PA66/DERCHI insulation strip interrupt conductive heat transfer between interior and exterior faces, supporting energy-efficient building envelope targets for thermal-break casement windows.
Insulated Glazing: 5+27A+5 mm double tempered glass with argon fill and PVDF aluminum spacer contributes to sound and thermal performance targets for comfortable interior environments.
Flexible Opening Modes: Outward casement, awning, cranked-out, or inward tilt-turn configurations let buyers match each window to room function, ventilation requirements, and available spatial clearance across project areas.
WEHAG Hardware: Handle and hinge in black or silver finish with two-point or six-point locking by series, providing reliable daily operation and security for residential and commercial use.
Glass Upgrades: Low-E, laminated, triple, tinted, reflective, frosted, and bullet-proof options let buyers match glazing performance to specific room orientations, climate zones, or project-level acoustic requirements.
Color Range: Twelve standard color families from Pearl White to Black Walnut wood grain, with fluorocarbon custom coating available for architectural design coordination across project facades.
Customizable Styles
Glass: Standard 5+27A+5 mm double tempered insulated with argon; upgrades to Low-E, laminated, triple, tinted, reflective, frosted, or bullet-proof available per window.
Frame Size: Opening sash W350–750 mm × H400–1600 mm for outward casement windows; fixed glass up to 8–12 m² by series; hinge upgrades extend to W1000 × H2000 mm.
Color: Pearl White, Quartz Gray, Starry Sky Black, Deep Sea Blue, wood grains, and more; fluorocarbon custom colors subject to +150 RMB/m² upcharge.
Opening Mode: Outward casement, awning, cranked-out, or inward/tilt-turn — confirmed after drawing review for each window unit in the order.
Style Combination: Single sash, double sash, side-opening + center fixed, three-segment, upper/lower fixed, irregular/stepped, or hexagonal/bay-style per project drawings.
Hardware Accessories
Handle: WEHAG handle in black or silver finish, matching series aesthetics and providing ergonomic grip for daily operation across residential and commercial settings.
Hinge: WEHAG hinge engineered for smooth sash movement and consistent performance under repeated opening cycles in high-traffic environments.
Lock: Black two-point or six-point locking system by series, enhancing security for residential and light commercial applications where access control matters.
Limiter: Simple limiter (+60 RMB/pc) or safety limiter (+168 RMB/pc) controls opening angle for managed ventilation and child safety.
Screen: Anti-theft screen, 304 stainless steel high-definition mesh, diamond mesh, or 48-mesh high-transparency screen selectable per window unit.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | U-Factor 0.23 (target) | Confirm with final glass and frame configuration selected per window. |
Wind Pressure Resistance | 5 KPa (target) | Must confirm against project wind zone and floor level requirements. |
Water Tightness | 700 Pa (target) | Confirm based on final series selection and applicable test report. |
Air Tightness | 1.2 m³/(m·h) (target) | Confirm based on final series selection and sealing configuration per window. |
Sound Insulation | 35 dB (target) | Confirm with glass configuration selected for each window unit in the order. |
Product Specifications
Specification | Detail |
|---|---|
Product Name | 3 Casement Windows (Thermal-Break Aluminum) |
Product Type | Outward casement / cranked-out window family |
Frame Material | Thermal-break 6063-T5 aluminum |
Frame Depth | 109/118/127 mm family (confirm per series) |
Profile Thickness | 1.8–2.0 mm (2.0 mm primary configuration) |
Glass Configuration | 5+27A+5 mm double tempered insulated with argon |
Insulation Strip | PA66/DERCHI |
Spacer | PVDF aluminum |
Sealing | EPDM (confirm per series) |
Opening Sash Range | W350–750 mm × H400–1600 mm (outward systems) |
Fixed Glass Max Area | 8–12 m² by series |
Hinge Upgrade Max | W1000 × H2000 mm |
Hardware | WEHAG handle, hinge, two-point or six-point lock by series |
Opening Style | Outward casement, awning, cranked-out, or tilt-turn (confirm after drawings) |
Supply Ability | 20,000 m²/month |
Delivery | 25–35 days (confirm per order) |
Customization | Per-window dimensions, glass, color, opening mode, and screen |
Notes | Final series, performance values, and certifications confirmed per window schedule |
Advantages
Per-Window Customization: Each of the three units can carry separate dimensions, opening modes, glass packages, and color finishes — quote per window schedule.
Thermal-Break Performance: 6063-T5 aluminum with PA66 insulation strip supports energy-efficient envelope targets, reducing conductive heat transfer versus non-thermal-break frames.
Opening Flexibility: Outward casement, awning, cranked-out, and tilt-turn modes adapt to room function, ventilation needs, and spatial constraints across project areas.
WEHAG Hardware Partnership: Multi-point locking systems provide reliable operation and security for residential and commercial applications under daily use.
Export-Grade Packaging: Wooden-frame packaging with PE films, plastic belts, and air bags between pallets protects against sea-water exposure during international shipping.
Application Scenarios
Apartment: Compact urban units benefit from outward opening that saves interior floor space; thermal-break frames support energy targets for multi-unit residential developments where footprint efficiency matters.
Home Office: Sound insulation target of 35 dB helps maintain focused work conditions; glass upgrades such as frosted or reflective options add privacy and glare control for home workspaces.
Hotel: Color families from Pearl White to Deep Coffee coordinate with guest room interiors; WEHAG hardware withstands frequent daily operation across hospitality properties with high guest turnover rates.
Office Building: Low U-factor target supports commercial energy compliance; fixed glass combinations up to 12 m² suit large facade openings in corporate environments where daylighting and visibility matter.
Outdoor: 6063-T5 aluminum with EPDM sealing and 700 Pa water tightness target suits exposed enclosures — buyers should confirm weather resistance, wind pressure, and installation conditions per project.
Residential Building: Per-window customization lets developers specify different opening modes and glass packages for bedrooms, kitchens, bathrooms, and living areas within the same order, streamlining procurement across units.
Exterior: Frame depths from 109 to 127 mm offer structural flexibility for facade integration; wind resistance target of 5 KPa — confirm against project wind zone and floor level.
Villa: Wood grain finishes and fluorocarbon coatings match distinctive architectural styles; three-segment and bay-style combinations create character for villa elevations and feature rooms with custom design requirements.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
How do I get a quote for 3 casement windows?
Provide width, height, opening direction, glass type, color, and screen preference for each window. We confirm series, performance targets, and itemized pricing including any hardware or glass upcharges for your custom casement windows.
What information should I prepare before ordering?
Prepare a window schedule listing dimensions, opening modes, glass configuration, color, and hardware preferences for each unit. Project wind zone and floor level help confirm performance suitability for your site.
What opening modes are available for casement windows?
Outward casement, awning, cranked-out, and inward/tilt-turn modes are available. Final opening mode for each window is confirmed after drawing review and project requirement assessment by our team.
Can I select different glass for each of the 3 windows?
Yes, each unit can have a different glass configuration. Standard is 5+27A+5 mm double tempered insulated with argon; upgrades include Low-E, laminated, triple, tinted, and frosted options.
What certifications does DERCHI hold?
DERCHI cites NFRC, CE, AS2047, CSA, and ISO9001 certifications for DERCHI casement windows. Applicability to specific product series must be verified — request relevant test reports during quote confirmation.
How are windows packaged for export shipping?
Wooden-frame packaging with protective tape, pallet fixing, plastic belts, PE films against sea water, and air bags between pallets protect windows during international transit to your project site.
What is the typical lead time?
Indicative lead time is 25–35 days depending on order volume and customization scope. Confirm exact delivery timeline per order after drawing approval and production scheduling.
