A 60 x 48 casement window is a custom thermal-break aluminum out-swing unit organized by title size, not a stock standard product. DERCHI engineers this 1524 x 1219mm opening with a three-pane structure to balance unobstructed views and cross-ventilation for architectural projects.
- Title size: 60 x 48 in (1524 x 1219mm), approx. 1.86 sqm
- Primary series: S9 Starlight System with 109mm frame and 44mm insulation strip
- Alternative tiers: S6 and E0 series for project and budget alignment
- Configurable glass, hardware, and opening combinations available
Product Details
The S9 Starlight System serves as the recommended configuration for this opening. It features a 109mm frame width, 1.8mm wall thickness, and a 44/24/15mm multi-insulation strip setup. Standard glass is 5+27A+5 fluorocarbon hollow aluminum strip tempered glass. Opening types include out-swing, top-hung, and out-swing top-hung, with the glass sash pushing outward and the screen sash pulling inward.

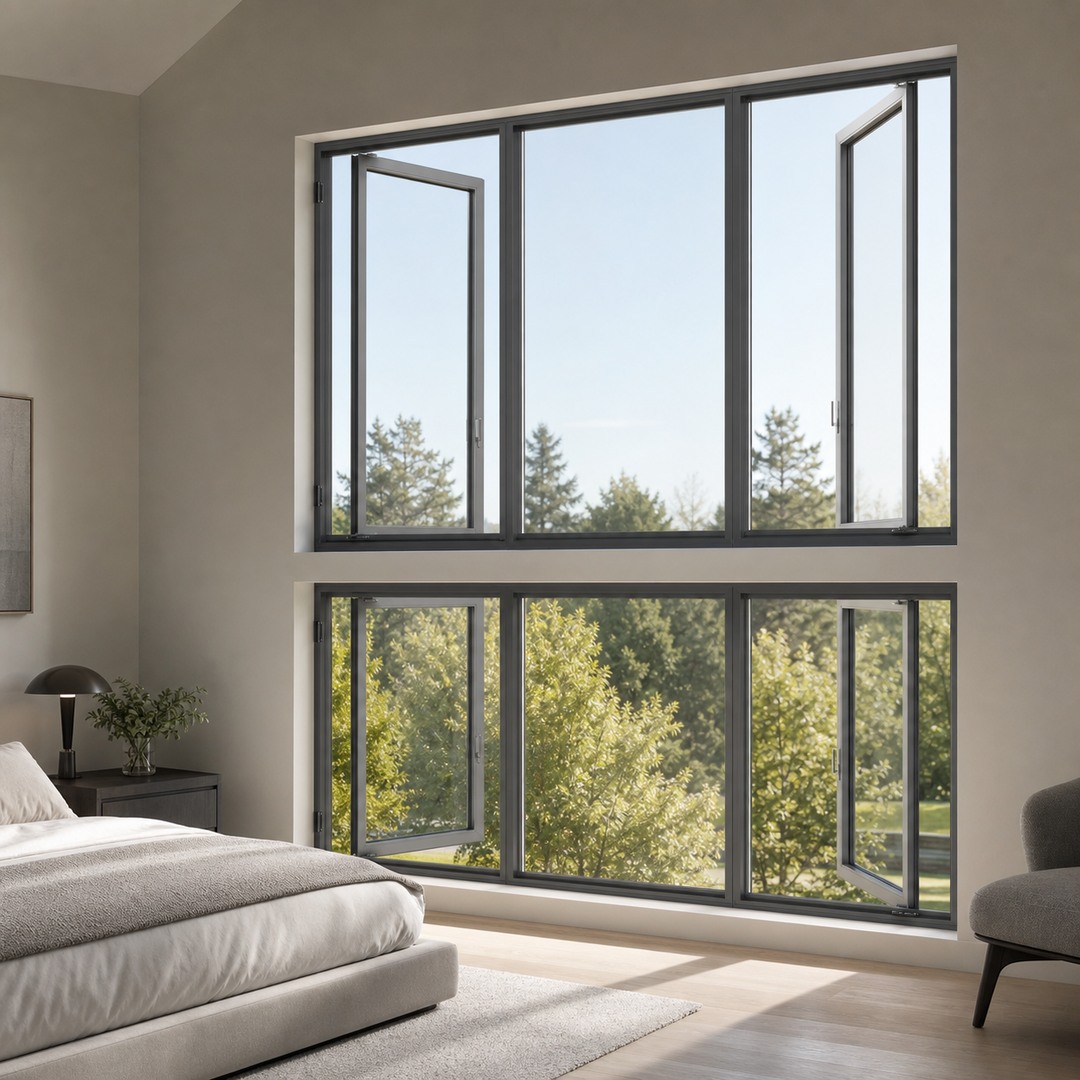

At 1524mm overall width, a single sash is not recommended. DERCHI advises a three-pane layout with three equal divisions (approx. 508mm each) using both-side out-swing sashes flanking a middle fixed pane, or a four-pane layout with central fixed glass for views and side vents for airflow. The multi-cavity profile, three-seal structure, and micro-elastic glass block reduce corner stress. For project buyers evaluating a commercial 60 x 48 casement window, the S6 (82mm frame, invisible folding screen) and E0 (100mm frame, value-type) series offer alternative budget tiers.
Product Features
- Thermal Insulation: The 44mm ultra-wide insulation strip and multi-cavity profile reduce U-value, supporting energy efficiency in modern facades.
- Weather Resistance: Verified ratings include water tightness at 700Pa (level 6) and wind pressure resistance at 5kPa (level 9) for exterior exposure.
- Acoustic Control: Sound insulation rated at 35dB (level 4) with standard double-glazed units; buyers should confirm test conditions for upgraded glass.
- Structural Integrity: Micro-elastic glass blocks and a frame-sash same horizontal line design minimize glass corner stress during wind loads.
- Safety Hardware: Includes a custom child-safe handle, anti-pull oblique transmission box, two-point lock, and anti-pry lock seat for forced-entry resistance.
- Sealing Technology: EPDM water-swelling seal strips expand upon contact with moisture, reinforcing the three-seal structure against rain infiltration.
Customizable Styles
- Glass: Standard 5+27A+5 hollow tempered; upgrades include argon gas, Low-E, laminated, frosted, tinted, ultra-clear, and blinds glass.
- Frame and Size: S9 (109mm), S6 (82mm), or E0 (100mm) frames; custom dimensions organized around the 60 x 48 in title size per project drawings.
- Color and Finish: Options include Sand Gray, Black Walnut, Starry Black, Fluorocarbon Flash Silver, and wood grain finishes via powder coating or fluorocarbon.
- Opening Combination: Choose from both-side opening with middle fixed, three-segment, top transom, bottom fixed, or multi-pane window wall layouts.
- Project Customization: Buyers seeking custom 60 x 48 casement window configurations should confirm grilles, grids, or divided-lite pattern availability with DERCHI.
Hardware Accessories
- Handle: DERCHI custom child-safe handle standard; optional fingerprint, password, or keyed handle for upgraded access control.
- Hinge: 13-inch casement friction hinge and custom load-bearing hinge manage sash weight and control opening speed.
- Lock System: Two-point lock, roller-sleeve lock point, and anti-pry lock seat secure the sash against forced entry attempts.
- Sealing Hardware: EPDM water-swelling seal strip integrated into the three-seal structure to resist wind-driven rain.
- Screen and Mesh: Optional 48-mesh high-transparency screen, special steel wire mesh, or S6 invisible folding screen; guardrail available upon request.
Basic Parameters
| Performance Item | Available Information | Buyer Notes |
|---|---|---|
| Thermal Insulation | 2.0W level 6 | Confirm U-value with specific glass configuration like Low-E or argon. |
| Wind Pressure Resistance | 5kPa level 9 | Confirm test report and applicable building code compliance. |
| Water Tightness | 700Pa level 6 | Confirm applicable standard version and test report availability. |
| Air Tightness | 1.2 level 8 | Confirm applicable standard version and test report availability. |
| Sound Insulation | 35dB level 4 | Confirm test conditions and glass configuration used for rating. |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | 60 x 48 Casement Window |
| Product Type | Thermal-break aluminum out-swing casement window |
| Title Size | 60 x 48 in (1524 x 1219mm), approx. 1.86 sqm |
| Primary Series (S9) | 109mm frame, 1.8mm wall thickness, 44/24/15mm insulation strip |
| Alternative Series | S6 (82mm frame) / E0 (100mm frame) |
| Standard Glass | 5+27A+5 fluorocarbon hollow aluminum strip glass |
| Glass Upgrades | Argon, Low-E, laminated, frosted, tinted, ultra-clear, blinds |
| Opening Sash Range | Width 400-750mm, Height 400-1500mm |
| Max Fixed Glass | 6 sqm |
| Color/Finish | Sand Gray, Black Walnut, Starry Black, Fluorocarbon Flash Silver, etc. |
| Opening Types | Out-swing, top-hung, out-swing top-hung |
| Packaging | Four-layer protection: anti-scratch film, pearl cotton, waterproof film, wooden frame |
| Delivery Reference | Approx. 25-35 days (platform data, confirm with production) |
| Notes | Single sash not recommended for 1524mm width; use three-pane or four-pane layout |
Advantages
- Tiered Series Selection: S9, S6, and E0 series allow project buyers to match performance requirements and budget tiers across different building types.
- Optimized Layout: The three-pane recommended structure maximizes central fixed glass for views while using side out-swing sashes for targeted cross-ventilation.
- Thermal Engineering: A 44mm ultra-wide insulation strip combined with a multi-cavity aluminum profile reduces thermal transfer and supports energy efficiency.
- Export Packaging: Four-layer protection including anti-scratch film, pearl cotton, waterproof outer film, and wooden frame prepares units for international shipping.
- Custom Safety Suite: DERCHI custom hardware includes child-safe handles, anti-pry lock seats, and two-point locks for enhanced residential and commercial security.
Application Scenarios
- Apartment: The three-pane layout fits living room openings where residents need daylight alongside controlled airflow from side out-swing sashes.
- Home Office: Sound insulation at 35dB helps reduce external traffic noise, creating a quieter workspace for remote professionals.
- Hotel: Guest rooms benefit from the out-swing configuration, freeing interior space while maintaining weather resistance against wind-driven rain.
- Office Building: Commercial facades can utilize the S9 system's 44mm insulation strip to meet energy codes without sacrificing modern aesthetic lines.
- Outdoor: Buyers should confirm weather resistance, water tightness, and surface finish durability against local climate conditions before exterior installation.
- Residential Building: Batch housing projects can leverage the E0 or S6 series to balance thermal-break performance with budget control across multiple units.
- Exterior: Verify wind pressure ratings and installation conditions with project engineers to ensure the aluminum profile meets local building code requirements.
- Villa: Custom shapes like hexagonal or bay window combinations allow architects to integrate the 60 x 48 opening into distinctive residential facades.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
Why is a three-pane layout recommended over a single sash for this window size?
At 1524mm overall width, a single sash is too large for stable operation. A three-pane layout divides the opening into approx. 508mm sections, balancing a central fixed view with side ventilation sashes.
What is the difference between the S9, S6, and E0 series?
S9 features a 109mm frame and 44mm insulation strip for high-end facades. S6 offers an 82mm frame with invisible folding screen, while E0 provides a 100mm value-type frame for budget-sensitive batch projects.
What glass upgrades are available for this configuration?
Standard glass is 5+27A+5 hollow tempered. Upgrades include argon gas, Low-E, laminated, frosted, tinted, ultra-clear, and blinds glass. Confirm specific U-value and acoustic performance with your selected configuration.
What information is needed to request an accurate quote?
Provide project drawings, quantity, destination port, glass configuration, color/finish, hardware selection, opening combination, and packaging requirements. This allows the supplier to calculate exact costs and logistics.
What is the minimum order quantity and lead time?
Platform data indicates a common MOQ of 2 sqm and approximate delivery of 25-35 days. Confirm exact MOQ and current production capacity with DERCHI for your specific configuration and order volume.
Are CE, NFRC, or CSA certifications available for this product?
The official website emphasizes CE, NFRC, CSA, and US/AU IGCC glass certifications. Buyers should request certificate numbers and validity periods before committing to project specifications.
Are grilles, grids, or divided-lite patterns available?
This is not specified in current product data. Buyers should confirm grille, grid, or divided-lite pattern availability with DERCHI before finalizing window configurations and project drawings.
