Quality Aluminium 80 Folding Doors Manufacturers

80 folding doors maximize openings while creating a seamless indoor-outdoor transition. As leading Aluminium Bifold Doors Manufacturers, our custom bifold doors are available in various configurations and finishes, all with the premium quality you expect from DERCHI window and door.

Get In Touch

Home Products Aluminum Doors Bifold Door 80 Aluminum Folding Door

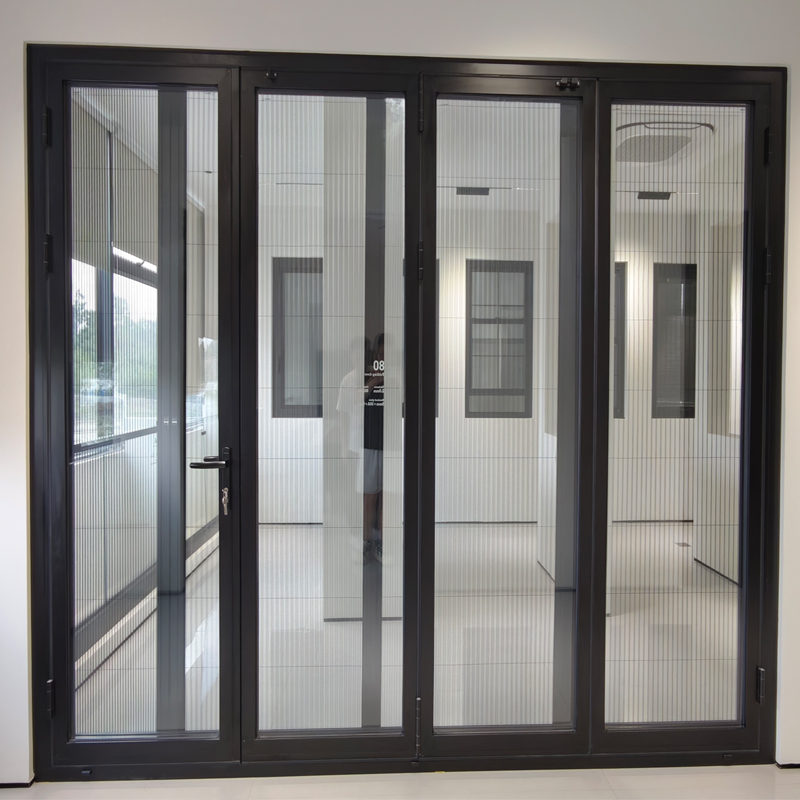

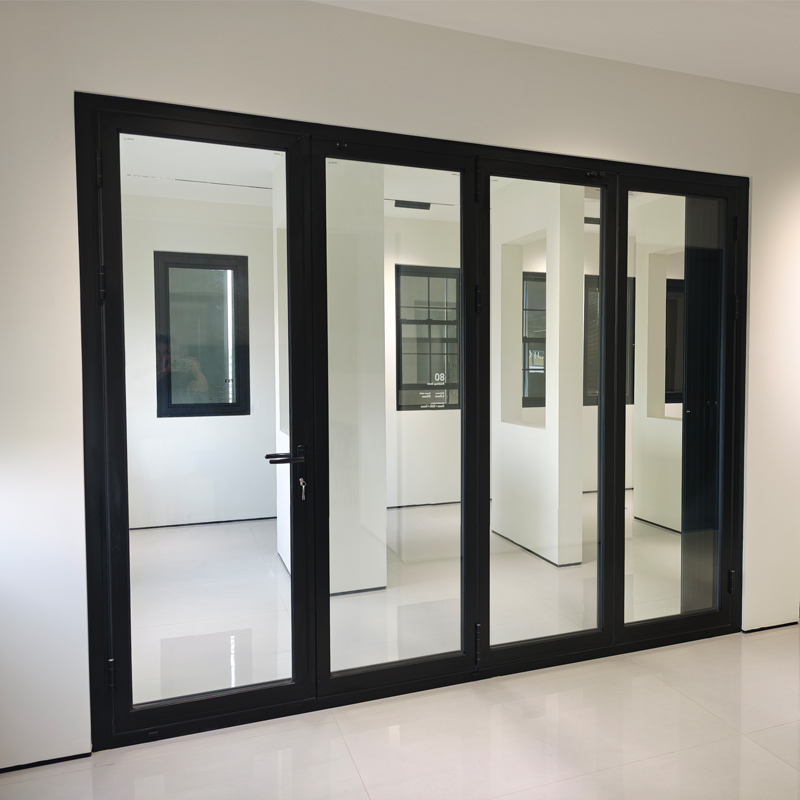

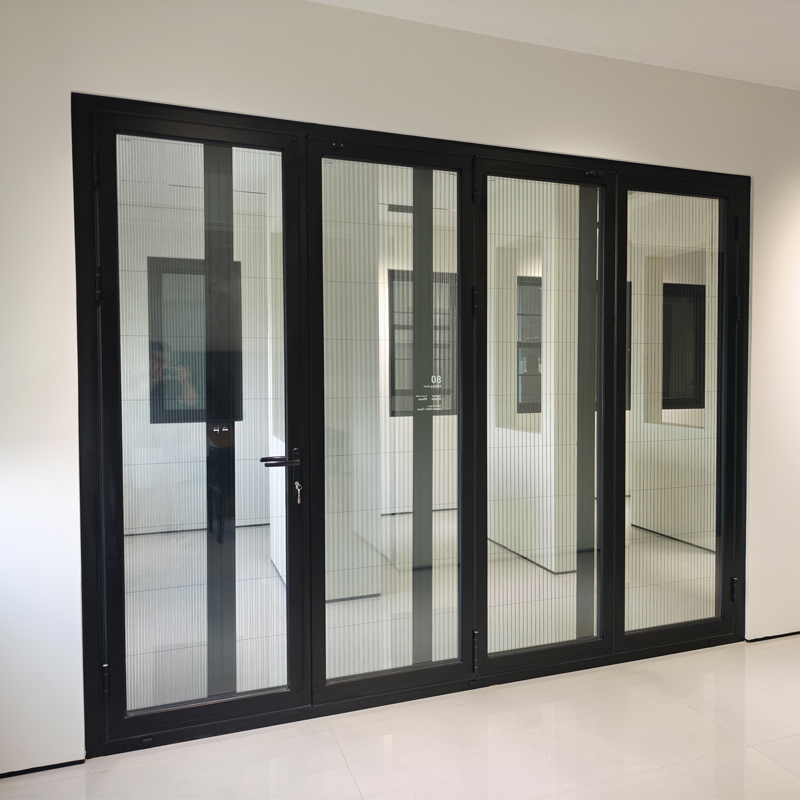

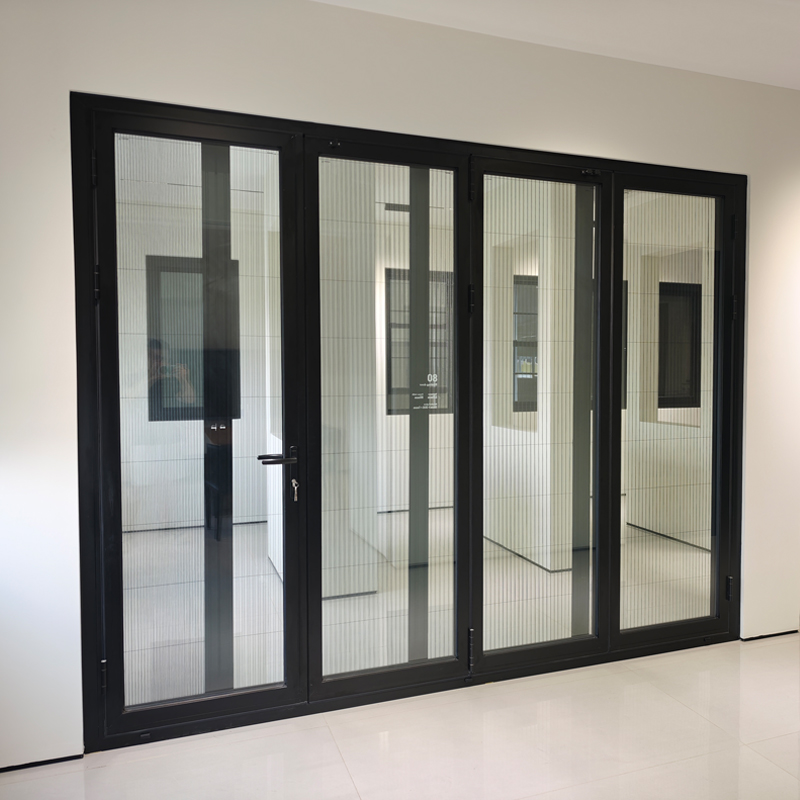

80 Aluminum Folding Door

Derchi is the leading folding door manufacturer and installer specializing in premium solutions.

100% waterproof and Anti-theft

CE / NFRC / CSA Standard Certification

US/ AU IGCC Standard Glass Certification

100% thermal insulation/windproof/ soundproof

库存： 0

Inquire

Description

Videos

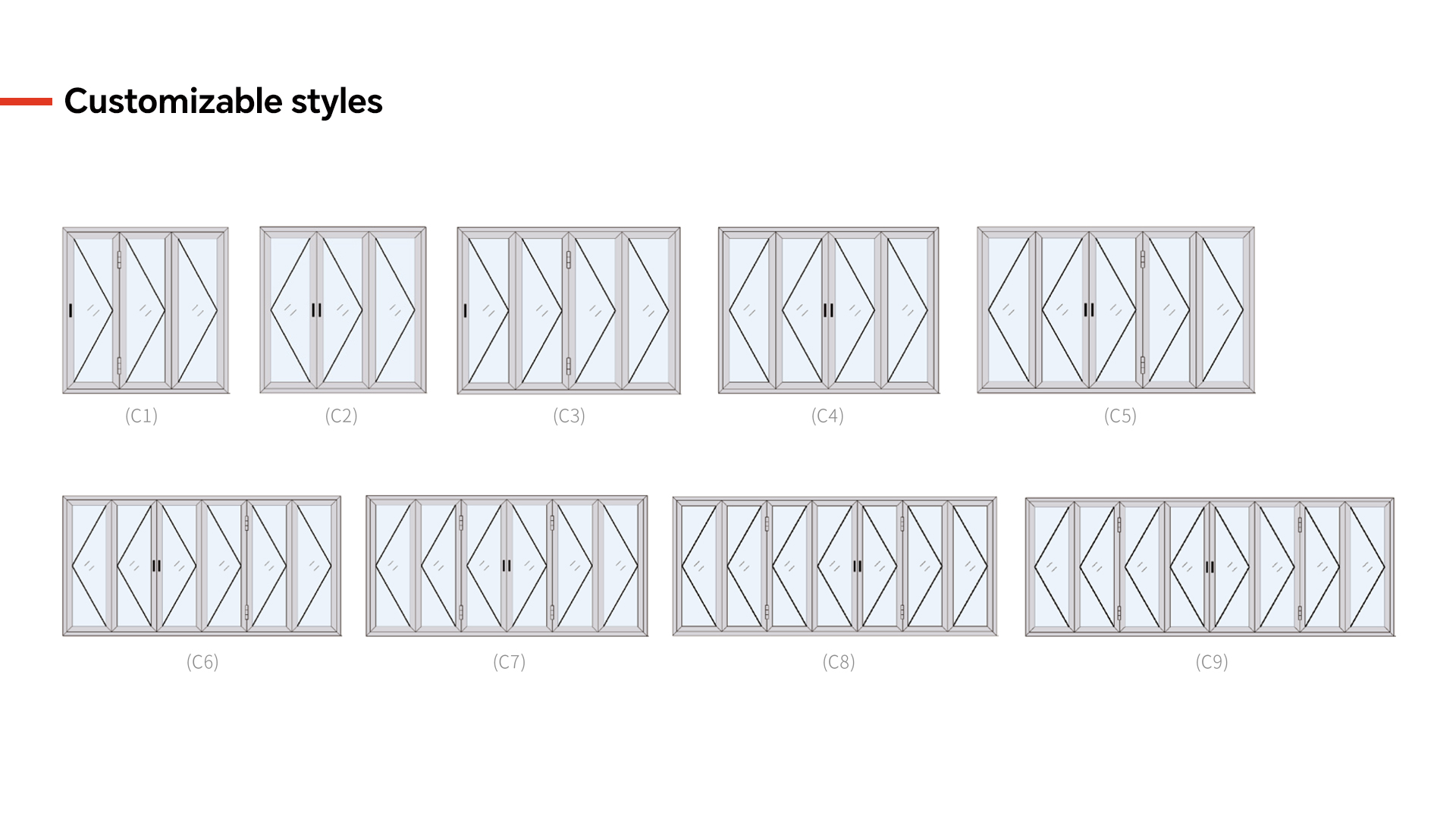

Customizable Styles

Hardware Accessories

Advantages

Certificate

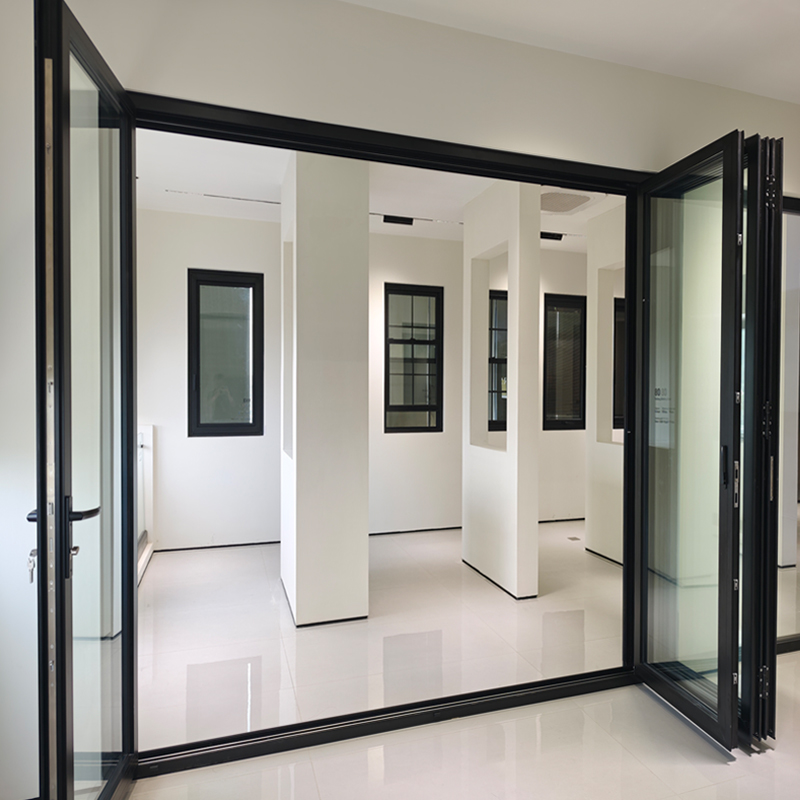

80 Folding Door

Guangdong DERCHI Doors & Windows Co., Ltd. specializes in high-end aluminum system doors and windows, with a core focus on safety, innovation, and smart home integration. The 80 Series Folding Door exemplifies their commitment to merging functionality with aesthetic design, tailored for modern residential and commercial spaces. Below is a detailed overview:

Core Features & Technologies

Space Optimization:

The folding door utilizes a multi-panel folding mechanism that slides smoothly along an upper track system. When fully opened, it achieves near-total space openness (up to 100% opening rate), seamlessly merging indoor and outdoor areas (e.g., living rooms with balconies or courtyards). This design maximizes natural light and visual continuity.

Get In Touch

Key Features of 80 folding Door

The 80 Bifold Door, engineered to blend design aesthetics with practicality, simply proves that all its features complement each other in the achievement of smooth operation, maintenance of structural integrity, and added aesthetic appeal to the space it serves.

Thermal Break Design

Heat loss is decreased to the lowest minimum; hence, energy costs are reduced.
Top-Hung Bottom-Sliding System

Properly guided from the top with the weight distribution done across the track to give maximum stability.
Concealed Hinge Design

Hidden hinges create clean sight lines and at the same time provide strength to the overall structure.
Reinforced Intermediate Posts

Structural reinforcement between panels not only increases its resistance to wind pressure but also balances the force.
Balanced Force Distribution

Central force points prevent any form of uneven stress which tends to cause door sagging and warping.
Self-Adjusting Hinges

With adjustment features incorporated into the hinge, it helps to compensate for the settling condition and reduces maintenance to be done periodically.

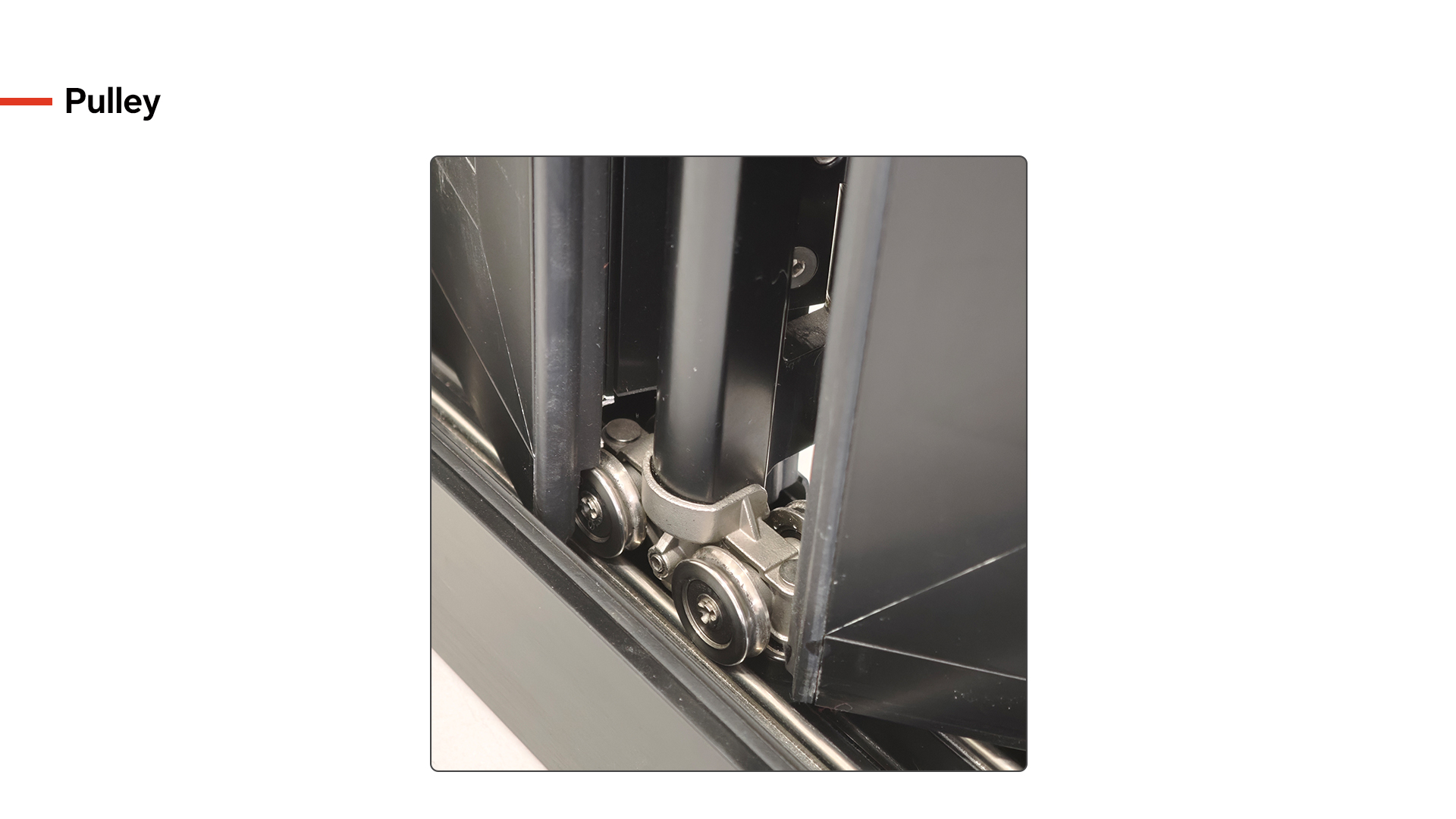

Balanced Bearing Technology

Precision bearings reduce friction to a minimal level to make it work smoothly and without much effort.
ENHANCED WATERPROOFING

Optional water-blocking low threshold track will prove very helpful when water tries to infiltrate, especially during periods of heavy rain.
MINIMALIST MODERN DESIGN

Clear lines, with hidden structural elements maximizing the glass area with the least obstruction.

If you’re looking to install bi-fold doors for your home improvement plans, Please contact us.

DERCHI 80 Bifold Door Performance Specifications

The 80 Bifold Door system delivers exceptional performance across critical metrics. These doors meet rigorous industry standards for water resistance, air infiltration, structural integrity, and energy efficiency. Each performance parameter has been tested under laboratory conditions to ensure reliability in real-world applications.

U-Factor: 0.28 (U.S./I-P)

Achieves 0.28 thermal transmittance rating, minimizing heat transfer between interior and exterior environments.

Wind Pressure Resistance: 4.5K Pa

Withstands wind forces up to 4,500 Pascal, maintaining structural integrity during severe weather events.

Solar Heat Gain Coefficient (SHGC): 0.22

Blocks 78% of solar radiation while maintaining natural light transmission.

Water Tightness: 450 Pa

Resists water penetration at 450 Pascal pressure through specialized sealing systems and drainage channels.

Air Tightness: 1.8m³/(m-h)

Limits air leakage to 1.8 cubic meters per meter of frame per hour through multi-point compression seals.

Sound Insulation: 30 dB

Reduces external noise transmission by 30 decibels through specialized glass and frame construction.

Technical Specifications for 93 Bifold Door

The 80 Series Bifold Door offers versatile folding solutions. It operates as an accordion-style door system. DERCHI delivers premium quality for residential and commercial use.

Parameter	Details
Door Type	Folding/Bifold/Accordion Door
Series	80 Series

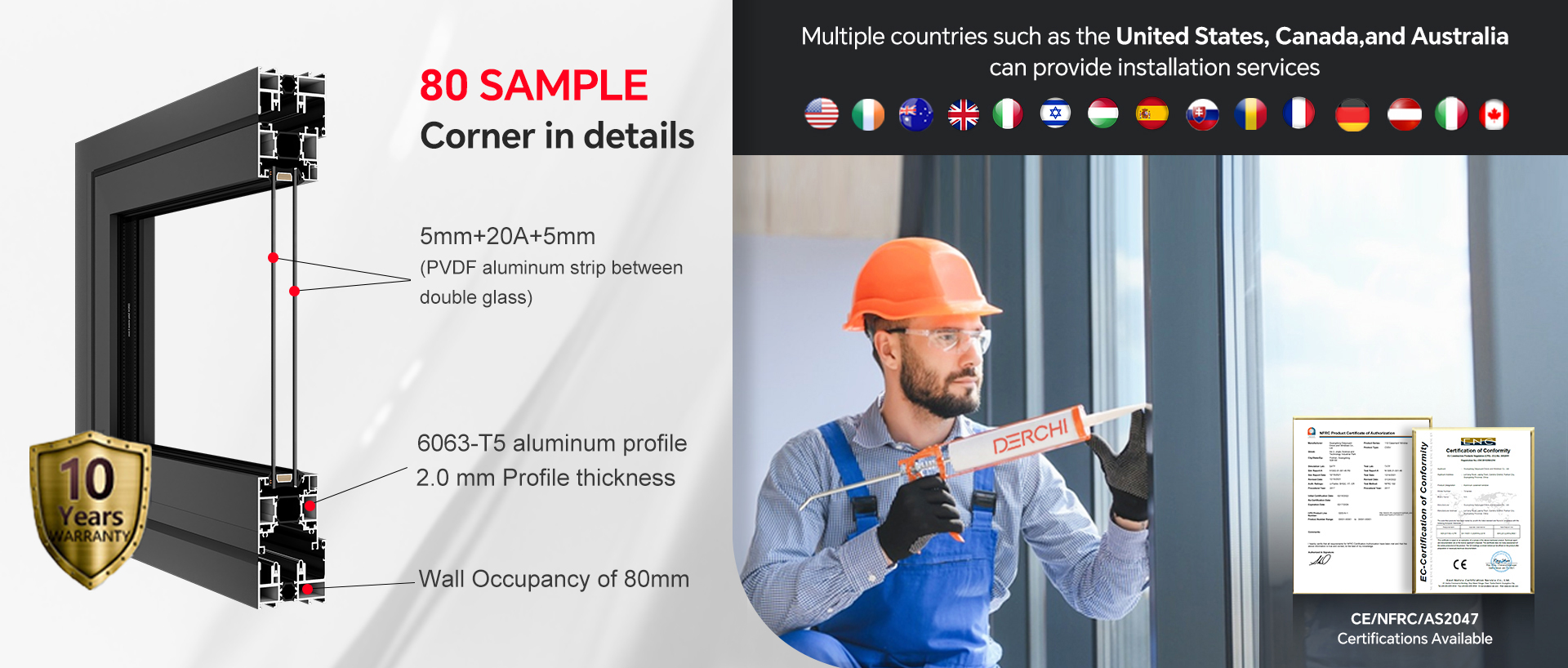

Frame width	80MM
Profile	6063-T5 aluminum profile
Profile Thickness	2.0MM
Glass	Double Tempered Glass with argon gas, 5mm+20A+5mm (PVDF Aluminum Strip Between double glass)

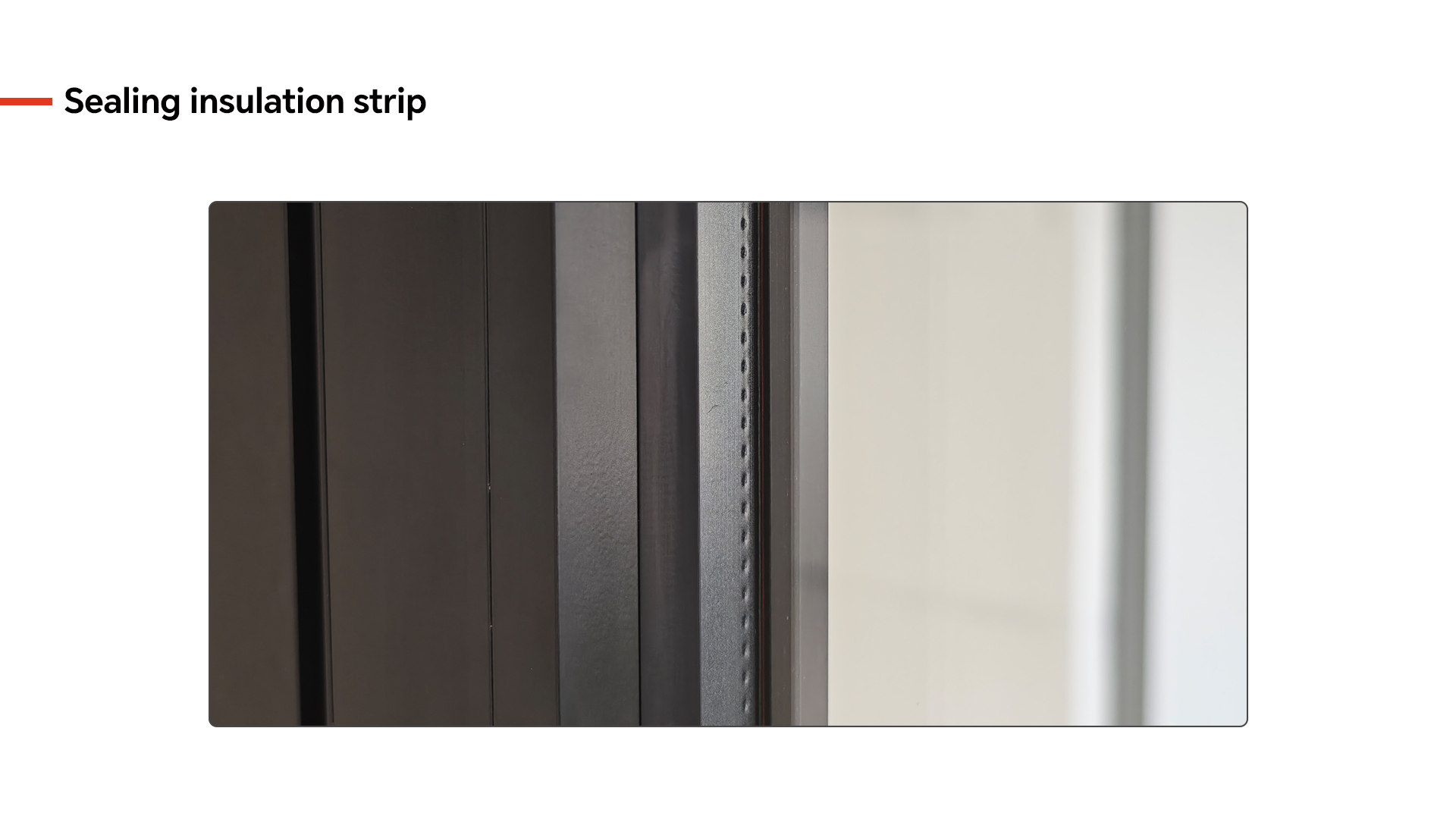

Sealing material	EPDM rubber strip
Insulation strip	PA66 insulation strip

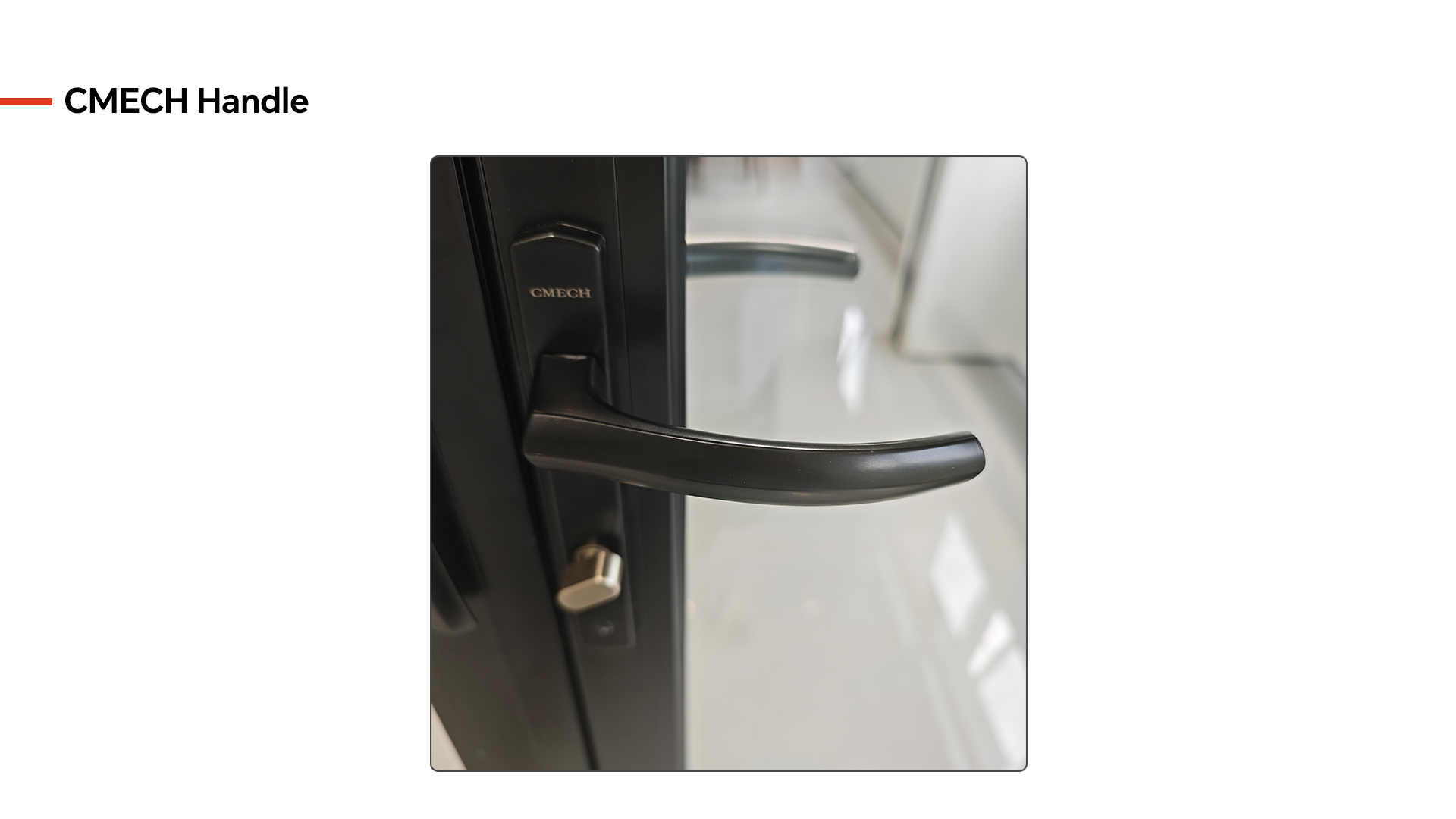

Handle	CMECH Handle in Black or Silver
Hinge	CMECH Hinge in Black or Silver
Lock point	CMECH Specialized locking point
Available Size	Opening Panel (Width: 500-850mm/Height: 1900-3000mm)
Opening Way	Glass Panel Inward Folding / Outward Folding
Optional package	New 47 Pack/70 Pack/75 Pack/100 Pack
Product Process	Adopting internal and external gluing process
Surface Treatment	Powder Coating, Anodized Wooden Grain, PVDF Coating

Application Scenarios for DERCHI 93 Bifold Door

The 80 Bifold Door system adapts to diverse environments. These doors transform spaces through flexible openings and elegant design. DERCHI's bifold systems deliver functionality across residential, commercial, and hospitality applications while maintaining thermal and acoustic performance.

Villa

Villa installations of DERCHI 80 Bifold Doors seamlessly connect interior and exterior living spaces, creating expansive environments that maximize natural light and views.

Residential

Residential Bifold Door systems enhance home functionality by creating multi-purpose spaces that adapt to family needs throughout the day.

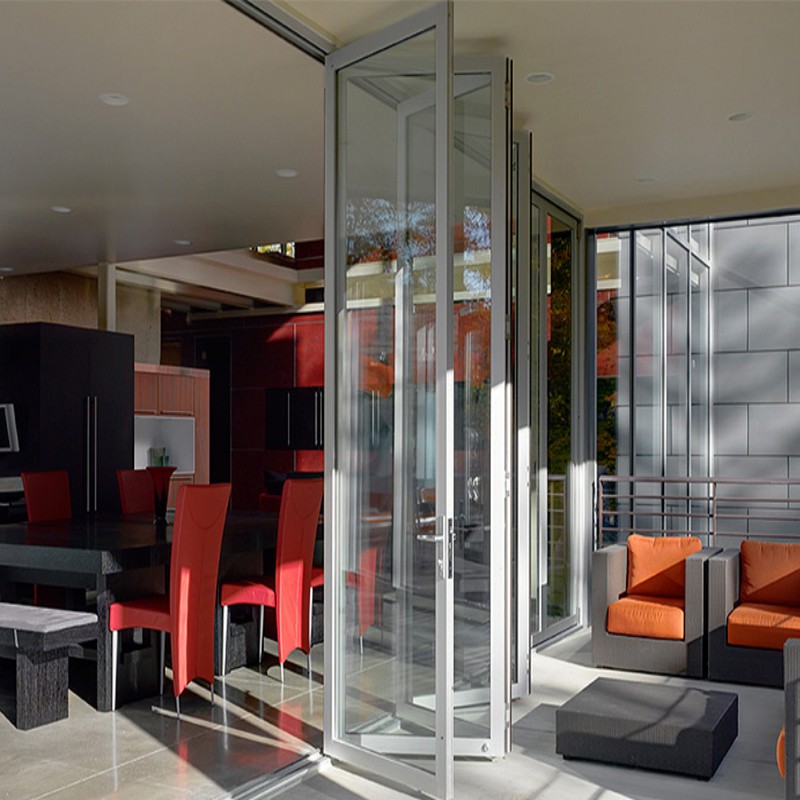

Office

Bifold Doors in offices create flexible workspaces that adapt to changing business needs while maintaining open communication channels.

Indoor

Indoor Bifold Doors transform interior spaces by enabling room reconfiguration without sacrificing valuable floor area.

Outdoor

Outdoor Bifold Door applications extend living spaces beyond traditional boundaries while providing protection from environmental elements.

This is a project for DERCHI Windows and Doors in a villa in USA. Enough to shock builders all over the world.As China aluminum windows and doors manufacturer, DERCHI has always been a leader in the industry. Maybe their prices are not the cheapest, but their quality and technology are leading the w
