N9 Series Large Casement Windows (Tilt & Turn)

Name: N9 Large Size Tilts & Turn Casement Window
Brand: DERCHI
SKU: 154651944
Availability: InStock

The N9 Large Size Tilt & Turn combines innovative tilt ventilation with full crank out windows operation for superior airflow. As leading casement window manufacturers, DERCHI engineered these large casement windows for luxury homes and commercial projects. Experience how our N9 series transforms expansive openings into architectural masterpieces.

Request Free Quote

Home Products Aluminium Windows Casement Window N9 Large Size Tilts & Turn Casement Window

ALL

Casement Window

Picture Window

Sliding Window

N9 Large Size Tilts & Turn Casement Window

N9 Large Size Tilts & Turn Casement Window

Consider the versatile functionality of the N9 DERCHI large casement windows. Available as intuitive crank out windows or advanced tilt-and-turn systems, their robust, expansive frame design allows plenty of light, superior ventilation, and a distinctly modern look. Explore the full custom options from leading casement window manufacturers, including thermal-break aluminum, precision WEHAG hardware, and energy-efficient glazing.

100% waterproof and anti pinch

CE /NFRC Standard Certification

US/ AU IGCC Standard Glass Certification

100% thermal insulation/windproof/ soundproof

库存： 0

Inquire

Description

Videos

Customizable Styles

Hardware Accessories

Advantages

Certificate

N9 Series Large Casement Windows Introduction

DERCHI engineers the N9 series for buildings requiring large casement windows. The 2.0mm aluminum profile supports fixed glass panels up to 12 square meters and sashes up to 130 kilograms.

Users operate these crank out windows using Winkhaus handles and a 180-degree tilt-turn mechanism. This hardware system integrates with multi-point magnetic locks to secure the sash and manage indoor airflow.

As direct casement window manufacturers, DERCHI tests each unit to exact structural standards. The N9 frame resists wind loads up to 5,000 pascals, prevents water infiltration at 700 pascals, and cuts sound transmission by 35 decibels.

Get In Touch

Features of N9 Large Casement Windows

The DERCHI N9 series provides structural, thermal, and functional solutions for large-scale window applications. As an established manufacturer, DERCHI engineers these tilt-and-turn units to meet strict architectural standards. The system integrates six measurable performance features for modern buildings.

Maximum Dimensions

The N9 framework supports glass areas up to 9 square meters. Individual sashes accommodate heights of 2.8 meters and widths of 1.5 meters. Slim aluminum profiles increase the total visible glass area.

Dual Ventilation Modes

The hardware enables two opening methods. The tilt function creates a 15-degree top opening for secure, continuous airflow. The turn function opens the entire sash inward for rapid air exchange.

Single-Handle Control

One handle operates all window mechanisms. Users can lock the sash in closed, tilted, or turned positions. The engineered hardware reduces the physical force needed to move heavy glass panels.

Thermal Performance

The aluminum frames incorporate thermal breaks to block heat transfer. Standard double glazing achieves a certified U-value of 2.0 W/m²K. Continuous multi-point sealing strips prevent air leaks along the frame perimeter.

Structural Security

The system utilizes five distinct locking points along the frame. The 15-degree tilt position maintains exterior security during ventilation. Heavy-duty hinges support the structural load of the glass.

Manufacturing Configurations

DERCHI offers 20 standard colors and specific RAL finishes. Glass configurations include low-E, tinted, and acoustic variations. Clients can select manual handles or integrate automated hardware for remote operation.

Specifications for Large Size Casement Windows

The N9 Series uses 2.0mm thick aluminum profiles. Frame width measures 104mm for structural stability. These specifications make large casement windows suitable for demanding architectural projects.

Parameter	Details
Profile Thickness	2.0mm aluminum profiles
Frame Width	104mm
Opening Methods	• Single inward opening with tilt-turn glass panel • Double inward opening with tilt-turn glass and interior screen
Glass Configuration	• Standard: 5mm + 27A + 5mm double glazing with fluorocarbon aluminum spacer • Optional: 26A magnetic blinds or 27A electric/solar blinds between glass
Hardware System	• Winkhaus antibacterial handles (black or silver finish) • Winkhaus 180° tilt-turn mechanism • Multi-point locking system with magnetic locks for screens
Thermal Break	DERCHI proprietary thermal insulation strips
Sealing Material	• Jiangyin Haida sealing strips • EPDM integrated bent-seal design
Manufacturing Process	• Full-frame glue injection technology • Floor-drain water management system • 45° angle coating on cut surfaces• Closed cavity pressure lines
Trim Options	• 48mm casing system • 88mm casing system
Pressure Lines	External straight pressure lines
Size Limits	• Fixed glass: Maximum 12m² per panel • Opening sash width: 480-850mm • Opening sash height: 600-2400mm • Oversized options available with upgraded hardware up to 1000×2600mm (130kg capacity)
Special Features	• Curved and arched designs available • Not configurable as entry or patio doors

Ready to Upgrade to N9 Large Casement Windows?

Transform your space with DERCHI's N9 Series tilt and turn system. Our team helps architects and homeowners select the right casement windows large format solutions for their projects. As experienced casement window manufacturers, we provide technical support from design through installation. Contact us for specifications, pricing, and project consultation on these premium crank out windows.

Get Your Free Quote

The N9 Series meets international standards for large casement windows performance.

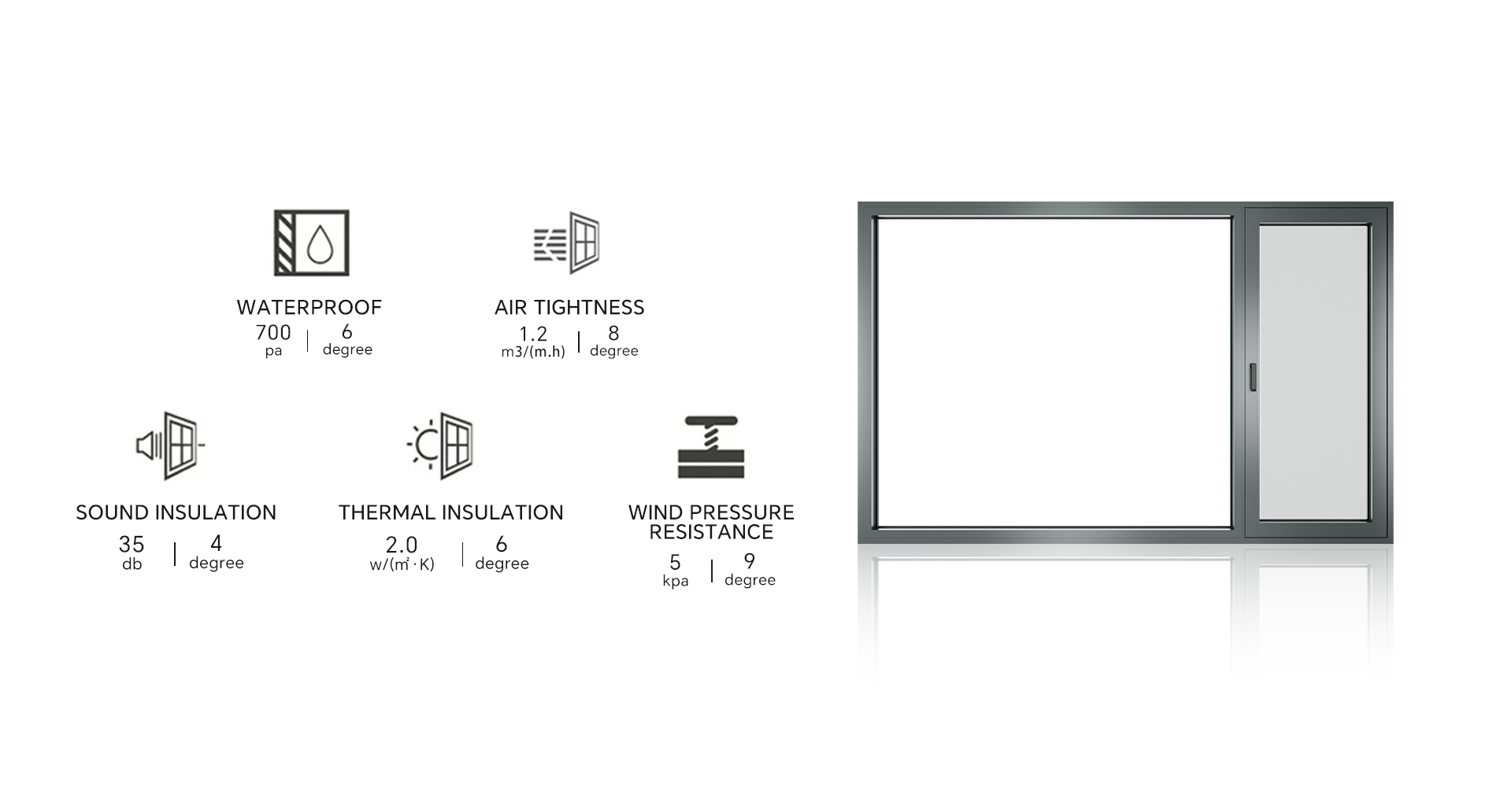

Performance Specifications

This section outlines the tested performance metrics for the N9 window. These specifications detail water resistance, air tightness, sound reduction, thermal efficiency, and structural wind resistance capabilities.

Thermal Insulation

Achieves a heat transfer rate of 2.0 Watts per square meter Kelvin (Level 6 rating). This metric confirms the window retains interior temperatures. It lowers building energy consumption by reducing reliance on heating and cooling systems.

Wind Pressure Resistance

Engineered to tolerate structural wind loads up to 5 kilopascals (Level 9 rating). This rating proves the window frame maintains integrity and safety during severe weather and high wind conditions.

Waterproof Performance

Tested to withstand water pressure up to 700 Pascals (Level 6 rating). This metric indicates the window prevents water ingress during rain events, protecting building interiors from moisture damage.

Air Tightness

Measures an air leakage rate of 1.2 cubic meters per meter per hour (Level 8 rating). This value demonstrates the window blocks drafts and stops uncontrolled outside air transfer, maintaining indoor climate control.

Sound Insulation

Provides a noise reduction of 35 decibels (Level 4 rating). This specification shows the window decreases exterior noise transmission. It creates quiet interior environments by blocking traffic and neighborhood sounds.

Application Scenarios

The N9 Series serves both commercial and residential markets requiring large casement windows. These crank out windows adapt to various architectural requirements from office buildings to luxury homes. DERCHI, as experienced casement window manufacturers, designs the N9 for projects demanding oversized openings with dual functionality. The following applications demonstrate where casement windows large formats deliver optimal performance.

Commercial

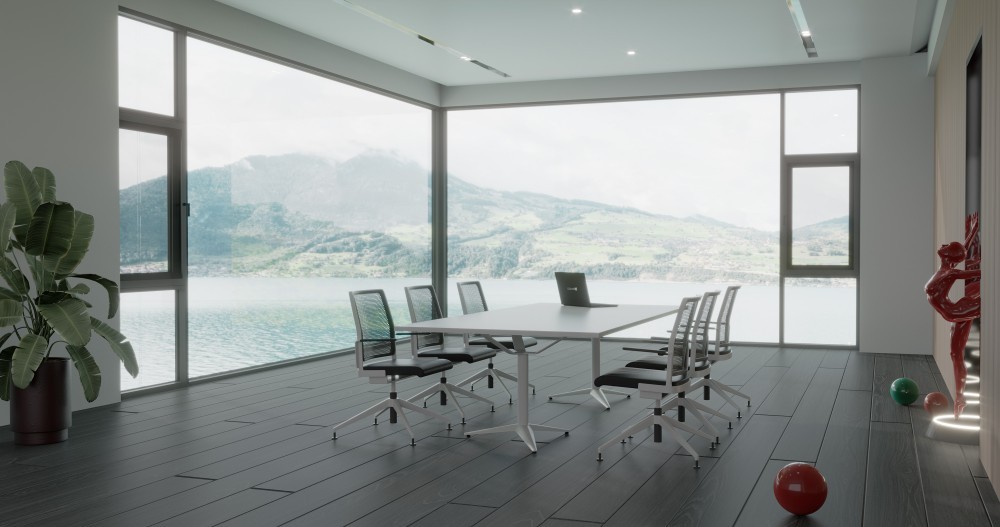

Modern commercial buildings require windows that balance aesthetics with functionality. The N9 provides floor-to-ceiling glass installations for offices, hotels, and educational facilities. Large casement windows maximize natural light while reducing energy costs. The tilt function ensures controlled ventilation without compromising security. Crank out windows meet commercial building codes for emergency egress. Multi-point locking systems protect valuable assets. The N9's wind resistance rating suits high-rise installations. Casement window manufacturers specify these systems for projects requiring durable, low-maintenance solutions.

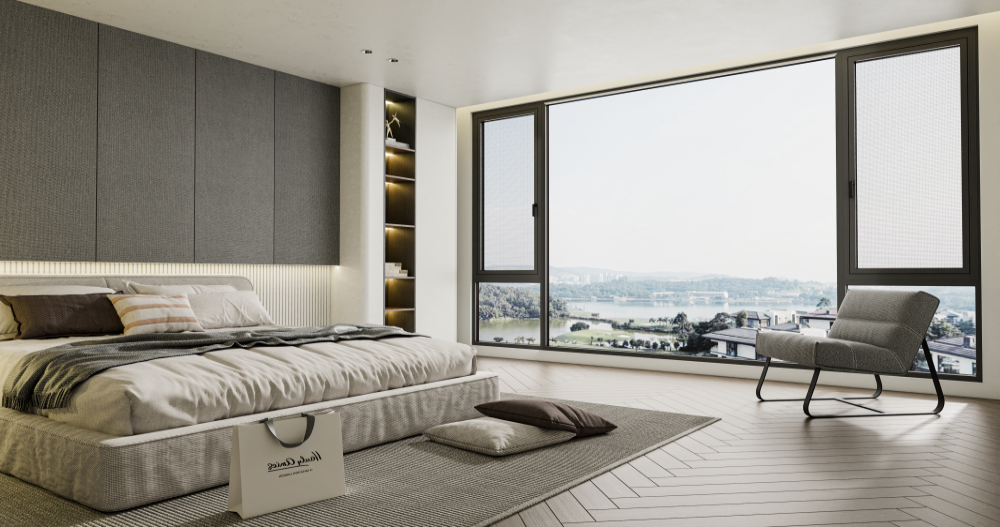

Residential

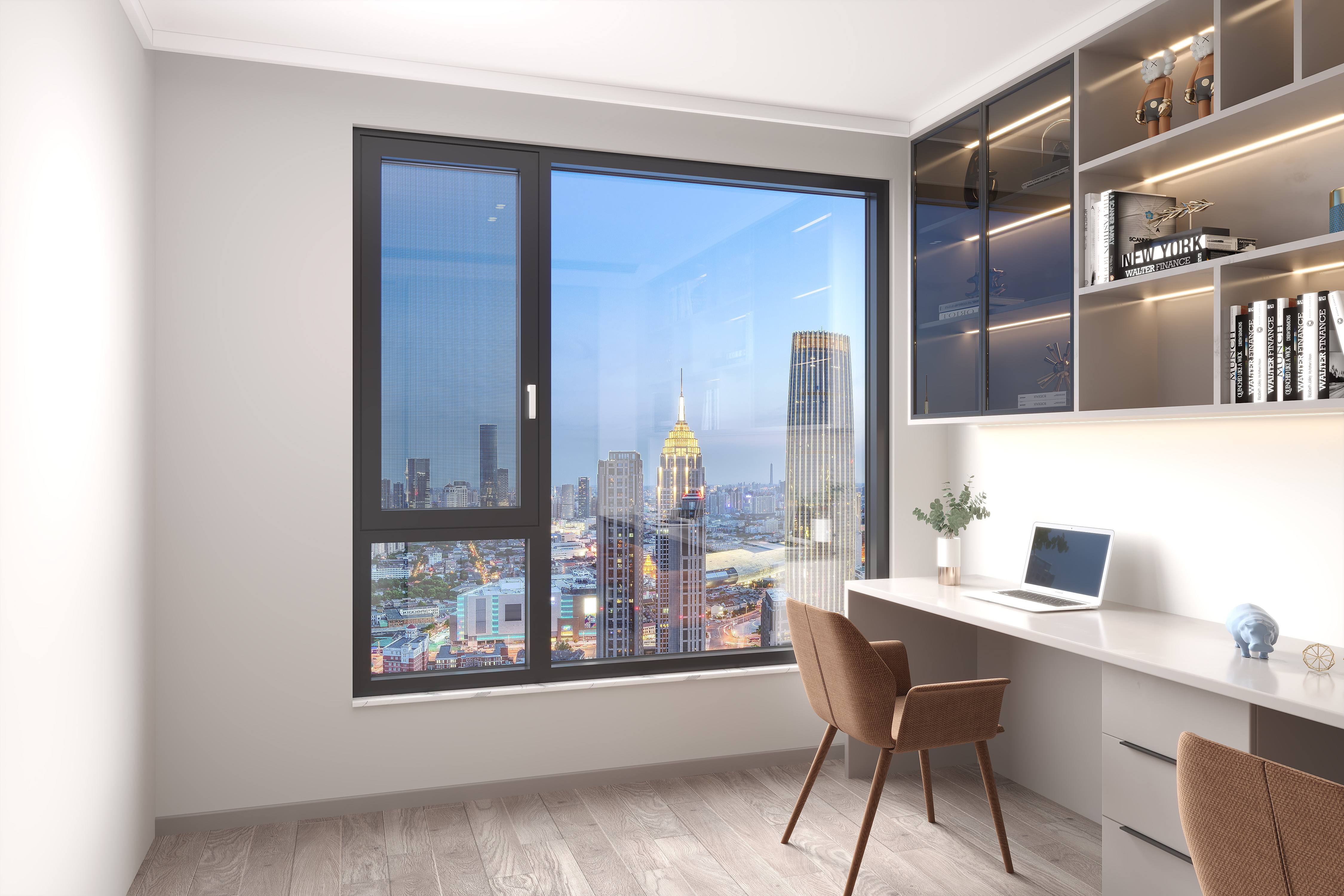

Homeowners choose the N9 for rooms requiring maximum light and ventilation. Living spaces benefit from panoramic views through casement windows large glass panels. The dual opening modes provide flexibility for different weather conditions. Tilt position offers secure night ventilation in bedrooms. Full opening creates indoor-outdoor connections for entertaining. Single-handle operation simplifies daily use for all family members. The N9's thermal performance reduces heating and cooling costs. These crank out windows complement both contemporary and traditional architectural styles.

DERCHI supplied a complete envelope of large-format aluminum glazing for a newly built villa in the Irish countryside, engineered for Atlantic wind-driven rain, Irish Part L thermal requirements, and panoramic views.

/ Read More

N9 Series Large Casement Windows (Tilt & Turn)

N9 Large Size Tilts & Turn Casement Window

Derchi N9 Casement Tilt & Turn Window: Feature Demonstration

Customization Options

Color Finishes

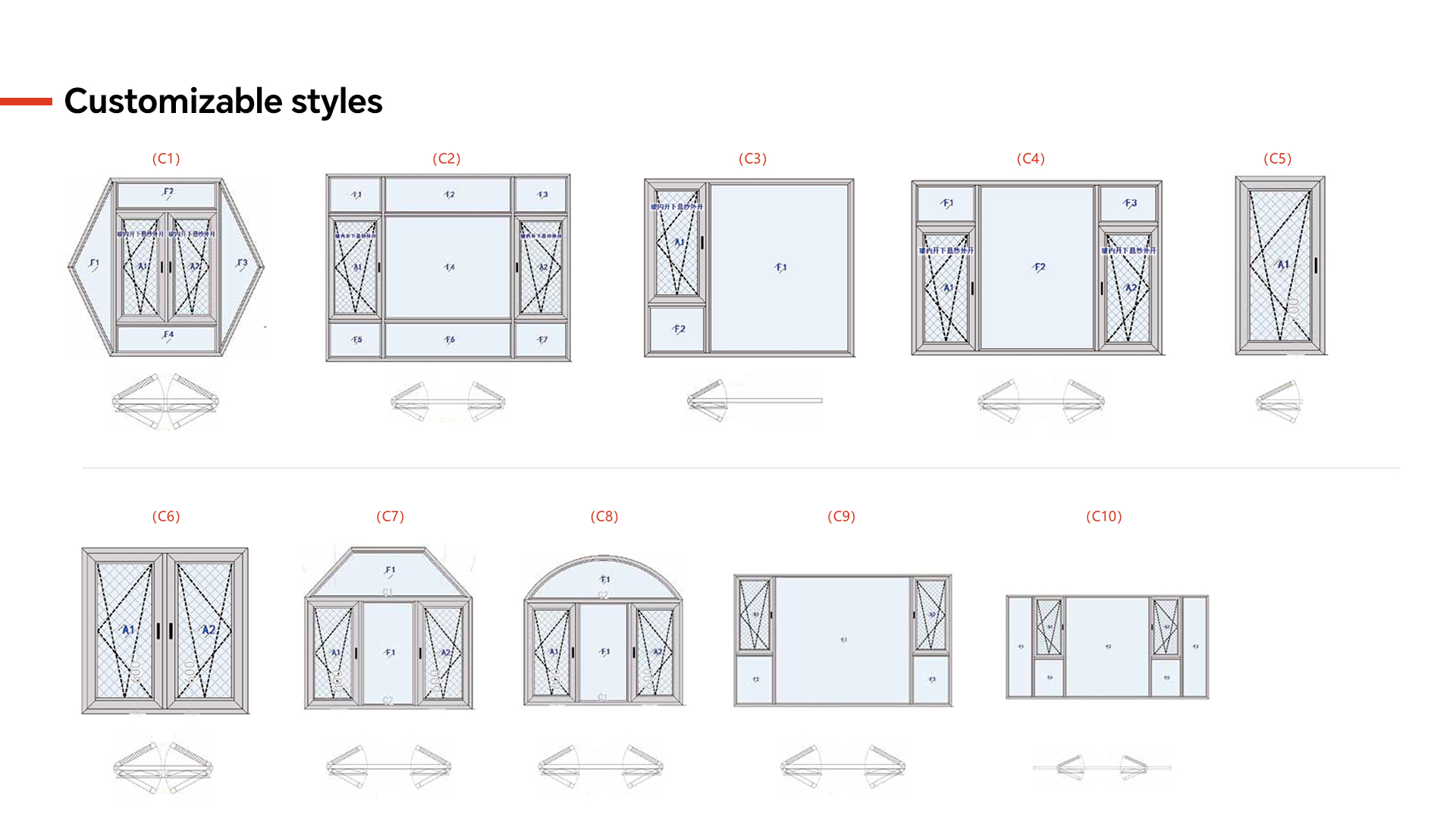

Configuration Styles
