The WY-118L aluminum awning window series meets NFRC, AS2047, and CE standards. The series features outward awning opening. It is evaluated by procurement teams and project specifiers sourcing aluminum awning windows for residential and commercial construction projects.
- Series WY-118L with outward awning opening
- Energy-efficient glazing for thermal performance requirements
- Additional product testing and certification available upon buyer request
Product Details
The WY-118L aluminum awning window operates through an outward-opening awning mechanism, built from a 1.8mm-thick, 118mm-wide aluminum profile with a DERCHI S18 multi-cavity insulation strip. The standard glazing is double tempered glass with argon gas (5mm+27A+5mm) separated by a PVDF aluminum strip, and the sash operates on a DERCHI-developed 13-inch flat open friction hinge with a WEHAG handle and a six-point lock system. Production follows a defined sequence of surface treatment, profile cutting, glass cutting with aluminum strip installation, opening panel installation, frame and casing assembly, troubleshooting and sealing, and packing, and DERCHI supplies the complete window system including profile, hardware, accessories, glass, and finished products ready for installation.
Procurement teams should confirm glass configuration, color finish, and layout before ordering, as the WY-118L series offers seven glass configurations, two PVDF and ten stock color finishes, and ten customizable layout combinations of fixed panels, casement sashes, and awning openings. Hardware finish selection among WEHAG handle options and the optional New 48 Pack or New 88 Pack packaging should also be confirmed for logistics planning. Delivery is scheduled 25-35 days after deposit and drawing confirmation, products are authorized under NFRC, CE, AS2047, CSA, and ISO9001 standards, a 10-year quality warranty covers frame colorfastness and hardware operation, and engineering and supervising service is available to guide installation on site.
Product Features
- Supported attributes that affect selection: WY-118L series, outward opening operation, 1.8 mm profile thickness, 118 mm frame width, WEHAG handle finishes, six-point lock, S18 multi-cavity insulation strip, double tempered argon glazing, PVDF color finish, U-factor 0.23, SHGC 0.20, water tightness 700 Pa, air tightness 1.2 m³/(m·h), wind pressure resistance 5K Pa, sound insulation 35 dB, 13-inch friction hinge, and full system supply scope.
- WY-118L series — match this identifier to compatible profiles, hardware, and accessories within the same window system.
- Outward opening / awning operation — choose this opening direction when ventilation during light rain is required.
- 1.8 mm profile thickness and 118 mm frame width — specify wall cavity depth and structural anchoring to match these dimensions.
- WEHAG no-base handle in black, silver, or antique bronze — choose the finish that coordinates with adjacent interior hardware.
- Six-point lock with invention patent — select this locking configuration for openings requiring higher security.
- DERCHI S18 multi-cavity insulation strip — select this thermal break for projects targeting low U-factor compliance.
- Double tempered glass with argon fill (5mm+27A+5mm) — choose this glazing package for combined acoustic and thermal performance.
- PVDF color finish — select this surface treatment for UV-exposed facades requiring long-term color retention.
- U-factor 0.23 and SHGC 0.20 — use these values to verify NFRC energy-code compliance for the project.
- Water tightness 700 Pa, air tightness 1.2 m³/(m·h), wind pressure resistance 5K Pa, sound insulation 35 dB — match these performance grades to the building's exposure zone and acoustic requirements.
- 13-inch flat open friction hinge — select this hardware for stable outward sash operation.
- Full window system including profile, hardware, accessories, glass, and finished products — choose the supply scope from individual components to installation-ready units.
Customizable Styles
- Seven glass configurations are orderable: single, tempered, double-glazed, triple, insulating, laminated, and frosted glass.
- Standard glass configuration is Double Tempered Glass with argon gas 5mm+27A+5mm with a PVDF Aluminum Strip between the double glass.
- Color finishes include two PVDF options (Retro Green, Mint Gold) and ten stock color options including wood-grain textures, solid metallic, and matte finishes.
- The WY-118L series supports ten customizable layout configurations including fixed panels, casement sashes, and awning openings.
- Handle finish is available in WEHAG Black and WEHAG Silver.
- Opening way is configured as Outward Opening / Awning.
- Optional packaging is available as New 48 Pack or New 88 Pack.
Hardware Accessories
- WEHAG handle in black and silver finishes, with a no-base variant available in black, silver, and antique bronze.
- WEHAG hinge paired with a 13-inch flat open friction hinge independently developed by DERCHI for stable outward sash operation.
- Black Six Point Lock with invention patent integrated with the WEHAGE lock point and lock seat system for six-point locking.
- DERCHI customized transmission box and independently developed handle designs available for the WY-118L series.
- Window system supplied as a complete package including profile, hardware, accessories, glass, and finished products ready for installation.
- 10-year quality warranty covers hardware and accessories working properly under correct operation.
- Confirm handle finish selection and WY-118L series handle design compatibility before specification.
Basic Parameters
| Performance Dimension | Declared Value | What It Measures | Test Evidence to Request |
|---|---|---|---|
| Thermal Insulation | U-factor 0.23; SHGC 0.20; Standard DERCHI insulation strip | Heat transfer through the window assembly, including frame and glazing configuration. | Thermal test or simulation report per NFRC / ISO 10077-2, with declared specimen configuration and boundary conditions. |
| Wind Pressure Resistance | 5K Pa | Structural capacity of the window under wind load, tested at specified pressure with specimen size and anchorage. | Wind-pressure test report per ASTM E06.51 / FGIA NAFS / ISO 6613, confirming tested specimen and installation conditions. |
| Water Tightness | 700Pa | Resistance to water penetration under spray exposure and pressure differential. | Water-penetration test report per ASTM E06.51 / FGIA NAFS / ISO 6613, confirming tested pressure and assembly configuration. |
| Air Tightness | 1.2 m³/(m·h) | Air leakage rate through the window assembly at a given pressure differential. | Air-leakage test report per ASTM E06.51 / FGIA NAFS / ISO 6613, confirming pressure and specimen configuration. |
| Sound Insulation | 35 dB | Acoustic attenuation of the window assembly, dependent on glazing and construction. | Acoustic test report per ISO 10140-1 / ASTM E90, confirming tested construction matches proposed configuration. |
Product Specifications
| Specification | Value |
|---|---|
| Glass | Double Tempered Glass with argon gas 5mm+27A+5mm, PVDF Aluminum Strip between double glass |
| Profile Thickness | 1.8MM |
| Frame Width | 118MM |
| Handle | WEHAG Handle in Black and Silver |
| Hinge | WEHAG Hinge |
| Lock Point | Black Six Point Lock (Invention patent) |
| Insulation Strip | Standard DERCHI insulation strip |
| Opening Way | Outward Opening / Awning |
| Optional Package | New 48 Pack / New 88 Pack |
| Delivery Time | 25-35 days after deposit and drawing confirmed |
| Warranty | 10 years quality warranty |
- Confirm glass configuration selection
- Confirm color finish selection
- Confirm layout configuration from WY-118L series options
- Select optional package: New 48 Pack or New 88 Pack
- Provide approved drawings for production confirmation
- Confirm order quantity
Advantages
- 15+ years of experience in aluminum windows and doors, operating a 70,000+ m² factory with 4,000 m² showroom and 600+ employees producing 600,000+ m² annual output.
- OEM/ODM capability stated in the company's own product documentation, supported by customization options and factory scale; pricing depends on buyer-supplied shop drawings, frame color, and glass type.
- Can supply complete window systems (profile, hardware, accessories, glass) or finished products.
- 100% full inspection before shipment.
- Authorized by NFRC, CE, AS2047, CSA, and ISO9001, with product testing and certification available upon buyer request.
- 20+ expert R&D team holding 100+ national patents including invention, appearance, and design patents.
- Engineering and supervising service for installation available, plus one-stop customer service from ordering to shipment.
- In-house quality control infrastructure supports a 10-year quality warranty; production capacity enables 25-35 day delivery after deposit and drawing confirmation.
- Export experience across 100+ countries.
Application Scenarios
| Scenario | Fit Basis | Confirm Before Specification |
|---|---|---|
| Coastal or high-precipitation commercial buildings | Evidenced for commercial buildings in coastal or high-precipitation regions | Local wind-load and corrosion-resistance requirements |
| High-rise commercial structures | Evidenced for high-rise commercial structures | Structural anchoring method and wind-pressure requirements |
| Buildings near traffic corridors | Evidenced for buildings located near traffic corridors | Acoustic and sealing requirements |
| Apartments | Evidenced for apartments | Opening size and ventilation code compliance |

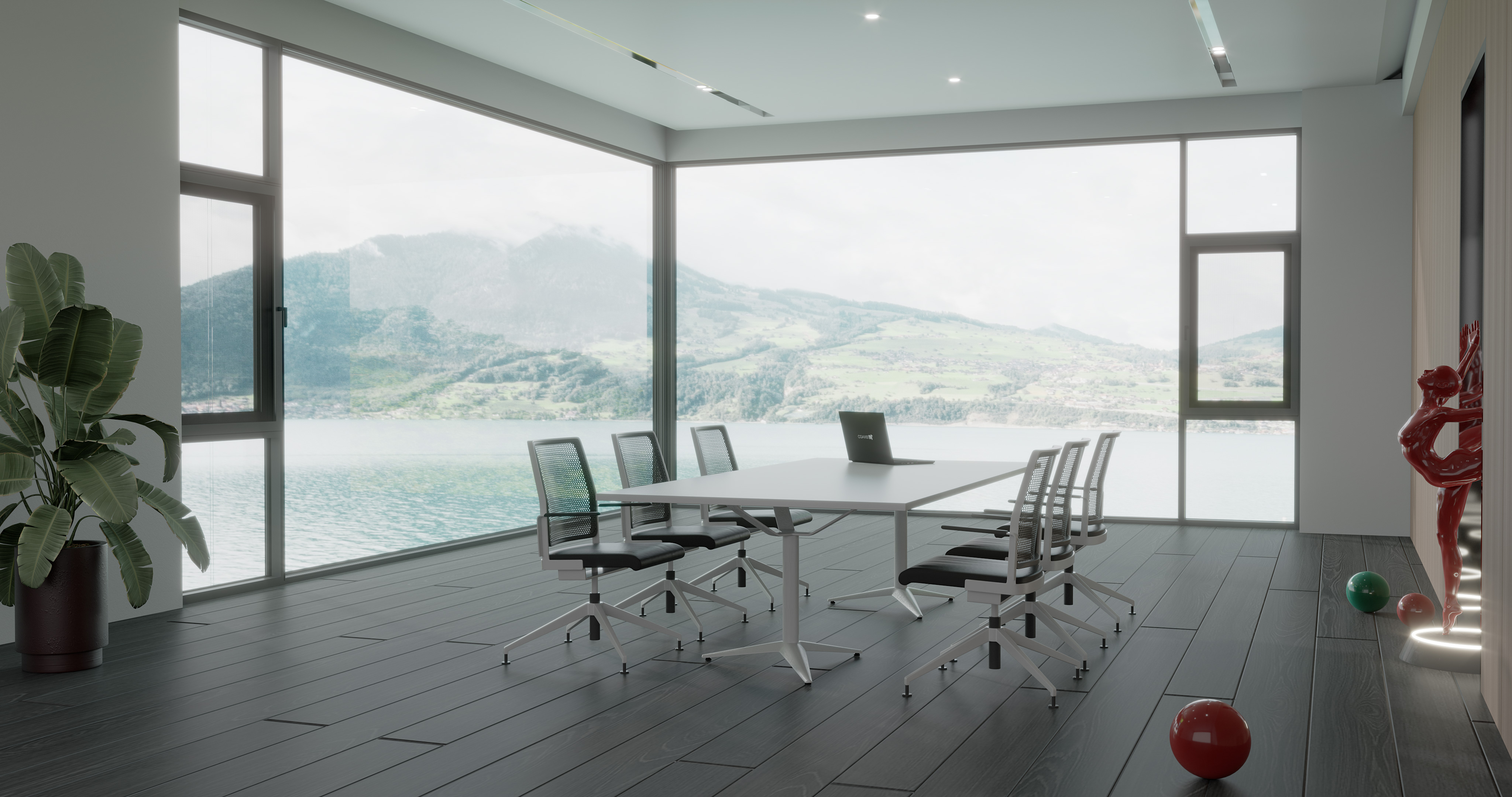

| Office buildings | Evidenced for office buildings | Egress and building code requirements |
| Hotels | Evidenced for hotels | Design finish and hardware specification |
| Residential buildings | Evidenced for residential buildings | Wall type and installation method |
| Home offices | Evidenced for home offices | Available mounting space above the window |
| Exterior applications | Evidenced for exterior applications | Weather exposure level and orientation |
| Villa projects | Evidenced for villa projects | Architectural style and custom finish matching |
| Whole house customization projects | Evidenced for whole house customization projects | Project scope and unified specification across openings |
FAQ
What must be confirmed technically before ordering?
Shop drawings, frame color, glass type, and glass thickness must be confirmed before pricing and production. The complete window system—including profile, hardware, accessories, and glass—can be supplied as finished products or as component systems.
What should buyers prepare for volume procurement?
Buyers should prepare finalized shop drawings, frame color specifications, glass type and thickness selections, and order quantity for accurate quotation. Delivery takes 25–35 days after deposit and drawing confirmation. Optional packaging options include New 48 Pack or New 88 Pack.
What warranty coverage applies?
A 10-year quality warranty applies to the aluminum awning window.
What installation support is available?
Engineering and supervising service for installation is available.
What quality assurance is provided before shipment?
100% pre-shipment inspection is conducted on all products.
Which project documentation must be confirmed before ordering?
Identify project-required documentation and request applicable records from the supplier before finalizing specifications.
