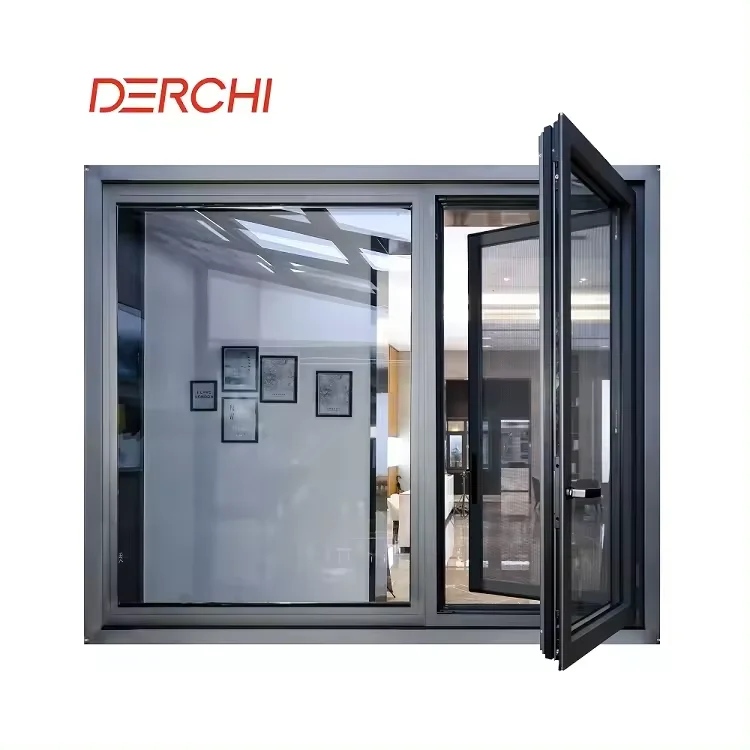

The 18 x 48 casement window is a hand-crank operated aluminum unit built for versatile placement in residential and commercial projects. It features a 6063-T5 aluminum frame, EPDM sealing, and double tempered glass, suiting contractors and specifiers sourcing reliable fenestration.
- Nominal size 18 x 48 in (457 x 1219 mm) with hand-crank flat-opening operation
- Three frame depth options: 72 mm, 86 mm, or 100 mm for varied structural needs
- Configurable glass packages, color finishes, and hardware accessories
Product Details
Structurally, this crank-out window utilizes a 6063-T5 aluminum profile at 1.4 mm thickness. Buyers can select from three frame depths—72 mm, 86 mm, or 100 mm—matching the WY-72, WY-86, and WY-100 series. Sealing is handled by EPDM rubber strips, while the double tempered glass varies by series (5+27A+5 mm or 5+15A+5 mm). Operation is via a hand-crank mechanism for flat opening or hanging up.
Unlike standard fixed units, this aluminum casement window offers extensive project flexibility. The three series options allow buyers to align frame depth and glass packages with specific performance targets. Customizable layouts include single sash, awning, and fixed-plus-operable composites. An expansive option list covers limiters, safety fences, glass upgrades, and PVDF finishes, all packaged in wooden frames with PE films for sea freight.
Product Features
Hand-Crank Operation: Enables ventilation control in hard-to-reach positions without needing direct access to the sash, offering convenience for above-counter or exterior wall installations.
6063-T5 Aluminum Frame: Corrosion-resistant material suitable for exterior applications and long-term weather exposure, providing structural stability for various building types.
EPDM Rubber Sealing: Contributes to the 350 Pa water resistance and 4.5 m3/(m.h) air leakage performance, helping to reduce drafts and moisture ingress.
Double Tempered Glass: Safety glazing achieving 30 dB sound insulation, available in two spacer configurations depending on the selected series.
Multiple Frame Depths: Options of 72 mm, 86 mm, or 100 mm let buyers match structural cavity dimensions and performance targets to specific project requirements.
Export-Ready Packaging: Wooden-frame packaging with PE films, pallets, and air bags protects units during international sea freight shipping.
Customizable Styles
Glass Configuration: Choose 5+27A+5 mm or 5+15A+5 mm double tempered glass by series, with optional argon, warm-edge, Low-E, triple, or laminated upgrades.
Frame Depth: Select 72 mm, 86 mm, or 100 mm based on wall structure and performance requirements for the specific project.
Size: Made-to-order within the W450-800 mm x H600-1500 mm opening panel range; the 457 x 1219 mm nominal size fits within range.
Color and Finish: Twelve standard color families including Pearl White and Quartz Gray, plus PVDF/fluorocarbon and custom wood grain options.
Style Layout: Options include single sash, double sash, side-opening plus center fixed, three-segment, top/bottom fixed, or irregular combinations.
Hardware Accessories
Hand Crank: American-style crank for WY-72, Australian hanging-style crank for WY-86 and WY-100 series; confirm crank side during quoting.
Lock Seat: Multi-point switch lock for WY-72, single-point switch lock for WY-86 and WY-100 series for secure closure.
Casement Limiter: Optional simple limiter (+60 RMB/pc) or safety limiter (+168 RMB/pc) for controlled opening angle and ventilation management.
Screen Options: Anti-theft screen, 304 HD mesh, king kong mesh, or 48-mesh high-transparency mesh; series compatibility must be confirmed.
Warm-Edge Spacer: Optional thermal performance upgrade at +198 RMB/m2 for improved glass edge insulation and overall energy efficiency.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | U-Factor: 0.39, SHGC: 0.25 | Confirm which series and glass config this applies to and verify NFRC applicability. |
Wind Pressure Resistance | 5 KPa | Verify against project-specific wind load and local building code requirements. |
Water Tightness | 350 Pa | Confirm which WY series this applies to and check local code compliance. |
Air Tightness | 4.5 m3/(m.h) | Confirm applicable testing standard and specific series before ordering. |
Sound Insulation | 30 dB | Confirm test method and consider glass upgrade for higher acoustic targets. |
Product Specifications
Specification | Details |
|---|---|
Nominal Size | 18 x 48 in (457 x 1219 mm) |
Approximate Area | 0.56 m2 |
Frame Material | 6063-T5 aluminum profile |
Profile Thickness | 1.4 mm |
Frame Depth Options | 72 mm / 86 mm / 100 mm |
Glass (WY-72/WY-100) | Double tempered 5+27A+5 mm |
Glass (WY-86) | Double tempered 5+15A+5 mm |
Sealing | EPDM rubber strip |
Opening Method | Flat opening / hanging up, hand-crank operation |
Opening Panel Range | W450-800 mm x H600-1500 mm |
Delivery Time | 25-35 days (subject to order confirmation) |
Supply Ability | 20,000 m2/month (subject to order confirmation) |
Advantages
Standard Nominal Size: Fits common rough openings for both replacement and new construction projects, simplifying spec schedules.
Flexible Series Options: Three series let buyers match frame depth and glass package to specific performance and structural needs.
Accessible Operation: Hand-crank operation suits hard-to-reach installations and exterior wall positions where direct sash access is limited.
Extensive Customization: Covers glass upgrades, safety components, color finishes, and hardware to meet diverse project specifications.
Export Packaging: Wooden frames, PE films, pallets, and air bags protect units during international sea freight shipping.
Application Scenarios
Apartment: Compact 18x48 size suits apartment bedrooms, kitchens, and bathrooms; hand-crank operation works well in tight urban spaces where direct sash access is limited.
Home Office: Provides ventilation and natural light for workspace; crank operation allows airflow control from desk position without interrupting work.
Hotel: Standardized nominal size supports hotel room fenestration schedules; multiple color and finish options coordinate with interior design themes.
Office Building: Aluminum frame suits commercial facade applications; configurable glass packages support energy code compliance and occupant comfort.
Outdoor: 6063-T5 aluminum and EPDM sealing provide weather resistance for exposed enclosures; verify wind and water performance against site conditions.
Residential Building: Made-to-size production accommodates various residential window schedules; multiple series options support different performance tiers across unit types.
Exterior: 5 KPa wind resistance and 350 Pa water resistance support exterior wall installations; confirm performance against local wind load and weather exposure codes.
Villa: Premium color options including wood grain finishes and PVDF coatings support high-end residential design requirements; customizable glass and hardware for differentiated aesthetics.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
How do I get a quote for the 18 x 48 casement window?
Pricing depends on series selection (WY-72/86/100), glass package, color finish, hardware, and optional components; submit drawings or window schedules for an accurate quotation.
Which series should I choose — WY-72, WY-86, or WY-100?
Each offers different frame depths (72/86/100mm) and glass configurations; select based on wall structure, performance targets, and local code requirements. Our team can advise.
Can I customize the opening direction?
Yes, left or right crank operation is configurable; confirm the operation side and screen requirements at the drawing stage before production begins.
What glass upgrades are available?
Options include argon fill, warm-edge spacer, Low-E, triple glazing, laminated glass, and blind-glass units; upgrades carry per-square-meter upcharges.
What is the lead time?
Official commercial terms reference 25-35 days; actual delivery depends on order quantity, customization scope, and production schedule; confirm per order.
Are certifications available for my project?
DERCHI cites NFRC, CE, AS2047, CSA, and ISO9001 on official pages; confirm applicability to your specific product configuration and target market before ordering.
