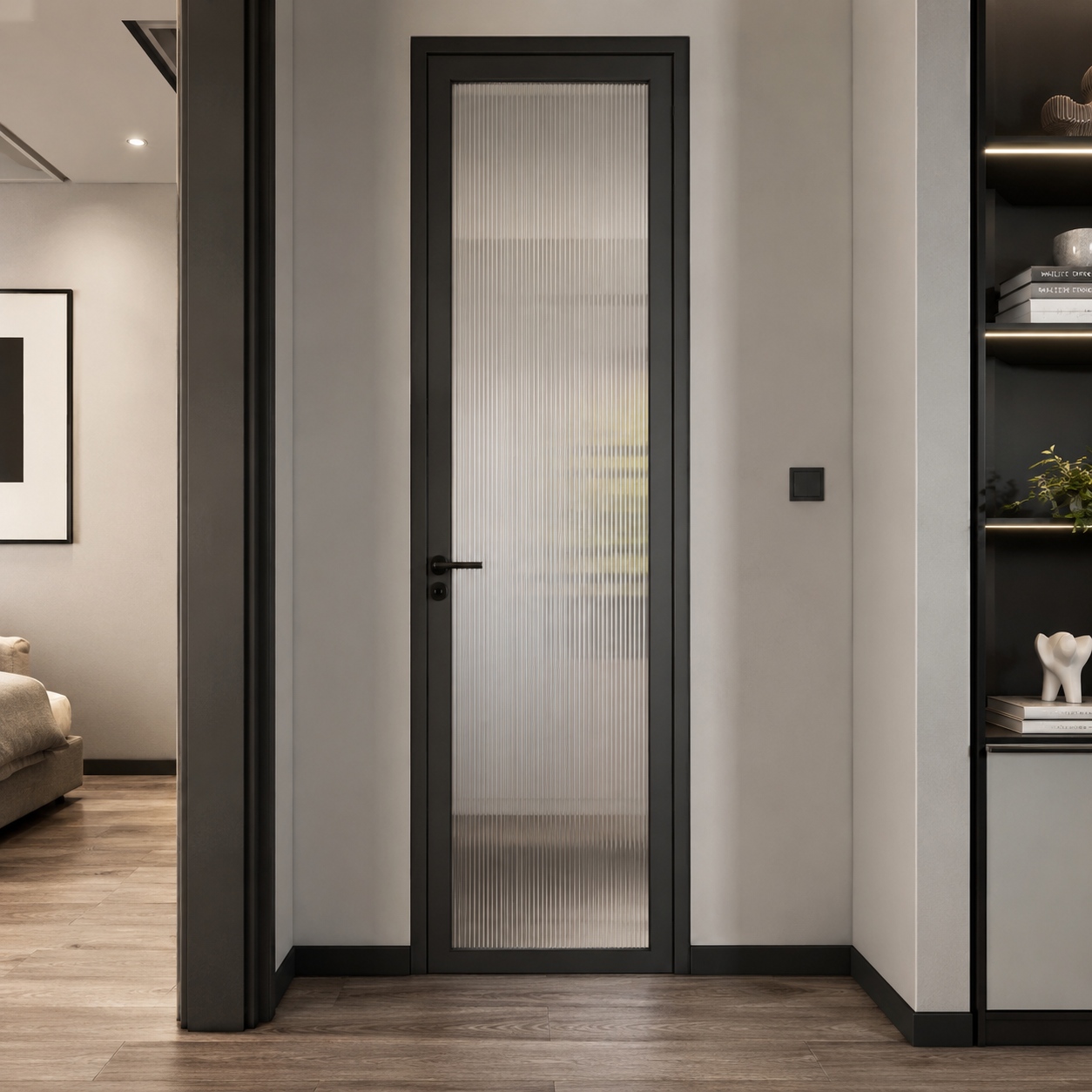

A 30 x 80 interior door from DERCHI is a custom aluminum glass swing door engineered for modern interiors. Available in two platform chassis—the ultra-slim WP-54 (54 mm frame) and high-performance P103 (103 mm frame)—it fits a nominal 762 × 2032 mm opening. Each door is built to order with tempered glass, 6063-T5 aluminum, and project-specific hardware.
- Narrow 54 mm profile or robust 103 mm double-glazed option.
- Acoustic insulation up to 37 dB and U-factor as low as 0.38.
- Fully customizable glass, color, swing direction, and hardware.
- Project-ready with shop drawings, test reports, and B2B shipping.
Product Details
For a 30 x 80 interior door, DERCHI provides two engineered swing door platforms that differ in frame width and performance. The WP-54 uses a 54 mm ultra-narrow frame to maximize daylight transmission and create a clean, modern look—ideal for spaces where light and sightlines matter. The P103, with its 103 mm frame and double-pane insulated glass with argon fill, achieves a U-factor as low as 0.38 and robust acoustic control, making it suitable for privacy-sensitive or climate-controlled zones. Both models are built from 6063-T5 aluminum, tempered safety glass, and EPDM seals, and can be manufactured to the exact 762 × 2032 mm dimension.
What distinguishes these custom interior aluminum doors from mass-produced alternatives is their structural integrity and adaptability. The aluminum profile eliminates warping common with wood, while the multi-point lock on the P103 adds commercial-grade security. A narrow frame interior swing door can be configured inward or outward opening, and glass options range from clear to frosted or Low-E coatings. This flexibility gives architects and procurement managers precise control over privacy, thermal performance, and aesthetics in hospitality, office, or residential projects.
Product Features
Modern interior door 30x80 aesthetics: The ultra-narrow 54 mm frame reduces visual bulk, maximizing glass area for a clean, contemporary look that suits minimalist and modern interior designs.
Acoustic comfort: With sound insulation up to 37 dB (WP-54), this door helps create quiet zones in busy offices, hotel rooms, and residential spaces requiring focused work or rest.
Thermal efficiency: The P103 model’s double-glazed, argon-filled unit achieves a U-factor of 0.38, reducing energy transfer between climate-controlled and unconditioned spaces.
Multi-point security: P103’s four-side six-point locking system enhances safety for commercial entries; optional fingerprint lock adds keyless convenience for high-traffic areas.
Custom swing configurations: Choose inward or outward opening, single leaf, double leaf, or parent-child door layouts to match your floor plan and traffic flow.
Durable low-maintenance construction: 6063-T5 aluminum frames resist corrosion and warping; tempered glass and EPDM seals ensure long-term performance with minimal upkeep.
Customizable Styles
Glass: clear tempered, frosted, Low-E, or double-pane insulated; thickness 5–8 mm as per specification.
Frame finish: powder coated in RAL colors or custom matched; popular options black, white, silver, woodgrain.
Dimension: 30x80 achievable; width from 350–850 mm (WP-54) or 350–1100 mm (P103), height up to 2800 mm.
Opening layout: single, double, or parent-child door; inward or outward swing based on project needs.
Accessories: handle placement, lock style, ventilation louvers, and branding upon request; OEM support available.
Hardware Accessories
HOPPE lever handle and hinge: standard on P103, available in multiple finishes, robust and ergonomic.
Multi-point lock: P103 features a four-side six-point lock; WP-54 options can be discussed, including flush lock.
Soft-close mechanism: optional door closer ensures controlled, quiet closing for hotel and office use.
EPDM sealing system: continuous gaskets around frame and threshold maintain acoustic and thermal performance.
Smart options: fingerprint lock, magnetic louver, or electric strike can integrate with building access systems.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation (U-Factor) | WP-54: 0.39; P103: 0.38 (nominal) | Request official test report for the exact 30x80 configuration and glass type; values may change. |
Wind Pressure Resistance | WP-54: 3000 Pa; P103: 5 kPa | Important for exterior-adjacent use; confirm with official testing for interior applications. |
Water Tightness | WP-54: 300 Pa; P103: 450 Pa | Crucial near bathrooms or wet areas; obtain certification for intended environment. |
Air Tightness | WP-54: 5 m³/(m·h); P103: 4.5 m³/(m·h) | Double glazing may improve values; verify for selected glass pack. |
Sound Insulation | WP-54: 37 dB; P103: 30 dB | Acoustic performance depends on glass type and frame sealing; use official lab reports. |
Product Specifications
Specification | WP-54 | P103 |
|---|---|---|
Frame Width | 54 mm | 103 mm |
Profile Material | 6063-T5 aluminum | 6063-T5 aluminum |
Profile Thickness | 2.0 mm | 2.0 mm |
Standard Glass | 8 mm single or double-pane insulated | 5 mm + 27A + 5 mm double tempered with argon |
Opening Direction | Inward or outward | Inward or outward |
Custom Size Range (W × H) | 350–850 mm × 400–2400 mm | 350–1100 mm × 800–2800 mm |
Lock Type | Standard lock; consult for electric strike | Four-side six-point lock; optional fingerprint, magnetic louver |
Max Single Leaf | — | 1200 × 2800 mm, 150 kg |
Nominal 30×80 Fit | Yes, 762 × 2032 mm within range | Yes, covered by range |
Advantages
25+ years of aluminum door manufacturing; 180,000 sqm factory, 600 staff, 100+ equipment units ensure large-scale, consistent output.
Project customization: from structural calculations to shop drawings and submittals, we support your entire project lifecycle.
Certification documentation: NFRC, CE, AS2047, SGCC reports can be provided per model and glass package upon request.
Shipping flexibility: FOB, CIF, DDP terms; standard export crate or project-specific packaging with labeling.
Dealer program: sample door discounts, showroom design, training, and OEM/ODM production for consistent branding.
Application Scenarios
Apartment: A 30x80 glass door partitions living areas while maintaining light flow. The narrow frame keeps the interior open and modern, ideal for studio layouts.
Home Office: The slim-profile door separates a dedicated workspace from living spaces, providing acoustic privacy without darkening the room.
Hotel: Guest room or bathroom entry with frosted glass and optional smart lock; sound insulation up to 37 dB ensures restful stays.
Office Building: For private offices or meeting rooms, the 30 x 80 aluminum glass door combines a professional look with multi-point security on the P103 model.
Outdoor: If used as a covered balcony or terrace door, specify the P103 with its 5 kPa wind resistance and 450 Pa water tightness; always confirm weather exposure conditions.
Residential Building: Apartment unit entrance or interior partition; inward/outward swing fits any floor plan and tempered glass meets safety codes.
Exterior: For semi-exterior transitions like a sunroom, verify the frame coating and sealing performance with DERCHI’s engineering team before ordering.
Villa: A wide glass partition with parent-child door configuration creates an expansive, light-filled passage between living zones, with customization for oversized panels.
FAQ
What is a 30 x 80 interior door?
It is a custom-made aluminum glass swing door configured to a nominal 762 × 2032 mm size. Based on DERCHI's WP-54 or P103 platform, it combines narrow frames, tempered glass, and customizable hardware for interior use.
Where can this door be installed?
Ideal for offices, hotels, apartments, and residential interiors where modern aesthetics, sound insulation, and durability are needed. It works as room partitions, bathroom doors, or office entries.
Can the size and look be customized?
Yes. The 30x80 dimension is a standard custom size; you can select glass type, frame color, opening direction, lock style, and hardware. Project-specific modifications are welcome.
What info do I need to get a quote?
Provide the door model (WP-54 or P103), glass type, hardware selection, quantity, trade terms (FOB/CIF/DDP), and any certification or packaging requirements. Our sales team will prepare a detailed quotation.
Is this door suitable for large commercial projects?
Yes. DERCHI supports bulk orders with shop drawings, performance packs, phased delivery, and after-sales service. The 30 x 80 interior door can be standardized across hotel or office projects.
What technical documents are provided?
Upon request, we supply shop drawings, structural calculations, acoustic/thermal test reports, and certification documents (NFRC, CE, etc.) for the specific configuration.
What should I confirm before ordering?
Confirm the rough opening dimensions, exact slab size needed, required certifications, any fire rating, and site conditions. Also verify lead time and warranty terms for your chosen model.
What certifications and packaging options are available?
Certifications like NFRC, CE, AS2047, SGCC can be provided per model; request during inquiry. Packaging options include standard export wooden crates or customized project labeling upon confirmation.
