The Aluminum Picture Window is an aluminum casement window that meets NFRC, AS2047, and CE certifications, designed for buyers evaluating window products in Antwerp. Local buyers can continue reviewing this product as a market-positioned option for Antwerp projects.
- Outward opening / awning operation
- 200,000+ successful cases and trade with customers in more than 100 countries
- 100% full inspection before shipment with 25-35 day delivery after deposit and drawing confirmed
Product Details
The WY-118L series aluminum casement window is built with a 1.8mm aluminum profile and a 118mm frame width, using PVDF surface treatment and a production process that includes profile cutting, glass cutting with aluminum strip installation, opening panel installation, frame and casing assembly, adjustment and sealing, and packing. The window operates with outward opening or awning action, supported by a 13-inch flat open friction hinge independently developed by DERCHI, and uses WEHAG handles, hinges, and a six-point locking mechanism with an invention patent. The standard glass configuration is double tempered glass with argon gas (5mm+27A+5mm) with a PVDF aluminum strip between the panes, and DERCHI can supply the complete window system including profile, hardware, accessories, glass, and finished products ready for installation.
Procurement teams should confirm the glass configuration from the seven available options (single, tempered, double-glazed, triple, insulating, laminated, and frosted), select one of the ten customizable layout configurations for the WY-118L series, and choose from two PVDF color finishes (Retro Green, Mint Gold) or ten stock color options before placing an order. The factory covers 70,000+ m² with 600+ employees, the delivery time is 25-35 days after deposit and drawing confirmation, the products meet NFRC, AS2047, and CE certifications, and a 10-year quality warranty covers frame color retention and proper hardware operation. Engineering and supervising service is available to guide installation, and buyers should submit confirmed drawings to finalize the configuration and receive an accurate quote.
Product Features
- WY-118L series with 118mm frame width and 1.8mm profile thickness — select this frame depth for wall cavities that accommodate a 118mm profile.

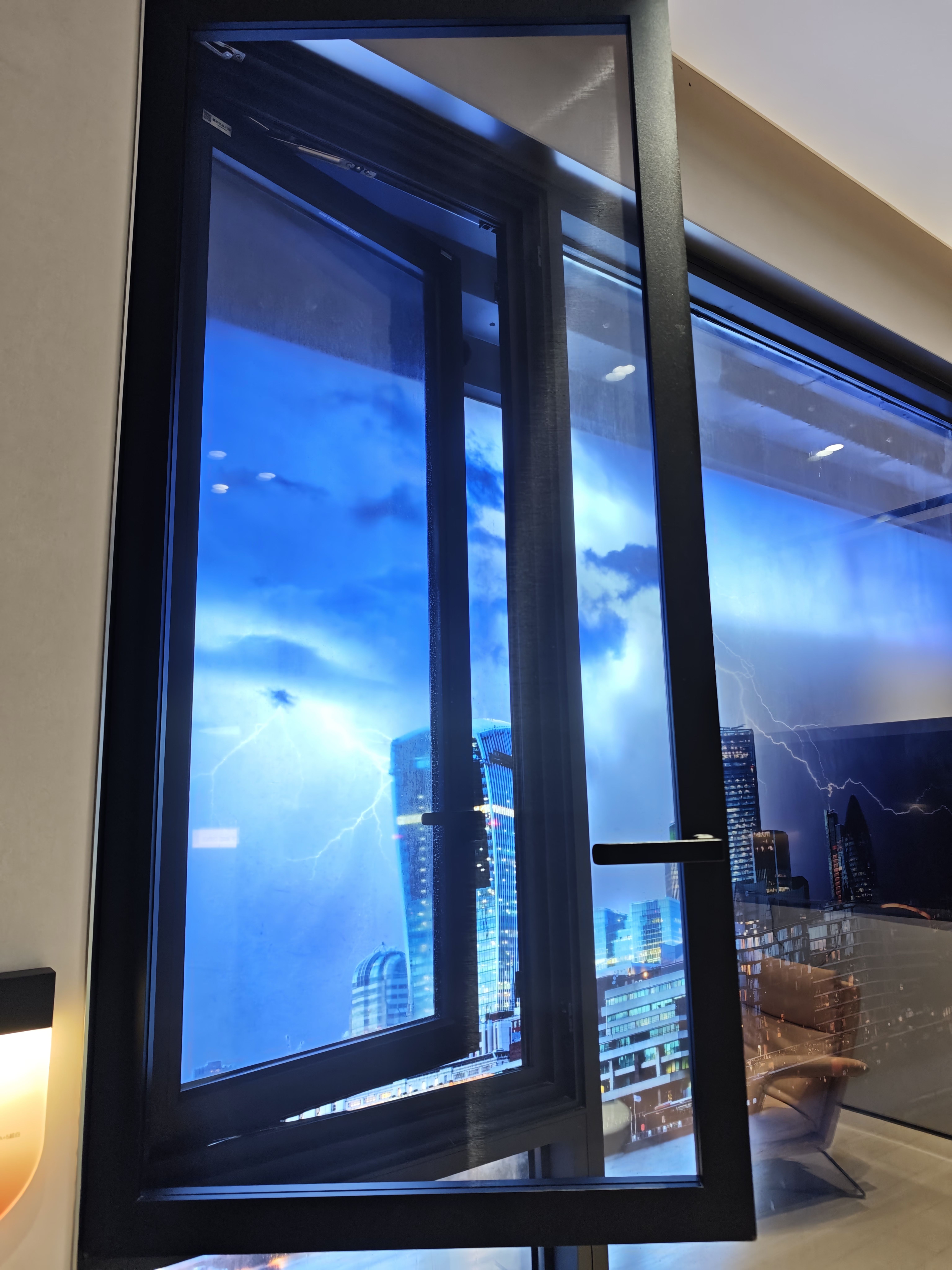

- Outward opening and awning operation — choose this configuration when interior swing clearance must be preserved.

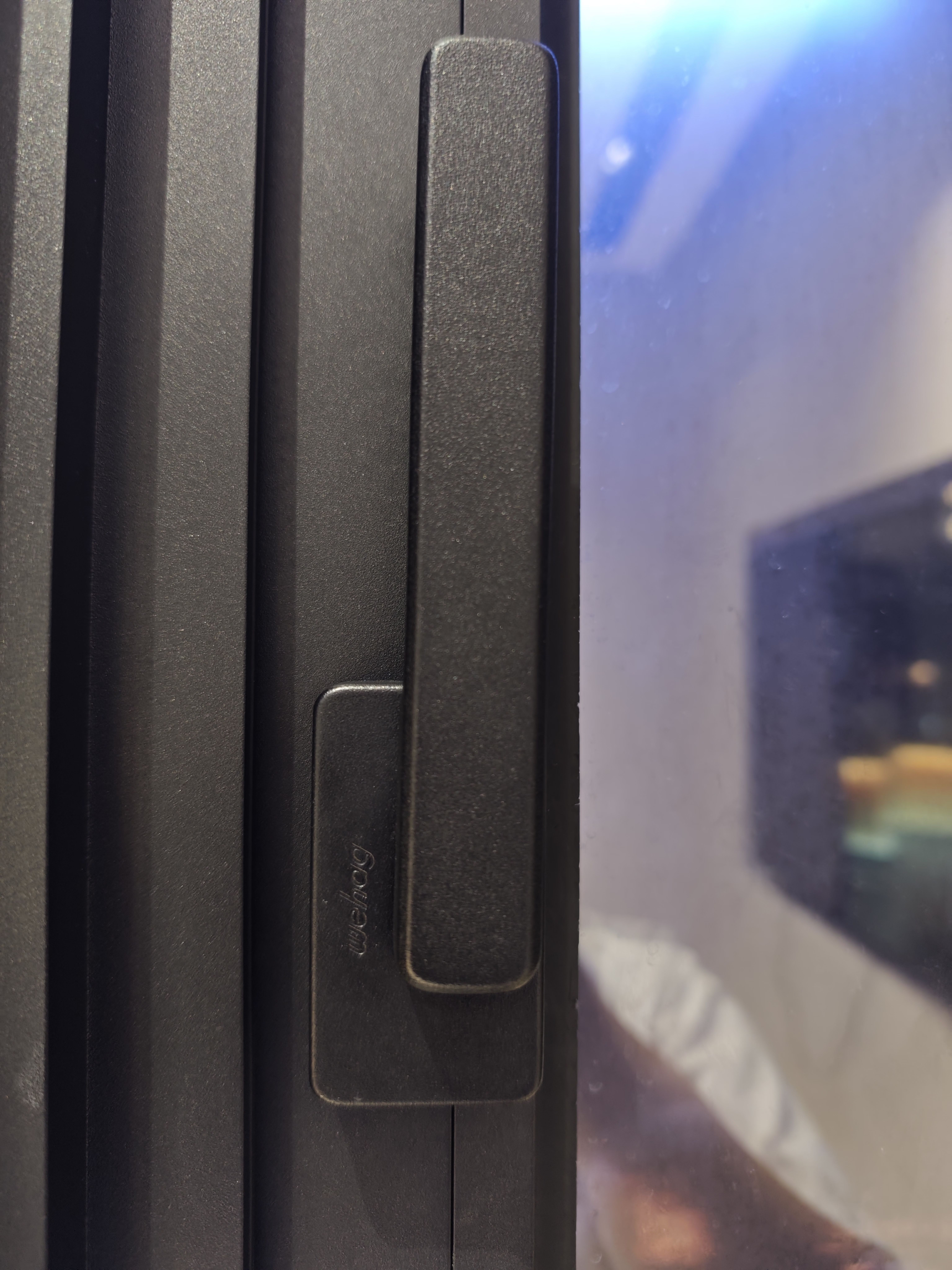

- WEHAG handle available in black, silver, and antique bronze finishes — match the handle finish to adjacent interior hardware.
- Six-point lock with invention patent — select for projects specifying multi-point security locking.
- Standard DERCHI insulation strip — determines the thermal break level for energy-code compliance.
- Double tempered glass with argon gas fill — choose for projects targeting 35 dB sound insulation and U-factor 0.23.
- Water tightness at 700Pa and air tightness at 1.2 m³/(m·h) — select for façade locations exposed to wind-driven rain.
- Wind pressure resistance at 5K Pa — choose for high-rise or storm-region installations.
- SHGC of 0.20 — select for cooling-dominated climates where solar heat gain reduction is required.
- PVDF coating finish — choose for coastal or high-UV environments where color retention matters.
- NFRC, AS2047, and CE certifications — select for projects requiring these compliance marks.
Customizable Styles
- Color finishes: two PVDF options (Retro Green, Mint Gold) and ten stock color options ranging from wood-grain textures to solid metallic and matte finishes
- Glass configuration: seven options available — single, tempered, double-glazed, triple, insulating, laminated, and frosted glass
- Default glass build: Double Tempered Glass with argon gas 5mm+27A+5mm with PVDF Aluminum Strip between double glass
- Layout: WY-118L series supports ten customizable layout configurations including combinations of fixed panels, casement sashes, and awning openings
- Opening way: Outward Opening / Awning
- Handle: WEHAG Handle in Black and Silver
- Optional package: New 48 Pack / New 88 Pack
Hardware Accessories
- WEHAG handle available in black and silver finishes for finish coordination across opening sashes
- WEHAG standard no-base handle offered in black, silver, and antique bronze

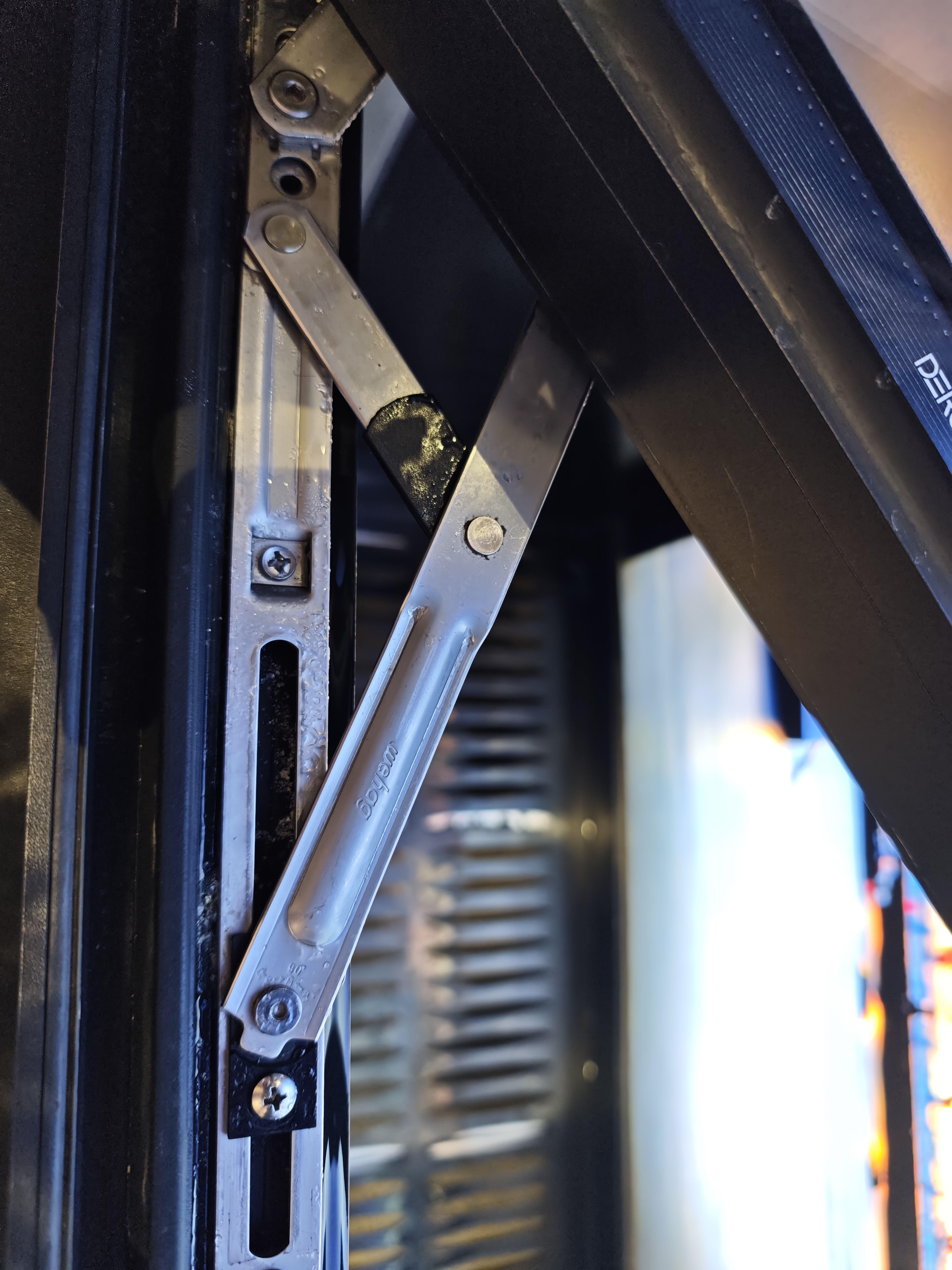

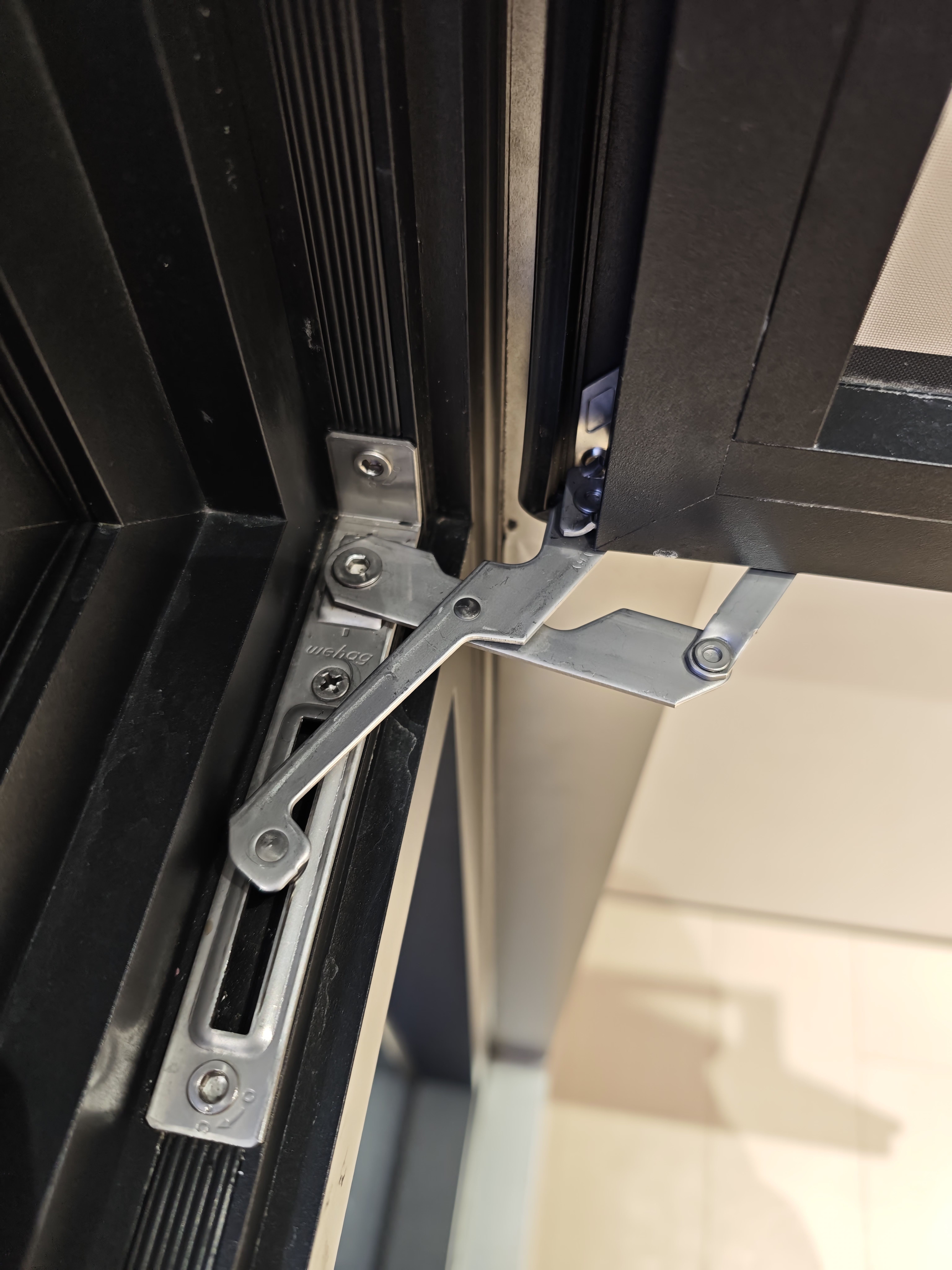

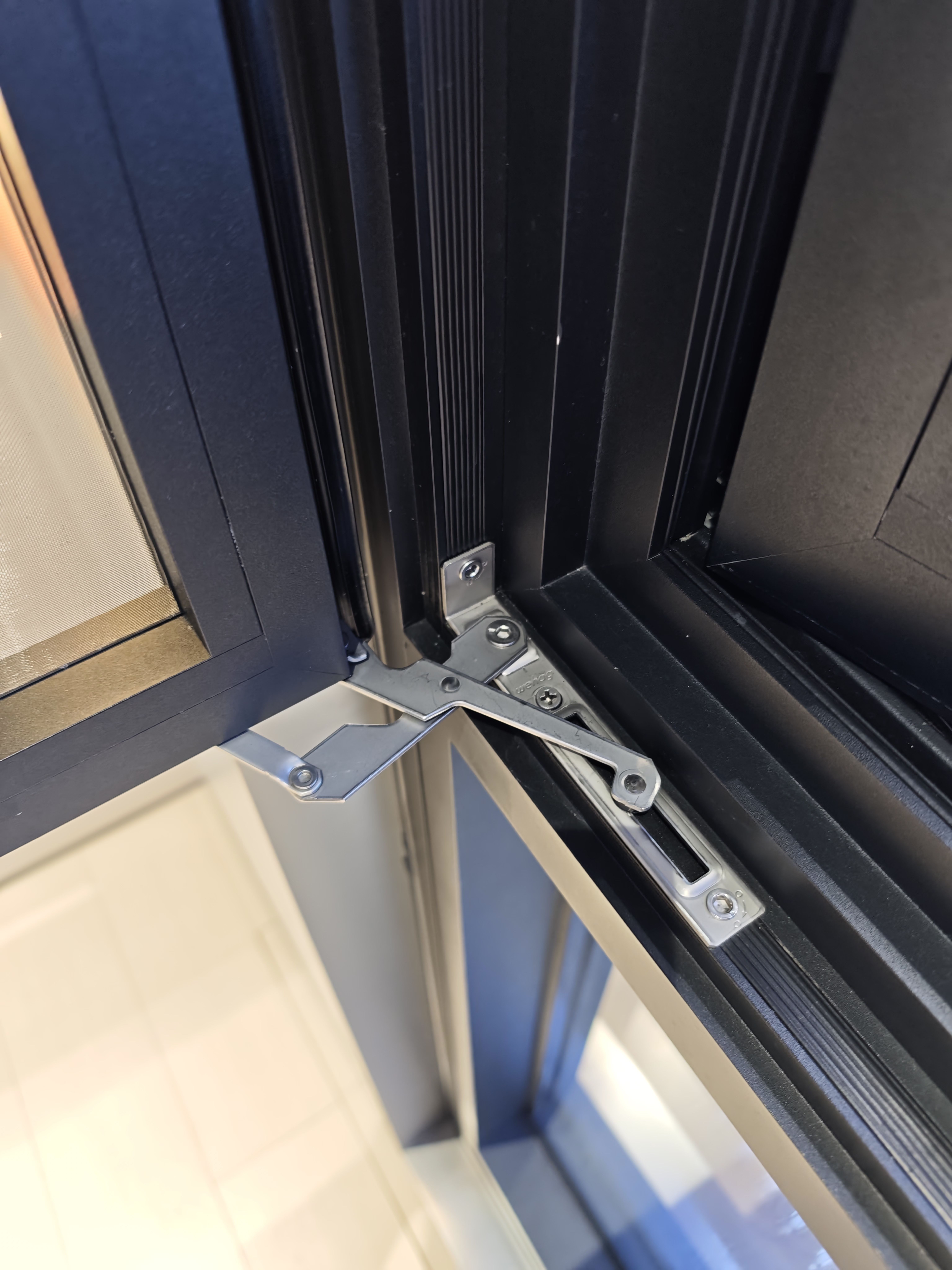

- WEHAG hinge paired with 13-inch flat open friction hinge independently developed by DERCHI for stable outward sash operation
- Transmission box independently developed by DERCHI
- Black Six Point Lock with invention patent paired with WEHAG lock point and lock seat system for six-point locking mechanism
- DERCHI independently developed customized handle designs for WY-118L series
- 10-year quality warranty covering hardware and accessories working properly under correct operation
Basic Parameters
| Performance Dimension | Declared Value | What It Measures | Evidence to Request |
|---|---|---|---|
| Thermal Insulation | U-factor 0.23; SHGC 0.20; Standard DERCHI insulation strip | Rate of heat transfer through the full window assembly under specified boundary conditions, including frame, glazing, and spacer configuration. | Thermal test or simulation report per NFRC or ISO 10077-2, with the declared product configuration. |
| Wind Pressure Resistance | 5K Pa | Capacity of the assembled window to withstand specified wind loads without structural failure or permanent deformation. | Wind-pressure test report confirming tested specimen size, anchorage, and acceptance criteria per ASTM E06.51, FGIA NAFS, or ISO 6613. |
| Water Tightness | 700 Pa | Resistance to water penetration under defined spray exposure and pressure differential across the assembly. | Water-penetration test report confirming tested pressure, spray exposure, and assembly configuration per ASTM E06.51, FGIA NAFS, or ISO 6613. |
| Air Tightness | 1.2 m³/(m·h) | Volume of air leakage through the assembly per unit length per hour at a specified pressure differential. | Air-leakage test report confirming pressure differential, specimen area, and tested configuration per ASTM E06.51, FGIA NAFS, or ISO 6613. |
| Sound Insulation | 35 dB | Reduction of airborne sound transmission through the window assembly under a stated laboratory method and glazing configuration. | Acoustic test report confirming tested construction, glazing, and reported metric per ISO 10140-1 or ASTM E90. |
Product Specifications
| Specification | Value |
|---|---|
| Glass | Double Tempered Glass with argon gas 5mm+27A+5mm (PVDF Aluminum Strip between double glass) |
| Profile Thickness | 1.8 mm |
| Frame Width | 118 mm |
| Handle | WEHAG Handle (Black and Silver) |
| Hinge | WEHAG Hinge |
| Lock Point | Black Six Point Lock (Invention patent) |
| Insulation Strip | Standard DERCHI insulation strip |
| Opening Way | Outward Opening / Awning |
| Optional Package | New 48 Pack / New 88 Pack |
- Opening dimensions (width × height) for each window unit
- Installation drawings or rough opening details
- Project quantity per opening type
- Delivery location and required timeline
- Site-specific environmental conditions
Advantages
- 15+ years of aluminum window and door manufacturing experience with a 70,000+ m² factory, 4,000 m² showroom, and 600+ employees.
- Annual output of 600,000+ m² supports large-volume project orders.
- R&D team of 20+ experts holds 100+ national patents and 50+ industry honors.
- 100% full inspection before shipment, per the supplier's own product specifications, reduces defect risk on arrival.
- Company holds NFRC, CE, AS2047, CSA, and ISO9001 certifications for documented compliance in project approvals.
- One-stop customer service from ordering to shipment coordinates project delivery.
- On-site engineering and supervision services guide installation.
- 10-year quality warranty included.
- Delivery time of 25-35 days after deposit and drawing confirmed.
Application Scenarios
| Scenario | Fit Basis | Confirm Before Specification |
|---|---|---|
| Commercial buildings in coastal or high-precipitation regions | Aluminum picture window evidenced for exterior use in coastal and high-precipitation commercial buildings. | Confirm fluorocarbon coating specification for salt-air exposure and verify EPB energy requirements for the relevant Belgian region. |
| High-rise commercial structures | Product evidenced for high-rise commercial exterior applications. | Confirm wind-load rating and internally glazed configuration against project height requirements. |
| Buildings located near traffic corridors | Product evidenced for buildings near traffic corridors. | Confirm acoustic performance rating against local noise ordinances. |
| Office buildings and hotels | Aluminum picture window evidenced for office and hotel exterior applications. | Confirm glass configuration and U-value compliance with local energy performance regulations. |
| Residential buildings, apartments, and home offices | Product evidenced for residential buildings, apartments, and home office exterior applications. | Confirm externally glazed configuration and EPB compliance for the relevant Belgian region. |
| Commercial facility management | Product evidenced for commercial facility management applications. | Confirm maintenance access and hardware specifications for facility operations. |
FAQ
What must be confirmed technically before production begins?
Delivery runs 25–35 days after the deposit and shop drawings are confirmed, so buyers must finalize and approve drawings before the production clock starts.
What should buyers prepare for volume procurement?
The window system can be supplied as a complete package including profile, hardware, accessories, and glass, as well as finished products, so buyers should specify whether they need full systems or finished units when placing volume orders.
How is pricing determined for custom orders?
Price is based on the buyer's specific requirements, including shop drawings, frame color, glass type, and glass thickness.
What quality assurance is in place before shipment?
Every unit undergoes 100% full inspection before shipment.
What warranty coverage applies to the aluminum picture window?
The product carries a 10-year quality warranty.
What installation support is available for project sites?
Engineering and supervising service for installation is available.
What optional packaging configurations are available for volume orders?
Optional packages include the New 48 Pack and the New 88 Pack.
What EPB compliance requirements apply to fixed picture windows in Belgian regions?
EPB (Energy Performance and Indoor Climate) regulations apply across Flemish, Walloon, and Brussels-Capital regions, so buyers should confirm regional energy compliance before finalizing glazing specifications.
