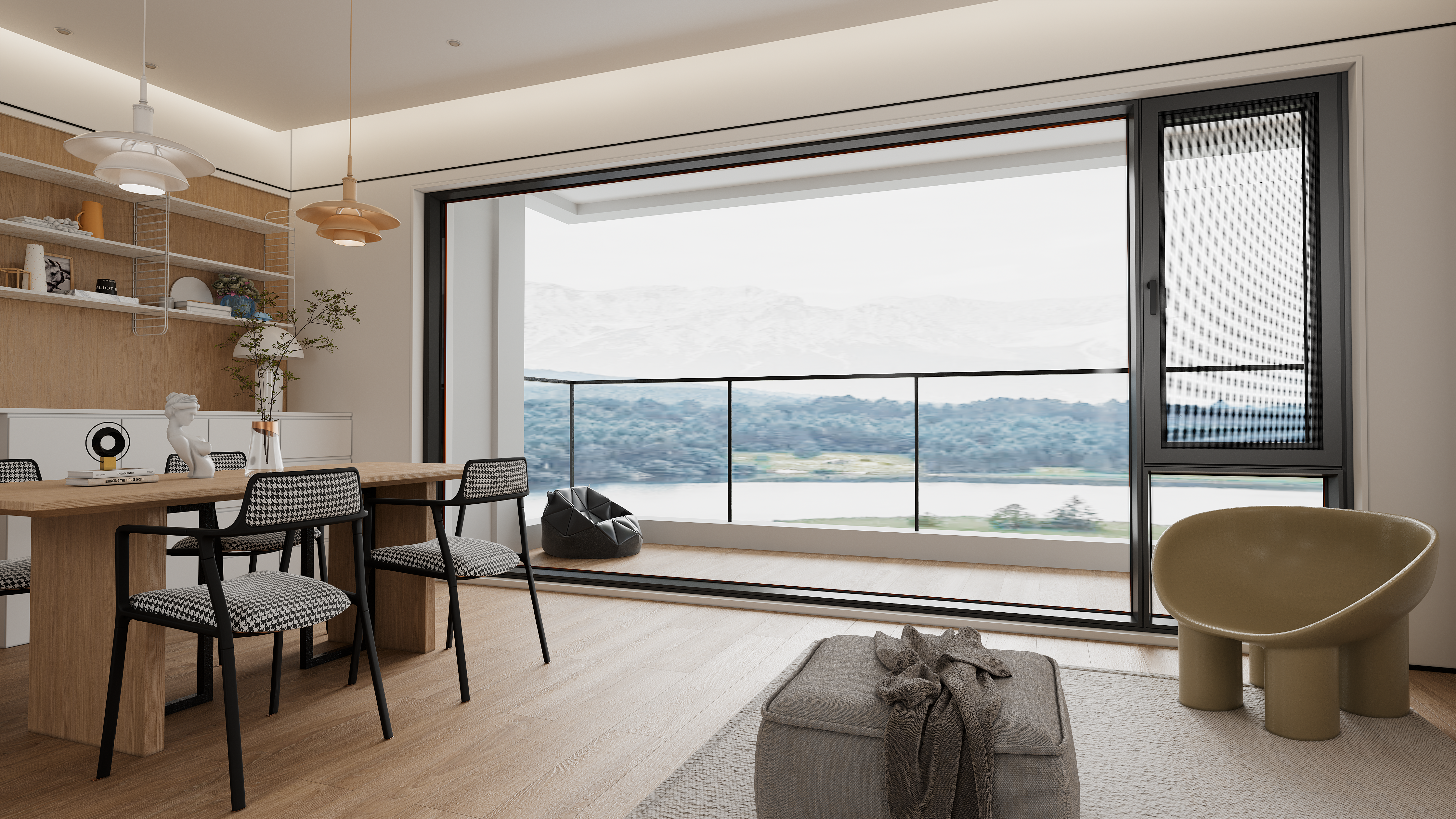

The broken bridge aluminum window is an aluminum casement window whose products meet NFRC, AS2047, and CE standards, built for project buyers evaluating thermal break aluminum window solutions.
- Multi-cavity frame structure and high-performance sealed glazing system
- Custom color matching services support project-specific design requirements
- 100% full inspection before shipment
Product Details
The broken bridge aluminum window is built with a thermal break aluminum profile at 1.8MM thickness and 75MM frame width, incorporating a multi-cavity frame structure and a DERCHI insulation strip that interrupts heat conduction between interior and exterior aluminum sections. Double tempered glass filled with argon gas is sealed using a PVDF aluminum strip in a 5mm+20A+5mm configuration, and the window operates through outward opening or awning action driven by a stainless steel friction hinge with multiple pivot points, ergonomic in-house lever handles with two base style options, and customized lock points and lock bases. The production sequence covers surface treatment, profile processing and cutting, glass cutting with aluminum strip installation, opening panel installation, frame and casing assembly, troubleshooting and sealing, and packing.
Procurement teams should select from seven glass configuration options including single, double, triple, laminated, and frosted variants with specific setups such as 5MM+27A+5MM and 5MM+12A+5MM+12A+5MM, and confirm whether the Black Skin standard inventory finish meets project color requirements or a custom finish is needed. Specification should account for thermal insulation performance, sound insulation and noise reduction, anti-condensation and frost features, and waterproof and drainage system design against the project's climate and acoustic conditions. The 10-year warranty covering frame unfading and hardware operation, the 25-35 day delivery after deposit and drawing confirmation, and the 100% full pre-shipment inspection define the acceptance and timeline parameters for order placement.
Product Features
- Frame width of 75MM and profile thickness of 1.8MM affect selection by setting the wind-load structural class for high-rise commercial and super high-rise residential projects.
- Outward opening and awning configurations affect selection by determining ventilation direction and exterior clearance requirements.
- 35 dB sound insulation rating affects selection by defining the acoustic performance tier for projects near highways or noise-sensitive zones.
- Standard DERCHI insulation strip affects selection by setting the thermal-break specification for energy-code compliance.
- Double tempered glass with optional argon gas fill informs the choice of glazing assembly for thermal and acoustic performance targets.
- Window style configurations—single sash, double sash, multi-panel, angled top, geometric shapes, and hexagonal windows—inform the choice of form factor for non-standard or custom openings.
- PVDF aluminum strip finish informs the choice of weathering and color-retention specification for exterior exposure conditions.
- Customized baseless safety handle, 12-inch heavy-duty stainless steel hinge, and customized lock point with lock base inform the choice of hardware specification for security and operating-load requirements.
Customizable Styles
- Black Skin finish maintained as standard inventory color for immediate availability on standard orders.
- Seven glass configuration options available, including single, double, triple, laminated, and frosted glass variants.
- Glass specification selected from 5mm+20A+5mm double tempered with argon gas and PVDF aluminum strip, 5mm+27A+5mm, or 5mm+12A+5mm+12A+5mm setups.
- Opening way selected as outward opening or awning.
- Hardware selected per project: baseless safety handle, 12-inch heavy-duty hinge, and customized lock point and lock base.
- Insulation strip uses standard DERCHI insulation strip.
Hardware Accessories
- Customized baseless safety handle
- Customized 12-inch heavy-duty hinge
- Customized lock point and lock base
- Stainless steel friction hinge with multiple pivot points
- Ergonomic lever handles developed in-house with two base style options
- Transmission mechanism engineered for WY-75 profile system
- DERCHI-developed handles, hinges, and lock points have passed repeated cycle tests
- 10-year product warranty covering hardware and accessories working properly under correct operation
Basic Parameters
| Performance Dimension | Product Value / Status | Meaning & Test Evidence to Request |
|---|---|---|
| Thermal Insulation | Standard DERCHI insulation strip | Thermal insulation should be compared using the declared rating, test method, specimen configuration, and project boundary conditions. Request the applicable thermal test or simulation report and the declared product configuration. |
| Wind Pressure Resistance | Upgraded profile rigidity satisfies stringent wind load standards of high-rise commercial buildings and super high-rise residences | Wind pressure resistance should be reviewed against the specified test pressure, specimen size, anchorage, and acceptance criteria. Request the wind-pressure test report and confirm the tested specimen and installation conditions. |
| Water Tightness | Requires testing for the target project | Water tightness should be reviewed against the test pressure, spray exposure, specimen configuration, and leakage criteria. Request the water-penetration test report and confirm the tested pressure and assembly configuration. |
| Air Tightness | Requires testing for the target project | Air tightness should be reviewed against the pressure differential, specimen area, reporting units, and tested configuration. Request the air-leakage test report and confirm its pressure and specimen configuration. |
| Sound Insulation | 35 dB | Sound insulation should be compared using the stated laboratory method, specimen construction, glazing, and reported acoustic metric. Request the acoustic test report and confirm that the tested construction matches the proposed configuration. |
Product Specifications
| Specification | Value |
|---|---|
| Glass | Double Tempered Glass with argon gas, 5mm+20A+5mm, PVDF Aluminum Strip between double glass |
| Profile Thickness | 1.8MM |
| Frame Width | 75MM |
| Opening Way | Outward Opening / Awning |
| Insulation Strip | Standard DERCHI insulation strip |
| Handle | Customized baseless safety handle |
| Hinge | Customized 12-inch heavy-duty hinge |
| Lock Point | Customized lock point and lock base |
| Sound Insulation | 35 dB |
| Warranty | 10 years |
| Delivery Time | 25-35 days after deposit and drawing confirmed |
- Select glass configuration from seven available options including single, double, triple, laminated, and frosted variants
- Confirm opening way as outward opening or awning
- Specify custom baseless safety handle requirements
- Specify custom 12-inch heavy-duty hinge requirements
- Confirm lock point and lock base configuration
- Select color or finish, with Black Skin available as standard inventory color
- Provide approved drawings for production confirmation
Advantages
- 15+ years of experience in aluminum windows and doors manufacturing
- 70,000+ m² factory with 600+ employees and 600,000+ m² annual output
- 100% full inspection before shipment
- Authorized by NFRC, CE, AS2047, CSA, and ISO9001
- 100+ national patents and 50+ industry honors
- OEM/ODM capability and custom color matching services reduce project risk by accommodating project-specific design requirements
- OEM/ODM capability is documented in own product input covering customization options and a global distributor network
- 700+ distributors across 100+ countries
- Engineering and supervising service for installation guidance
- One-stop customer service from ordering to shipment
- Products can be tested and certified per buyer requirements
Application Scenarios
| Scenario | Fit Basis | Confirm Before Specification |
|---|---|---|
| High-rise commercial buildings and office buildings | Evidenced own-product application for thermal break aluminum casement windows in commercial structures | Confirm structural requirements for the target building height and custom color matching against project design specifications |
| Super high-rise residences | Evidenced own-product application for tall residential structures | Confirm wind-load and structural requirements for the target height before specifying |
| Hotels | Evidenced own-product application in hospitality buildings | Confirm custom color matching requirements against project design specifications |
| High-end residential projects, villas, and residential buildings | Evidenced own-product application including a Las Vegas villa project in the USA | Confirm custom color matching requirements against project design specifications |
| Exterior and outdoor applications | Evidenced own-product application for exterior building envelope use | Confirm local climate exposure conditions and sealing configuration |
FAQ
What must be confirmed technically before ordering broken bridge aluminum windows?
Buyers must confirm drawings, dimensions, quantity, frame color, and glass type, as pricing is based on these specific requirements. The window system supply includes profile, hardware, accessories, and glass as a complete package. Custom color matching is available for project-specific design requirements, while Black Skin is the standard inventory color for immediate availability on standard orders.
What should buyers prepare for volume procurement?
Buyers should prepare project drawings, dimension schedules, quantity requirements, frame color specifications, and glass type selections before requesting a quote. Delivery takes 25–35 days after deposit and drawing confirmation. Products can be tested and certified per buyer requirements. A 10-year quality warranty applies. 100% full inspection is conducted before shipment.
What is the difference between broken bridge aluminum and standard aluminum windows?
Broken bridge aluminum profiles use a thermal break strip between interior and exterior aluminum sections to reduce heat transfer through the metal frame. This construction can reduce approximately one-third of the heat lost through the window frame and maintain indoor window surface temperatures above 12–13°C. Standard aluminum frames lack this thermal barrier and conduct heat directly between indoor and outdoor environments.
How does broken bridge aluminum improve sound insulation?
The thermal break construction combined with insulating glass reduces noise transmission through the window assembly. Air sound insulation can reach 30–40 dB, with noise reduction exceeding 30 dB in tested configurations. For projects near highways or dense urban areas, confirm the specific glass configuration and sealing system to meet project acoustic targets.
What color and finish options are available?
Black Skin is the standard inventory color available for immediate availability on standard orders. Custom color matching services support project-specific design requirements. Wood grain finishes and dual-color options for interior and exterior surfaces are available as market-standard configurations; confirm whether these finishes are needed for your project before placing an order.
What is included in the window system supply?
The window system supply includes profile, hardware, accessories, and glass. Products are delivered as finished products ready for installation. Engineering and supervising service is available for installation guidance. Confirm whether installation support is required for your project site when placing the order.
