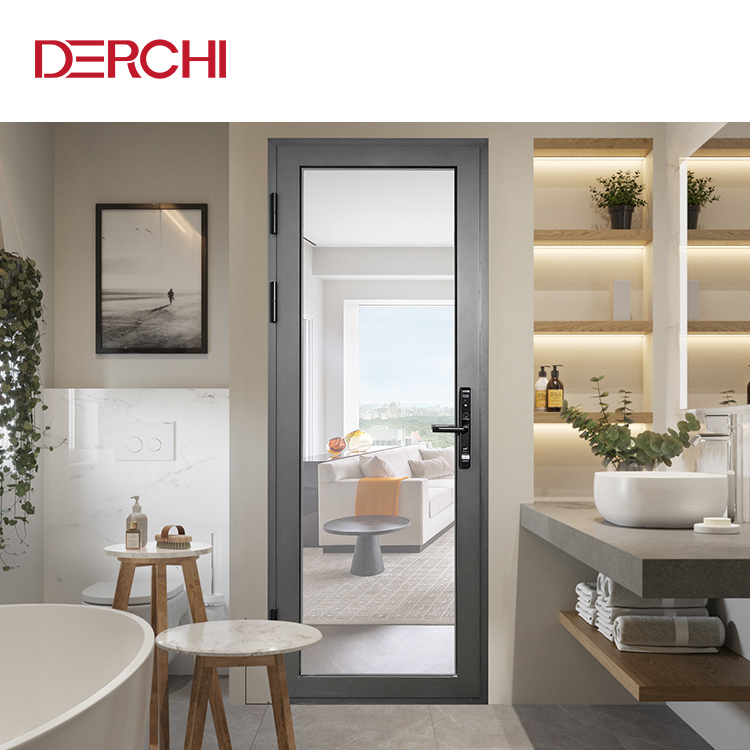

The aluminum glass door opens both ways, giving designers a flexible tool for dividing interior rooms without losing natural light. Its double-glazed construction helps maintain comfortable temperatures and reduce sound, while the 6063-T5 frame stands up to daily traffic.
- Fabricated to your site measurements: Standard width range 600–850 mm, height up to 2500 mm; panels are cut to order, cutting down onsite adjustments.
- Insulated glass choice: Standard 5mm+12A+5mm double glazing achieves U-Factor 0.39 and sound reduction of 37 dB; single 8 mm tempered glass is also available.
- Stable frame: 6063-T5 aluminum profiles with EPDM sealing strips hold up to moisture and frequent opening without warping.
Product Details
The double swing door uses a 54 mm wide 6063-T5 aluminium extrusion. The door leaf glass is structurally glued into the sash, while fixed panels rely on a press-in gasket. This two‑method approach stiffens the assembly and helps achieve an air leakage rate of 5 m³/(m²·h) and water tightness of 300 Pa. The double‑glazed panel delivers a sound insulation rating of 37 dB and a whole‑door U‑Factor of 0.39, so interior spaces stay thermally separated. The two‑way hinged system allows inward and outward swing without a fixed mullion, simplifying traffic in narrow corridors and open‑plan layouts.
Product Features
Dual glazing for thermal stability: 5mm+12A+5mm glass keeps U‑Factor at 0.39, reducing heat flow and helping to steady indoor temperatures without overworking HVAC.
Acoustic privacy: 37 dB noise reduction muffles conversations and outside sound, making the door suitable for bedrooms, studies, and meeting rooms.
Rigid aluminium frame: 6063-T5 profiles with 1.45 mm wall thickness keep their shape even after years of daily operation, minimising sag or sticking.
Tailored dimensions: Each door is produced to the exact opening width (600–850 mm) and height (1800–2500 mm) you request, so no filler panels are needed.
Safety glass options: Choose between double‑glazed units or 8 mm single tempered glass; both comply with impact safety expectations for pedestrian areas.
Structural gluing process: Bonding glass to the sash improves air‑tightness (5 m³/(m²·h)) and water resistance (300 Pa) beyond typical dry‑glazed designs.
Customizable Styles
Glass package: Specify 5mm+12A+5mm double glazing for insulation, or 8 mm single tempered for a lighter appearance.
Opening operation: Hinges can be configured for inward, outward, or two‑way swing to match the traffic flow.
Exact cut sizes: Panels are fabricated to your as‑built measurements within the width and height limits.
Frame finish: Anodized silver is standard; bulk orders may qualify for powder coating in RAL colours—discuss with our project team.
Glass treatment: Clear, frosted, or tinted options are available upon request; confirm availability when finalising specifications.
Hardware Accessories
DERCHI lever handle: Shaped to match the slim aluminium profile, with a tactile grip that suits frequent use in busy interiors.
DERCHI heavy‑duty hinges: Engineered to carry the glass weight without sagging, maintaining consistent swing alignment over time.
EPDM rubber seals: Continuous gaskets compress around the frame and leaf to block drafts and dampen sound; they stay flexible in typical indoor humidity.
Lock bodies: Compatible latch and deadbolt sets can be added; tell us your preferred keying and cylinder arrangement.
Stops and accessories: Concealed closers or floor‑mounted stops are available for some configurations—we will verify compatibility at order stage.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | U-Factor 0.39, SHGC 0.25 | Confirm whether values are center-of-glass or whole-door, and the reference standard (e.g., NFRC, EN); this impacts energy-code compliance. |
Wind Pressure Resistance | 3 KPa | Verify the test method and safety factor; compare with project-specific design wind loads and local building codes. |
Water Tightness | 300 Pa | Request the testing standard (e.g., EN 12208) and confirm suitability for high-humidity interior conditions or semi-exposed areas. |
Air Tightness | 5 m³/(m²·h) | Clarify the test pressure differential and classification; better airtightness contributes to energy savings and indoor dust control. |
Sound Insulation | 37 dB | Check if the rating refers to Rw or STC; for sensitive spaces, request a full test report to evaluate speech privacy. |
Product Specifications
Item | Specification |
|---|---|
Product Name | Aluminum Glass Swing Door |
Product Type | Aluminum alloy glass double swing door (interior) |
Material | 6063-T5 aluminum alloy profiles; EPDM rubber seals |
Glass Type | Standard: 5mm+12A+5mm double glazing; Optional: 8mm single tempered |
Glass Thickness | As per chosen configuration; verify exact details with supplier |
Frame Option | 54 mm wide frame, 1.45 mm wall thickness; door leaf 1.2 mm |
Hardware | DERCHI custom handle and hinges; additional accessories upon request |
Opening Style | Double swing (inward / outward or both) |
Size Range | Width 600–850 mm, Height 1800–2500 mm |
Application | Indoor doors, space partitions, bedrooms, studies |
Customization | Available for dimensions, glass type, finish, and hardware; project-specific confirmation required |
Notes | Technical documents and test reports can be shared under NDA; confirm certification needs before order |
Advantages
Thermal performance: Whole‑door U‑Factor 0.39 and SHGC 0.25 help cut temperature swings, reducing reliance on heating and cooling in interior zones.
Acoustic separation: 37 dB sound reduction makes the door an effective barrier for quiet spaces, from home offices to hotel suites.
Durable construction: The glued glass‑to‑frame bond and 1.45 mm thick aluminium profile resist deformation under regular daily use.
Custom fit: Made‑to‑measure production eliminates the need for filler panels and speeds up installation on site.
Flexible operation: Double‑swing hinges allow passage in either direction, solving tight‑space layouts in corridors and small rooms.
Application Scenarios
Apartment: Glazed swing door replaces a solid wall, letting daylight flow through while keeping rooms separable; standard widths fit typical rough openings.
Home Office: Creates a visual boundary without closing off the space; 37 dB cut knocks down keyboard noise and voices, helping maintain focus.
Hotel: Moisture‑resistant aluminium suits bathroom or closet entrances; double swing eases movement with luggage, and tempered glass meets safety expectations.
Office Building: Glass‑fronted meeting pods gain a clean, modern partition; two‑way opening and low U‑Factor support energy‑conscious fit‑outs.
Outdoor (covered): Primarily an indoor product; for covered passages, verify water tightness and hardware corrosion resistance with the supplier before specifying.
Residential Building: Kitchen‑to‑balcony partition cuts heat loss and street noise better than single‑pane alternatives; custom height up to 2500 mm fits tall openings.
Exterior: Not engineered for exposed outdoor conditions; consult us about weatherproofing upgrades if you need a similar look for a sheltered entrance.
Villa: Floor‑to‑ceiling glass up to 2500 mm creates an open, contemporary feel; dark anodized frames paired with clear double glazing deliver a clean aesthetic.
FAQ
What is a glass door double swing?
An aluminium‑framed door that swings both ways on hinges, combining a glazed panel for light transfer with insulation properties. The uses double glazing and EPDM seals to control heat and noise.
Where can this double swing glass door be used?
Primary indoor applications include room dividers, home offices, bedrooms, hotel interiors, and glass‑walled meeting rooms. For sheltered semi‑outdoor spots, discuss weather limits with us.
Can the door size and configuration be customized?
Yes. We fabricate panels to your exact opening dimensions within the 600–850 mm width and 1800–2500 mm height windows. Glass, swing direction, finish, and hardware can all be adjusted.
What information is needed for a quote?
Provide rough opening sizes, preferred glass, swing orientation, order volume, and any special finish or hardware instructions. That helps us work up a precise project quotation.
Is the glass door double swing suitable for exterior use?
The is designed for interior environments. For fully exposed exterior situations, extra engineering and different components may be necessary; contact our technical staff to discuss feasibility.
Are technical documents and test reports available?
Yes. Drawings, performance summaries, and material certificates can be shared under NDA. Let us know which standards (EN, ASTM, etc.) you need to meet.
What should buyers confirm before placing an order?
Clarify the test standards for thermal and acoustic figures, check hardware suitability for daily use, finalize packaging (e.g., New 32 Pack), and list any certifications the project requires.
How are certification, packaging, and shipping details handled?
We review certification requests case by case and provide relevant documents once your requirements are clear. Packaging methods and shipping terms are agreed during order negotiation.
