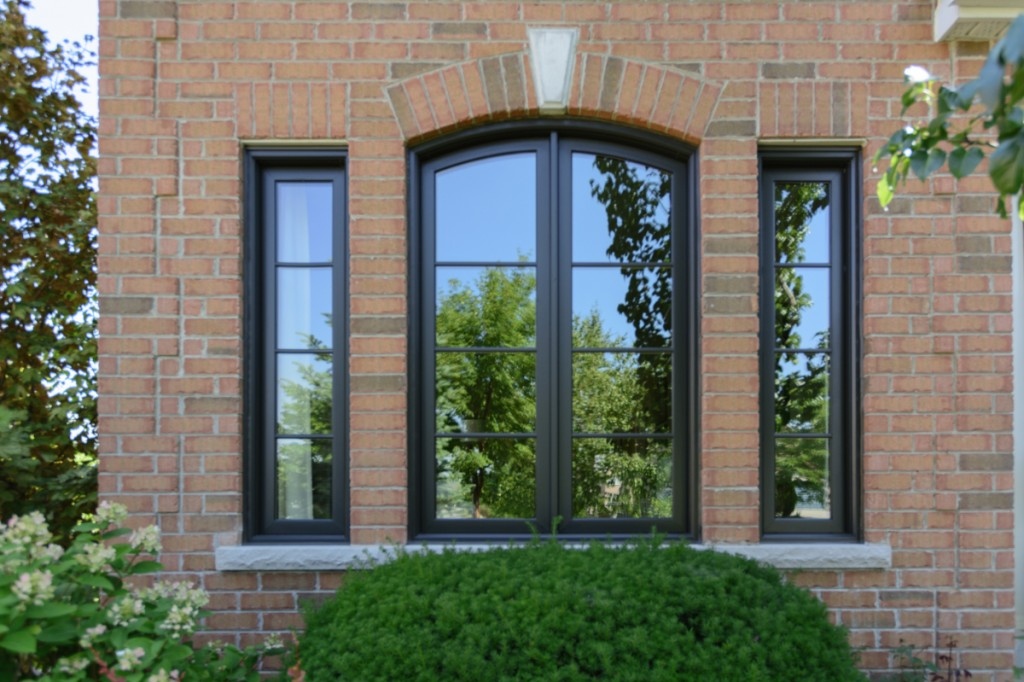

The 30x30 casement window is a crank-out aluminum window with double tempered glass, built for residential and light commercial projects. Hand-crank operation gives users controlled ventilation without reaching outside the frame, practical for upper-floor installations.
- 6063-T5 aluminum frame, 1.4 mm profile thickness, EPDM rubber strip sealing
- Three frame depth options: 72, 86, and 100 mm across WY-72, WY-86, WY-100
- Double tempered glass: 5+27A+5 mm (WY-72/WY-100) or 5+15A+5 mm (WY-86)
- Made-to-size within opening panel range W450-800 mm x H600-1500 mm
Product Details
The 30x30 casement window uses a 6063-T5 aluminum profile with 1.4 mm wall thickness and EPDM rubber strip sealing. Double tempered glass comes in two configurations — 5+27A+5 mm for WY-72 and WY-100, or 5+15A+5 mm for WY-86. Unlike push-out casement windows, this crank-out window uses a geared hand-crank operator to set a precise opening angle without reaching outside.
Three frame depth series — 72, 86, and 100 mm — let teams match performance targets and hardware to local standards. WY-72 pairs with American-style crank and multi-point lock; WY-86 and WY-100 use Australian hanging crank with single-point locking. The nominal 30 x 30 inch size (762 x 762 mm, ~0.58 m²) fits compact residential openings, while the broader panel range supports non-standard dimensions.
Product Features
Hand-Crank Operation: The geared crank mechanism opens and positions the sash from inside the room, useful for upper-floor or hard-to-reach installations where reaching outward is impractical.
Double Tempered Glass: Two tempered panes with configurable spacer widths (27A or 15A) provide safety glazing and baseline thermal performance; this double tempered glass window configuration supports different series targets.
6063-T5 Aluminum Frame: The 1.4 mm profile thickness offers structural integrity for standard residential wind load conditions, giving the hand crank aluminum window reliable everyday operation.
EPDM Rubber Strip Sealing: Continuous EPDM sealing at frame joints helps limit air infiltration and water penetration, contributing to consistent weather performance under standard environmental exposure conditions.
Three Frame Depth Options: Series 72, 86, and 100 mm allow buyers to select frame depth based on project performance requirements, glass configuration, and regional hardware preferences.
Made-to-Size Production: The opening panel range of W450-800 mm x H600-1500 mm supports project-specific dimensions, enabling this made-to-size casement window to go beyond nominal 30 x 30 inches.
Customizable Styles
Opening Configuration: Choose single casement, awning, or fixed-plus-operable composite layouts based on ventilation needs and installation position for each project.
Size Customization: Within the opening panel range of W450-800 mm x H600-1500 mm, this aluminum casement window can be produced to project-specific dimensions.
Color Selection: Twelve official color families include Pearl White, Quartz Gray, Starry Sky Black, Deep Coffee, Black Walnut wood grain, and Mint Gold.
Glass Upgrades: Low-E, argon-filled, warm-edge spacer, laminated, and triple glazing options adjust U-Factor, SHGC, and acoustic performance for project targets.
Screen and Safety: Anti-theft screen, 304 mesh, King Kong mesh, 48-mesh mesh, and fixed or opening safety fence — confirm series compatibility with DERCHI.
Hardware Accessories
American Hand Crank (WY-72): Paired with a multi-point switch lock seat, this crank set provides secure operation and multi-point locking for flat-opening configurations.
Australian Hanging Hand Crank (WY-86/WY-100): Combined with a single-point switch lock seat, this hardware supports top-hung operation for projects requiring different opening mechanics.
Casement Limiters: Simple limiters and safety limiters are available as optional add-ons to control opening angle and improve child safety on elevated installations.
Screen Mesh Options: 304 stainless steel mesh, King Kong mesh, and 48-mesh high-transparency mesh provide insect protection while allowing airflow — confirm series compatibility.
Safety Fence: Fixed or opening safety fence options add a physical barrier for elevated installations and child-safety-sensitive applications — selection depends on project requirements.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | U-Factor 0.39, SHGC 0.25 | Confirm U-Factor and SHGC apply to selected series and glass package before project submission. |
Wind Pressure Resistance | 5 KPa | Verify this meets project-specific wind load requirements and local building codes. |
Water Tightness | 350 Pa | Confirm this meets local code requirements for the project wind and rain exposure zone. |
Air Tightness | 4.5 m³/(m·h) | Confirm air-tightness class rating per applicable local standard for compliance. |
Sound Insulation | 30 dB | Confirm acoustic performance meets project requirements; glass upgrades may improve sound insulation. |
Product Specifications
Parameter | Value |
|---|---|
Product Name | 30x30 Casement Window |
Product Type | Cranked-out casement window, hand-crank operation |
Frame Material | 6063-T5 aluminum profile, 1.4 mm thickness |
Frame Depth Options | 72 / 86 / 100 mm |
Sealing | EPDM rubber strip |
Glass (WY-72/WY-100) | Double tempered 5+27A+5 mm |
Glass (WY-86) | Double tempered 5+15A+5 mm |
Opening Method | Flat opening / hanging up, hand-crank |
Nominal Size | 30 x 30 in (762 x 762 mm), ~0.58 m² |
Opening Panel Range | W450-800 mm x H600-1500 mm |
Water Resistance | 350 Pa |
Air Permeance | 4.5 m³/(m·h) |
Wind Resistance | 5 KPa |
Sound Insulation | 30 dB |
U-Factor | 0.39 |
SHGC | 0.25 |
Hardware | WY-72: American crank + multi-point lock; WY-86/100: Australian hanging crank + single-point lock |
Color Families | 12 options (Pearl White, Quartz Gray, Starry Sky Black, etc.) |
Screen Options | Anti-theft, 304 mesh, King Kong mesh, 48-mesh, safety fence |
Reference Delivery | 25-35 days (confirm per order) |
Reference Supply | 20,000 m²/month |
Customization | Made-to-size; color, glass, hardware, screen options |
Notes | Final configuration confirmed with DERCHI after drawing approval |
Advantages
Crank-Operated Ventilation: The hand-crank mechanism allows ventilation control without reaching outside, suitable for upper-floor or hard-to-access positions in multi-story buildings.
Multi-Series Flexibility: Three frame depth series (72/86/100 mm) support different market requirements and performance targets within one product family for project flexibility.
Safety Glazing Standard: Double tempered glass with configurable spacer widths provides safety and baseline thermal performance for residential and light commercial applications.
Weather Sealing: EPDM rubber strip sealing at frame joints helps reduce air infiltration and water penetration under standard weather exposure conditions.
Project Customization: Made-to-size production with twelve color families, multiple glass upgrades, hardware variants, and screen options supports diverse project specifications.
Application Scenarios
Apartment: This crank-out window suits apartment bedrooms and kitchens where hand-crank operation provides ventilation without swinging into interior walkways. EPDM sealing handles everyday weather exposure in multi-unit buildings.
Home Office: Hand-crank operation allows controlled airflow and natural light in home office spaces, supporting comfort during extended work hours. Double tempered glass provides baseline acoustic insulation.
Hotel: Crank-out casement windows offer hotel guests adjustable ventilation with optional limiters and screens. The 30 x 30 inch nominal size fits standard guest room openings.
Office Building: The 6063-T5 aluminum frame with double tempered glass provides baseline thermal and acoustic performance for office fenestration. Hand-crank operation suits upper-floor installations with limited outward access.
Outdoor: For outdoor-facing enclosures, the crank-out design with EPDM sealing addresses weather exposure. Buyers should confirm water tightness, wind pressure, and surface finish for specific conditions.
Residential Building: Made-to-size production and three series options support residential projects with varying performance and code requirements. Color families and screen options accommodate diverse architectural styles and preferences.
Exterior: Twelve color family options on the 6063-T5 aluminum frame suit exterior facade applications. Buyers should confirm weather resistance, surface finish durability, and installation conditions for the climate.
Villa: Customizable styles including single sash, fixed-plus-operable, and multi-segment combinations support villa projects requiring design flexibility. Wood grain and specialty color options align with higher-end specifications.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
How do I get a quote for the 30x30 casement window?
Provide series preference (WY-72, WY-86, or WY-100), glass package, color, hardware, screen, crank side, and total quantity. DERCHI confirms pricing after drawing review.
Which frame depth series should I choose?
Series selection depends on project wind load, thermal, and acoustic requirements. WY-72, WY-86, and WY-100 offer different glass and hardware. Confirm against project specs.
Can I customize the window size beyond 30 x 30 inches?
Made-to-size production is available within the opening panel range of W450-800 mm x H600-1500 mm. Confirm final dimensions, rough opening, and installation method with DERCHI.
What glass upgrades are available?
Options include Low-E, argon-filled, warm-edge spacer, laminated, and triple glazing. Each upgrade affects U-Factor, SHGC, and sound insulation values. Confirm performance after final glass selection.
What is the lead time and minimum order quantity?
Reference delivery is 25-35 days with cited supply capacity of 20,000 m²/month. MOQ and final lead time are confirmed per order after drawing approval.
How are windows packaged for export shipping?
Wooden-frame packaging with protective tape, pallet fixing, plastic belts, and PE films provides sea-water protection. Air bags between pallets add shipping stability for container loads.
Are technical documents and test reports available?
DERCHI provides product specifications and configuration details for project submissions. Buyers should confirm applicable certifications and test reports for the selected series before finalizing documentation.
