P103 Series Swing Door

Learn the Beauty and Usefulness of DERCHI P103 Series Swing Doors.

Look at the lovely features and change choices of DERCHI P103 Series Swing Doors in our helpful video show. See the great skill and new design that make these aluminum swing doors a top pick for both business places and homes.

China P103 Series Swing Door Solutions

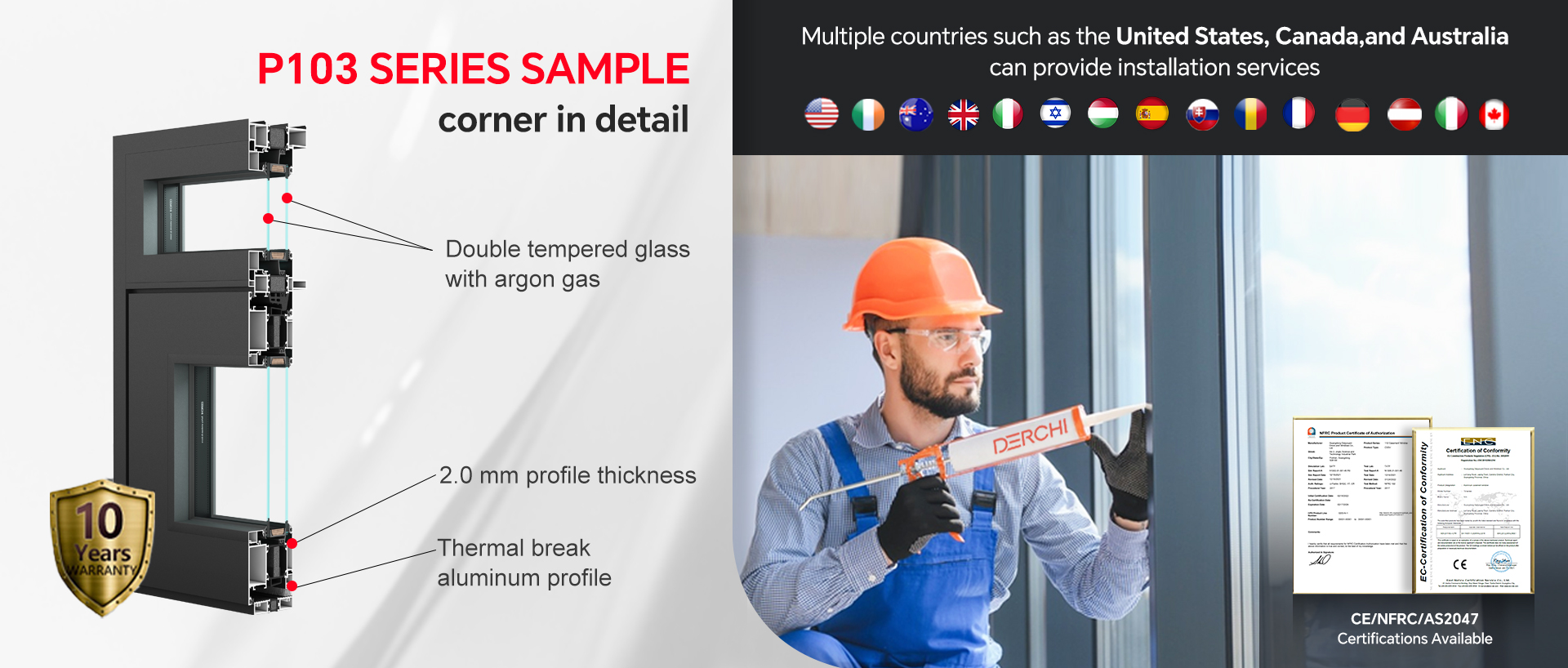

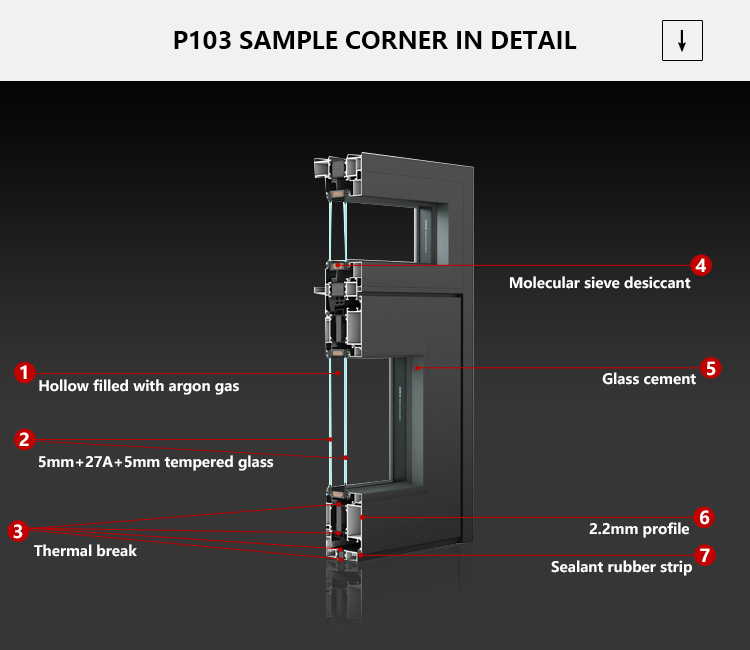

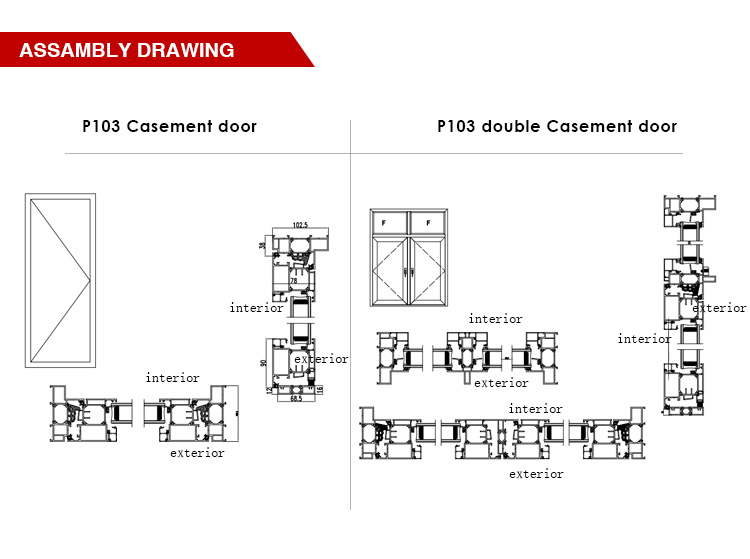

DERCHI china P103 series swing door uses 2.0 mm aluminum profiles, 35 mm insulation strips, and 5+27A+5 shatter proof glass door units. Three-seal structures, internal glazing, and injected corner joints help improve sealing, stability, and basic noise control for residential and light commercial projects.

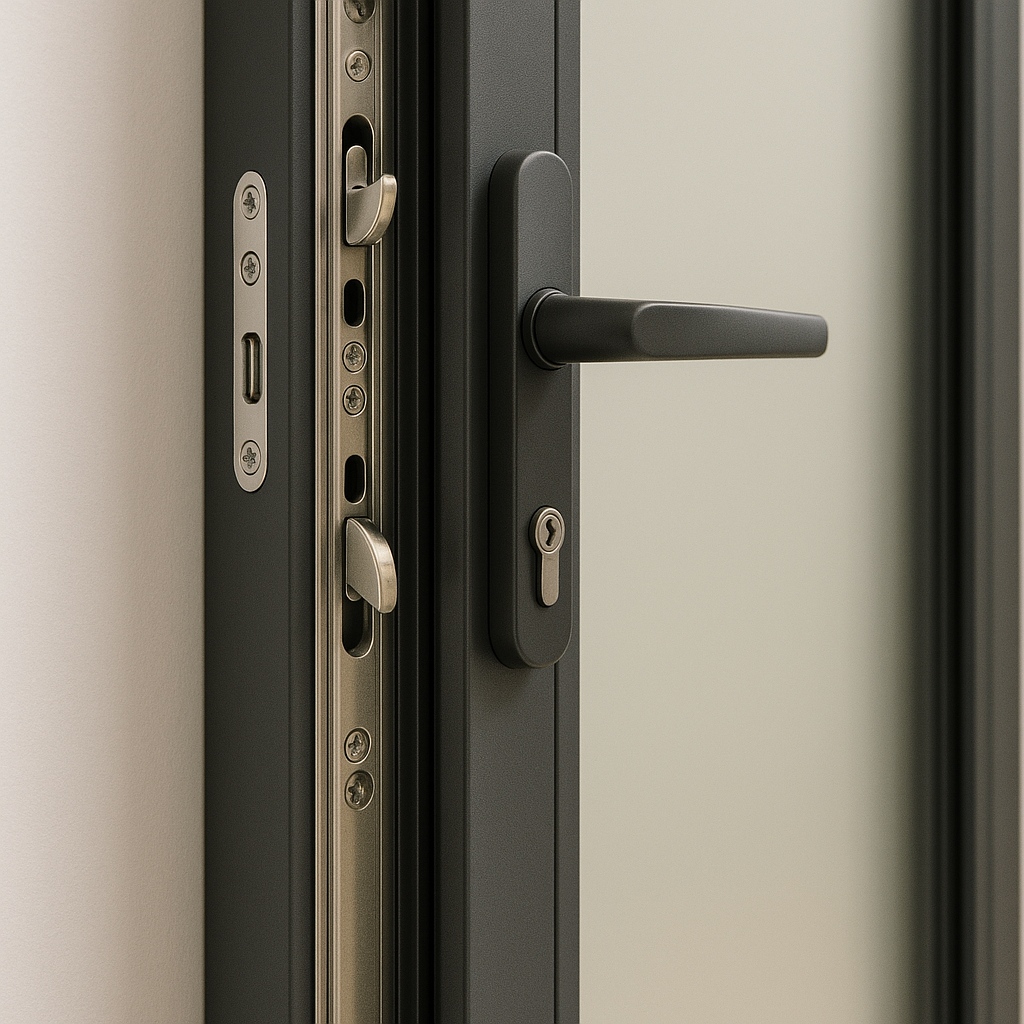

This swing aluminum doors system supports inward, outward, double, and mother-and-child openings, with single sash up to 1200 mm wide, 2800 mm high, and 150 kg. As a p103 series swing door manufacturer and swing door manufacturer, DERCHI offers optional fingerprint locks, track options, and insulation cotton packages.

U-Factor: 0.38

A U-Factor of 0.38 limits heat transfer through the swing aluminum doors. It helps keep indoor temperatures more stable, reduces heating and cooling demand, and supports energy-efficient building designs.

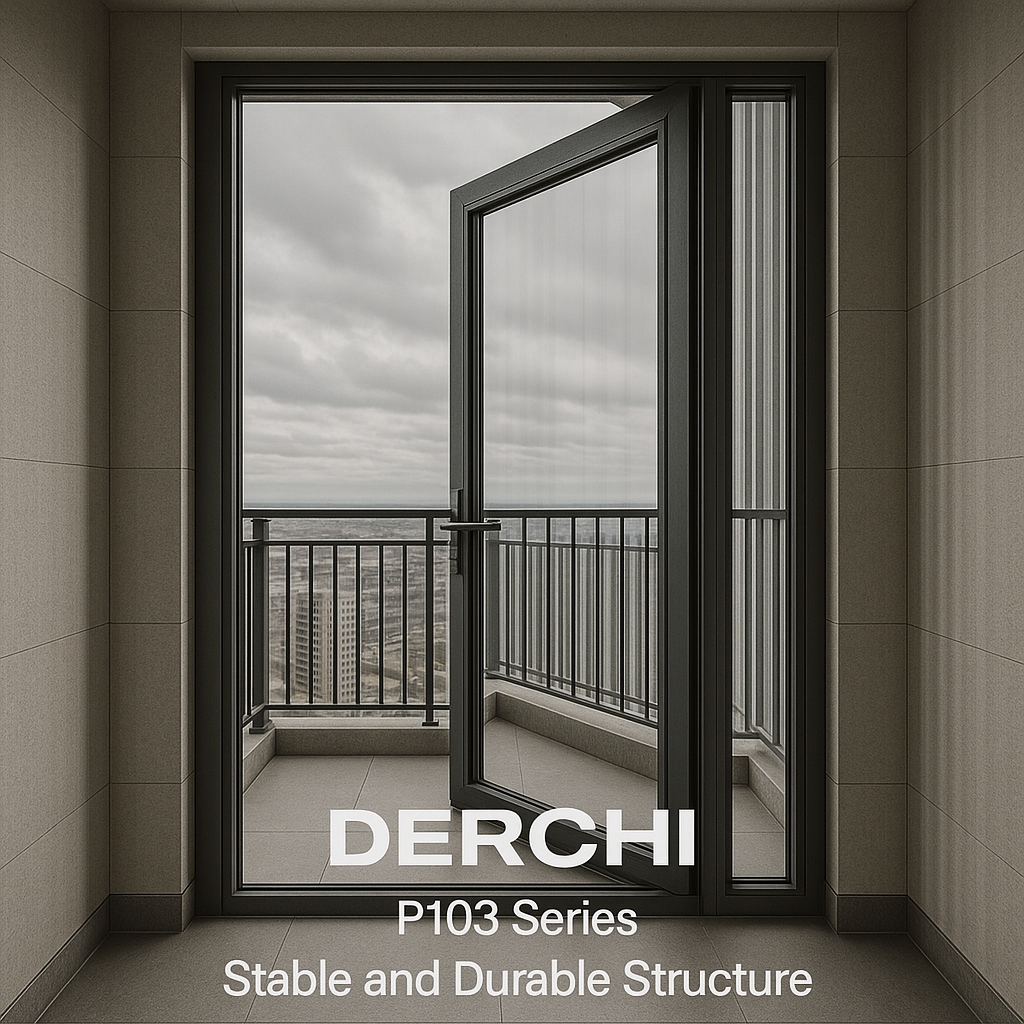

Wind Pressure Resistance: 5K Pa

Resistance up to 5K Pa shows the door can stay stable under strong wind loads. This supports use in high-rise, open terrain or coastal projects where a swing door manufacturer must control frame deflection and sash movement.

Solar Heat Gain Coefficient (SHGC): 0.25

An SHGC of 0.25 reduces solar heat entering through the shatter proof glass door. It helps keep rooms cooler in hot climates, lowers cooling loads, and limits glare on interior finishes and furniture.

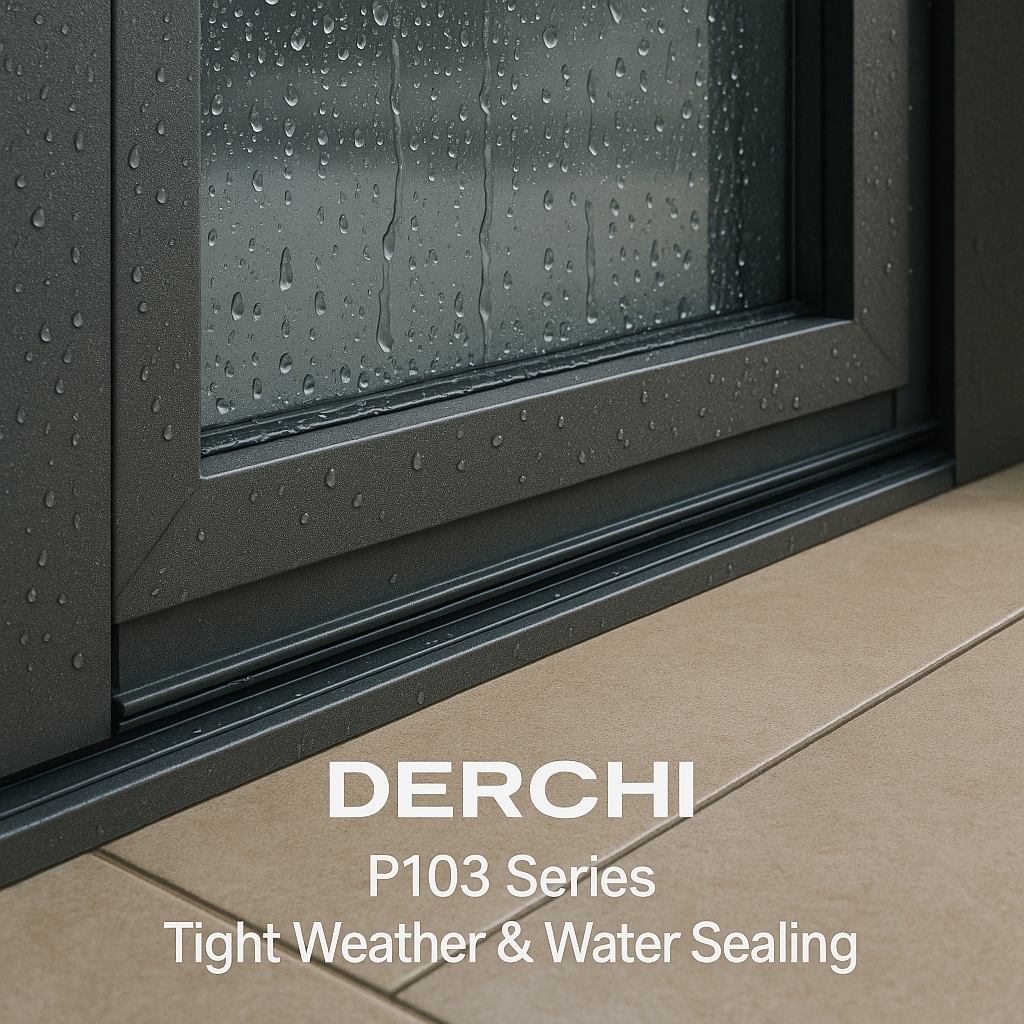

Water Tightness: 450 Pa

Water tightness of 450 Pa means the door resists wind-driven rain at significant pressure. The drainage and gasket system help keep interior floors dry, protecting finishes near the door threshold.

Air Tightness: 4.5 m³/(m·h)

Air tightness of 4.5 m³/(m·h) limits uncontrolled air leakage around the frame and sash. It reduces drafts, supports HVAC efficiency, and helps keep dust and outdoor odors out of living spaces.

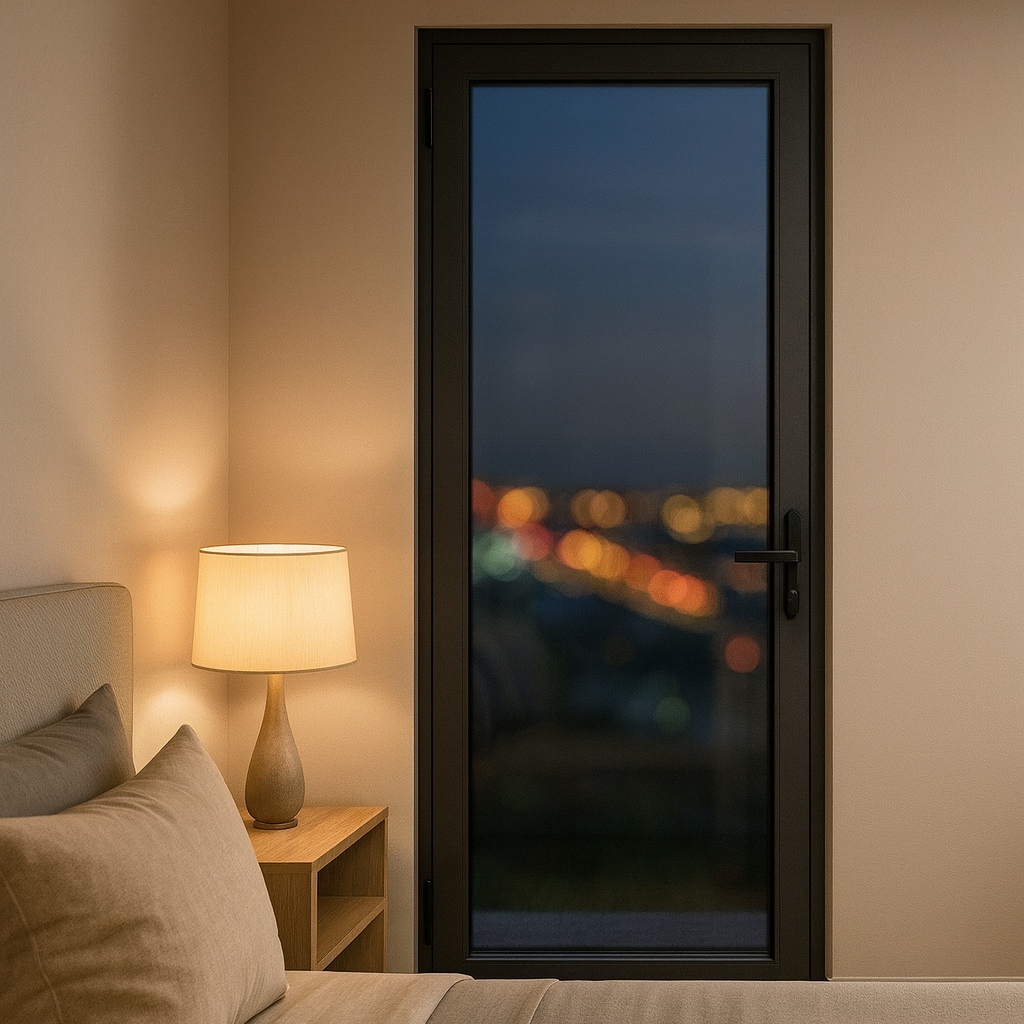

Sound Insulation Performance: 30 dB

A sound insulation rating of 30 dB helps cut traffic, courtyard and neighborhood noise. In combination with shatter proof glass door options, it supports quieter bedrooms, studies and living areas.

Why Choose DERCHI P103 Series Swing Door

DERCHI offers exceptional aluminum swing doors backed by extensive experience, rigorous quality control, and a global presence. Here are key reasons to partner with us:

Certifications and Standards that the P103 Series Swing Door

Learn the different certifications and standards in the industry attained by the DERCHI P103 Series Swing Door. This will illustrate how compliant this door is with high standards of quality, safety, and performance, thus proving its reliability for both commercial and residential application areas. See how these enforcements ensure such great artistry in doors while keeping to the best practices of the industry.
