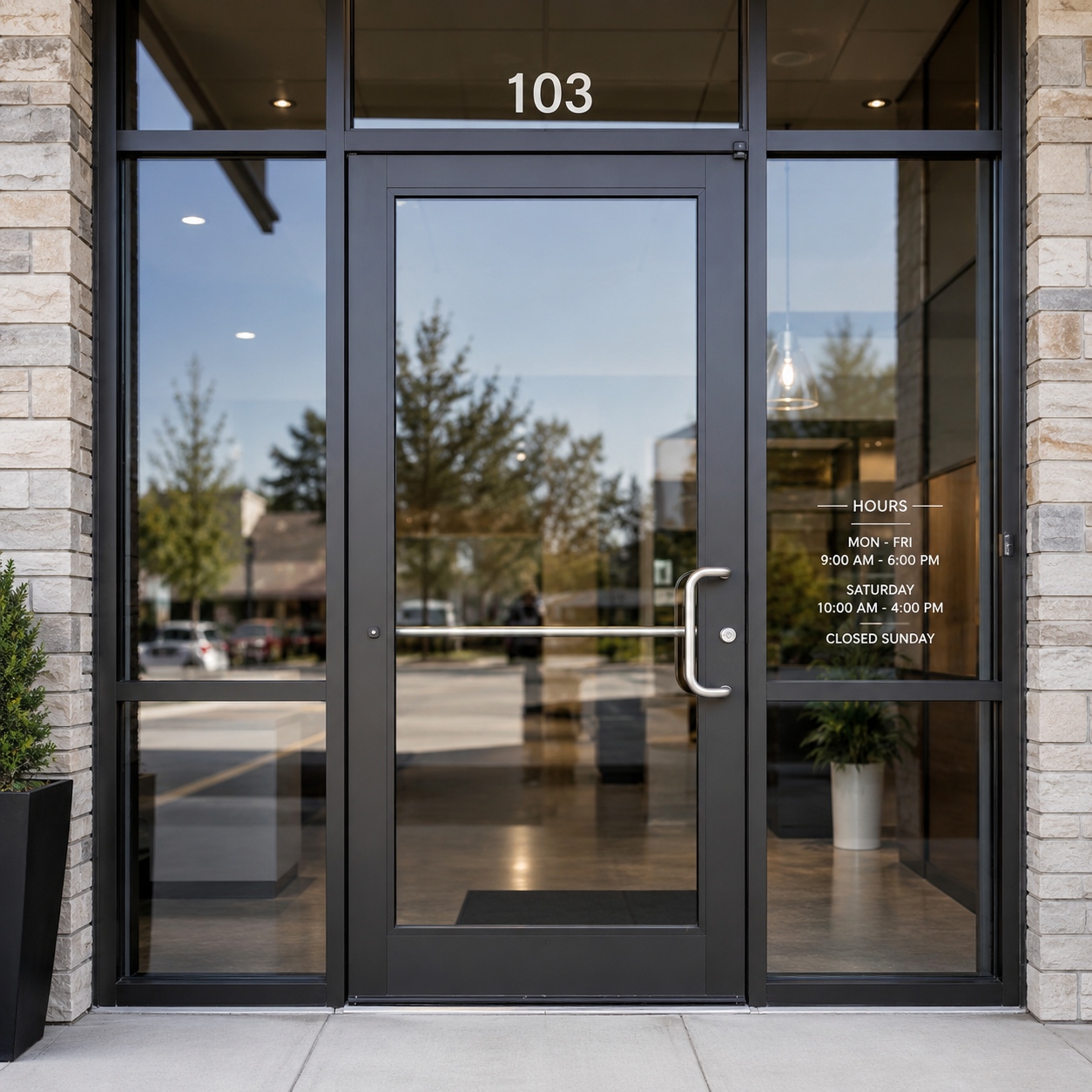

The commercial aluminum storefront door from DERCHI is a custom-engineered thermal break entrance system built for B2B project needs. It combines heavy-duty aluminum framing with high-performance glazing and robust hardware, offering energy efficiency and design flexibility.
- Energy-conscious thermal break options to reduce heat transfer and condensation.
- Extensive customization of dimensions, glass type, stile width, finish, and opening style.
- Project-based factory supply with flexible MOQ, from samples to full container orders.
Product Details
Constructed as a stile-and-rail system, each commercial aluminum storefront door uses 6063‑T5 aluminum profiles to withstand high-traffic commercial use. The thermal break—available as a polyurethane pour-and-debridge or polyamide strut—interrupts conductive heat flow, reducing energy loss and condensation risk. Large glass panels integrate with the frame to maximize natural light, making the entrance ideal for retail and office facades.
Unlike standard doors, this aluminum storefront entrance system offers modular stile widths from narrow 2‑1/8″ to wide 5″ profiles, allowing architects to balance sightlines and structural strength. An ADA‑compliant 10″ bottom rail option supports accessibility codes, while opening configurations range from single/double swing to sliding, bifold, pivot, and lift‑slide. This adaptability ensures the door can meet both functional requirements and visual identity of diverse commercial projects.
Product Features
Thermal Break Efficiency: Polyurethane or polyamide thermal barriers significantly reduce U‑factor and condensation, helping meet energy codes while lowering HVAC operating costs, enhancing long-term building efficiency and tenant comfort.
Heavy-Duty Frame Profiles: With wall thicknesses up to 2.5mm, the aluminum framing delivers structural integrity to withstand wind loads and frequent operation, reducing long‑term maintenance and deflection in high-traffic storefronts.
Advanced Glazing Options: Choose from tempered, insulated, Low‑E, laminated, or tinted glass with argon fill and warm‑edge spacers to optimize daylight, safety, and thermal performance. These options help meet diverse project requirements from visual comfort to hurricane impact resistance.
Durable Surface Finishes: AAMA 2605 PVDF coatings, anodizing, or powder coating provide long‑lasting color retention and weather resistance, customizable to any RAL code, ideal for maintaining consistent brand appearance across franchise locations.
Commercial Hardware Integration: The system accommodates multi‑point locks, panic hardware, closers, and smart locks, ensuring security and code compliance for high‑occupancy buildings. Hardware selection can be coordinated during the specification phase to match operational needs.
Engineered Water Management: Internal drainage channels and EPDM gaskets are designed to prevent water penetration and air leakage, supporting reliable performance in exposed locations. Proper installation and weep system detailing are critical; shop drawings provide guidance.
Customizable Styles
Frame Finish: Select from AAMA 2605 PVDF, anodized, powder coating, wood grain transfer, or any custom RAL color to match architectural specifications.
Glass Configuration: Choose tempered, insulated, Low‑E, argon‑filled, laminated, tinted, or triple‑glazed units to meet thermal, acoustic, and safety requirements; custom spacer options available upon request.
Stile Widths: Narrow (2‑1/8″–2‑1/2″), medium (3‑1/2″–4″), or wide (≥5″) profiles let you balance visual transparency with structural demands. The choice influences sightlines and wind resistance.
ADA Compliance: A 10″ bottom rail option can be specified instead of the standard 6‑1/2″ to meet accessibility standards without altering the door’s aesthetics.
Opening Configuration: The door can be built as single/double swing, sliding, bifold, pivot, or lift‑slide, adapting to space constraints and traffic flow.
Hardware Accessories
Commercial Hinges: Heavy‑duty hinges designed for commercial storefront door hardware support high‑frequency operation, available in stainless or extruded aluminum to match frame finishes.
Door Closers: Adjustable hydraulic closers provide controlled closing and back‑check, meeting accessibility and egress requirements; surface‑mounted or concealed types can be specified.
Multi‑Point Locks: A locking system with multiple engagement points enhances security, and it is compatible with keyed cylinders or electronic access control.
Panic Hardware: Crash bars or push‑pad devices can be integrated for emergency egress, complying with life safety codes in assembly and educational facilities.
Weather Seals: EPDM compression gaskets and silicone pile strips form a tight seal against air and water, critical for thermal and acoustic performance.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | Depends on glazing and thermal break selection; U‑factor and SHGC values not fixed. | Request project‑specific thermal simulation or NFRC certified values when available; glazing choice critical. |
Wind Pressure Resistance | Tested per ASTM E330; design pressure values supplied upon request. | Confirm local wind load requirements; design pressure based on door size and exposure must be verified. |
Water Tightness | References ASTM E331; water resistance varies by configuration. | Verify water penetration performance for exposed installations; project‑specific test data available. |
Air Tightness | ASTM E283 compliance; air leakage class depends on door size. | Actual infiltration rates confirmed during engineering review; standard class typically attainable. |
Sound Insulation | Not standard; achievable with laminated/acoustic glass. | STC ratings must be validated per chosen glazing; request if acoustic requirements apply. |
Product Specifications
Parameter | Value | Notes |
|---|---|---|
Product Type | Commercial aluminum storefront entrance system | Thermal break doors for B2B projects |
Frame Material | 6063‑T5 aluminum | Thermally broken profiles for energy efficiency |
Wall Thickness | 1.3mm – 2.5mm | Varies by profile and structural requirement |
Thermal Break Type | Polyurethane pour‑and‑debridge or polyamide strut | Confirmed during specification phase |
Glass Options | Tempered, insulated, Low‑E, argon‑filled, laminated, tinted; dual/triple pane available | Low‑E coatings and warm‑edge spacers optional |
Stile Widths | Narrow 2‑1/8″–2‑1/2″, Medium 3‑1/2″–4″, Wide ≥5″ | |
Bottom Rail | Standard 6‑1/2″; ADA 10″ available | |
Surface Finish | AAMA 2605 PVDF, anodized, powder coating, wood grain, custom RAL | RAL matching available upon request |
Opening Types | Single/double swing, sliding, bifold, pivot, lift‑slide | Lift‑slide and pivot subject to structural feasibility |
Custom Sizing | Full custom width/height; max panel subject to structural assessment | |
Certifications | NFRC, CE, EN 14351, AS2047, CSA, ISO9001, Energy Star, Hurricane Impact, ASTM E330/E283/E331 | Compliance must be verified per configuration and market; test reports on request |
Advantages
DERCHI brings clear advantages to B2B procurement of aluminum storefront doors:
Manufacturing Expertise: With over 25 years in aluminum fenestration, DERCHI’s 180,000㎡ factory leverages skilled engineering and advanced machinery to deliver reliable door systems.
Flexible Supply Chain: Factory‑direct sourcing supports MOQ from 1‑2 sample units to full container loads, with FOB, CIF, or DDP terms to suit project logistics.
Full Pre‑Sale Support: Architects receive CAD/BIM details, shop drawings, and water‑management detailing early in the design phase, reducing field coordination issues.
Performance Customization: Thermal break type, glazing, finish, and hardware are selected per project, ensuring compliance with energy codes and aesthetic demands.
Global Project Delivery: OEM branding, protective packaging, and after‑sales response within 8 hours help streamline installation and ongoing maintenance for international partners.
Application Scenarios
Apartment: For multi-family building entrances, a commercial aluminum storefront door provides a secure, thermally efficient entry that meets energy codes. Its heavy-duty hardware withstands daily traffic, and custom glazing can enhance natural light in corridors.
Home Office: Converting a residential space into a professional studio? A full-glass aluminum entrance door with Low‑E coating allows daylight while reducing heat gain, and quiet operation is achievable with appropriate closer selection.
Hotel: Grand lobby entrances demand excellent first impressions. A custom aluminum entrance door with PVDF finish and integrated multi‑point locking combines elegance with security, handling high guest traffic effortlessly.
Office Building: A storefront system with wide stile profiles and engineered water management ensures lobby doors remain weather‑tight and visually appealing, even under constant opening cycles.
Outdoor: For restaurant patios or exterior mall entrances, weather resistance is critical. The door’s thermal break and EPDM seals help control condensation, but buyers should confirm water tightness and corrosion protection for exposed sites.
Residential Building: Mixed-use developments benefit from ADA‑compliant bottom rails and durable finishes. The door’s design accommodates both secure entry and aesthetic harmony with surrounding architecture.
Exterior: When used as a primary facade entrance, wind pressure resistance and water penetration performance must be evaluated per ASTM standards. Confirm design pressure and drainage details with DERCHI’s engineering team.
Villa: Custom entry gates or garden doors achieve a high‑end look with wood‑grain finishes and narrow stile profiles for maximum glass area. Thermal break ensures indoor comfort regardless of climate.
FAQ
What is this product?
A commercial aluminum storefront door from DERCHI is a custom-engineered thermal break entrance system built for B2B projects. It integrates heavy-duty aluminum frames, high-performance glazing, and commercial hardware for energy-efficient, secure commercial openings.
Where can it be used?
It suits retail stores, shopping malls, office buildings, hotels, hospitals, schools, mixed-use complexes, and any high-traffic commercial entrance where durability and thermal performance matter.
Can it be customized?
Yes. Dimensions, stile width, glass type, finish, hardware, and opening configuration are all project-specific. ADA-compliant options and custom RAL colors are available.
What information is needed for a quote?
Provide door schedule, architectural drawings, desired wind load and thermal criteria, and target quantity. This enables accurate engineering and pricing for your B2B aluminum door project.
Can it be used for B2B projects?
Absolutely. We support OEM branding, bulk orders, and offer BIM/CAD integration. Flexible MOQ and trade terms (FOB, CIF, DDP) make it suitable for international contractors and developers.
Are technical documents available?
CAD details, shop drawings, and water-management plans are provided during the specification phase. Test reports for your chosen configuration can be requested before production.
What should buyers confirm before ordering?
Verify required certifications (NFRC, CE, etc.) for your market, confirm wind load and water tightness requirements, and ensure hardware compatibility with local codes.
How should buyers confirm certification, packaging, shipping, or compliance?
Compliance documentation is provided per project; confirm availability of specific test reports early. DERCHI offers protective packing and can ship FOB, CIF, or DDP worldwide.
