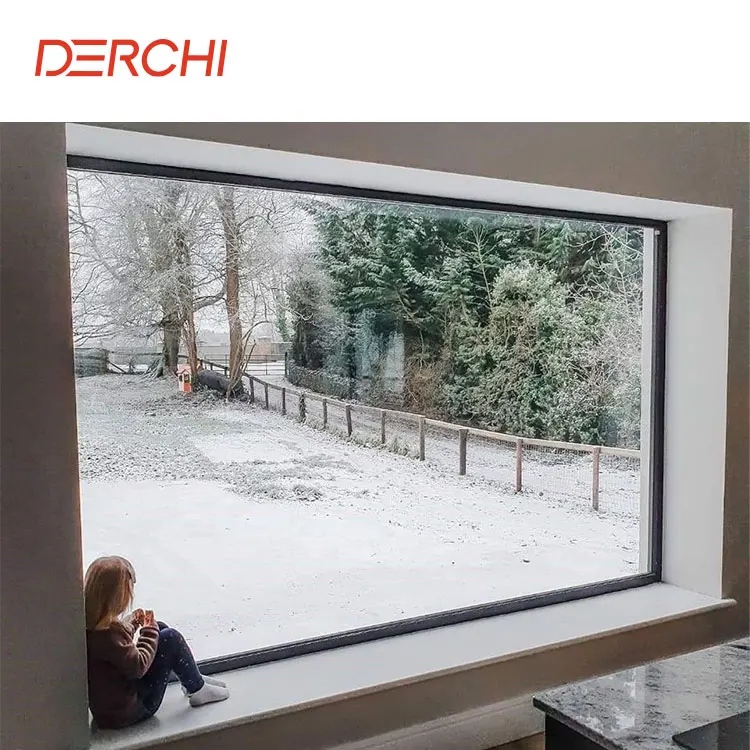

These 2 casement windows are built for B2B buyers managing multi-opening projects. Matched to DERCHI's high-performance thermal-break aluminum family, they pair structural stability with extensive customization for glass, hardware, and finish.
- Thermal-break 6063-T5 aluminum with PA66 insulation strips
- Standard 5+27A+5mm double tempered insulated glass with argon gas
- Configurable opening modes, sash styles, and WEHAG hardware options
Product Details
Structurally, these windows utilize thermal-break 6063-T5 aluminum profiles available in 109, 118, or 127 mm frame depths. The 2.0 mm profile thickness combined with PA66 insulation strips and a standard 5+27A+5 mm double tempered insulated glass unit creates a strong barrier against heat transfer, distinguishing it from non-thermal-break alternatives.
For project applications, the system accommodates multiple opening modes including outward casement, awning, and cranked-out configurations. This flexibility allows contractors to address specific ventilation, spatial, and performance requirements across different building zones, ensuring the 2 casement windows meet specific wind pressure and sound insulation targets.
Product Features
Thermal-Break Aluminum Structure: Features 6063-T5 aluminum with PA66 insulation strips, reducing heat transfer between interior and exterior environments for better energy efficiency in building projects.
Double Tempered Insulated Glass: Standard 5+27A+5mm argon-filled units help manage sound transmission and thermal control, supporting project-specific environmental targets.
Flexible Opening Modes: Available in outward casement, awning, or cranked-out configurations, allowing buyers to optimize ventilation and spatial usage per opening.
WEHAG Hardware System: Equipped with WEHAG handles and hinges paired with multi-point locking systems to support secure and smooth daily operation.
Glass Upgrade Options: Buyers can specify Low-E, laminated, triple, tinted, reflective, or frosted glass to meet specific acoustic, solar, or security requirements.
Extensive Color Range: Includes Pearl White, Quartz Gray, Starry Sky Black, and wood grain finishes, with custom PVDF colors available to match project facades.
Customizable Styles
Sash Configuration: Choose from single sash, double sash, side-opening with center fixed, or three-segment layouts based on opening dimensions and ventilation needs.
Frame Size: Custom width and height manufactured per opening; buyers should confirm specific dimensional limits with the selected series profile.
Glass Package: Standard double insulated glass or upgrade to Low-E, laminated, triple, tinted, reflective, or frosted configurations per project requirements.
Color Selection: Options include Pearl White, Quartz Gray, Starry Sky Black, Deep Sea Blue, and wood grain finishes, with custom PVDF colors available.
Opening Combination: Specify left or right opening, upper or lower fixed combinations, or irregular and bay window styles to suit architectural drawings.
Hardware Accessories
WEHAG Handle: Available in black or silver finish, providing smooth operational control and matching contemporary architectural hardware aesthetics.
WEHAG Hinge: Engineered for reliable outward opening performance, supporting the sash weight during daily operation and weather exposure.
Multi-Point Lock: Black two-point or six-point locking systems specified by series, enhancing window security and compression sealing.
Casement Limiters: Options include simple limiters or safety limiters to control opening angles, protecting against wind damage and ensuring occupant safety.
Screen Options: Select from anti-theft, 304 high-definition mesh, diamond mesh, or 48-mesh high-transparency screens based on insect and security needs.
Basic Parameters
Performance Item | Available Information | Buyer Notes |
|---|---|---|
Thermal Insulation | U-Factor 0.23 (target) | Target spec; confirm with final glass configuration. |
Wind Pressure Resistance | 5 KPa (target) | Target spec; confirm per final series and project wind zone. |
Water Tightness | 700 Pa (target) | Target spec; confirm per final series selection. |
Air Tightness | 1.2 m3/(m.h) (target) | Target spec; confirm per final series selection. |
Sound Insulation | 35 dB (target) | Target spec; confirm with glass package selection. |
Product Specifications
Specification | Details |
|---|---|
Product Name | 2 Casement Windows |
Product Type | Outward Casement / Cranked-Out Window Family |
Material | Thermal-break 6063-T5 Aluminum |
Frame Depth | 109/118/127 mm family |
Profile Thickness | 1.8-2.0 mm depending on series; 2.0 mm stated |
Insulation Strip | PA66/DERCHI |
Glass Configuration | 5+27A+5 mm double tempered insulated glass with argon |
Aluminum Spacer | PVDF |
Opening Sash Size Range | W350-750 mm x H400-1600 mm (confirm per series) |
Fixed Glass Max Area | Up to 8-12 m2 by series |
Hardware | WEHAG handle, hinge, multi-point lock |
Opening Style | Outward casement, awning, cranked-out, inward/tilt-turn |
Supply Ability | 20,000 m2/month |
Delivery Time | 25-35 days per official E6N terms |
Customization | Available per project drawings and window schedule |
Advantages
Multi-Series Family: Covers 109-127mm frame depths, allowing buyers to select the appropriate profile performance for different project zones and budgets.
Extensive Customization: Tailors sash configuration, glass package, color finish, and hardware options to meet specific architectural and functional requirements.
Export-Grade Packaging: Utilizes wooden frames, protective tape, pallet fixing, PE films, and air bags to protect against sea water and transit damage.
Manufacturing Capability: Backed by a 70,000 m2 facility with 600 employees and 100+ patents, supporting custom project demands and quality inspection.
B2B Supply Scale: Maintains a 20,000 m2/month supply ability, accommodating bulk orders for commercial and residential development projects.
Application Scenarios
Apartment: Outward opening mechanisms save interior space, making these windows suitable for compact urban units where floor space optimization is a priority.
Home Office: Sound insulation glass options help create a quieter working environment by reducing external street noise during business hours.
Hotel: Customizable color finishes and WEHAG hardware allow hotel projects to match interior design themes while maintaining secure guest room operation.
Office Building: Thermal-break aluminum frames support energy efficiency targets for commercial facades, helping manage heating and cooling loads.
Outdoor: Buyers should confirm water tightness, wind pressure resistance, and surface finish durability for outdoor-facing enclosure applications.
Residential Building: Multiple sash configurations and screen options provide flexible ventilation and insect protection for various room layouts.
Exterior: For exterior facade installations, confirm wind zone requirements, floor level, and structural anchoring conditions before finalizing the series.
Villa: Wood grain finishes and bay window style combinations allow architectural customization for high-end residential villa projects.
Inquiry Guidance
To request a quote, please share your project location, required size, quantity, preferred frame color, glass type, hardware requirements, and drawings or reference photos if available.
FAQ
What information is needed to get a quote for 2 casement windows?
Buyers should submit a window schedule detailing width, height, opening direction, glass type, color, and screen selection for each window. Providing project wind zone and floor level helps determine the correct series.
Can these windows be customized for specific project requirements?
Yes, customization covers sash configuration, glass package, color finish, and hardware options. Buyers should confirm specific dimensional limits and performance targets with the selected profile series.
What is the lead time for orders?
Delivery is typically 25-35 days per official E6N commercial terms. Buyers should confirm the exact lead time per order, as it may vary based on order volume and customization complexity.
Are the listed performance parameters guaranteed?
Parameters like 5 KPa wind resistance and 35 dB sound insulation are target specs. Actual performance depends on the final series selection, glass package, and project-specific conditions.
What certifications are available for these windows?
Global certifications including NFRC, CE, AS2047, CSA, and ISO9001 are cited on official DERCHI pages. Buyers should verify applicability per specific certification and project requirement.
How are the windows packaged for shipping?
Windows use export-grade packaging with wooden frames, protective tape, pallet fixing, plastic belts, PE films against sea water, and air bags between pallets to ensure safe overseas transit.
What should buyers confirm before placing an order?
Buyers should confirm the final model selection, rough opening dimensions, glass package details, hardware brand, and warranty terms with the supplier before proceeding to production.
